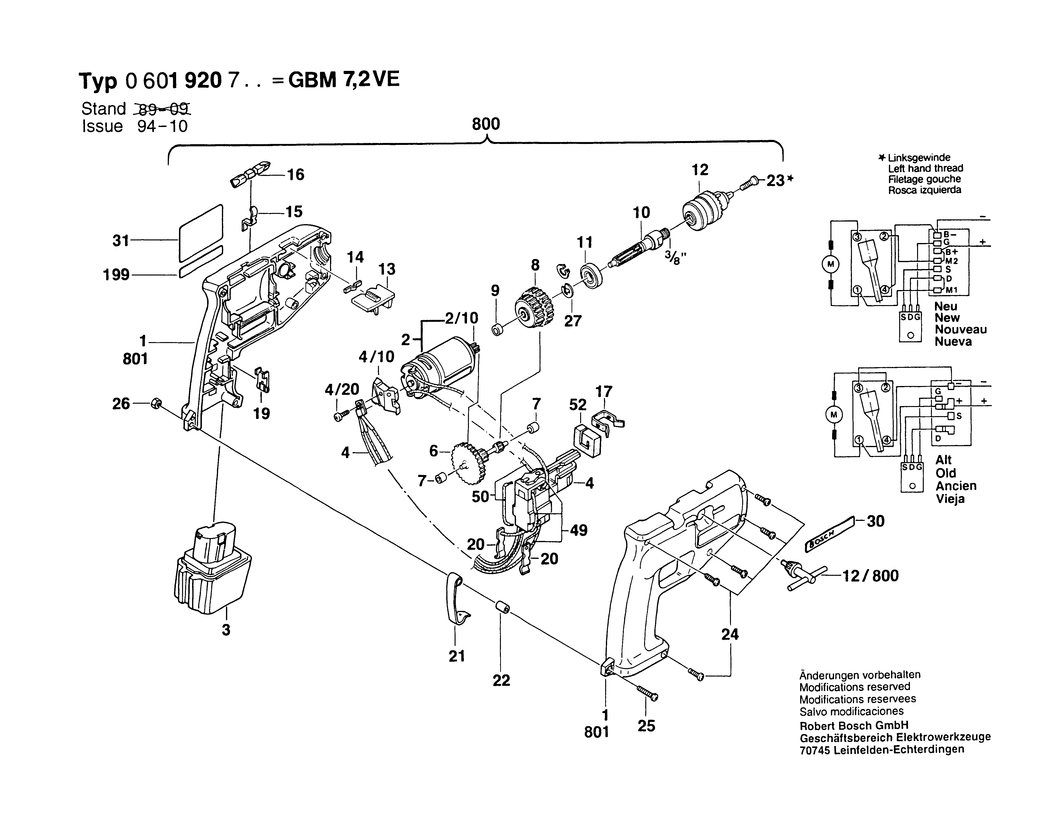

1 - HOUSING SECTION
BSD-2605104873.A15
2605104873
|
-
|
|
|
|
2 - DC MOTOR 7.2V
BSD-1609340003.A35
1609340003
|
-
|
|
|
|
2/10 - PINION Z=11
BSD-2606316112.A53
2606316112
|
£4.26
|
£5.11
|
|
|
3 - BATTERY PACK 7.2V
BSD-1609340000.A6
1609340000
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200302.A97
2607200302
|
£45.67
|
£54.80
|
|
|
4/10 - HEAT SINK
BSD-2605715000.A7
2605715000
|
-
|
|
|
|
4/20 - OVAL-HEAD SCREW DIN 7985-M3x8-4.8
BSD-2910641050.A115
2910641050
|
£1.75
|
£2.10
|
|
|
4/20 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1372
2603490017
|
£2.16
|
£2.59
|
|
|
6 - TOOTHED SHAFT Z=10/19/81
BSD-1609340005.A68
1609340005
|
£16.74
|
£20.09
|
|
|
7 - SINTERED-METAL BUSHING
BSD-2600302002.A302
2600302002
|
£1.75
|
£2.10
|
|
|
8 - SET OF GEARS Z=58/67
BSD-1609340007.A224
1609340007
|
£14.91
|
£17.89
|
|
|
9 - SINTERED-METAL BUSHING
BSD-2600301011.A361
2600301011
|
£1.75
|
£2.10
|
|
|
10 - DRILLING SPINDLE 3/8
BSD-2606135018.A18
2606135018
|
-
|
|
|
|
11 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A137
1900905120
|
-
|
|
|
|
12 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571058.A12
1608571058
|
£13.99
|
£16.79
|
|
|
12 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571066.A11
1608571066
|
-
|
|
|
|
12/800 - CHUCK WRENCH SG 1. dia4x60 MM
BSD-1607950042.A28
1607950042
|
£3.49
|
£4.19
|
|
|
13 - ADJUSTING SLIDE
BSD-2601099027.A19
2601099027
|
-
|
|
|
|
14 - RATCHET SPRING
BSD-1609340011.A16
1609340011
|
-
|
|
|
|
15 - HOLDING SPRING
BSD-2601250002.A146
2601250002
|
£1.32
|
£1.58
|
|
|
16 - SCREWDRIVER BLADE 6 MM
BSD-1609200147.A30
1609200147
|
£3.72
|
£4.47
|
|
|
17 - CLAMP SPRING
BSD-2601250003.A9
2601250003
|
-
|
|
|
|
19 - LOCKING LEVER 32.7 MM
BSD-1609340014.A16
1609340014
|
-
|
|
|
|
19 - LOCKING LEVER 36.5 MM
BSD-2601099026.A77
2601099026
|
-
|
|
|
|
20 - CONTACT SPRING
BSD-2601324012.A37
2601324012
|
£1.75
|
£2.10
|
|
|
21 - HOLDING SPRING dia8.7 MM
BSD-2601251002.A41
2601251002
|
-
|
|
|
|
21 - SPRING CLIP dia 6.2 MM
BSD-1609340016.A9
1609340016
|
-
|
|
|
|
22 - SPACER SLEEVE dia 6 MM
BSD-1609340017.A14
1609340017
|
-
|
|
|
|
23 - COUNTERSUNK-HEAD SCREW M5x20
BSD-2609110721.A230
2609110721
|
£2.16
|
£2.59
|
|
|
24 - SOCKET HEAD CAP SCREW
BSD-1609340019.A3
1609340019
|
-
|
|
|
|
24 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A130
2910611019
|
£2.80
|
£3.36
|
|
|
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x20-8.8
BSD-2910021130.A187
2910021130
|
£1.75
|
£2.10
|
|
|
26 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A407
2915011005
|
£1.75
|
£2.10
|
|
|
27 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A532
2916650001
|
£2.61
|
£3.13
|
|
|
27 - LOCKING WASHER
BSD-1609340020.A15
1609340020
|
-
|
|
|
|
30 - MANUFACTURER'S NAMEPLATE
BSD-1601110217.A11
1601110217
|
-
|
|
|
|
49 - CABLE L=52 MM
BSD-2604413005.A41
2604413005
|
-
|
|
|
|
50 - CABLE L=79 MM
BSD-2604413004.A141
2604413004
|
-
|
|
|
|
52 - DUST PROTECTION
BSD-2601010038.A144
2601010038
|
-
|
|
|
|
653 - FAST CHARGER GB 230/7.2-24V. 1h
BSD-2607224427.A68
2607224427
|
£103.14
|
£123.77
|
|
|
653 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN.
BSD-2607224703.A191
2607224703
|
£116.15
|
£139.38
|
|
|
800 - BATT-OPER DRILL
BSD-0601920723.A2
0601920723
|
-
|
|
|
|
800 - BATT-OPER DRILL
BSD-0601920761.A2
0601920761
|
-
|
|
|
|
801 - HOUSING SECTION
BSD-2605104873.A16
2605104873
|
-
|
|
|
