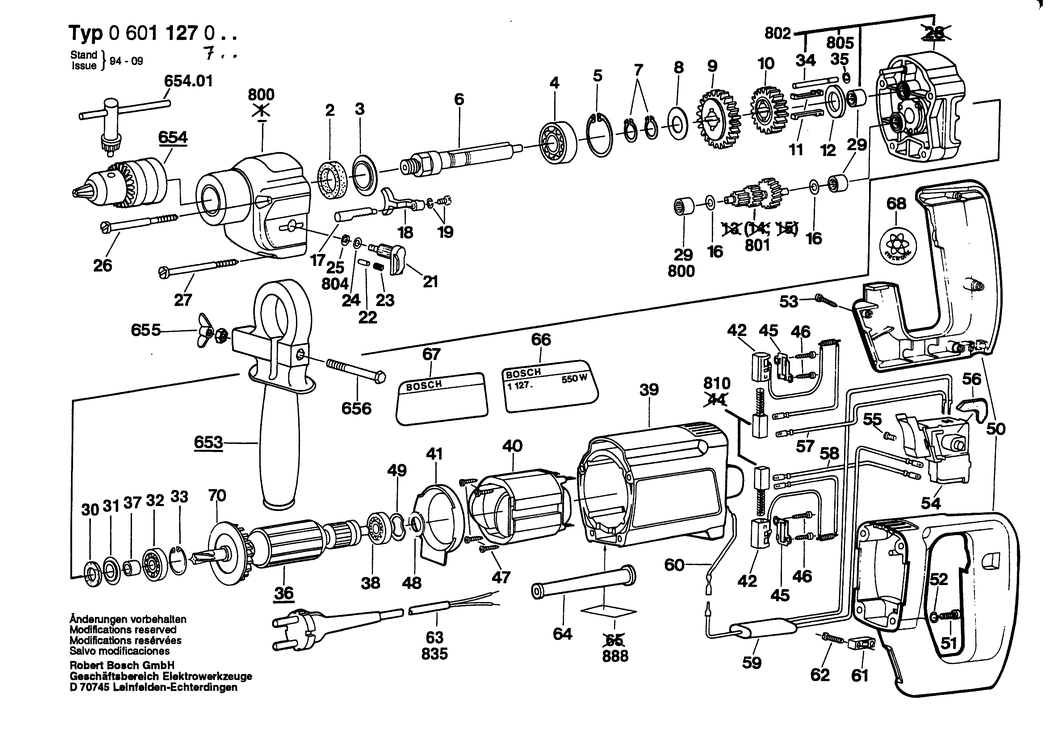

2 - FELT WASHER
BSD-2600108076.A22
2600108076
|
-
|
|
|
|
3 - CUPPED WASHER
BSD-2600550019.A7
2600550019
|
-
|
|
|
|
4 - BALL BEARING dia15 MM
BSD-1900905110.A27
1900905110
|
£10.10
|
£12.12
|
|
|
5 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A330
2916660013
|
£2.16
|
£2.59
|
|
|
6 - DRILLING SPINDLE 1/2. SW 17
BSD-2606135011.A71
2606135011
|
£27.31
|
£32.77
|
|
|
7 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A588
2916650006
|
£1.75
|
£2.10
|
|
|
8 - SHIM 0.5 MM
BSD-2600100695.A272
2600100695
|
£1.75
|
£2.10
|
|
|
9 - CYLINDRICAL GEAR
BSD-2606316316.A72
2606316316
|
£27.23
|
£32.68
|
|
|
10 - CYLINDRICAL GEAR Z=45
BSD-2606316105.A11
2606316105
|
-
|
|
|
|
11 - FLAT KEY
BSD-2602300033.A7
2602300033
|
£5.58
|
£6.70
|
|
|
12 - SHIM 1.5 MM
BSD-2600101668.A5
2600101668
|
£2.80
|
£3.36
|
|
|
16 - SHIM 0.3 MM
BSD-2600100607.A566
2600100607
|
£1.75
|
£2.10
|
|
|
17 - TOOTHED RACK
BSD-2603070010.A48
2603070010
|
-
|
|
|
|
18 - FORK LEVER
BSD-2602033002.A28
2602033002
|
-
|
|
|
|
19 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A207
2914501011
|
£1.75
|
£2.10
|
|
|
21 - ROTARY KNOB
BSD-2602026023.A29
2602026023
|
-
|
|
|
|
22 - RATCHET CAP
BSD-2600590006.A771
2600590006
|
£1.75
|
£2.10
|
|
|
23 - RATCHET CAP
BSD-2600590006.A772
2600590006
|
£1.75
|
£2.10
|
|
|
24 - SHIM WASHER
BSD-2600100618.A321
2600100618
|
£1.75
|
£2.10
|
|
|
25 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A285
2916080007
|
£2.61
|
£3.13
|
|
|
26 - HEADLESS SCREW
BSD-2603435017.A10
2603435017
|
£2.61
|
£3.13
|
|
|
27 - HEADLESS SCREW
BSD-2603435018.A57
2603435018
|
-
|
|
|
|
29 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A610
2600914010
|
£2.80
|
£3.36
|
|
|
30 - FELT WASHER
BSD-2600108077.A204
2600108077
|
£1.75
|
£2.10
|
|
|
31 - CUPPED WASHER
BSD-2600500002.A325
2600500002
|
£1.75
|
£2.10
|
|
|
32 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A424
2600905021
|
£8.67
|
£10.41
|
|
|
33 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A526
2916660008
|
£2.16
|
£2.59
|
|
|
34 - HOLDING PIN
BSD-2603100036.A24
2603100036
|
-
|
|
|
|
35 - LOCKING WASHER DIN 6799-3.2
BSD-2916080906.A69
2916080906
|
£1.75
|
£2.10
|
|
|
36 - ARMATURE 220-240V
BSD-2604010575.A32
2604010575
|
£54.42
|
£65.30
|
|
|
37 - RECEPTACLE
BSD-2600400008.A106
2600400008
|
£1.75
|
£2.10
|
|
|
38 - BALL BEARING 7x22x7
BSD-1900905018.A767
1900905018
|
£18.96
|
£22.75
|
|
|
39 - MOTOR HOUSING
BSD-2605108014.A32
2605108014
|
-
|
|
|
|
40 - FIELD 220-230V
BSD-2604220445.A39
2604220445
|
£27.23
|
£32.68
|
|
|
41 - COVER DISC
BSD-2601328033.A35
2601328033
|
-
|
|
|
|
42 - BRUSH HOLDER
BSD-2604337003.A284
2604337003
|
£2.16
|
£2.59
|
|
|
42 - SUPPRESSION FILTER
BSD-2604465068.A7
2604465068
|
-
|
|
|
|
45 - BRUSH PLATE
BSD-2601015047.A203
2601015047
|
-
|
|
|
|
46 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1243
2603490017
|
£2.16
|
£2.59
|
|
|
47 - TAPPING SCREW
BSD-2603435086.A284
2603435086
|
£1.75
|
£2.10
|
|
|
48 - SHIM 0.3 MM
BSD-2600101023.A99
2600101023
|
£1.75
|
£2.10
|
|
|
48 - SHIM 0.2 MM
BSD-2600101022.A551
2600101022
|
£1.75
|
£2.10
|
|
|
48 - SHIM 0.5 MM
BSD-2600101020.A99
2600101020
|
£1.75
|
£2.10
|
|
|
49 - SHIM
BSD-2600150004.A7
2600150004
|
£2.16
|
£2.59
|
|
|
50 - HANDLE
BSD-2605133000.A12
2605133000
|
-
|
|
|
|
51 - OVAL-HEAD SCREW DIN 7985-M4x25-8.8
BSD-2910951132.A41
2910951132
|
-
|
|
|
|
52 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A134
2916690003
|
£1.75
|
£2.10
|
|
|
53 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A815
2912401020
|
£2.16
|
£2.59
|
|
|
54 - SWITCH
BSD-2607200260.A27
2607200260
|
£11.30
|
£13.56
|
|
|
55 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A325
2603410001
|
£1.75
|
£2.10
|
|
|
56 - DAMPING PLATE
BSD-2601022000.A448
2601022000
|
£1.75
|
£2.10
|
|
|
57 - CABLE
BSD-2604448042.A11
2604448042
|
-
|
|
|
|
58 - CONNECTING CABLE
BSD-2604448036.A5
2604448036
|
-
|
|
|
|
59 - SUPPRESSION CAPACITOR
BSD-2607329103.A0
2607329103
|
-
|
|
|
|
60 - CABLE
BSD-2604448003.A202
2604448003
|
-
|
|
|
|
61 - CABLE CLIP
BSD-2601035001.A127
2601035001
|
£1.75
|
£2.10
|
|
|
62 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A359
2910611019
|
£2.80
|
£3.36
|
|
|
64 - GROMMET dia6.9 MM
BSD-2600707059.A371
2600707059
|
£3.72
|
£4.47
|
|
|
64 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A120
2600707060
|
£2.61
|
£3.13
|
|
|
64 - GROMMET dia8.8 MM
BSD-2600707061.A182
2600707061
|
£2.80
|
£3.36
|
|
|
66 - STICKER
BSD-2601110883.A0
2601110883
|
-
|
|
|
|
67 - STICKER
BSD-2601110093.A103
2601110093
|
-
|
|
|
|
70 - FAN
BSD-2606610049.A460
2606610049
|
£2.16
|
£2.59
|
|
|
653 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A405
1619P10682
|
£12.49
|
£14.99
|
|
|
654 - KEY CHUCK dia1.5-13 MM
BSD-1608571080.A84
1608571080
|
£27.23
|
£32.68
|
|
|
654/01 - CHUCK WRENCH SG2
BSD-2607950007.A1334
2607950007
|
£6.52
|
£7.83
|
|
|
655 - WING NUT M6 DIN 315-G-GTW-40
BSD-2915191006.A137
2915191006
|
-
|
|
|
|
656 - HEX SCREW DIN 931-M6x75-8.8
BSD-2911001220.A1
2911001220
|
-
|
|
|
|
800 - GEAR HOUSING
BSD-2605806972.A37
2605806972
|
-
|
|
|
|
801 - TOOTHED SHAFT Z= 10/20/29
BSD-2606308911.A18
2606308911
|
-
|
|
|
|
802 - INTERMEDIATE FLANGE
BSD-2605700932.A35
2605700932
|
-
|
|
|
|
804 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A283
2916080007
|
£2.61
|
£3.13
|
|
|
805 - LOCKING WASHER DIN 6799-2.3
BSD-2916080005.A196
2916080005
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A523
2604321905
|
£11.30
|
£13.56
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A79
1607000227
|
£23.86
|
£28.63
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A510
160111A3H3
|
£2.61
|
£3.13
|
|
