Black & Decker PF186 Type H1 Cordless Drill Spare Parts

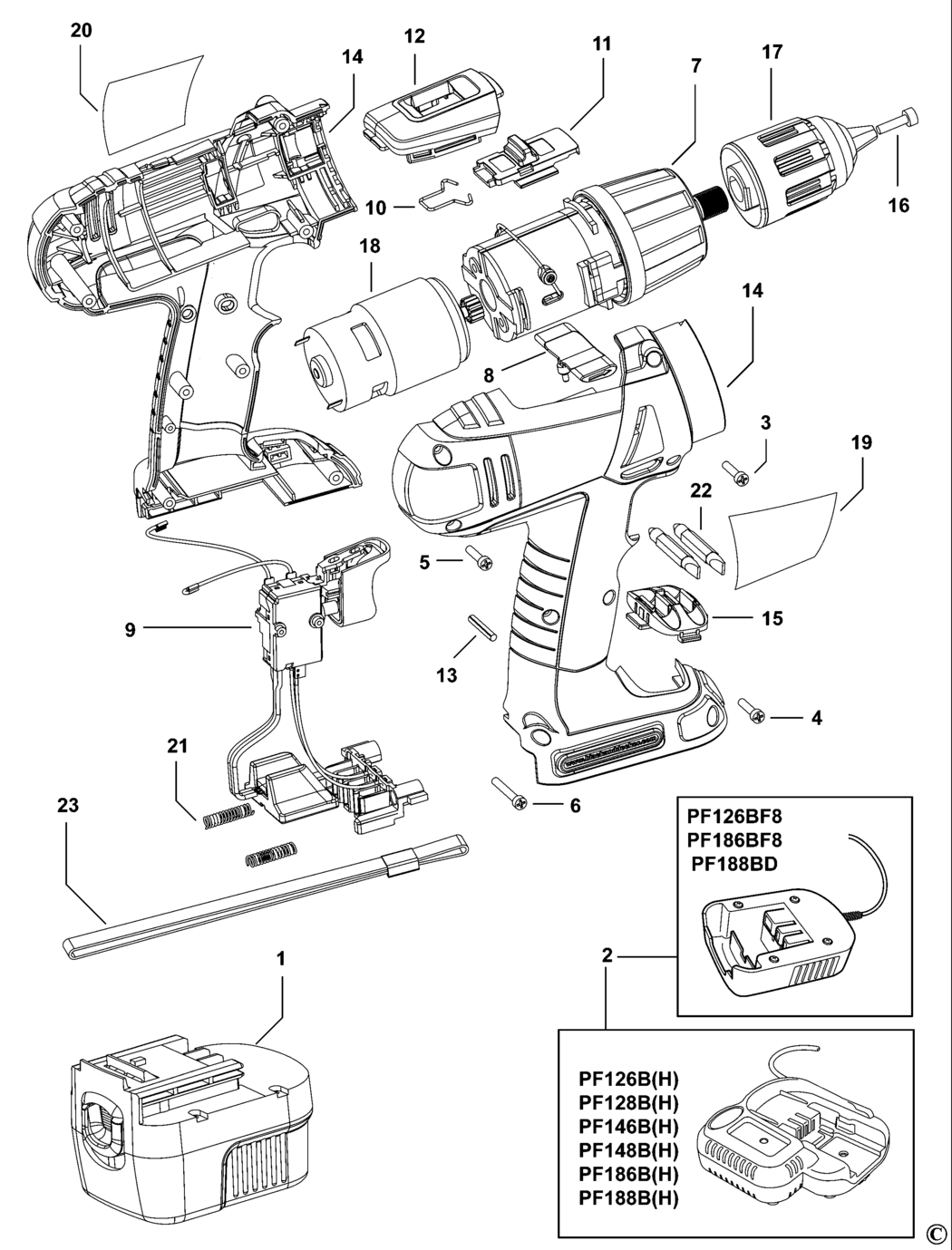

An exploded drawing and spare parts listing for the Black & Decker PF186 Type H1 Cordless Drill

	Ex VAT	Inc VAT
1 - BATTERY 18V - 1.5AH - 27WH PF186 GB BDE-5103553-00.A3 5103553-00	-
2 - CHARGER GB PF186B; PF186BH GB BDE-90523818.A19 90523818	-
2 - CHARGER GB PF186B GB BDE-90523818.A20 90523818	-
3 - SCREW BDE-311993-00.A22 311993-00	£1.42	£1.70
4 - SCREW BDE-5106167-00.A50 5106167-00	£1.50	£1.80
5 - SCREW BDE-486562-00.A22 486562-00	£1.42	£1.70
6 - SCREW BDE-5146421-00.A23 5146421-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A128622 000000-00	-
8 - ACTUATOR FWD/REV BDE-5145641-00.A1 5145641-00	-
9 - SWITCH SA BDE-5147011-00.A3 5147011-00	-
10 - WIRE BDE-5145504-00.A1 5145504-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A128623 000000-00	-
12 - COVER BDE-5145493-00.A1 5145493-00	-
13 - PIN BDE-5106169-00.A4 5106169-00	£1.50	£1.80
14 - CLAMSHELL SET BDE-5145837-02.A1 5145837-02	-
15 - NO LONGER AVAILABLE BDE-000000-00.A128628 000000-00	-
16 - SCREW BDE-5103096-01.A5 5103096-01	£1.50	£1.80
17 - CHUCK KEYLESS BDE-419233-17.A5 419233-17	-
18 - NO LONGER AVAILABLE BDE-000000-00.A128624 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A128625 000000-00	-
20 - NO LONGER AVAILABLE PF186BH GB BDE-000000-00.A128626 000000-00	-
20 - NO LONGER AVAILABLE PF186B GB BDE-000000-00.A128627 000000-00	-
21 - SPRING BDE-5100035-03.A133 5100035-03	£1.50	£1.80
22 - BIT BDE-419581-01.A49 419581-01	£1.50	£1.80
23 - STRAP BDE-5106149-01.A4 5106149-01	£1.42	£1.70
