Black & Decker P8000 Type 4 Rotary Hammer Spare Parts

Home Details Reviews Delivery

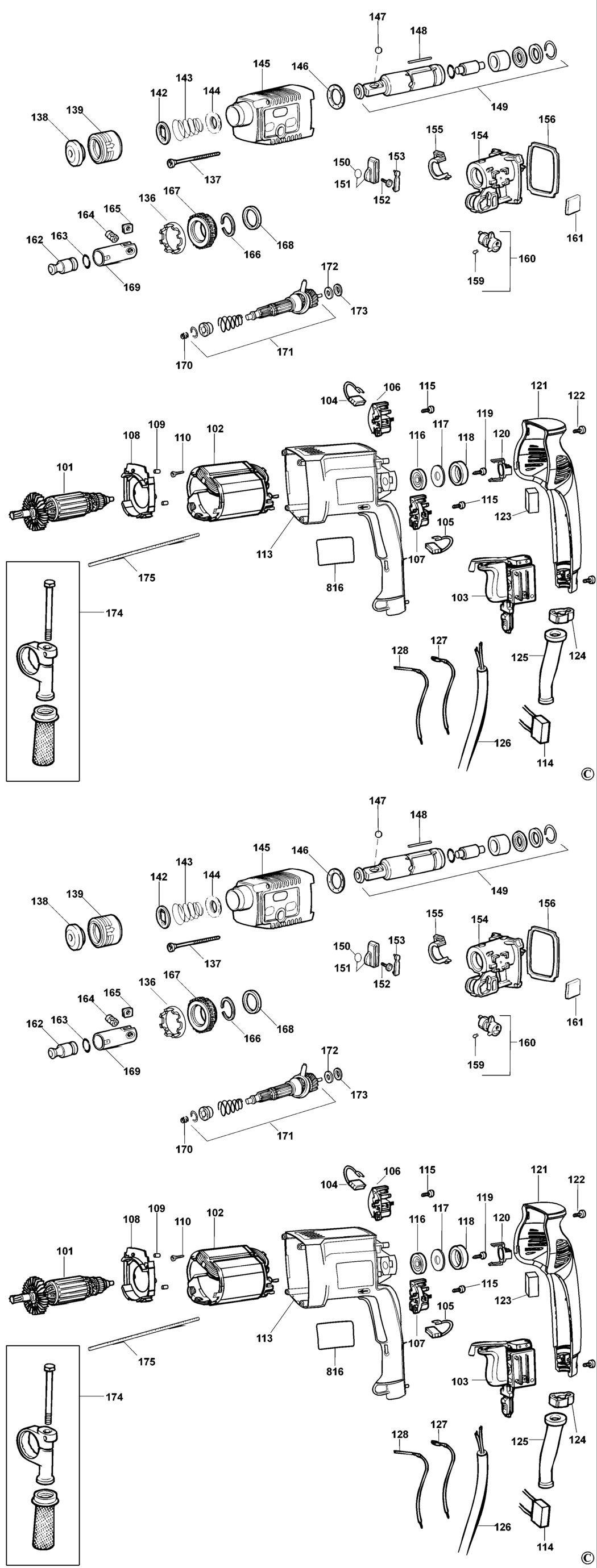

An exploded drawing and spare parts listing for the Black & Decker P8000 Type 4 Rotary Hammer

	Ex VAT	Inc VAT
102 - FIELD 230V BDE-328961-17.A5 328961-17	£24.39	£29.27
103 - NO LONGER AVAILABLE BDE-000000-00.A95157 000000-00	-
103 - SWITCH SA BDE-176830-13.A0 176830-13	-
104 - BRUSH 230V BDE-576980-02.A0 576980-02	-
105 - NO LONGER AVAILABLE BDE-000000-00.A95158 000000-00	-
105 - BRUSH 230V BDE-576980-04 576980-04	-
106 - BRUSH HOLDER SA BDE-401877-00.A19 401877-00	£3.39	£4.07
107 - BRUSH HOLDER SA BDE-401878-00.A1 401878-00	£3.22	£3.86
108 - BAFFLE FAN BDE-327293-00.A1 327293-00	-
108 - NO LONGER AVAILABLE BDE-000000-00.A95159 000000-00	-
109 - BUFFER BDE-949638-01.A159 949638-01	£1.66	£1.99
110 - SCREW BDE-747329.A826 747329	£1.66	£1.99
113 - HOUSING SA BDE-327290-05.A29 327290-05	-
115 - SCREW BDE-330065-06.A230 330065-06	£1.66	£1.99
116 - BEARING BDE-330003-19.A133 330003-19	£2.87	£3.44
117 - WASHER BDE-949876-25.A9 949876-25	£1.66	£1.99
118 - SLEEVE BDE-870052.A88 870052	£1.66	£1.99
119 - SCREW BDE-329794-00.A62 329794-00	£1.66	£1.99
120 - CAP BDE-327296-00.A41 327296-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A95160 000000-00	-
121 - SWITCH COVER BDE-327298-01.A6 327298-01	-
122 - SCREW BDE-330065-07.A53 330065-07	£1.66	£1.99
123 - BUMPER BDE-930026-01.A142 930026-01	£1.66	£1.99
127 - NO LONGER AVAILABLE BDE-000000-00.A95161 000000-00	-
127 - LEAD BLUE BDE-949801-70.A1 949801-70	-
128 - LEAD SA BDE-573310-00.A9 573310-00	-
136 - SPACER BDE-327110-00.A15 327110-00	£1.78	£2.13
137 - SCREW BDE-324044-02.A32 324044-02	£1.66	£1.99
138 - CAP BDE-323489-00.A141 323489-00	£1.66	£1.99
139 - NO LONGER AVAILABLE BDE-000000-00.A95162 000000-00	-
139 - COLLAR BDE-576756-00.A69 576756-00	-
142 - WASHER BDE-578387-00.A246 578387-00	£1.66	£1.99
143 - SPRING BDE-871690.A197 871690	£1.66	£1.99
144 - SEAL SA BDE-324432-00.A37 324432-00	£6.06	£7.27
145 - GEAR CASE SA BDE-329968-07.A3 329968-07	-
146 - WASHER BDE-329907-00.A23 329907-00	£8.08	£9.70
147 - BALL 7MM BDE-583890-00.A1 583890-00	£1.66	£1.99
147 - BALL 7MM BDE-870953.A4 870953	£3.92	£4.70
148 - PIN BDE-325880-05.A29 325880-05	£7.64	£9.17
149 - NO LONGER AVAILABLE BDE-000000-00.A95163 000000-00	-
149 - SPINDLE SA BDE-577080-01.A9 577080-01	-
150 - O RING BDE-916323.A37 916323	-
151 - NO LONGER AVAILABLE BDE-000000-00.A95165 000000-00	-
151 - LEVER BDE-327104-00.A1 327104-00	-
152 - SCREW BDE-323924-08.A36 323924-08	£1.66	£1.99
153 - NO LONGER AVAILABLE BDE-000000-00.A95164 000000-00	-
153 - COVER BDE-327092-00.A2 327092-00	-
154 - CASTING SA BDE-327100-00.A1 327100-00	-
155 - SHIELD BDE-328507-00.A28 328507-00	£3.70	£4.44
156 - NO LONGER AVAILABLE BDE-000000-00.A95166 000000-00	-
159 - DETENT BDE-326467-00.A352 326467-00	£1.66	£1.99
160 - CAM BDE-327094-01.A34 327094-01	£3.39	£4.07
161 - FILTER BDE-327093-00.A1 327093-00	£1.66	£1.99
162 - RAM SA BDE-N032136.A36 N032136	-
163 - O RING BDE-577168-00.A5 577168-00	£1.66	£1.99
164 - AXLE BDE-487143-00.A8 487143-00	£8.08	£9.70
165 - SHIM BDE-327072-00.A3 327072-00	£2.32	£2.78
166 - CIRCLIP BDE-323762-02.A10 323762-02	£1.66	£1.99
167 - CLUTCH SA BDE-487401-00.A13 487401-00	£23.75	£28.50
168 - RING BDE-327074-00.A40 327074-00	-
169 - NO LONGER AVAILABLE BDE-000000-00.A95167 000000-00	-
169 - PISTON BDE-487067-00.A30 487067-00	£20.50	£24.60
170 - SPRING BDE-323395-33.A29 323395-33	£1.78	£2.13
171 - INTERSHAFT SA BDE-327101-01.A41 327101-01	£67.48	£80.98
172 - BEARING AXIAL BDE-324430-03.A42 324430-03	-
173 - WASHER 7 BDE-324431-03.A80 324431-03	-
174 - HANDLE SIDE SA BDE-939794-02.A142 939794-02	£15.01	£18.01
175 - DEPTH STOP BDE-580787-00.A145 580787-00	£1.66	£1.99
816 - BRAND LABEL BDE-574571-01.A2 574571-01	-
