Black & Decker KR8542 Type 1 Drill Spare Parts

Home Details Reviews Delivery

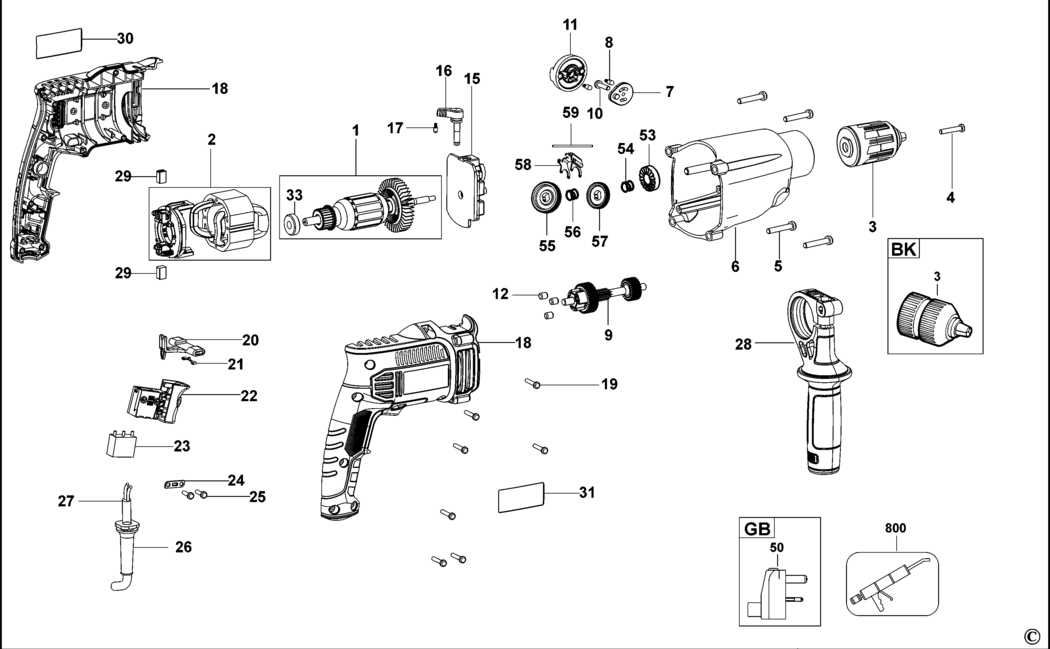

An exploded drawing and spare parts listing for the Black & Decker KR8542 Type 1 Drill

	Ex VAT	Inc VAT
1 - ARMATURE GB BDE-90573979 90573979	£35.02	£42.02
2 - FIELD SA BDE-90573880.A2 90573880	£30.98	£37.18
3 - CHUCK BDE-90571273.A1 90571273	£25.12	£30.15
4 - SCREW BDE-605256-02.A94 605256-02	£1.66	£1.99
5 - SCREW BDE-330019-14.A187 330019-14	£1.66	£1.99
6 - GEARCASE SA BDE-90567591.A2 90567591	£38.48	£46.17
7 - PLATE BDE-90567833.A1 90567833	£1.66	£1.99
8 - DETENT BDE-N403227.A47 N403227	£1.66	£1.99
9 - GEAR & SPINDLE SA BDE-90567760.A2 90567760	£18.00	£21.60
10 - SCREW BDE-330019-02.A90 330019-02	£1.66	£1.99
11 - KNOB BDE-90567835.A3 90567835	£1.66	£1.99
12 - PIN BDE-389129-00.A1 389129-00	£1.66	£1.99
15 - BEARING HOUSING BDE-90567554.A2 90567554	£19.48	£23.37
16 - LEVER BDE-90564365.A3 90564365	£2.87	£3.44
17 - DETENT BDE-N403227.A48 N403227	£1.66	£1.99
18 - HOUSING SA BDE-90573144N.A2 90573144N	£16.52	£19.82
19 - SCREW BDE-330019-03.A175 330019-03	£1.66	£1.99
20 - LEVER BDE-90568727.A2 90568727	£1.66	£1.99
21 - SPRING BDE-90560638.A9 90560638	£1.66	£1.99
22 - SWITCH SA BDE-90541944N.A5 90541944N	£12.18	£14.61
23 - CAPACITOR BDE-90563863.A2 90563863	£3.92	£4.70
24 - CORD CLAMP BDE-329301-00.A246 329301-00	£1.66	£1.99
25 - SCREW.TEMP BDE-330019-01.A53 330019-01	£1.66	£1.99
26 - CORD PROTECTOR BDE-90567404.A3 90567404	£1.66	£1.99
27 - CORDSET (EURO) BDE-90570474.A1 90570474	£8.08	£9.70
28 - SIDE HANDLE BDE-614670-00.A0 614670-00	£7.40	£8.88
29 - BRUSH BDE-90573527.A0 90573527	£1.88	£2.26
30 - BRAND LABEL BDE-90568926.A2 90568926	£1.66	£1.99
33 - BEARING BDE-574853-08.A105 574853-08	£1.66	£1.99
50 - ADAPTOR SA GB BDE-588384-00.A64 588384-00	-
53 - RATCHET BDE-622172-00.A8 622172-00	£1.66	£1.99
54 - SPRING BDE-629149-00.A1 629149-00	£1.66	£1.99
55 - GEAR BDE-90563338.A4 90563338	£4.83	£5.80
56 - SPRING COMPRESSION BDE-90563340.A4 90563340	£1.66	£1.99
57 - GEAR BDE-90563339.A0 90563339	£3.39	£4.07
58 - PLATE BDE-90566845.A3 90566845	£2.87	£3.44
59 - GUIDE ROD BDE-90563337.A0 90563337	£1.66	£1.99
800 - GREASE BDE-870889-03.A113 870889-03	£8.08	£9.70

Attribute Name	Value
Brand	Black & Decker
