Black & Decker KR702 Type 1 Hammer Drill Spare Parts

Home Details Reviews Delivery

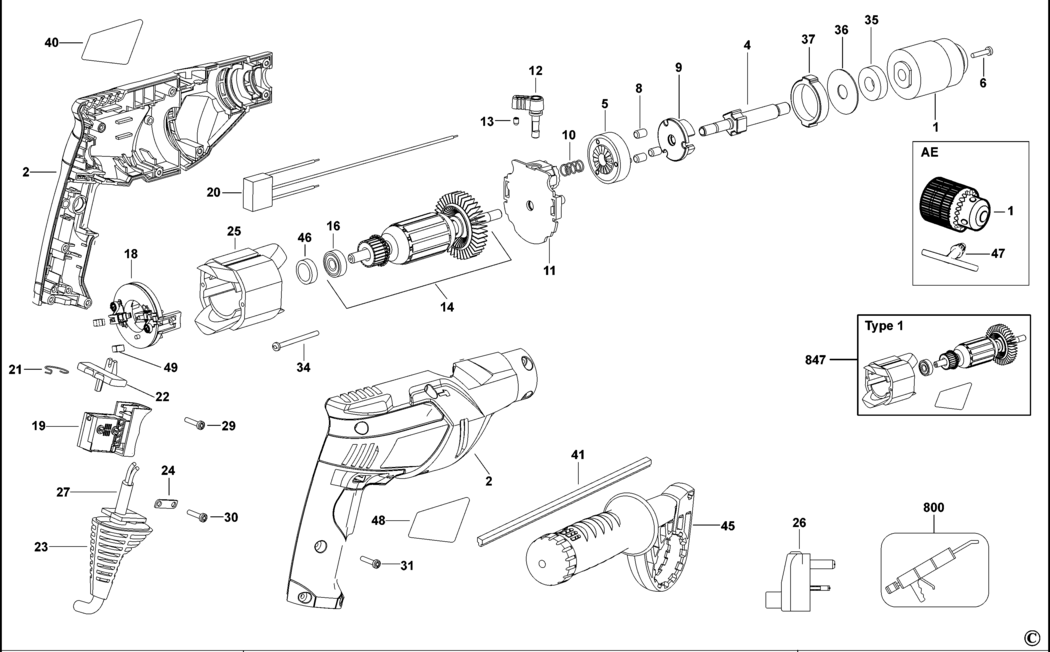

An exploded drawing and spare parts listing for the Black & Decker KR702 Type 1 Hammer Drill

	Ex VAT	Inc VAT
1 - CHUCK KEYLESS BDE-629530-01L.A1 629530-01L	£15.01	£18.01
2 - HOUSING SA BDE-492470-01.A1 492470-01	£18.91	£22.69
4 - SPINDLE SA BDE-488643-00.A9 488643-00	-
5 - GEAR BDE-488642-00.A0 488642-00	£10.85	£13.02
6 - SCREW.SPECIAL BDE-805434.A6 805434	£1.66	£1.99
8 - ROLLER BDE-478752-00.A0 478752-00	£1.66	£1.99
9 - CARRIER BDE-478748-00.A9 478748-00	£1.82	£2.19
10 - SPRING BDE-491055-00.A4 491055-00	£1.66	£1.99
11 - BEARING HOUSING BDE-488624-01.A4 488624-01	£2.78	£3.34
12 - SELECTOR SA BDE-490715-00.A9 490715-00	-
13 - DETENT BDE-N403227.A58 N403227	£1.66	£1.99
14 - ARMATURE SA BDE-645698-00.A0 645698-00	£38.80	£46.56
16 - BEARING BDE-606290-01.A21 606290-01	£1.66	£1.99
18 - BRUSH HOLDER SA BDE-90525184.A16 90525184	£6.06	£7.27
19 - SWITCH SA BDE-492291-00.A2 492291-00	-
20 - CAPACITOR BDE-492230-00.A2 492230-00	£1.82	£2.19
21 - SPRING BDE-629167-00.A0 629167-00	£1.66	£1.99
22 - LEVER BDE-629168-00.A22 629168-00	-
23 - CORD PROTECTOR BDE-635395-00.A15 635395-00	£1.66	£1.99
24 - CORD CLAMP BDE-329301-00.A103 329301-00	£1.66	£1.99
25 - FIELD SA BDE-645699-00.A2 645699-00	£19.90	£23.88
26 - ADAPTOR SA GB BDE-588384-00.A4 588384-00	-
27 - CORDSET INCL 26 GB BDE-589164-00.A14 589164-00	-
29 - SCREW BDE-911026.A139 911026	£1.66	£1.99
30 - SCREW BDE-330019-38.A12 330019-38	£1.66	£1.99
31 - SCREW BDE-90611830.A104 90611830	£1.66	£1.99
34 - SCREW BDE-330019-63.A29 330019-63	£1.66	£1.99
35 - BEARING BDE-606290-00.A7 606290-00	£2.87	£3.44
36 - WASHER BDE-478753-00.A6 478753-00	£1.66	£1.99
37 - LOCKING RING BDE-478793-00.A4 478793-00	£1.66	£1.99
40 - LABEL BDE-493395-00.A9 493395-00	£1.66	£1.99
41 - DEPTH STOP BDE-372814-00.A36 372814-00	£1.66	£1.99
45 - HANDLE SA BDE-614670-01.A8 614670-01	£7.40	£8.88
46 - SLEEVE BDE-635176-00.A10 635176-00	£1.66	£1.99
49 - BRUSH PAIR 230V BDE-90587238.A16 90587238	£2.87	£3.44
800 - GREASE 90 GMS BDE-870889-02.A582 870889-02	£8.08	£9.70

Attribute Name	Value
Brand	Black & Decker
