Black & Decker KR1001 Type 1 Hammer Drill Spare Parts

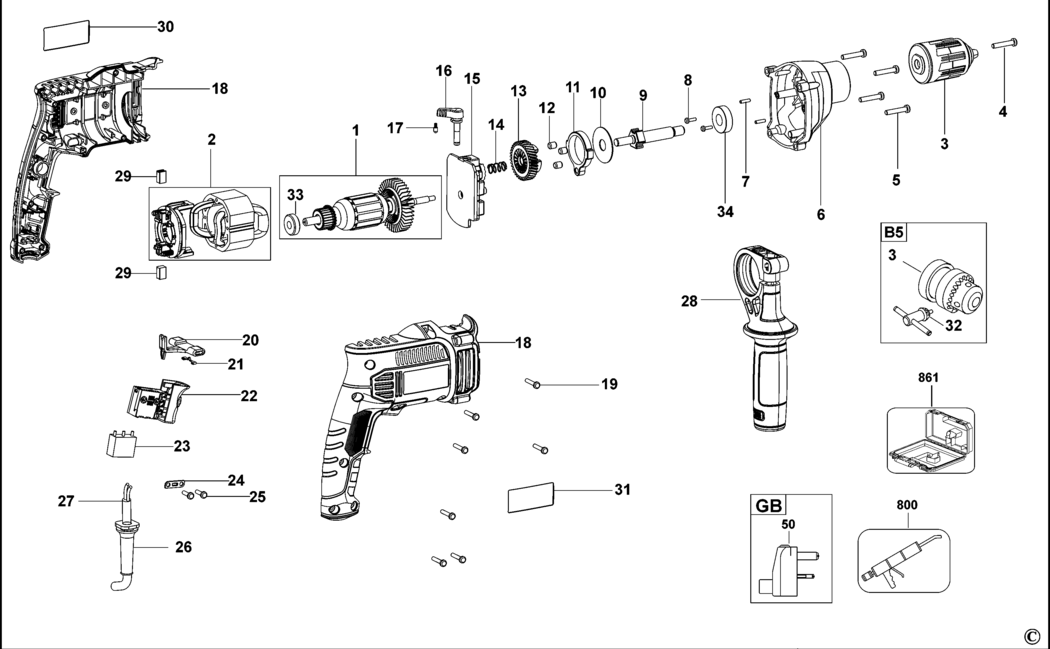

An exploded drawing and spare parts listing for the Black & Decker KR1001 Type 1 Hammer Drill

	Ex VAT	Inc VAT
1 - ARMATURE GB BDE-90573881 90573881	£38.80	£46.56
2 - FIELD SA BDE-90573882.A0 90573882	£34.00	£40.80
3 - CHUCK BDE-90571273-01 90571273-01	£24.39	£29.27
4 - SCREW.SPECIAL BDE-90552945.A3 90552945	£3.30	£3.96
5 - SCREW BDE-330019-32.A160 330019-32	£1.50	£1.80
6 - GEAR CASE SA BDE-90564350.A1 90564350	£14.57	£17.48
7 - PIN BDE-330041-12.A4 330041-12	£1.50	£1.80
8 - SCREW BDE-98091-10.A73 98091-10	£1.50	£1.80
9 - SPINDLE SA BDE-90564352.A1 90564352	£7.85	£9.42
10 - WASHER BDE-478753-00.A0 478753-00	£1.50	£1.80
11 - CARRIER BDE-90564351.A7 90564351	£2.26	£2.71
12 - PIN BDE-90571958.A7 90571958	£1.50	£1.80
13 - GEAR BDE-90567546.A3 90567546	£7.85	£9.42
14 - SPRING BDE-90571237.A7 90571237	£1.50	£1.80
15 - BEARING HOUSING BDE-90564356.A7 90564356	£16.03	£19.24
16 - LEVER BDE-90564365.A9 90564365	£2.78	£3.34
17 - PIN BDE-90573075.A2 90573075	£1.50	£1.80
18 - HOUSING SA BDE-90569059.A0 90569059	£19.90	£23.88
19 - SCREW BDE-330019-03.A178 330019-03	£1.50	£1.80
20 - LEVER BDE-90564324.A7 90564324	£1.50	£1.80
21 - SPRING BDE-90560638.A3 90560638	£1.50	£1.80
22 - SWITCH VARIABLE BDE-90564360N.A0 90564360N	£18.91	£22.69
23 - CAPACITOR BDE-90563863.A4 90563863	£3.80	£4.56
24 - CORD CLAMP BDE-329301-00.A251 329301-00	£1.50	£1.80
25 - SCREW.TEMP BDE-330019-01.A48 330019-01	£1.50	£1.80
26 - PROTECTOR BDE-770235.A420 770235	£1.50	£1.80
27 - CORDSET (EURO) BDE-90570472.A1 90570472	£7.85	£9.42
28 - HANDLE SA BDE-614670-01.A3 614670-01	£7.18	£8.62
29 - BRUSH BDE-90571664.A0 90571664	£3.80	£4.56
30 - BRAND LABEL BDE-90568926.A8 90568926	£1.50	£1.80
31 - RATING PLATE BDE-90568930 90568930	£1.50	£1.80
33 - BEARING BDE-574853-08.A99 574853-08	£1.50	£1.80
34 - BEARING BDE-606290-00.A13 606290-00	£2.78	£3.34
50 - ADAPTOR SA BDE-588384-00.A62 588384-00	-
800 - GREASE BDE-870889-03.A119 870889-03	£7.85	£9.42

Attribute Name	Value
Brand	Black & Decker
