Black & Decker HP146F Type 1 Cordless Drill Spare Parts

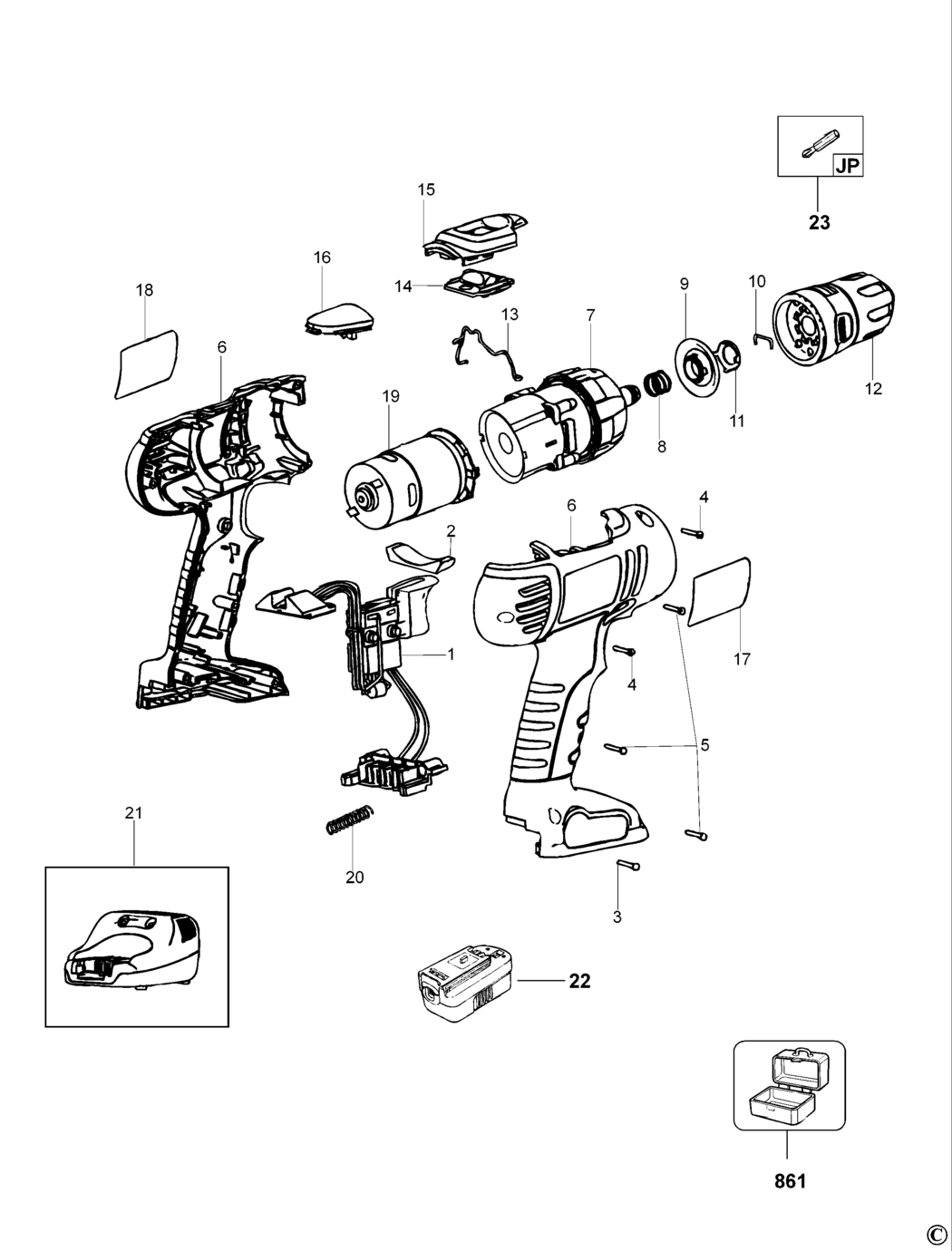

An exploded drawing and spare parts listing for the Black & Decker HP146F Type 1 Cordless Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE GB BDE-000000-00.A123784 000000-00	-
2 - ACTUATOR BDE-5100111-00.A13 5100111-00	-
3 - SCREW BDE-486562-00.A29 486562-00	£1.42	£1.70
4 - SCREW BDE-498099-00.A21 498099-00	£1.50	£1.80
5 - SCREW BDE-311993-00.A53 311993-00	£1.42	£1.70
6 - CLAMSHELL SET BDE-5101813-01.A1 5101813-01	-
7 - NO LONGER AVAILABLE BDE-000000-00.A123785 000000-00	-
8 - SPRING BDE-5100117-00.A7 5100117-00	£1.42	£1.70
9 - RING BDE-5100115-00.A2 5100115-00	£1.42	£1.70
10 - NO LONGER AVAILABLE BDE-000000-00.A123786 000000-00	-
11 - DISC BDE-5100776-00.A8 5100776-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A123787 000000-00	-
12 - NO LONGER AVAILABLE upgrade BDE-000000-00.A123788 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A123789 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A123790 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A123791 000000-00	-
16 - NO LONGER AVAILABLE GB BDE-000000-00.A123792 000000-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A123793 000000-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A123794 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A123795 000000-00	-
20 - SPRING BDE-5100035-01.A10 5100035-01	£1.42	£1.70
21 - CHARGER GB BDE-90500873.A9 90500873	-
22 - BATTERY 14.4V - 1.2AH BDE-5147159-00.A10 5147159-00	-

Attribute Name	Value
Brand	Black & Decker
