Black & Decker BL500R Type 1 Hammer Drill Spare Parts

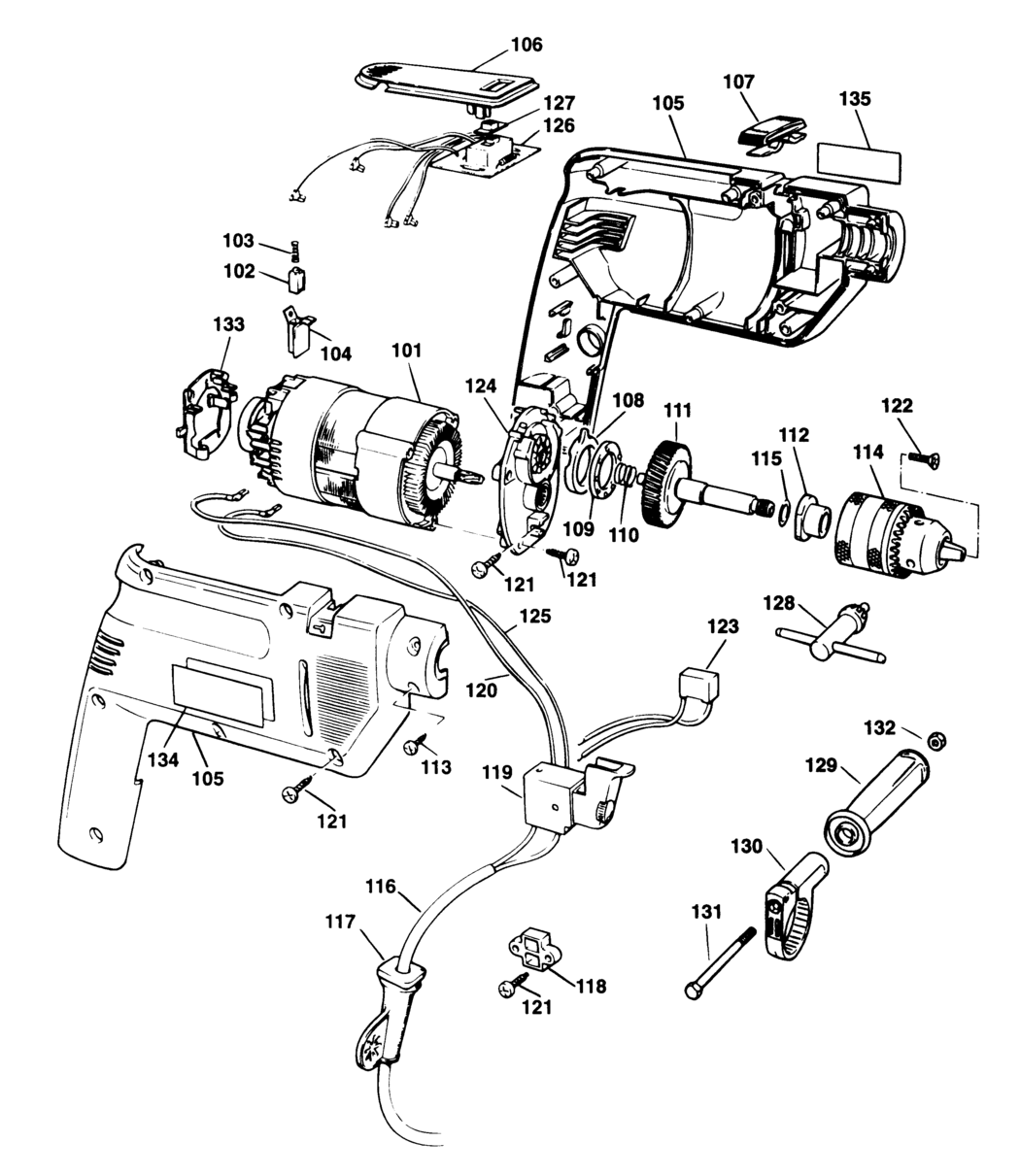

An exploded drawing and spare parts listing for the Black & Decker BL500R Type 1 Hammer Drill

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE GB BDE-000000-00.A100226 000000-00	-
102 - BRUSH BDE-376143.A0 376143	-
103 - SPRING BDE-847709.A223 847709	£3.30	£3.96
104 - NO LONGER AVAILABLE BDE-000000-00.A100227 000000-00	-
106 - NO LONGER AVAILABLE BDE-000000-00.A100228 000000-00	-
108 - NO LONGER AVAILABLE BDE-000000-00.A100229 000000-00	-
109 - BEARING BDE-892261.A48 892261	-
110 - SPRING BDE-821986.A199 821986	-
111 - SPINDLE SA BDE-747323-49.A22 747323-49	-
112 - BEARING BDE-812973.A2 812973	-
113 - NO LONGER AVAILABLE BDE-000000-00.A100232 000000-00	-
114 - CHUCK 13MM BDE-330033-23.A159 330033-23	£16.03	£19.24
115 - NO LONGER AVAILABLE BDE-000000-00.A100230 000000-00	-
116 - NO LONGER AVAILABLE GB BDE-000000-00.A100231 000000-00	-
117 - PROTECTOR BDE-770236.A158 770236	£1.50	£1.80
118 - CABLE CLAMP BDE-994808.A24 994808	£1.42	£1.70
119 - NO LONGER AVAILABLE BDE-000000-00.A100233 000000-00	-
120 - NO LONGER AVAILABLE BDE-000000-00.A100234 000000-00	-
121 - SCREW BDE-809961.A43 809961	-
122 - SCREW.SPECIAL BDE-805434.A142 805434	£1.50	£1.80
123 - NO LONGER AVAILABLE BDE-000000-00.A100235 000000-00	-
124 - NO LONGER AVAILABLE BDE-000000-00.A100236 000000-00	-
125 - NO LONGER AVAILABLE BDE-000000-00.A100237 000000-00	-
126 - NO LONGER AVAILABLE BDE-000000-00.A100238 000000-00	-
127 - NO LONGER AVAILABLE BDE-000000-00.A100239 000000-00	-
128 - CHUCK KEY BDE-330034-07.A77 330034-07	£1.66	£1.99
129 - NO LONGER AVAILABLE BDE-000000-00.A100240 000000-00	-
130 - NO LONGER AVAILABLE BDE-000000-00.A100241 000000-00	-
131 - SCREW BDE-813918.A194 813918	-
132 - NUT BDE-896369.A106 896369	£1.78	£2.13
133 - NO LONGER AVAILABLE BDE-000000-00.A100242 000000-00	-
135 - NO LONGER AVAILABLE KD5200 BDE-000000-00.A100243 000000-00	-
135 - NO LONGER AVAILABLE BL520R BDE-000000-00.A100244 000000-00	-
137 - NO LONGER AVAILABLE PART NOT DRAWN BDE-000000-00.A100245 000000-00	-

Attribute Name	Value
Brand	Black & Decker
