Black & Decker 1963 Type 1 Cordless Drill Spare Parts

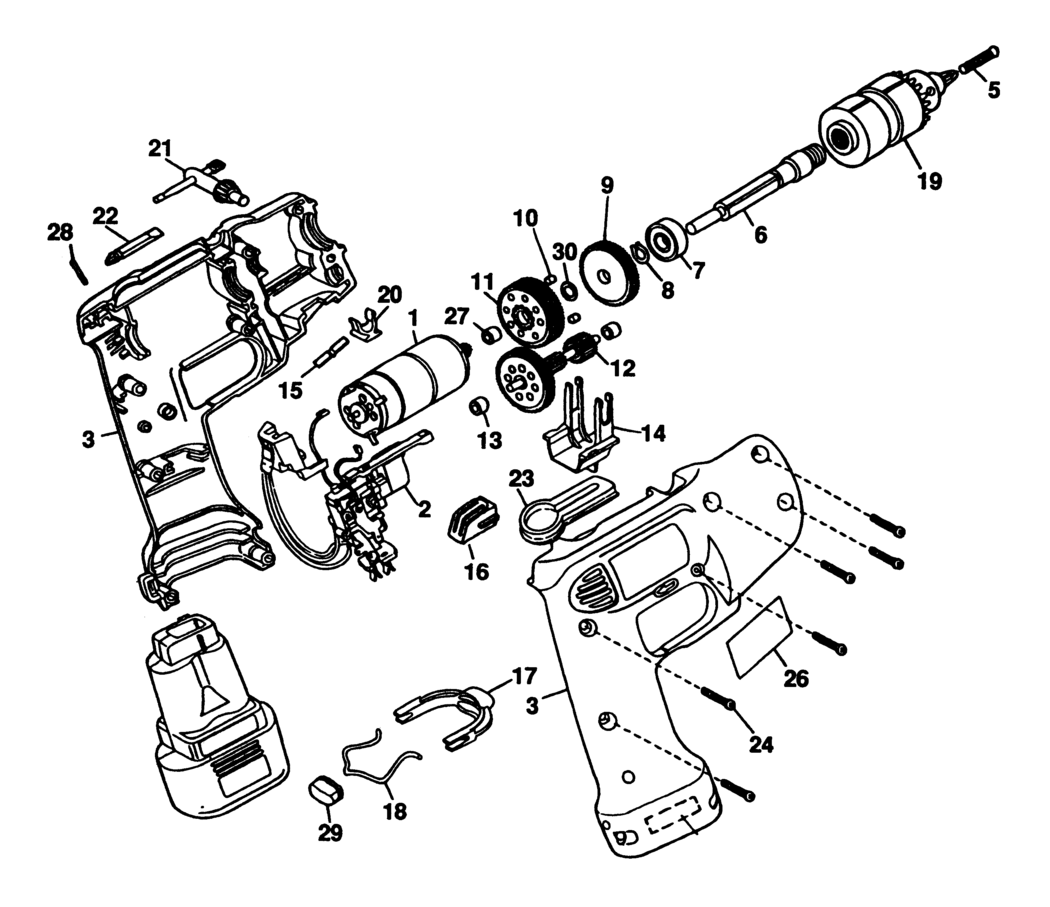

An exploded drawing and spare parts listing for the Black & Decker 1963 Type 1 Cordless Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A104731 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A104732 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A104733 000000-00	-
5 - NO LONGER AVAILABLE KEYED CHUCK BDE-000000-00.A104734 000000-00	-
5 - SCREW KEYLESS CHUCK BDE-149518-01.A16 149518-01	£1.50	£1.80
6 - NO LONGER AVAILABLE BDE-000000-00.A104735 000000-00	-
7 - BEARING BDE-605040-15.A42 605040-15	£4.69	£5.63
8 - NO LONGER AVAILABLE BDE-000000-00.A71416 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A71417 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A71418 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A71419 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A71420 000000-00	-
15 - SPRING BDE-144658-00.A48 144658-00	£1.78	£2.13
17 - NO LONGER AVAILABLE BDE-000000-00.A71421 000000-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A71422 000000-00	-
19 - NO LONGER AVAILABLE KEYED CHUCK BDE-000000-00.A71423 000000-00	-
19 - NO LONGER AVAILABLE KEYLESS CHUCK BDE-000000-00.A71424 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A71425 000000-00	-
21 - CHUCK KEY 10MM KEYED CHUCK BDE-330034-00.A71 330034-00	-
22 - BIT PHILLIPS BDE-297757-02.A121 297757-02	£1.82	£2.19
24 - SCREW BDE-330013-04.A79 330013-04	-
27 - NO LONGER AVAILABLE BDE-000000-00.A71426 000000-00	-
28 - PIN BDE-46376-00.A36 46376-00	£1.50	£1.80
29 - NO LONGER AVAILABLE BDE-000000-00.A71427 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A71428 000000-00	-

Attribute Name	Value
Brand	Black & Decker
