Fein MBS 25 F (50/60Hz 220/230V) / 90319223000 Spare Parts

Fein MBS 25 F ⡐/60Hz 220/230V) / 90319223000 Spare Parts

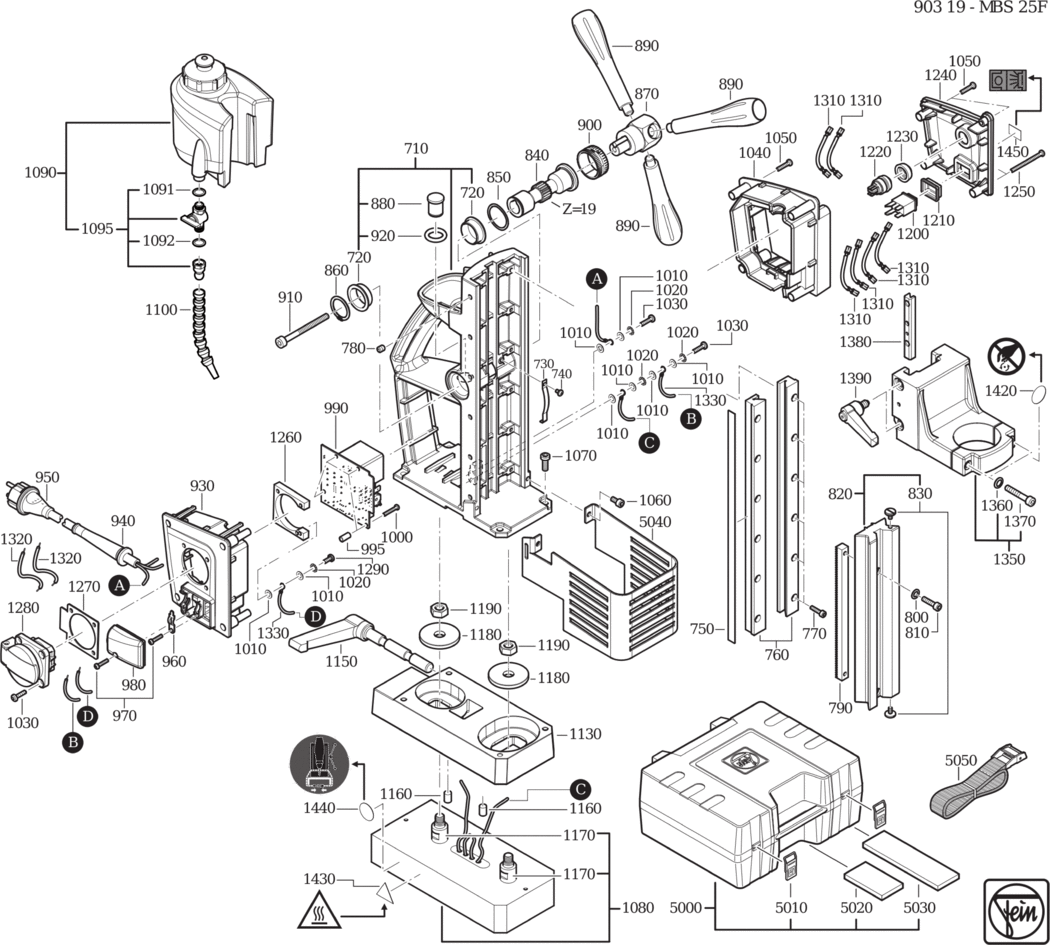

An exploded diagram and spare parts listing for the Fein MBS 25 F (50/60Hz 220/230V) / 90319223000

	Ex VAT	Inc VAT
710 - HOUSING FEI-31207295010.A13 31207295010	-
720 - BUSH FEI-31602089009.A39 31602089009	-
730 - LEAF SPRING FEI-30904041001.A60 30904041001	£5.78	£6.94
740 - FILLISTER HEAD SCREW FEI-43041026994.A14 43041026994	-
750 - PRESSURE PIECE FEI-33216054000.A41 33216054000	-
760 - GUIDE STRIP FEI-33218126000.A33 33218126000	-
770 - CYLINDER HEAD SCREW FEI-43035076041.A86 43035076041	£1.60	£1.92
780 - SET SCREW FEI-43058008051.A24 43058008051	-
790 - GEAR RACK FEI-33812007004.A21 33812007004	£101.03	£121.24
810 - CYLINDER HEAD SCREW FEI-43035017057.A24 43035017057	£1.60	£1.92
820 - GUIDE FEI-34300000047.A30 34300000047	-
830 - FLAT HEADED SCREW FEI-33218118010.A27 33218118010	£1.60	£1.92
840 - SHAFT TOOTHED Z=19 FEI-33713071000.A7 33713071000	-
850 - DISC FEI-42446003009.A34 42446003009	£1.60	£1.92
860 - CIRCLIP FEI-42616065008.A17 42616065008	-
870 - CONNECTING PIECE FEI-30109201010.A43 30109201010	-
880 - PLUG FEI-30241035000.A2 30241035000	-
890 - HANDLE FEI-32119114014.A46 32119114014	£19.35	£23.22
900 - SCALE FEI-32636046000.A36 32636046000	-
910 - CYLINDER HEAD SCREW FEI-43035084062.A20 43035084062	-
920 - SEALING RING FEI-40612171000.A65 40612171000	-
930 - COVER FEI-32429152000.A0 32429152000	-
940 - PROTECTIVE HOSE FEI-31413237000.A111 31413237000	£2.74	£3.29
950 - CABLE WITH PLUG FEI-30707423010.A0 30707423010	-
960 - CABLE CLAMPING PIECE FEI-32431043002.A171 32431043002	£1.60	£1.92
970 - SCREW FEI-43074010000.A0 43074010000	£1.60	£1.92
980 - COVER FEI-32424031000.A19 32424031000	£12.77	£15.32
990 - ELECTRONICS FEI-30762479990.A1 30762479990	-
995 - SLEEVE FEI-30501367000.A0 30501367000	-
1000 - SCREW 35X20 FEI-43074002000.A8 43074002000	£1.60	£1.92
1010 - DISC FEI-42404005048.A85 42404005048	£1.60	£1.92
1020 - LOCK WASHER FEI-42439013046.A39 42439013046	£1.60	£1.92
1030 - FILLISTER HEAD SCREW FEI-43064024043.A31 43064024043	-
1040 - COVER FEI-32429156000.A14 32429156000	-
1050 - SCREW FEI-43074008000.A14 43074008000	£1.60	£1.92
1060 - CYLINDER HEAD SCREW FEI-43035013058.A86 43035013058	£1.60	£1.92
1070 - CYLINDER HEAD SCREW FEI-43033064066.A0 43033064066	£1.60	£1.92
1080 - MAGNETIC FOOT FEI-33216057010.A3 33216057010	-
1090 - CONTAINER FEI-32132035010.A63 32132035010	£44.58	£53.50
1091 - SEALING RING FEI-40612112007.A75 40612112007	£1.60	£1.92
1092 - SEALING RING FEI-40612087004.A48 40612087004	£1.60	£1.92
1095 - BALL COCK SET FEI-30240357010.A33 30240357010	£22.73	£27.28
1100 - FLEX-JOINTED HOSE FEI-31414070010.A62 31414070010	£25.70	£30.84
1130 - INTERMEDIATE GEAR BOX FEI-32432079010.A2 32432079010	-
1150 - LEVER FEI-32170020000.A11 32170020000	-
1160 - ROLLER FEI-41709041004.A13 41709041004	-
1170 - BOLT FEI-30217353000.A0 30217353000	-
1180 - DISC FEI-32408419000.A0 32408419000	-
1190 - HEX NUT FEI-42001010103.A8 42001010103	-
1200 - SWITCH FEI-30701303000.A0 30701303000	-
1210 - PROTECTIVE CAP FEI-30701303099.A1 30701303099	-
1220 - BUTTON FEI-30701223005.A18 30701223005	£14.97	£17.96
1230 - CAP FEI-30701224003.A30 30701224003	£5.50	£6.60
1240 - COVER FEI-32429153000.A0 32429153000	-
1250 - SCREW FEI-43072013005.A24 43072013005	£1.60	£1.92
1260 - HOLDER FEI-32432080000.A0 32432080000	-
1270 - SEAL FEI-30610051000.A1 30610051000	-
1280 - SOCKET FEI-30728344005.A4 30728344005	£17.13	£20.56
1290 - FILLISTER HEAD SCREW FEI-43064023045.A58 43064023045	£1.60	£1.92
1310 - CONNECTING CABLE FEI-30719879010.A1 30719879010	-
1320 - CONNECTING CABLE FEI-30719877010.A1 30719877010	-
1330 - CONNECTING CABLE FEI-30719878010.A6 30719878010	-
1350 - HOLDER FEI-33206089010.A0 33206089010	-
1360 - CIRCLIP M6 FEI-42443005064.A20 42443005064	£1.60	£1.92
1370 - CYLINDER HEAD SCREW FEI-43035137067.A4 43035137067	-
1380 - PRESSURE PIECE FEI-33218134000.A15 33218134000	-
1390 - LEVER FEI-32170025000.A1 32170025000	£26.84	£32.21
1420 - STICKER FEI-32217406002.A52 32217406002	£1.60	£1.92
1440 - INFORMATION SIGN FEI-32217507060.A21 32217507060	-
1450 - INFORMATION SIGN FEI-32217495060.A0 32217495060	-
5000 - CASE FEI-33901142140.A23 33901142140	£127.98	£153.57
5010 - WIRE CLAMP FEI-30232050000.A234 30232050000	£10.78	£12.94
5020 - PLATE FEI-33904486000.A0 33904486000	-
5030 - PLATE FEI-33904487000.A32 33904487000	-
5040 - PROTECTIVE GRILLE FEI-31810186000.A5 31810186000	-
5050 - STRAP SAFETY FEI-32174008007.A46 32174008007	£33.23	£39.88
9020 - SAFETY INSTRUCTION FEI-34130054061.A682 34130054061	-
