Fein MBS 16 (50/60Hz 220/230V) / 90317223009 Spare Parts

Fein MBS 16 ⡐/60Hz 220/230V) / 90317223009 Spare Parts

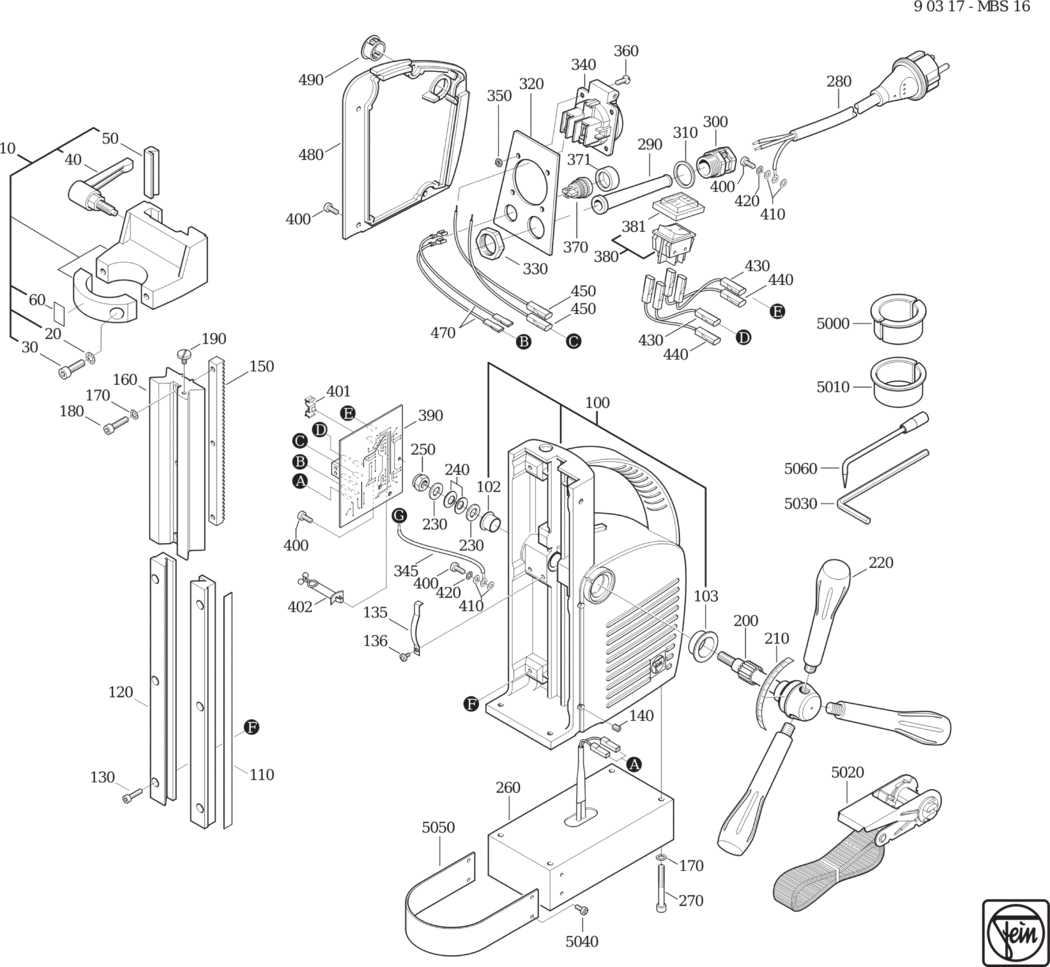

An exploded diagram and spare parts listing for the Fein MBS 16 (50/60Hz 220/230V) / 90317223009

	Ex VAT	Inc VAT
10 - HOLDER SET FEI-33206090020.A0 33206090020	-
20 - CIRCLIP M6 FEI-42443005064.A34 42443005064	£1.60	£1.92
30 - CYLINDER HEAD SCREW FEI-43035136063.A3 43035136063	-
40 - LEVER FEI-32170017007.A7 32170017007	£27.20	£32.64
50 - PRESSURE PIECE FEI-30240240007.A13 30240240007	£17.11	£20.53
60 - STICKER FEI-32217406002.A49 32217406002	£1.60	£1.92
100 - HOUSING FEI-31207276020.A0 31207276020	-
102 - BUSH FEI-31602081001.A14 31602081001	-
103 - BUSH FEI-31602092003.A7 31602092003	-
110 - PRESSURE PIECE FEI-33216047000.A33 33216047000	£5.35	£6.42
120 - GUIDE STRIP FEI-33218117000.A4 33218117000	£43.78	£52.53
130 - CYLINDER HEAD SCREW FEI-43035076041.A54 43035076041	£1.60	£1.92
135 - LEAF SPRING FEI-30904041001.A32 30904041001	£5.78	£6.94
136 - FILLISTER HEAD SCREW FEI-43041026994.A64 43041026994	-
140 - SET SCREW FEI-43058008051.A65 43058008051	-
150 - GEAR RACK FEI-33812007004.A78 33812007004	£101.03	£121.24
160 - GUIDE FEI-33218116006.A2 33218116006	£84.85	£101.82
170 - CIRCLIP M5 FEI-42443004057.A215 42443004057	£1.60	£1.92
180 - CYLINDER HEAD SCREW FEI-43035017057.A86 43035017057	£1.60	£1.92
190 - FLAT HEADED SCREW FEI-43013048041.A10 43013048041	£1.60	£1.92
200 - SHAFT FEI-33713068008.A8 33713068008	-
210 - SCALE FEI-33213008009.A10 33213008009	£8.34	£10.01
220 - HANDLE FEI-32119114014.A66 32119114014	£19.35	£23.22
230 - DISC FEI-42401019085.A79 42401019085	£1.60	£1.92
240 - CUP SPRING FEI-30905055000.A18 30905055000	-
250 - NUT FEI-42019006080.A9 42019006080	£1.60	£1.92
260 - MAGNETIC FOOT FEI-33216046015.A0 33216046015	£370.89	£445.07
270 - CYLINDER HEAD SCREW FEI-43035021050.A8 43035021050	-
280 - CABLE WITH PLUG FEI-30707423010.A9 30707423010	-
290 - CABLE GROMMET FEI-31413007007.A48 31413007007	£1.60	£1.92
300 - SCREW CONNECTION FEI-30723044003.A17 30723044003	£28.66	£34.39
310 - SEAL FEI-30610034008.A9 30610034008	£1.60	£1.92
320 - PLATE FEI-32422318010.A0 32422318010	-
330 - NUT FEI-30723043005.A4 30723043005	£2.73	£3.28
340 - SOCKET FEI-30728344005.A7 30728344005	£17.13	£20.56
345 - CONNECTING CABLE FEI-30719878010.A7 30719878010	-
350 - HEX NUT FEI-42001027045.A2 42001027045	£1.60	£1.92
360 - COUNTERSUNK SCREW FEI-43060034041.A0 43060034041	-
370 - BUTTON FEI-30701223005.A42 30701223005	£14.97	£17.96
371 - CAP FEI-30701224003.A6 30701224003	£5.50	£6.60
380 - SWITCH FEI-30701281000.A6 30701281000	£34.57	£41.48
381 - CAP FEI-32816059009.A0 32816059009	£3.11	£3.73
390 - ELECTRONICS FEI-30762213991.A5 30762213991	£264.61	£317.53
400 - FILLISTER HEAD SCREW FEI-43064023045.A36 43064023045	£1.60	£1.92
401 - CABLE HOLDER FEI-30240255004.A0 30240255004	-
402 - CABLE HOLDER FEI-30240254000.A0 30240254000	-
410 - DISC FEI-42404005048.A83 42404005048	£1.60	£1.92
420 - LOCK WASHER FEI-42439013046.A118 42439013046	£1.60	£1.92
430 - CONNECTING CABLE FEI-30719614010.A0 30719614010	-
450 - CONNECTING CABLE FEI-30719877010.A0 30719877010	-
470 - CONNECTING CABLE FEI-30719879010.A0 30719879010	-
480 - COVER FEI-32429135010.A1 32429135010	-
490 - PLUG FEI-41115011008.A0 41115011008	-
5000 - REDUCING RINGS FEI-32623012019.A0 32623012019	£58.75	£70.50
5010 - REDUCING RINGS FEI-32623013004.A0 32623013004	£45.96	£55.15
5020 - STRAP SAFETY FEI-32174008007.A90 32174008007	£33.23	£39.88
5030 - ALLEN KEY SW5 FEI-62907011009.A28 62907011009	£3.29	£3.95
5040 - FILLISTER HEAD SCREW FEI-43064008044.A21 43064008044	£1.60	£1.92
5050 - CONTACT AND SWARF PROTECTION FEI-31810247019.A0 31810247019	£37.55	£45.06
5060 - HOOK F. CHIP REMOVAL FEI-64201001000.A0 64201001000	£61.87	£74.24
