Bosch UniversalDrill 18 / 3603JC8000 / EU 18 Volt Spare Parts

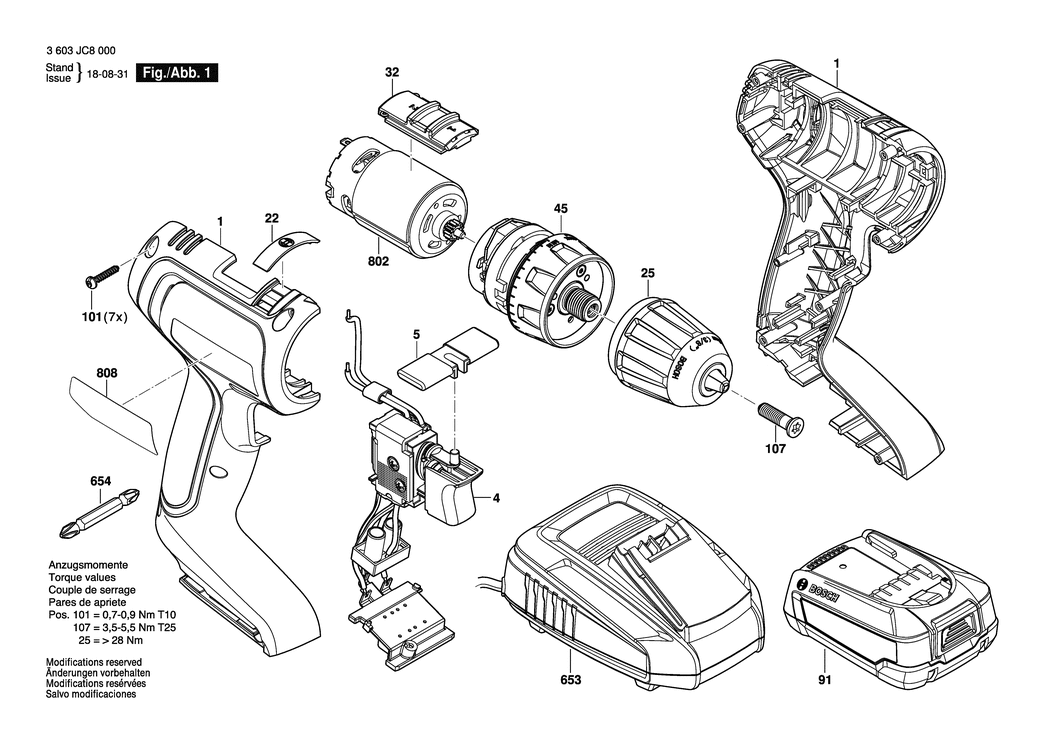

An exploded drawing and listing for the Bosch UniversalDrill 18 / 3603JC8000 / EU 18 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-16058065VR.A0 16058065VR	-
4 - ELECTRONICS MODULE BSD-2607202396.A0 2607202396	-
5 - CHANGE-OVER SWITCH BSD-1600A01AA2.A0 1600A01AA2	-
22 - SYMBOL PLATE BSD-1600A01AS2.A0 1600A01AS2	-
25 - KEYLESS CHUCK BSD-1600A0103S.A6 1600A0103S	£21.52	£25.83
32 - SWITCHOVER UNIT BSD-1600A01B09.A0 1600A01B09	-
45 - GEAR BOX BSD-1600A01B0A.A0 1600A01B0A	-
91 - BATTERY PACK PBA 18V 1.5Ah W-A BSD-2607337187.A3 2607337187	£63.50	£76.20
101 - TORX FLAT-HEAD SCREW 3x16 BSD-2609110201.A27 2609110201	£2.16	£2.59
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A76 2603421229	£1.75	£2.10
653 - CHARGER EU AL 1815 CV 230/14.4-18V 3h BSD-2607226077.A24 2607226077	£41.62	£49.95
654 - SCREWDRIVER BIT BSD-2609160063.A46 2609160063	£3.72	£4.47
802 - MOTOR ASSEMBLY BSD-1600A01DD0.A0 1600A01DD0	-
808 - NAMEPLATE BSD-160111A6KG.A0 160111A6KG	-
