Bosch PSR 960 / 0603944660 / EU 9.6 Volt Spare Parts

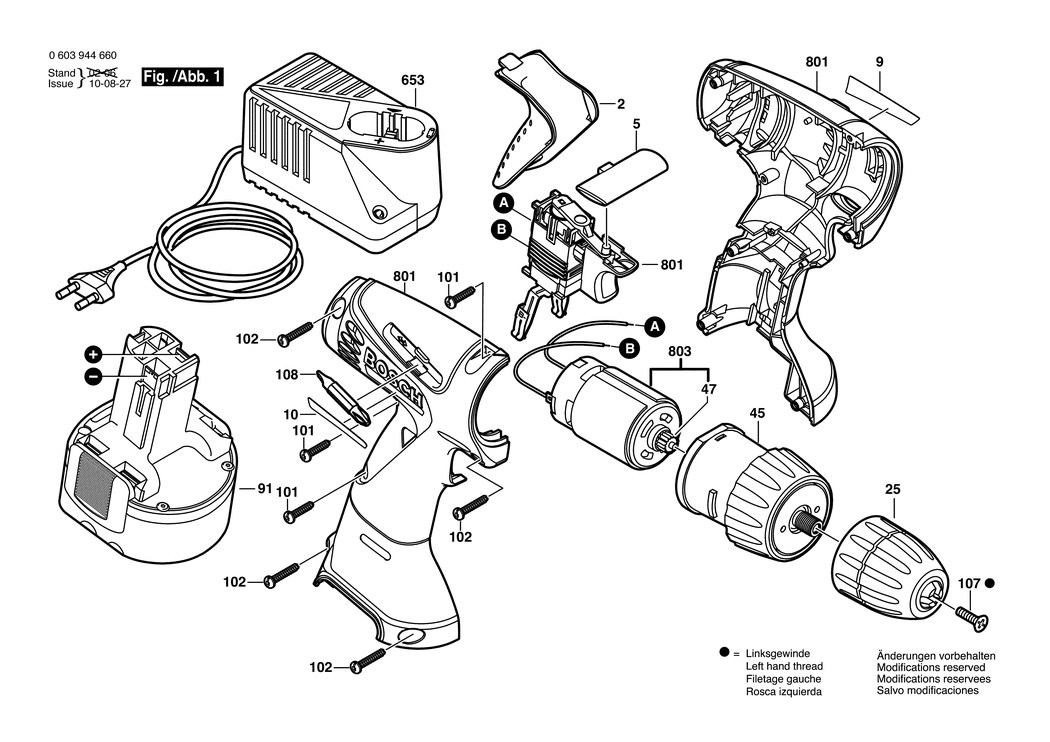

An exploded drawing and listing for the Bosch PSR 960 / 0603944660 / EU 9.6 Volt

	Ex VAT	Inc VAT
2 - CAP-HANDLE BSD-2609100162.A3 2609100162	£5.01	£6.01
4 - ON-OFF SWITCH BSD-2607200425.A0 2607200425	-
5 - REVERSE-TRANSFER LEVER BSD-2609100634.A3 2609100634	£1.75	£2.10
9 - REFERENCE PLATE BSD-2609130451.A1 2609130451	£3.72	£4.47
10 - NAMEPLATE BSD-2609130454.A0 2609130454	£3.72	£4.47
25 - KEYLESS CHUCK BSD-2609110278.A2 2609110278	£45.67	£54.80
45 - GEAR BOX BSD-2609199215.A3 2609199215	£18.96	£22.75
47 - PINION BSD-2609110097.A16 2609110097	£2.16	£2.59
91 - ACCUMULATOR BATTERY 9.6V.1.2Ah.NiCd BSD-2607335461.A0 2607335461	£41.62	£49.95
101 - TORX OVAL-HEAD SCREW BSD-2609110190.A0 2609110190	£1.75	£2.10
102 - TORX OVAL-HEAD SCREW BSD-2609110080.A24 2609110080	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A0 2609110721	£2.16	£2.59
108 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A285 1609200147	£3.72	£4.47
653 - FAST CHARGER J 100/7.2-14.4V. 1h BSD-2607224399.A1 2607224399	-
653 - FAST CHARGER USA 120/7.2-14.4V. 1h BSD-2607224397.A4 2607224397	£61.98	£74.38
653 - FAST CHARGER EU 230/14.4V. 3-5h BSD-2607225011.A8 2607225011	-
653 - FAST CHARGER GB 230/14.4V. 3-5h BSD-2607225013.A15 2607225013	-
653 - CHARGER AUS 240/14.4V. 3-5h BSD-2607225015.A1 2607225015	£16.41	£19.69
801 - HOUSING BSD-2609199242.A0 2609199242	£21.68	£26.01
803 - DC MOTOR 9.6V BSD-2609120152.A1 2609120152	-
