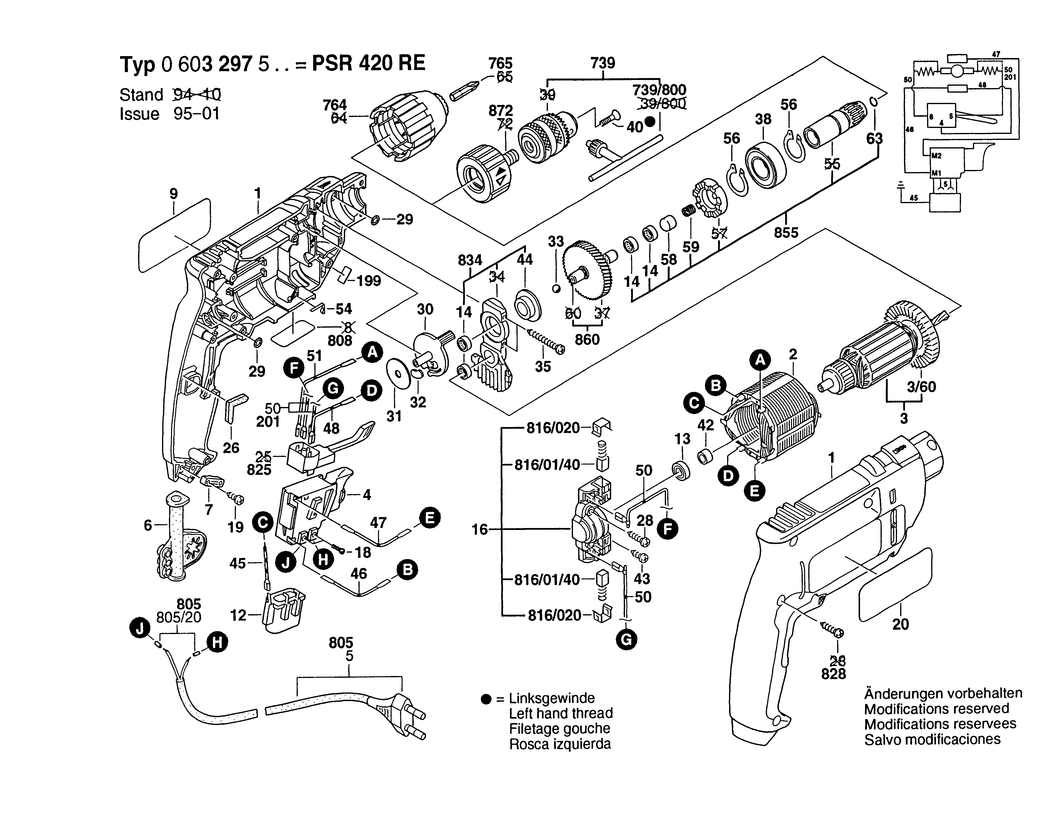

1 - HOUSING SECTION
BSD-2605104369.A2
2605104369
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220423.A30
2604220423
|
£24.45
|
£29.34
|
|
|
3 - ARMATURE 220-240V
BSD-2604010707.A30
2604010707
|
-
|
|
|
|
3/60 - FAN
BSD-2606610027.A179
2606610027
|
£2.80
|
£3.36
|
|
|
4 - SWITCH
BSD-2607200202.A78
2607200202
|
£37.27
|
£44.72
|
|
|
6 - GROMMET dia6.2-dia6.9x84 MM
BSD-2600703036.A3
2600703036
|
-
|
|
|
|
6 - GROMMET dia7.0-dia8.1x84 MM
BSD-2600703037.A0
2600703037
|
-
|
|
|
|
6 - GROMMET dia9.4x84 MM
BSD-2600703038.A3
2600703038
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1544
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118318.A2
2601118318
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A63
2607329114
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1159
2600905032
|
£5.30
|
£6.36
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A411
2600917003
|
£2.80
|
£3.36
|
|
|
16 - BRUSH PLATE
BSD-2609992606.A46
2609992606
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1101
2603410001
|
£1.75
|
£2.10
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A259
2910611019
|
£2.80
|
£3.36
|
|
|
20 - MANUFACTURER'S NAMEPLATE
BSD-2601118319.A1
2601118319
|
-
|
|
|
|
26 - DAMPING PLATE
BSD-2601022000.A724
2601022000
|
£1.75
|
£2.10
|
|
|
29 - O-RING 5.0x1.75 MM
BSD-2600210036.A141
2600210036
|
-
|
|
|
|
30 - INDEXING DISK
BSD-2601990005.A2
2601990005
|
£1.75
|
£2.10
|
|
|
31 - SUPPORTING DISC
BSD-2600100034.A29
2600100034
|
£1.75
|
£2.10
|
|
|
32 - PRESSURE PLATE
BSD-2600025005.A45
2600025005
|
£1.75
|
£2.10
|
|
|
33 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A24
1903230013
|
£2.16
|
£2.59
|
|
|
35 - TORX OVAL-HEAD SCREW 4x30
BSD-2603490025.A250
2603490025
|
£1.75
|
£2.10
|
|
|
38 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A469
1900905163
|
£11.30
|
£13.56
|
|
|
40 - COUNTERSUNK-HEAD SCREW M6x20 MM
BSD-2603421211.A28
2603421211
|
£1.95
|
£2.34
|
|
|
42 - SPACER RING
BSD-2600209004.A81
2600209004
|
-
|
|
|
|
43 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1295
2603490017
|
£2.16
|
£2.59
|
|
|
44 - BUSHING
BSD-2600220026.A10
2600220026
|
-
|
|
|
|
45 - EARTH CONDUCTOR
BSD-2604448170.A9
2604448170
|
-
|
|
|
|
46 - CABLE L=173 MM
BSD-2604448060.A134
2604448060
|
-
|
|
|
|
47 - CABLE L=98 MM
BSD-2604448045.A48
2604448045
|
-
|
|
|
|
48 - CONNECTING CABLE L=88 MM
BSD-2604448034.A262
2604448034
|
£1.75
|
£2.10
|
|
|
50 - CONNECTING CABLE L=73 MM
BSD-2604448115.A156
2604448115
|
£1.75
|
£2.10
|
|
|
51 - CONNECTING CABLE L=103 MM
BSD-2604448132.A133
2604448132
|
£1.75
|
£2.10
|
|
|
54 - CONTACT STRAP
BSD-2601329043.A98
2601329043
|
£1.32
|
£1.58
|
|
|
56 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A269
2916650008
|
£1.75
|
£2.10
|
|
|
58 - THRUST MEMBER
BSD-2600506009.A3
2600506009
|
-
|
|
|
|
59 - COMPRESSION SPRING
BSD-2604611040.A39
2604611040
|
-
|
|
|
|
63 - RETAINING RING
BSD-2604601004.A496
2604601004
|
£1.75
|
£2.10
|
|
|
199 - STICKER
BSD-1601110265.A5
1601110265
|
-
|
|
|
|
739 - KEY CHUCK 1/2-20 UNF
BSD-1608571061.A3
1608571061
|
£19.24
|
£23.09
|
|
|
739/800 - CHUCK WRENCH SG2
BSD-2607950007.A1245
2607950007
|
£6.52
|
£7.83
|
|
|
764 - DEPTH-GAUGE
BSD-2600460026.A3
2600460026
|
-
|
|
|
|
765 - SCREWDRIVER BLADE
BSD-2607000239.A26
2607000239
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A86
1607000386
|
£21.52
|
£25.83
|
|
|
808 - NAMEPLATE
BSD-2601119004.A0
2601119004
|
-
|
|
|
|
816/01/40 - CARBON-BRUSH SET
BSD-2604321911.A12
2604321911
|
-
|
|
|
|
816/020 - RATCHET CAP
BSD-2601329051.A144
2601329051
|
£2.33
|
£2.80
|
|
|
816/020 - RATCHET CAP
BSD-2601322013.A270
2601322013
|
£1.75
|
£2.10
|
|
|
825 - CHANGE-OVER SWITCH
BSD-2607200231.A317
2607200231
|
£16.41
|
£19.69
|
|
|
828 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A529
2912401020
|
£2.16
|
£2.59
|
|
|
834 - BEARING BRACKET
BSD-2605807924.A3
2605807924
|
£18.96
|
£22.75
|
|
|
855 - DRILLING SPINDLE
BSD-2606135919.A13
2606135919
|
£40.80
|
£48.96
|
|
|
860 - JACK SHAFT
BSD-2606100916.A13
2606100916
|
£14.75
|
£17.70
|
|
|
872 - ADAPTER
BSD-2608500006.A3
2608500006
|
£61.98
|
£74.38
|
|
