Hitachi / Hikoki G23UB2 Disc Grinder Spare Parts

Home Details Reviews Delivery

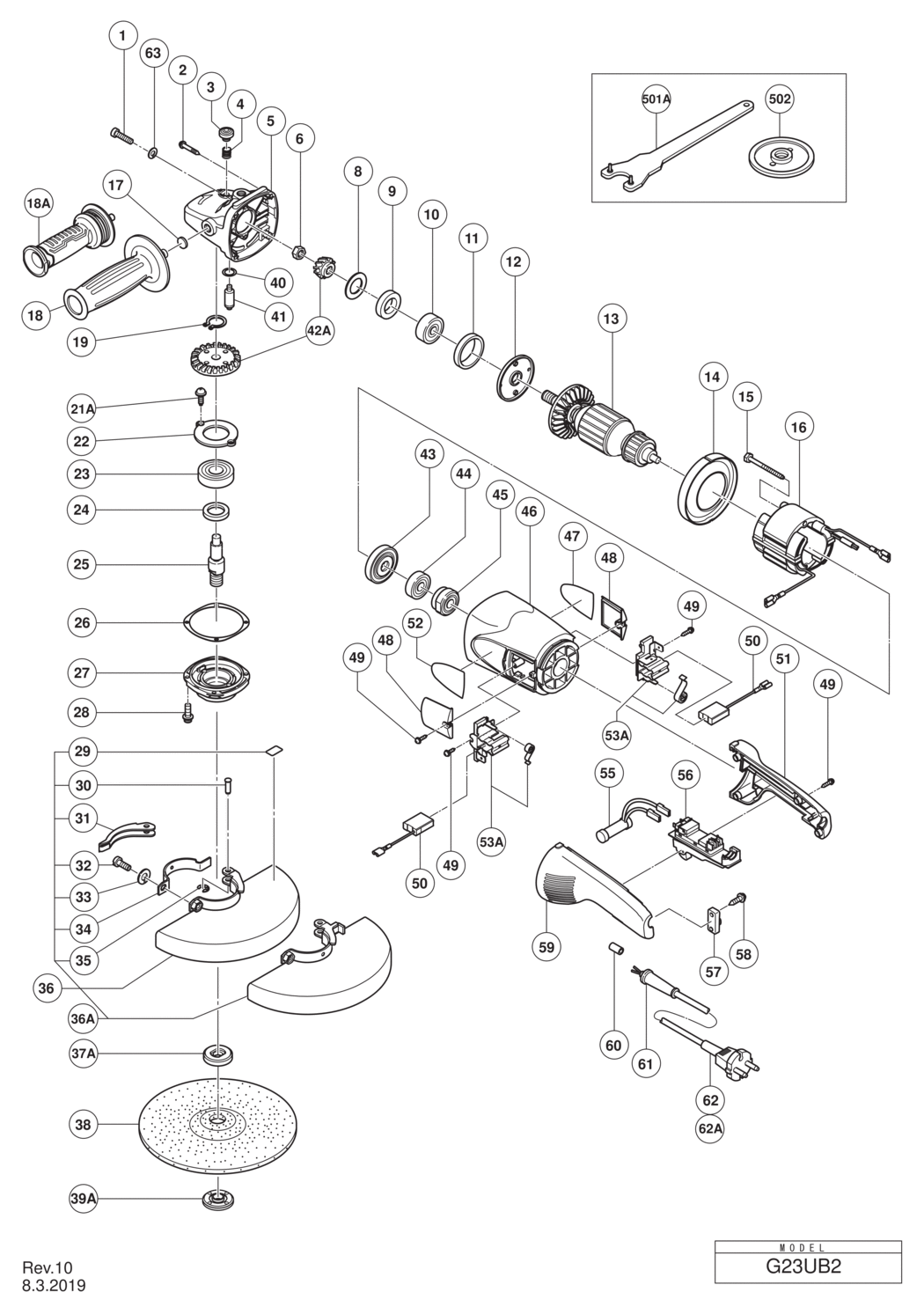

An exploded diagram and spare parts listing for the Hitachi / Hikoki G23UB2 Disc Grinder

	Ex VAT	Inc VAT
1 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A23 984509	£1.67	£2.00
2 - TAPPING SCREW (W/FLANGE) D5X35 HIT-301654.A12 301654	£1.67	£2.00
3 - PUSHING BUTTON HIT-306888.A3 306888	£1.67	£2.00
4 - SPRING HIT-320219.A27 320219	£1.67	£2.00
5 - GEAR COVER ASS'Y INCLUD.3 HIT-320217.A9 320217	£26.16	£31.39
6 - SPECIAL NUT M10 HIT-320226.A26 320226	£1.67	£2.00
8 - SEAL WASHER HIT-320221.A21 320221	£1.67	£2.00
9 - FELT PACKING HIT-320222.A0 320222	£1.67	£2.00
10 - BALL BEARING 6301DDCMPS2L HIT-6301DD.A15 6301DD	£9.27	£11.12
11 - RUBBER RING (B) HIT-994208.A19 994208	£1.67	£2.00
12 - BEARING COVER (A) HIT-320220.A0 320220	£4.16	£4.99
*13 - ARMATURE ASS'Y 110V-120V INCLUD.9 HIT-360594U.A0 360594U	£82.12	£98.54
*13 - ARMATURE 220V-230V HIT-360594E.A5 360594E	£82.12	£98.54
14 - FAN GUIDE HIT-320215.A17 320215	£1.67	£2.00
15 - HEX. HD. TAPPING SCREW D5X75 HIT-984271.A3 984271	£1.67	£2.00
*16 - STATOR 110V-120V HIT-340546C.A5 340546C	£46.68	£56.02
*16 - STATOR 220V-230V HIT-340546E.A0 340546E	£46.68	£56.02
17 - FELT WASHER HIT-937033.A23 937033	£1.67	£2.00
*18 - SIDE HANDLE FOR M14 HIT-711284.A3 711284	£10.05	£12.06
*18A - SIDE HANDLE FOR VIBRATION-ABSORBING HIT-336864.A0 336864	£25.03	£30.04
19 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A34 939542	£2.98	£3.57
21A - SEAL LOCK SCREW (W/SP. WASHER) M5X10 HIT-992038.A3 992038	£1.67	£2.00
22 - BEARING COVER (B) HIT-320229.A3 320229	£1.67	£2.00
23 - BALL BEARING 6302DDCMPS2L HIT-6302DD.A9 6302DD	£10.37	£12.44
24 - FELT PACKING (B) HIT-990852.A23 990852	£1.67	£2.00
25 - SPINDLE HIT-320234.A0 320234	£11.83	£14.20
26 - SEAL PLATE HIT-320228.A25 320228	£1.67	£2.00
27 - PACKING GLAND HIT-320227.A2 320227	£8.32	£9.99
28 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A3 994192	£1.67	£2.00
29 - LABEL HIT-311492.A18 311492	£1.67	£2.00
30 - SET PIN HIT-321546.A14 321546	£4.86	£5.83
31 - LEVER HIT-321545.A2 321545	-
32 - BOLT M8X22 HIT-306887.A13 306887	£1.67	£2.00
34 - SET PIECE HIT-321544.A14 321544	£1.67	£2.00
35 - RETAINING RING (E-TYPE) FOR D5 SHAFT HIT-673489.A3 673489	£1.67	£2.00
*36A - WHEEL GUARD ASS'Y INCLUD.29-35 FOR EUROPE HIT-337225.A3 337225	-
*37A - WHEEL WASHER (C) HIT-376202.A31 376202	£9.67	£11.60
39A - WHEEL NUT M14X2 HIT-373779.A26 373779	£3.56	£4.27
40 - O-RING HIT-320218.A0 320218	£1.67	£2.00
41 - LOCK PIN HIT-306890.A5 306890	£2.78	£3.34
42A - GEAR AND PINION SET HIT-330032.A3 330032	£25.68	£30.81
43 - DUST SEAL HIT-320216.A0 320216	£1.67	£2.00
44 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A35 6000VV	£7.62	£9.15
45 - BEARING BUSHING HIT-321536.A14 321536	£15.83	£19.00
46 - HOUSING ASS'Y INCLUD.45 HIT-321535.A1 321535	£45.61	£54.73
*47 - NAME PLATE HIT-000000.A1619 000000	-
48 - BRUSH COVER HIT-320232.A4 320232	£1.67	£2.00
49 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A39 305812	£1.67	£2.00
*50 - CARBON BRUSH 7X17X22.5 (1 PAIR) FOR AUS HIT-999061.A12 999061	£8.12	£9.75
51 - HANDLE (B) HIT-320231.A0 320231	£6.83	£8.20
52 - BRAND LABEL HIT-000000.A1620 000000	-
53A - BRUSH HOLDER SET HIT-322323.A2 322323	£9.56	£11.47
55 - RESISTOR HIT-320236.A3 320236	£15.66	£18.79
*56 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK HIT-320371.A1 320371	£31.95	£38.34
57 - CORD CLIP HIT-960266.A9 960266	£1.67	£2.00
58 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A148 984750	£1.67	£2.00
59 - HANDLE (A) HIT-320230.A4 320230	£8.47	£10.17
60 - TUBE (D) HIT-981373.A22 981373	£1.67	£2.00
*61 - CORD ARMOR D10.7 HIT-940778.A26 940778	£3.15	£3.78
*62 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500460Z.A8 500460Z	£41.12	£49.34
*62 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-321539.A9 321539	£31.92	£38.31
63 - SPRING WASHER M5 (10 PCS.) HIT-949454.A19 949454	£1.67	£2.00
501A - WRENCH HIT-711272.A2 711272	£6.18	£7.41
601 - SUPER WASHER HIT-310337.A22 310337	£23.30	£27.96
602A - PIPE HANDLE SET INCLUD.603 HIT-323993.A21 323993	£65.96	£79.15
*603 - BOLT M14 FOR PIPE HANDLE HIT-985597.A5 985597	£3.28	£3.93
604 - WHEEL GUARD (FOR CUTTING) HIT-332797.A5 332797	£39.17	£47.00

Attribute Name	Value
Brand	Hikoki
