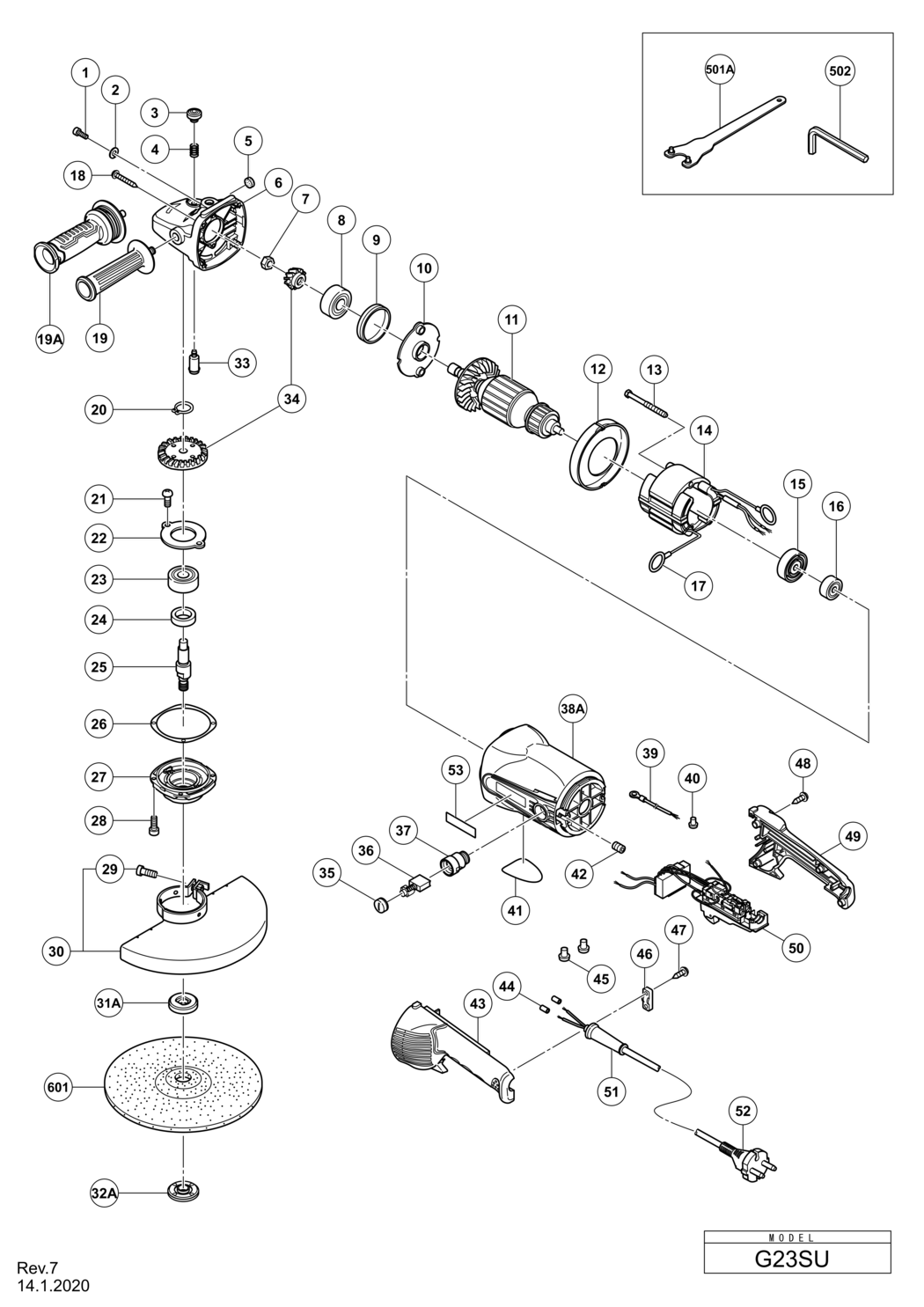

An exploded diagram and spare parts listing for the Hitachi / Hikoki G23SU Disc Grinder
Ex VAT Inc VAT
1 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A10 984509 £1.67 £2.00
2 - SPRING WASHER M5 (10 PCS.) HIT-949454.A129 949454 £1.67 £2.00
3 - PUSHING BUTTON HIT-306888.A21 306888 £1.67 £2.00
4 - SPRING HIT-320219.A11 320219 £1.67 £2.00
5 - FELT WASHER HIT-937033.A7 937033 £1.67 £2.00
6 - GEAR COVER ASS'Y INCLD.3-5 HIT-330080.A4 330080 £27.96 £33.55
7 - SPECIAL NUT M10 HIT-320226.A11 320226 £1.67 £2.00
8 - BALL BEARING 6301VVCMPS2L HIT-6301VV.A20 6301VV £9.32 £11.19
9 - RUBBER RING HIT-330031.A4 330031 £1.67 £2.00
10 - BEARING COVER HIT-330030.A2 330030 £3.28 £3.93
11 - ARMATURE 220V-240V HIT-360960E.A1 360960E £41.26 £49.51
12 - FAN GUIDE HIT-330081.A0 330081 £1.67 £2.00
13 - HEX. HD. TAPPING SCREW D5X60 HIT-961501.A21 961501 £1.67 £2.00
14 - STATOR ASS'Y 220V-230V INCLUD.17 HIT-340845E.A0 340845E -
15 - DUST SEAL HIT-330029.A4 330029 £1.67 £2.00
16 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A70 6000VV £7.62 £9.15
17 - BRUSH TERMINAL HIT-937623.A7 937623 £1.67 £2.00
18 - TAPPING SCREW (W/FLANGE) D5X35 (BLACK) HIT-323209.A21 323209 £1.67 £2.00
*19 - SIDE HANDLE FOR M14 HIT-711284.A12 711284 £10.05 £12.06
20 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A61 939542 £2.98 £3.57
21 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A78 949236 £1.67 £2.00
22 - BEARING COVER (B) HIT-320229.A1 320229 £1.67 £2.00
23 - BALL BEARING 6302VVCMPS2L HIT-6302VV.A3 6302VV £9.67 £11.60
24 - FELT PACKING (B) HIT-990852.A18 990852 £1.67 £2.00
25 - SPINDLE HIT-320234.A3 320234 £11.83 £14.20
26 - SEAL PLATE HIT-320228.A28 320228 £1.67 £2.00
27 - PACKING GLAND HIT-320227.A0 320227 £8.32 £9.99
28 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A6 994192 £1.67 £2.00
29 - HEX. SOCKET HD. BOLT M8X25 (10 PCS.) HIT-949760.A12 949760 £6.62 £7.95
30 - WHEEL GUARD ASS'Y INCLUD.29 HIT-330036.A4 330036 £18.00 £21.60
31A - WHEEL WASHER (C) HIT-376202.A29 376202 £9.67 £11.60
32A - WHEEL NUT M14X2 HIT-373779.A24 373779 £3.56 £4.27
33 - LOCK PIN HIT-306890.A6 306890 £2.78 £3.34
34 - GEAR AND PINION SET HIT-330688.A2 330688 £30.82 £36.98
35 - BRUSH CAP HIT-945161.A19 945161 £1.67 £2.00
36 - CARBON BRUSH (1 PAIR) HIT-999038.A2 999038 £5.54 £6.65
37 - BRUSH HOLDER HIT-938241.A14 938241 £8.28 £9.94
38A - HOUSING ASS'Y INCLUD.37 HIT-330028.A1 330028 £21.03 £25.24
39 - INTERNAL WIRE 270L HIT-330216.A1 330216 -
40 - CONNECTOR 50091 (10 PCS.) HIT-959140.A9 959140 £4.98 £5.97
41 - NAME PLATE HIT-000000.A1608 000000 -
42 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A2 938477 £1.67 £2.00
43 - HANDLE (A) HIT-330033.A3 330033 £5.90 £7.08
44 - TUBE (D) HIT-981373.A18 981373 £1.67 £2.00
45 - CONNECTOR 50092 (10 PCS.) HIT-959141.A113 959141 £7.12 £8.54
46 - CORD CLIP HIT-960266.A6 960266 £1.67 £2.00
47 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A150 984750 £1.67 £2.00
48 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A37 305812 £1.67 £2.00
49 - HANDLE (B) HIT-330034.A2 330034 £5.90 £7.08
50 - CONTROLLER SWITCH 250V HIT-335122.A0 335122 -
51 - CORD ARMOR D10.7 HIT-940778.A22 940778 £3.15 £3.78
*52 - CORD (CORD ARMOR D10.7) FOR GBR HIT-500450Z.A32 500450Z £35.67 £42.80
53 - BRAND LABEL HIT-000000.A1609 000000 -
501A - WRENCH HIT-376127.A5 376127 -
502 - HEX. BAR WRENCH 6MM HIT-872422.A20 872422 £1.67 £2.00
601 - D. C. WHEELS 230MM A24R (25 PCS.) HIT-316825.A7 316825 -
602 - PIPE HANDLE SET INCLUD.603 HIT-323993.A17 323993 £65.96 £79.15
603 - BOLT M14 HIT-985597.A1 985597 £3.28 £3.93
604 - SUPER WASHER HIT-310337.A18 310337 £23.30 £27.96
605 - WHEEL GUARD (FOR CUTTING) HIT-332797.A1 332797 £39.17 £47.00
