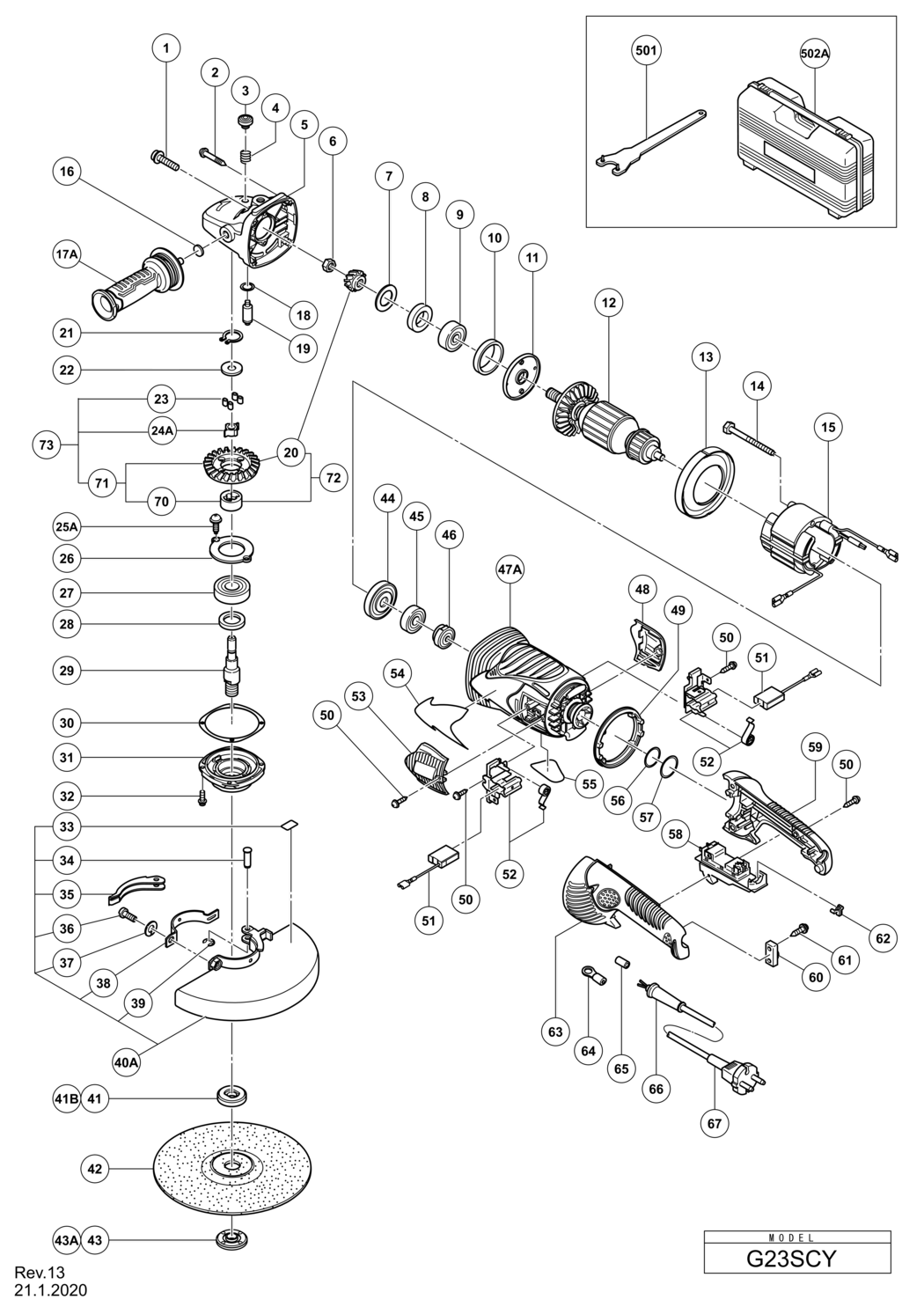

An exploded diagram and spare parts listing for the Hitachi / Hikoki G23SCY Disc Grinder
Ex VAT Inc VAT
1 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A9 984509 £1.67 £2.00
2 - TAPPING SCREW (W/FLANGE) D5X35 (BLACK) HIT-323209.A18 323209 £1.67 £2.00
3 - PUSHING BUTTON HIT-306888.A16 306888 £1.67 £2.00
4 - SPRING HIT-320219.A6 320219 £1.67 £2.00
5 - GEAR COVER ASS'Y INCLUD.3 HIT-326717.A3 326717 £34.92 £41.90
6 - SPECIAL NUT M10 HIT-320226.A4 320226 £1.67 £2.00
7 - SEAL WASHER HIT-320221.A2 320221 £1.67 £2.00
8 - FELT PACKING HIT-320222.A19 320222 £1.67 £2.00
9 - BALL BEARING 6301DDCMPS2L HIT-6301DD.A5 6301DD £9.27 £11.12
10 - RUBBER RING (B) HIT-994208.A3 994208 £1.67 £2.00
11 - BEARING COVER (A) HIT-320220.A17 320220 £4.16 £4.99
*12 - ARMATURE ASS'Y 110V-120V INCLUD.8 HIT-360594U.A5 360594U £82.12 £98.54
*12 - ARMATURE 220V-230V HIT-360777E.A6 360777E £74.41 £89.29
13 - FAN GUIDE HIT-320215.A1 320215 £1.67 £2.00
14 - HEX. HD. TAPPING SCREW D5X75 HIT-984271.A14 984271 £1.67 £2.00
*15 - STATOR 110V-120V HIT-340682C.A2 340682C -
*15 - STATOR 220V-240V HIT-340682E.A1 340682E -
16 - FELT WASHER HIT-937033.A6 937033 £1.67 £2.00
17A - SIDE HANDLE HIT-336864.A13 336864 £25.03 £30.04
18 - O-RING HIT-320218.A18 320218 £1.67 £2.00
19 - LOCK PIN HIT-306890.A14 306890 £2.78 £3.34
20 - GEAR AND PINION SET HIT-326718.A1 326718 -
21 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A23 939540 £1.67 £2.00
22 - COUPLING COVER HIT-326722.A4 326722 £1.67 £2.00
23 - COUPLING DAMPER HIT-326721.A2 326721 £14.23 £17.08
24A - COUPLING HIT-333147.A6 333147 £5.09 £6.11
25A - SEAL LOCK SCREW (W/SP. WASHER) M5X10 HIT-992038.A14 992038 £1.67 £2.00
26 - BEARING COVER (B) HIT-326723.A1 326723 £1.67 £2.00
27 - BALL BEARING 6302VVCMPS2L HIT-6302VV.A23 6302VV £9.67 £11.60
28 - FELT PACKING (B) HIT-990852.A10 990852 £1.67 £2.00
*29 - SPINDLE HIT-326727.A1 326727 £14.95 £17.94
30 - SEAL PLATE HIT-320228.A4 320228 £1.67 £2.00
31 - PACKING GLAND HIT-320227.A22 320227 £8.32 £9.99
32 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A39 994192 £1.67 £2.00
33 - LABEL HIT-311492.A6 311492 £1.67 £2.00
34 - SET PIN HIT-321546.A5 321546 £4.86 £5.83
35 - LEVER HIT-321545.A11 321545 -
36 - BOLT M8X22 HIT-306887.A6 306887 £1.67 £2.00
37 - SPRING WASHER M8 (10 PCS.) HIT-949457.A74 949457 £1.67 £2.00
38 - SET PIECE HIT-321544.A5 321544 £1.67 £2.00
39 - RETAINING RING (E-TYPE) FOR D5 SHAFT HIT-673489.A20 673489 £1.67 £2.00
*40A - WHEEL GUARD ASS'Y INCLUD.33-39 FOR ASIA HIT-337223.A1 337223 £24.16 £28.99
*41B - WHEEL WASHER (C) HIT-376202.A10 376202 £9.67 £11.60
*43A - WHEEL NUT M14X2 HIT-373779.A6 373779 £3.56 £4.27
44 - DUST SEAL HIT-320216.A14 320216 £1.67 £2.00
45 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A78 6000VV £7.62 £9.15
46 - BEARING BUSHING HIT-321536.A5 321536 £15.83 £19.00
47A - HOUSING ASS'Y INCLUD.46 HIT-326712.A2 326712 -
48 - BRUSH COVER HIT-326716.A2 326716 £5.20 £6.24
49 - HANDLE DAMPER HIT-326726.A5 326726 -
50 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A150 305812 £1.67 £2.00
*51 - CARBON BRUSH 7X17X22.5 (1 PAIR) HIT-999061.A6 999061 £8.12 £9.75
52 - BRUSH HOLDER SET HIT-322323.A11 322323 £9.56 £11.47
53 - BRUSH COVER HIT-326715.A4 326715 -
54 - BRAND LABEL HIT-000000.A5141 000000 -
55 - NAME PLATE HIT-000000.A5142 000000 -
56 - O-RING HIT-326724.A5 326724 -
57 - O-RING HIT-326725.A1 326725 -
*58 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK 0FF/LOCK HIT-320238.A6 320238 £31.66 £37.99
59 - HANDLE (B) HIT-326714.A1 326714 £15.66 £18.79
60 - CORD CLIP HIT-960266.A51 960266 £1.67 £2.00
61 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A48 984750 £1.67 £2.00
63 - HANDLE (A) HIT-326713.A4 326713 £15.66 £18.79
*65 - TUBE (D) FOR CORD HIT-981373.A97 981373 £1.67 £2.00
*66 - CORD ARMOR D10.7 HIT-940778.A53 940778 £3.15 £3.78
*67 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-321539.A6 321539 £31.92 £38.31
*67 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500460Z.A4 500460Z £41.12 £49.34
70 - INNER HIT-328700.A2 328700 -
71 - INNER SET (W/GEAR) INCLUD.70 HIT-328694.A1 328694 -
72 - GEAR AND PINION ASS'Y INCLUD.20 HIT-328697.A0 328697 £40.73 £48.88
73 - GEAR (A) ASS'Y INCLUD.23 HIT-328698.A2 328698 -
501 - WRENCH HIT-711272.A19 711272 £6.18 £7.41
601 - D. C. WHEELS 230MM A24R (25 PCS.) HIT-316825.A2 316825 -
602 - SUPER WASHER HIT-310337.A13 310337 £23.30 £27.96
603 - PIPE HANDLE SET INCLUD.604 HIT-323993.A3 323993 £65.96 £79.15
604 - BOLT M14 FOR PIPE HANDLE HIT-985597.A16 985597 £3.28 £3.93
*606 - WHEEL GUARD (FOR CUTTING) EXCEPT FOR USA HIT-332797.A13 332797 £39.17 £47.00
