Hitachi / Hikoki G18SE3 Disc Grinder Spare Parts

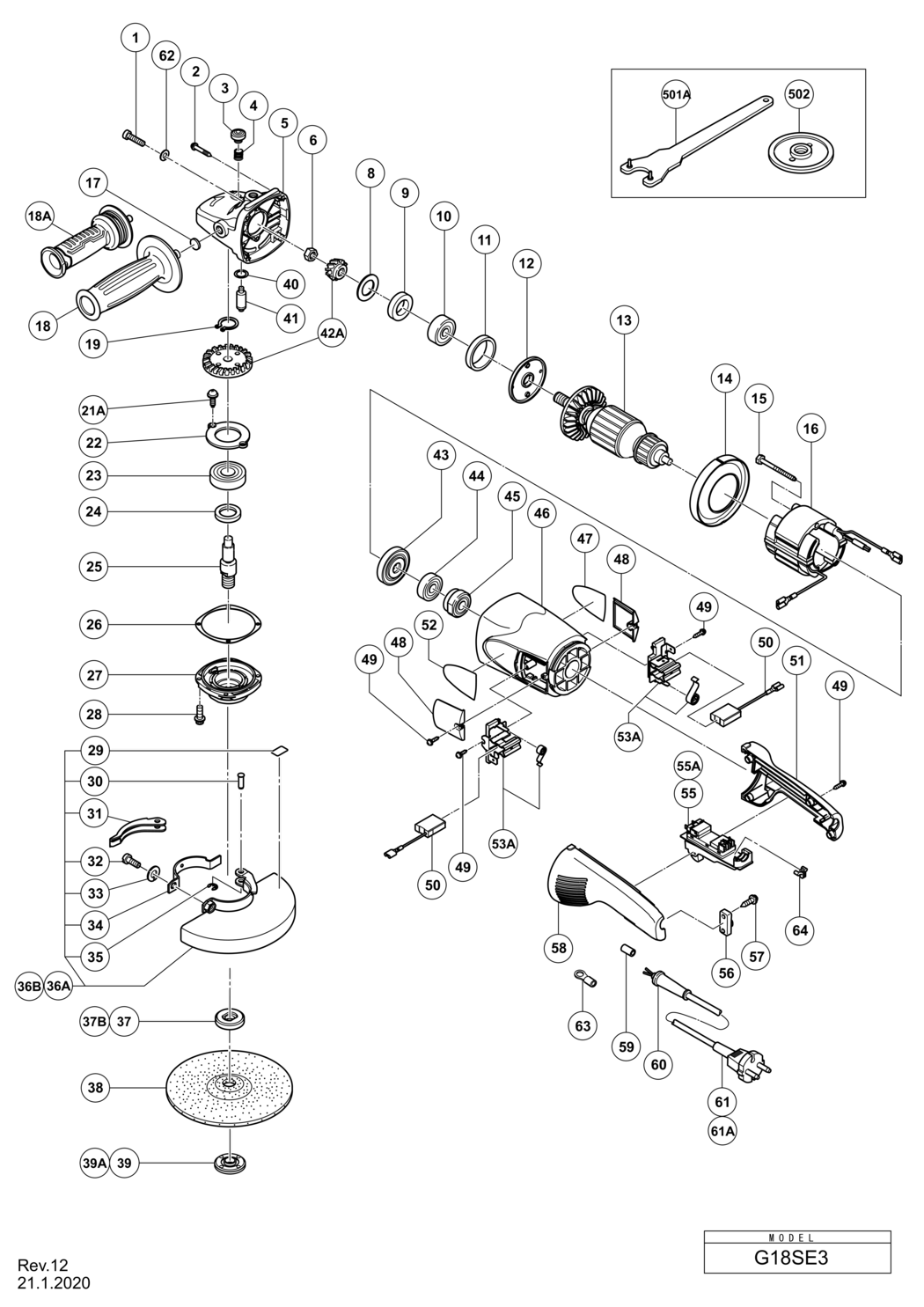

An exploded diagram and spare parts listing for the Hitachi / Hikoki G18SE3 Disc Grinder

	Ex VAT	Inc VAT
1 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A12 984509	£1.67	£2.00
2 - TAPPING SCREW (W/FLANGE) D5X35 HIT-301654.A19 301654	£1.67	£2.00
3 - PUSHING BUTTON HIT-306888.A27 306888	£1.67	£2.00
4 - SPRING HIT-320219.A17 320219	£1.67	£2.00
5 - GEAR COVER ASS'Y INCLUD.3 HIT-320217.A4 320217	£26.16	£31.39
6 - SPECIAL NUT M10 HIT-320226.A15 320226	£1.67	£2.00
8 - SEAL WASHER HIT-320221.A11 320221	£1.67	£2.00
9 - FELT PACKING HIT-320222.A10 320222	£1.67	£2.00
10 - BALL BEARING 6301DDCMPS2L HIT-6301DD.A10 6301DD	£9.27	£11.12
11 - RUBBER RING (B) HIT-994208.A12 994208	£1.67	£2.00
12 - BEARING COVER (A) HIT-320220.A9 320220	£4.16	£4.99
*13 - ARMATURE ASS'Y 110V-120V INCLUD.9 HIT-360594U.A9 360594U	£82.12	£98.54
*13 - ARMATURE 220V-230V HIT-360594E.A0 360594E	£82.12	£98.54
14 - FAN GUIDE HIT-320215.A10 320215	£1.67	£2.00
15 - HEX. HD. TAPPING SCREW D5X75 HIT-984271.A9 984271	£1.67	£2.00
*16 - STATOR 110V-120V HIT-340546C.A1 340546C	£46.68	£56.02
*16 - STATOR 220V-230V HIT-340546E.A4 340546E	£46.68	£56.02
17 - FELT WASHER HIT-937033.A12 937033	£1.67	£2.00
*18A - SIDE HANDLE FOR VIBRATION-ABSORBING HIT-336864.A8 336864	£25.03	£30.04
19 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A87 939542	£2.98	£3.57
21A - SEAL LOCK SCREW (W/SP. WASHER) M5X10 HIT-992038.A20 992038	£1.67	£2.00
22 - BEARING COVER (B) HIT-320229.A10 320229	£1.67	£2.00
23 - BALL BEARING 6302DDCMPS2L HIT-6302DD.A7 6302DD	£10.37	£12.44
24 - FELT PACKING (B) HIT-990852.A3 990852	£1.67	£2.00
*25 - SPINDLE HIT-320234.A9 320234	£11.83	£14.20
26 - SEAL PLATE HIT-320228.A14 320228	£1.67	£2.00
27 - PACKING GLAND HIT-320227.A13 320227	£8.32	£9.99
28 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A29 994192	£1.67	£2.00
29 - LABEL HIT-311492.A4 311492	£1.67	£2.00
30 - SET PIN HIT-321546.A9 321546	£4.86	£5.83
31 - LEVER HIT-321545.A7 321545	-
32 - BOLT M8X22 HIT-306887.A0 306887	£1.67	£2.00
33 - SPRING WASHER M8 (10 PCS.) HIT-949457.A29 949457	£1.67	£2.00
34 - SET PIECE HIT-321544.A9 321544	£1.67	£2.00
35 - RETAINING RING (E-TYPE) FOR D5 SHAFT HIT-673489.A33 673489	£1.67	£2.00
*36A - WHEEL GUARD ASS'Y INCLUD.29-35 HIT-337226.A1 337226	£21.27	£25.52
*37B - WHEEL WASHER (C) HIT-376202.A1 376202	£9.67	£11.60
*38 - D. C. WHEELS 180MM A24R (25 PCS.) EXCEPT FOR GBR HIT-316824.A1 316824	-
*39A - WHEEL NUT M14X2 HIT-373779.A1 373779	£3.56	£4.27
40 - O-RING HIT-320218.A11 320218	£1.67	£2.00
41 - LOCK PIN HIT-306890.A29 306890	£2.78	£3.34
*42A - GEAR AND PINION SET HIT-330040.A1 330040	£28.50	£34.20
43 - DUST SEAL HIT-320216.A5 320216	£1.67	£2.00
44 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A56 6000VV	£7.62	£9.15
45 - BEARING BUSHING HIT-321536.A0 321536	£15.83	£19.00
46 - HOUSING ASS'Y INCLUD.45 HIT-321535.A4 321535	£45.61	£54.73
47 - NAME PLATE HIT-000000.A3913 000000	-
48 - BRUSH COVER HIT-320232.A2 320232	£1.67	£2.00
49 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A95 305812	£1.67	£2.00
*50 - CARBON BRUSH 7X17X22.5 (1 PAIR) HIT-999061.A10 999061	£8.12	£9.75
51 - HANDLE (B) HIT-320231.A2 320231	£6.83	£8.20
52 - BRAND LABEL HIT-000000.A3914 000000	-
53A - BRUSH HOLDER SET HIT-322323.A9 322323	£9.56	£11.47
*55 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK FOR AUS HIT-320238.A11 320238	£31.66	£37.99
56 - CORD CLIP HIT-960266.A69 960266	£1.67	£2.00
57 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A124 984750	£1.67	£2.00
58 - HANDLE (A) HIT-320230.A2 320230	£8.47	£10.17
*59 - TUBE (D) FOR CORD EXCEPT FOR USA HIT-981373.A136 981373	£1.67	£2.00
*60 - CORD ARMOR D10.7 HIT-940778.A56 940778	£3.15	£3.78
*61 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-321539.A2 321539	£31.92	£38.31
*61 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500446Z.A18 500446Z	£33.79	£40.55
62 - SPRING WASHER M5 (10 PCS.) HIT-949454.A77 949454	£1.67	£2.00
501A - WRENCH HIT-711272.A10 711272	£6.18	£7.41
601 - SUPER WASHER HIT-310337.A1 310337	£23.30	£27.96
603A - PIPE HANDLE SET INCLUD.604 HIT-323993.A15 323993	£65.96	£79.15
604 - BOLT M14 FOR PIPE HANDLE HIT-985597.A22 985597	£3.28	£3.93
605 - WHEEL GUARD BASE SET WITH BASE FOOT HIT-332795.A5 332795	-
606 - WHEEL GUARD (FOR CUTTING) WITHOUT BASE FOOT HIT-332796.A1 332796	-
