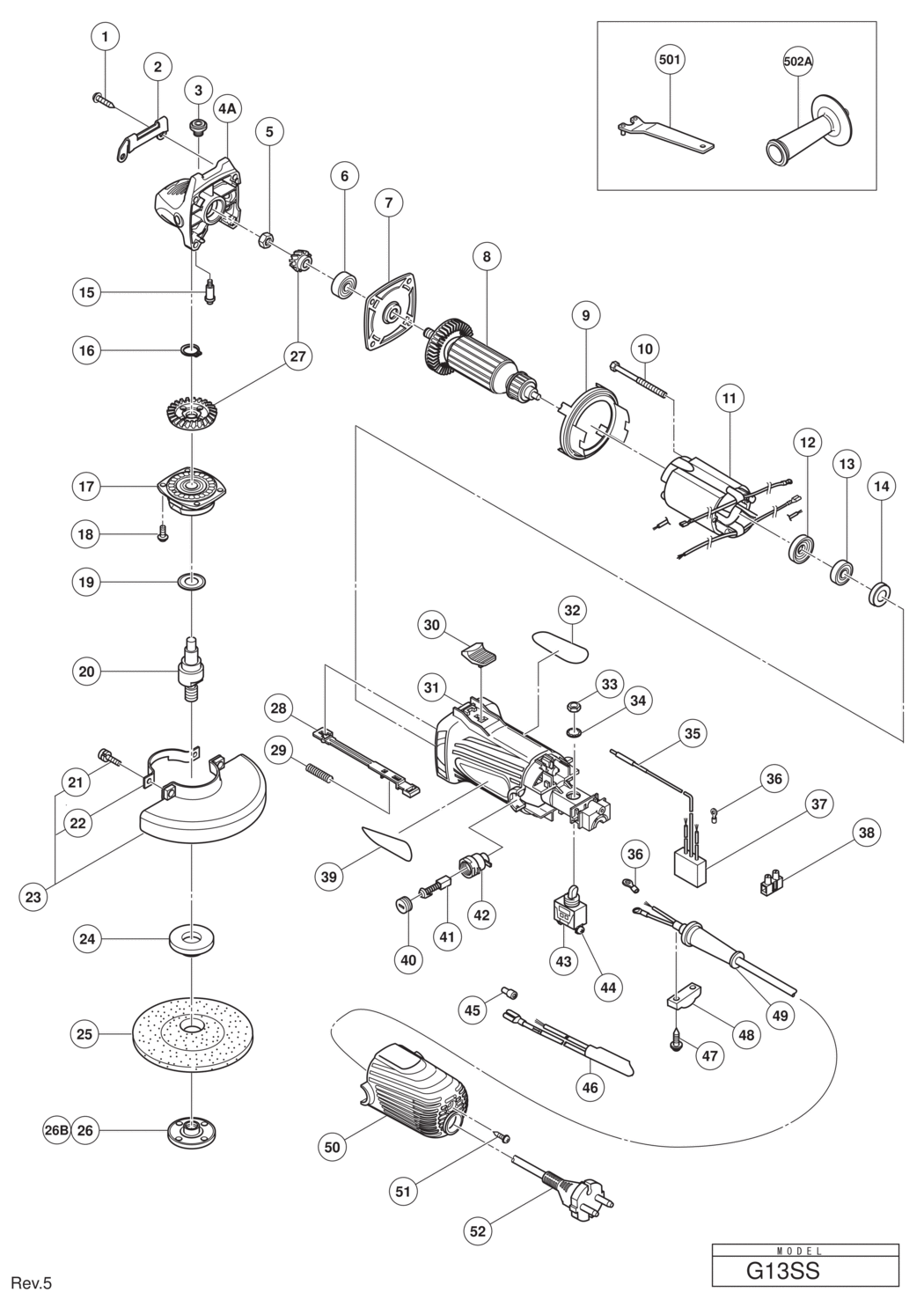

An exploded diagram and spare parts listing for the Hitachi / Hikoki G13SS Disc Grinder
Ex VAT Inc VAT
1 - TAPPING SCREW D5X25 (BLACK) HIT-320523.A0 320523 £1.67 £2.00
2 - GUARD PLATE TILL 9.2014 HIT-317807.A1 317807 £1.67 £2.00
3 - PUSHING BUTTON HIT-301944.A0 301944 £1.67 £2.00
4A - GEAR COVER ASS'Y INCLUD.3 HIT-339150.A0 339150 £12.02 £14.43
5 - SPECIAL NUT M6 HIT-309191.A6 309191 £1.67 £2.00
6 - BALL BEARING 608VVC2PS2L HIT-608VVM.A51 608VVM £5.70 £6.84
7 - BEARING HOLDER HIT-328184.A1 328184 £1.67 £2.00
*8 - ARMATURE 110V-120V HIT-360802C.A1 360802C £25.15 £30.18
*8 - ARMATURE 230V-240V HIT-360802E.A0 360802E £19.98 £23.98
9 - FAN GUIDE HIT-328177.A0 328177 £1.67 £2.00
10 - HEX. HD. TAPPING SCREW D4X65 HIT-963712.A4 963712 -
*11 - STATOR 110V FOR TPE HIT-340705G.A0 340705G -
*11 - STATOR 220V-230V HIT-340705E.A0 340705E £15.27 £18.32
12 - DUST SEAL HIT-321722.A6 321722 £1.67 £2.00
13 - BALL BEARING 626VVC2PS2L HIT-626VVM.A43 626VVM £5.77 £6.92
14 - RUBBER BUSHING HIT-309929.A0 309929 £1.67 £2.00
15 - LOCK PIN HIT-301943.A45 301943 £3.28 £3.93
16 - RETAINING RING FOR D11 SHAFT HIT-316487.A19 316487 £1.67 £2.00
17 - PACKING GLAND HIT-328182.A1 328182 £5.80 £6.96
18 - SEAL LOCK SCREW (W/WASHER) M4X12 HIT-328628.A7 328628 £1.67 £2.00
19 - WASHER (A) HIT-328185.A0 328185 £1.67 £2.00
*20 - SPINDLE HIT-330700.A0 330700 £8.35 £10.02
21 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A28 308386 £1.67 £2.00
22 - SET PLATE HIT-301949.A16 301949 £1.67 £2.00
23 - WHEEL GUARD ASS'Y INCLUD.21 HIT-319116.A0 319116 £18.67 £22.40
*24 - WHEEL WASHER HIT-937817Z.A2 937817Z £8.88 £10.66
25 - D. C. WHEELS 125MM A36Q (25 PCS.) HIT-316822.A9 316822 -
*26B - WHEEL NUT M14 HIT-339579.A2 339579 £6.23 £7.48
27 - GEAR AND PINION SET HIT-330699.A0 330699 -
28 - SLIDE BAR HIT-314427.A3 314427 £1.67 £2.00
29 - SPRING HIT-314429.A21 314429 £1.67 £2.00
30 - SLIDE KNOB HIT-314428.A0 314428 £1.67 £2.00
31 - HOUSING ASS'Y INCLUD.14 HIT-328176.A1 328176 £11.31 £13.57
32 - NAME PLATE HIT-000000.A3876 000000 -
33 - LOCK NUT HIT-000000.A3877 000000 -
34 - LOCK WASHER HIT-000000.A3878 000000 -
*35 - EARTH TERMINAL FOR NOISE SUPPRESSOR HIT-314854.A2 314854 £1.67 £2.00
*36 - TERMINAL FOR NOISE SUPPRESSOR HIT-980063.A96 980063 £1.67 £2.00
*36 - TERMINAL FOR CORD HIT-980063.A97 980063 £1.67 £2.00
*37 - NOISE SUPPRESSOR FOR NZL HIT-317491.A11 317491 £9.43 £11.32
*37 - NOISE SUPPRESSOR FOR TPE HIT-994273.A48 994273 £7.30 £8.76
38 - PILLAR TERMINAL HIT-938307.A52 938307 £3.28 £3.93
39 - BRAND LABEL HIT-000000.A3879 000000 -
40 - BRUSH CAP HIT-936551.A8 936551 £1.67 £2.00
41 - CARBON BRUSH (1 PAIR) HIT-999021.A7 999021 £5.54 £6.65
42 - BRUSH HOLDER HIT-313777.A4 313777 £1.67 £2.00
*43 - SWITCH (1P SCREW TYPE) W/SCREW INCLUD.44 HIT-330713.A0 330713 -
44 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A11 305499 £1.67 £2.00
*45 - CONNECTOR 50091 (10 PCS.) FOR AUS HIT-959140.A86 959140 £4.98 £5.97
*46 - CHOKE COIL FOR AUS HIT-328629.A0 328629 £2.91 £3.49
47 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A131 984750 £1.67 £2.00
48 - CORD CLIP HIT-937631.A154 937631 £1.67 £2.00
49 - CORD ARMOR D8.8 HIT-953327.A75 953327 £1.67 £2.00
50 - TAIL COVER HIT-328183.A0 328183 £4.86 £5.83
51 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A92 305812 £1.67 £2.00
*52 - CORD (CORD ARMOR D8.8) FOR SIN HIT-500435Z.A75 500435Z £14.14 £16.97
*52 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A60 500461Z £15.56 £18.67
501 - WRENCH HIT-711271.A18 711271 £4.16 £4.99
*502A - SIDE HANDLE HIT-711283.A1 711283 £7.02 £8.42
*601 - RUBBER PAD HIT-937825Z.A24 937825Z -
*602 - WASHER NUT HIT-937826Z.A2 937826Z £8.48 £10.18
603 - SANDING DISCS 125MM C-P16 (10 PCS.) HIT-314062.A9 314062 -
604 - SANDING DISCS 125MM C-P20 (10 PCS.) HIT-314063.A3 314063 -
605 - SANDING DISCS 125MM C-P24 (10 PCS.) HIT-314064.A9 314064 -
606 - SANDING DISCS 125MM C-P30 (10 PCS.) HIT-314065.A3 314065 -
607 - SANDING DISCS 125MM C-P36 (10 PCS.) HIT-314066.A9 314066 -
608 - SANDING DISCS 125MM C-P40 (10 PCS.) HIT-314067.A3 314067 -
609 - SANDING DISCS 125MM C-P50 (10 PCS.) HIT-314068.A9 314068 -
610 - SANDING DISCS 125MM C-P60 (10 PCS.) HIT-314069.A3 314069 -
611 - SANDING DISCS 125MM C-P80 (10 PCS.) HIT-314070.A9 314070 -
612 - SANDING DISCS 125MM C-P100 (10 PCS.) HIT-314071.A3 314071 -
613 - SANDING DISCS 125MM C-P120 (10 PCS.) HIT-314072.A9 314072 -
