Hitachi / Hikoki G12SS2 Disc Grinder Spare Parts

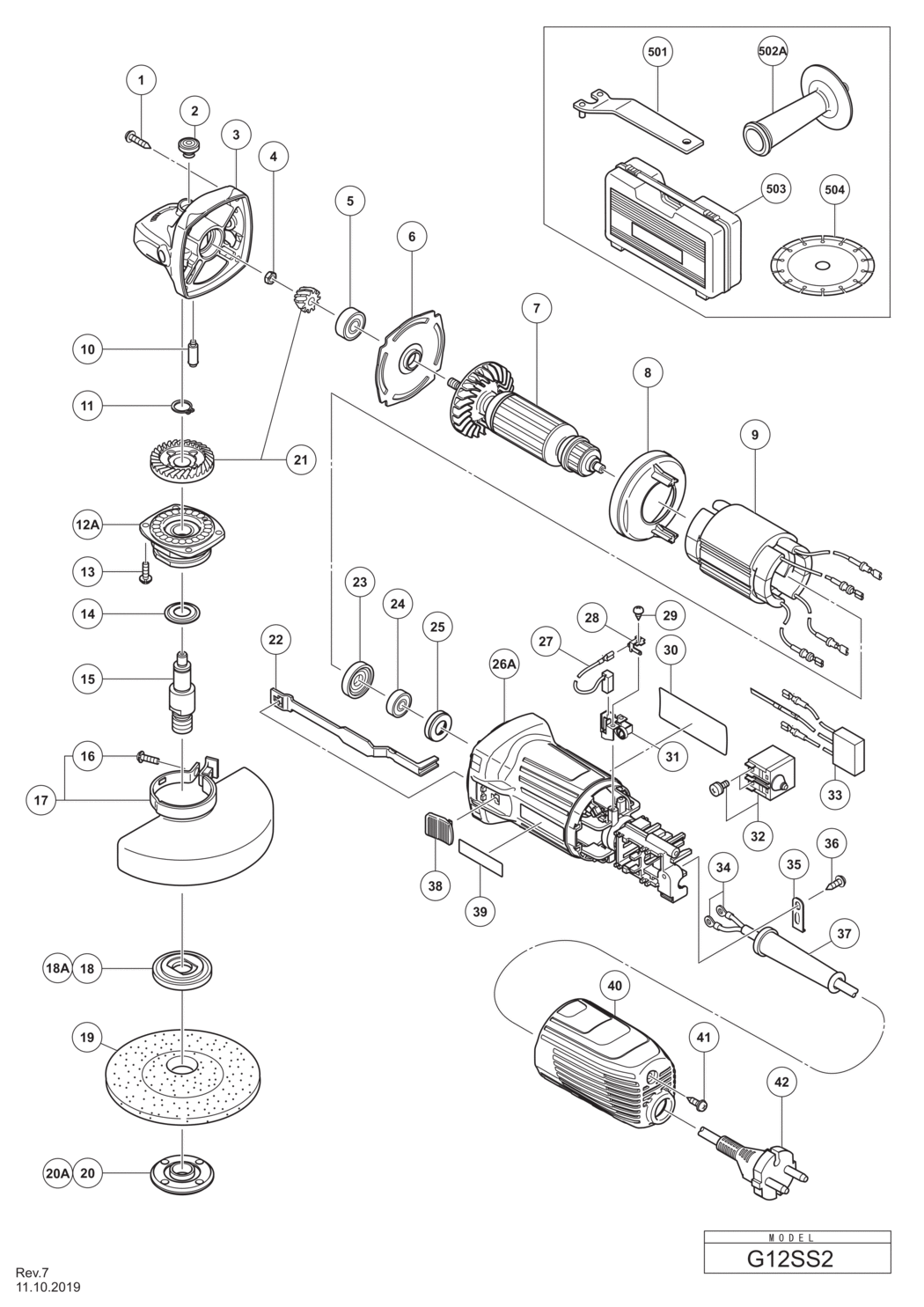

An exploded diagram and spare parts listing for the Hitachi / Hikoki G12SS2 Disc Grinder

	Ex VAT	Inc VAT
1 - TAPPING SCREW (W/FLANGE) D4X23 (BLACK) HIT-328643.A18 328643	£1.67	£2.00
2 - PUSHING BUTTON HIT-301944.A39 301944	£1.67	£2.00
3 - GEAR COVER ASS'Y INCLUD.2 HIT-339146.A1 339146	£10.86	£13.03
4 - SPECIAL NUT M6 HIT-309191.A22 309191	£1.67	£2.00
5 - BALL BEARING 608SS HIT-338337.A1 338337	£3.83	£4.60
6 - BEARING HOLDER HIT-338850.A6 338850	£1.67	£2.00
*7 - ARMATURE 110V HIT-361007C.A0 361007C	£21.06	£25.27
*7 - ARMATURE 230V-240V HIT-361007E.A1 361007E	£21.06	£25.27
8 - FAN GUIDE HIT-338853.A0 338853	£1.67	£2.00
*9 - STATOR 110V-120V HIT-340908D.A1 340908D	£16.19	£19.43
*9 - STATOR 220V-230V HIT-340908E.A0 340908E	£16.19	£19.43
10 - LOCK PIN HIT-301943.A4 301943	£3.28	£3.93
11 - RETAINING RING FOR D11 SHAFT HIT-316487.A30 316487	£1.67	£2.00
12A - PACKING GLAND HIT-338849.A3 338849	£5.38	£6.45
13 - SEAL LOCK SCREW (W/WASHER) M4X12 HIT-328628.A5 328628	£1.67	£2.00
14 - WASHER (A) HIT-328185.A4 328185	£1.67	£2.00
*15 - SPINDLE HIT-330700.A1 330700	£8.35	£10.02
16 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A3 308386	£1.67	£2.00
17 - WHEEL GUARD ASS'Y INCLUD.16 HIT-338848.A2 338848	£4.01	£4.81
*18A - WHEEL WASHER HIT-376067.A13 376067	£4.64	£5.57
*20A - WHEEL NUT M14 HIT-339579.A27 339579	£6.23	£7.48
21 - GEAR AND PINION SET HIT-328178.A2 328178	£12.98	£15.57
22 - SLIDE BAR HIT-338855.A0 338855	£1.67	£2.00
23 - DUST SEAL HIT-321722.A18 321722	£1.67	£2.00
24 - BALL BEARING 626ZZ HIT-339145.A2 339145	£1.67	£2.00
25 - RUBBER BUSHING HIT-309929.A22 309929	£1.67	£2.00
26A - HOUSING HIT-338851.A0 338851	£6.68	£8.01
27 - CARBON BRUSH 6.5X7.5X14 (1 PAIR) HIT-999067.A7 999067	£6.23	£7.48
28 - TAB TERMINAL HIT-339185.A0 339185	-
29 - TAPPING SCREW D3X8 HIT-328210.A7 328210	£1.67	£2.00
30 - NAME PLATE HIT-000000.A1564 000000	-
31 - BRUSH HOLDER HIT-333844.A6 333844	£3.12	£3.74
32 - PUSHING BUTTON SWITCH HIT-339149.A2 339149	£4.16	£4.99
*33 - NOISE SUPPRESSOR 100V-110V FOR GBR (110V) HIT-339148.A0 339148	£4.01	£4.81
*33 - NOISE SUPPRESSOR 220V-240V FOR NZL HIT-339147.A2 339147	£4.39	£5.27
34 - TERMINAL HIT-980063.A8 980063	£1.67	£2.00
*35 - CORD CLIP HIT-338334.A12 338334	£1.67	£2.00
36 - TAPPING SCREW (W/FLANGE) D4X12 HIT-305720.A18 305720	£1.67	£2.00
*37 - CORD ARMOR D8.8 HIT-953327.A141 953327	£1.67	£2.00
38 - SLIDE SWITCH KNOB HIT-338854.A6 338854	£1.67	£2.00
39 - BRAND LABEL HIT-000000.A1565 000000	-
40 - TAIL COVER HIT-338852.A0 338852	£1.67	£2.00
41 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A35 305812	£1.67	£2.00
*42 - CORD (CORD ARMOR D8.8) FOR UAE (230V) HIT-500436Z.A22 500436Z	-
*42 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A3 500461Z	£15.56	£18.67
501 - WRENCH HIT-711271.A24 711271	£4.16	£4.99
502 - SIDE HANDLE HIT-711283.A4 711283	£7.02	£8.42
*503 - CASE FOR GBR HIT-339264.A3 339264	£22.42	£26.91
*504 - DIAMOND CUTTER 115MM-D22.2 HOLE HIT-000000.A1568 000000	-
*601 - DIAMOND WHEEL (SEGMENT) 115MM-D22.2 HOLE FOR GBR HIT-994314.A1 994314	£111.98	£134.38
602 - SANDING DISCS 115MM C-P16 (10 PCS.) HIT-314095.A9 314095	-
603 - SANDING DISCS 115MM C-P20 (10 PCS.) HIT-314096.A7 314096	-
604 - SANDING DISCS 115MM C-P24 (10 PCS.) HIT-314097.A10 314097	-
605 - SANDING DISCS 115MM C-P30 (10 PCS.) HIT-314098.A7 314098	-
606 - SANDING DISCS 115MM C-P36 (10 PCS.) HIT-314099.A10 314099	-
607 - SANDING DISCS 115MM C-P40 (10 PCS.) HIT-314100.A7 314100	-
608 - SANDING DISCS 115MM C-P50 (10 PCS.) HIT-314101.A10 314101	-
609 - SANDING DISCS 115MM C-P60 (10 PCS.) HIT-314102.A7 314102	-
610 - SANDING DISCS 115MM C-P80 (10 PCS.) HIT-314103.A10 314103	-
612 - SANDING DISCS 115MM C-P100 (10 PCS.) HIT-314104.A7 314104	-
613 - SANDING DISCS 115MM C-P120 (10 PCS.) HIT-314105.A9 314105	-
614 - WASHER NUT HIT-937826Z.A23 937826Z	£8.48	£10.18
615 - WHEEL GUARD (FOR CUTTING) HIT-332785.A8 332785	£12.61	£15.13
616 - SILICON RUBBER (B) HIT-324688.A4 324688	£43.25	£51.90
