Hitachi / Hikoki G12SN Disc Grinder Spare Parts

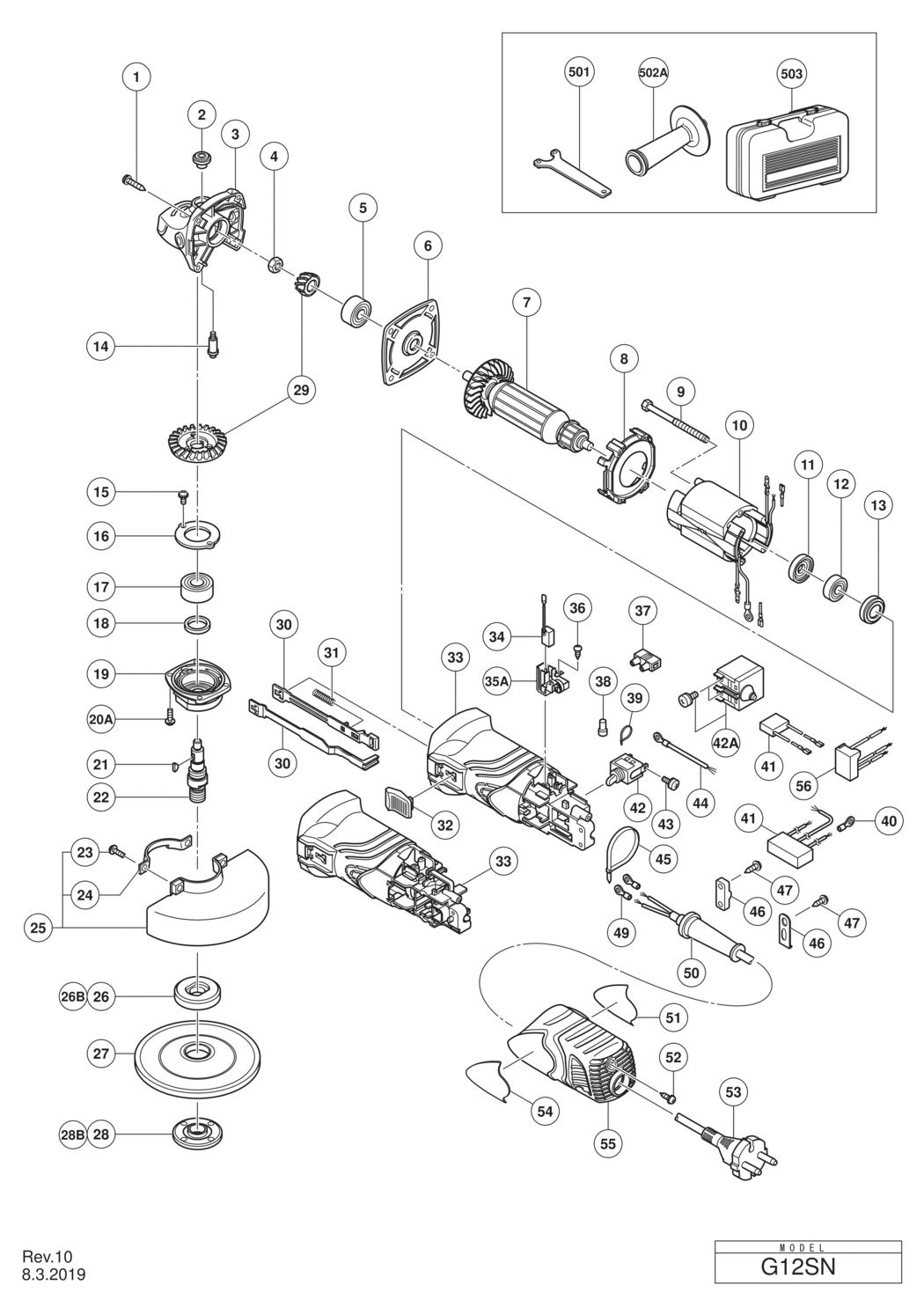

An exploded diagram and spare parts listing for the Hitachi / Hikoki G12SN Disc Grinder

	Ex VAT	Inc VAT
1 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A50 307028	£1.67	£2.00
2 - PUSHING BUTTON HIT-301944.A33 301944	£1.67	£2.00
3 - GEAR COVER ASS'Y INCLUD.2 HIT-332529.A1 332529	£14.83	£17.80
4 - SPECIAL NUT M6 HIT-309191.A12 309191	£1.67	£2.00
5 - BALL BEARING 628VVC2PS2-L HIT-628VVC.A2 628VVC	£6.56	£7.87
6 - BEARING HOLDER HIT-327887.A1 327887	£1.67	£2.00
*7 - ARMATURE 110V HIT-360891C.A3 360891C	£36.93	£44.32
*7 - ARMATURE 230V HIT-360891F.A1 360891F	£36.89	£44.27
8 - FAN GUIDE HIT-327886.A3 327886	£1.67	£2.00
9 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A4 982021	£1.67	£2.00
*10 - STATOR 110V FOR GBR (110V) HIT-340791B.A1 340791B	£38.88	£46.66
*10 - STATOR 230V-240V HIT-340791J.A1 340791J	£38.87	£46.64
*10 - STATOR 110V FOR MODEL (S) HIT-340791L.A1 340791L	£51.52	£61.82
*10 - STATOR 230V FOR MODEL (S) HIT-340791M.A1 340791M	£52.35	£62.82
11 - DUST SEAL HIT-321722.A12 321722	£1.67	£2.00
12 - BALL BEARING 626VVC2PS2L HIT-626VVM.A15 626VVM	£5.77	£6.92
13 - RUBBER BUSHING HIT-309929.A13 309929	£1.67	£2.00
14 - LOCK PIN HIT-301943.A13 301943	£3.28	£3.93
15 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-987201.A2 987201	£1.67	£2.00
16 - BEARING COVER HIT-316490.A5 316490	£1.67	£2.00
17 - BALL BEARING 6201VV HIT-6201VV.A42 6201VV	£8.30	£9.96
18 - FELT PACKING HIT-301946.A11 301946	£1.67	£2.00
19 - PACKING GLAND HIT-316489.A2 316489	£8.35	£10.02
*20A - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-307127.A1 307127	£1.67	£2.00
21 - WOODRUFF KEY HIT-302047.A1 302047	£1.67	£2.00
*22 - SPINDLE HIT-332536.A1 332536	£6.14	£7.37
23 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A9 308386	£1.67	£2.00
24 - SET PLATE HIT-301949.A5 301949	£1.67	£2.00
25 - WHEEL GUARD ASS'Y INCLUD.23 HIT-315492.A0 315492	£15.38	£18.45
*26 - WHEEL WASHER HIT-937817Z.A6 937817Z	£8.88	£10.66
27 - D. C. WHEELS 115MM A36Q (25 PCS.) HIT-316821.A2 316821	-
*28B - WHEEL NUT M14 HIT-339579.A19 339579	£6.23	£7.48
29 - GEAR SET HIT-327888.A5 327888	£16.23	£19.48
*30 - SLIDE BAR HIT-333366.A1 333366	£1.67	£2.00
*30 - SLIDE BAR FOR MODEL (S) HIT-370042.A0 370042	£1.67	£2.00
*31 - SPRING EXCEPT FOR MODEL (S) HIT-314429.A1 314429	£1.67	£2.00
32 - SLIDE KNOB HIT-314428.A27 314428	£1.67	£2.00
*33 - HOUSING ASS'Y INCLUD.13 HIT-333365.A1 333365	£8.59	£10.31
*33 - HOUSING ASS'Y INCLUD.13 FOR MODEL (S) HIT-370040.A0 370040	£11.28	£13.53
34 - CARBON BRUSH (1 PAIR) HIT-999005.A0 999005	£13.25	£15.90
35A - BRUSH HOLDER HIT-333844.A1 333844	£3.12	£3.74
36 - TAPPING SCREW D3X8 HIT-328210.A16 328210	£1.67	£2.00
*37 - PILLAR TERMINAL EXCEPT FOR UAE HIT-938307.A6 938307	£3.28	£3.93
*38 - CONNECTOR 50091 (10 PCS.) EXCEPT FOR UAE (230V HIT-959140.A49 959140	£4.98	£5.97
*40 - TERMINAL FOR AUS HIT-980063.A43 980063	£1.67	£2.00
*41 - NOISE SUPPRESSOR FOR AUS HIT-317491.A2 317491	£9.43	£11.32
*41 - NOISE SUPPRESSOR FOR MODEL (S) HIT-370051.A2 370051	-
*42 - SWITCH (1P SOLDER TYPE) HIT-314603.A12 314603	£15.38	£18.45
*42 - PUSHING BUTTON SWITCH 110V FOR MODEL (S) HIT-370044.A1 370044	£19.17	£23.00
*42A - PUSHING BUTTON SWITCH 220V-240V FOR MODEL (S) (230V) HIT-374280.A1 374280	£16.45	£19.74
*43 - MACHINE SCREW (W/WASHER) M3.5X6 EXCEPT FOR MODEL (S) HIT-305499.A24 305499	£1.67	£2.00
*44 - INTERNAL WIRE FOR AUS HIT-332545.A0 332545	-
*44 - INTERNAL WIRE FOR MODEL (S) HIT-370045.A1 370045	-
*46 - CORD CLIP HIT-937631.A36 937631	£1.67	£2.00
*46 - CORD CLIP FOR MODEL (S) HIT-338334.A9 338334	£1.67	£2.00
*47 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A207 984750	£1.67	£2.00
*47 - TAPPING SCREW (W/FLANGE) D4X12 FOR MODEL (S) HIT-305720.A3 305720	£1.67	£2.00
*49 - TERMINAL HIT-980063.A44 980063	£1.67	£2.00
*49 - TERMINAL FOR MODEL (S) HIT-311741.A6 311741	-
*50 - CORD ARMOR D8.8 HIT-953327.A102 953327	£1.67	£2.00
51 - NAME PLATE HIT-000000.A1767 000000	-
52 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A31 307811	£1.67	£2.00
*53 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500436Z.A15 500436Z	-
*53 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A21 500461Z	£15.56	£18.67
54 - BRAND LABEL HIT-000000.A1768 000000	-
*55 - TAIL COVER HIT-327894.A2 327894	£9.03	£10.84
*55 - TAIL COVER FOR MODEL (S) HIT-370041.A1 370041	-
*56 - VARISTOR (A) FOR MODEL (S) HIT-370043.A1 370043	£9.10	£10.92
501 - WRENCH HIT-711271.A28 711271	£4.16	£4.99
*502A - SIDE HANDLE HIT-711283.A18 711283	£7.02	£8.42
*503 - CASE FOR NZL HIT-319375.A1 319375	-
601 - SANDING DISCS 115MM C-P16 (10 PCS.) HIT-314095.A5 314095	-
602 - SANDING DISCS 115MM C-P20 (10 PCS.) HIT-314096.A11 314096	-
603 - SANDING DISCS 115MM C-P24 (10 PCS.) HIT-314097.A6 314097	-
604 - SANDING DISCS 115MM C-P30 (10 PCS.) HIT-314098.A11 314098	-
605 - SANDING DISCS 115MM C-P36 (10 PCS.) HIT-314099.A6 314099	-
606 - SANDING DISCS 115MM C-P40 (10 PCS.) HIT-314100.A11 314100	-
607 - SANDING DISCS 115MM C-P50 (10 PCS.) HIT-314101.A6 314101	-
608 - SANDING DISCS 115MM C-P60 (10 PCS.) HIT-314102.A11 314102	-
609 - SANDING DISCS 115MM C-P80 (10 PCS.) HIT-314103.A6 314103	-
610 - SANDING DISCS 115MM C-P100 (10 PCS.) HIT-314104.A11 314104	-
611 - SANDING DISCS 115MM C-P120 (10 PCS.) HIT-314105.A5 314105	-
*612 - WASHER NUT HIT-937826Z.A18 937826Z	£8.48	£10.18
*613 - RUBBER PAD HIT-937825Z.A8 937825Z	-
*614 - WHEEL GUARD (FOR CUTTING) EXCEPT FOR USA HIT-332785.A1 332785	£12.61	£15.13
*615 - SILICON RUBBER (B) FOR (S) HIT-324688.A2 324688	£43.25	£51.90
