Hitachi / Hikoki G12SE2 Disc Grinder Spare Parts

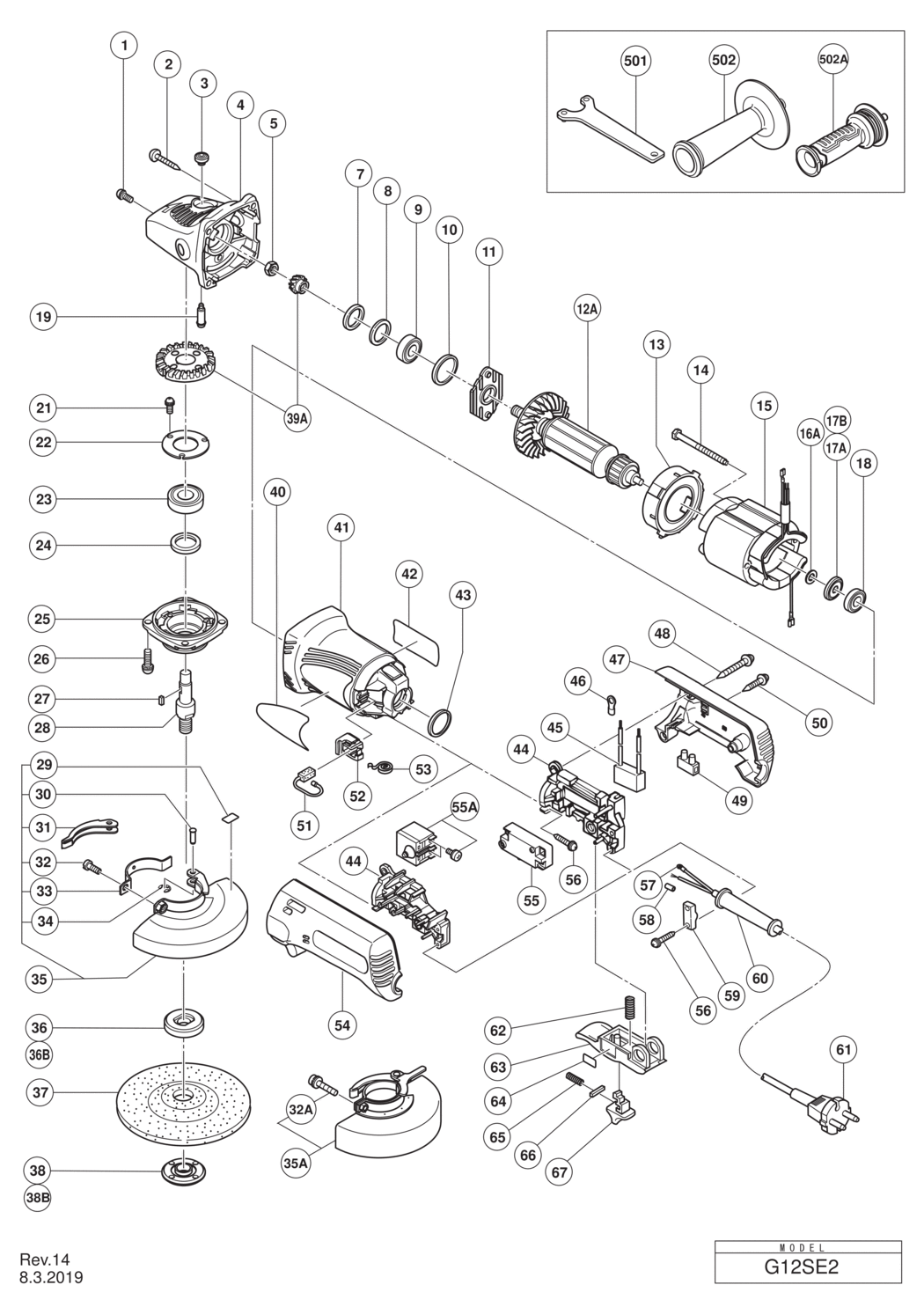

An exploded diagram and spare parts listing for the Hitachi / Hikoki G12SE2 Disc Grinder

	Ex VAT	Inc VAT
1 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-303255.A6 303255	£1.67	£2.00
2 - TAPPING SCREW D5X25 (BLACK) HIT-320523.A5 320523	£1.67	£2.00
3 - PUSHING BUTTON HIT-301944.A35 301944	£1.67	£2.00
4 - GEAR COVER ASS'Y INCLUD.3 HIT-321737.A2 321737	£44.42	£53.30
5 - NUT M8 (10 PCS.) HIT-949558.A12 949558	£1.67	£2.00
7 - SEAL RING (A) HIT-308543.A1 308543	£1.67	£2.00
8 - WASHER (C) HIT-980866.A5 980866	£1.67	£2.00
9 - BALL BEARING 629T12DDC3PS2-L HIT-629T12.A0 629T12	£9.62	£11.54
10 - RUBBER RING HIT-957754.A0 957754	£1.67	£2.00
11 - BEARING COVER HIT-321734.A4 321734	£1.67	£2.00
*12A - ARMATURE ASS'Y 110V-120V INCLUD.9 HIT-360603U.A1 360603U	£72.92	£87.50
*12A - ARMATURE ASS'Y 230V-240V INCLUD.17B HIT-360603F.A0 360603F	£72.92	£87.50
13 - FAN GUIDE HIT-321732.A4 321732	£1.67	£2.00
14 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A6 982021	£1.67	£2.00
*15 - STATOR 110V HIT-340551C.A0 340551C	£42.79	£51.35
*15 - STATOR 230V HIT-340551E.A1 340551E	£42.79	£51.35
*16A - THRUST WASHER SINCE 3.2006 FOR USA HIT-311737.A0 311737	£1.67	£2.00
*17A - DUST SEAL (A) FOR USA HIT-311435.A3 311435	£1.67	£2.00
*17B - DUST SEAL HIT-315877.A7 315877	£1.67	£2.00
18 - BALL BEARING 608VVC2PS2L HIT-608VVM.A226 608VVM	£5.70	£6.84
19 - LOCK PIN HIT-301943.A9 301943	£3.28	£3.93
21 - SEAL LOCK SCREW (W/SP. WASHER) M4X8 HIT-991207.A8 991207	£1.67	£2.00
22 - BEARING COVER (B) HIT-936680.A2 936680	£1.67	£2.00
23 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A7 6201DD	£8.64	£10.37
24 - FELT PACKING HIT-308546.A0 308546	£1.67	£2.00
25 - PACKING GLAND HIT-308545.A6 308545	£11.68	£14.02
26 - SEAL LOCK SCREW (W/SP. WASHER) M5X16 HIT-307046.A6 307046	£1.67	£2.00
27 - FEATHER KEY 3X3X8 HIT-944109.A7 944109	£3.28	£3.93
*28 - SPINDLE (A) HIT-994301.A0 994301	£24.03	£28.84
30 - SET PIN TILL 11.2014 HIT-311744.A0 311744	£1.67	£2.00
31 - LEVER TILL 11.2014 HIT-311743.A1 311743	£8.64	£10.37
*32 - MACHINE SCREW (W/WASHERS) M5X25 (BLACK) (EXCEPT FOR USA HIT-880734.A1 880734	£1.67	£2.00
33 - SET PIECE (B) TILL 11.2014 HIT-311491.A0 311491	£6.97	£8.36
34 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT TILL 11.2014 HIT-874759.A3 874759	£1.67	£2.00
*35 - WHEEL GUARD ASS'Y (TOOLLESS TYPE) INCLUD.29-34 (EXCEPT FOR USA HIT-311745.A0 311745	£29.05	£34.86
*36 - WHEEL WASHER HIT-937817Z.A8 937817Z	£8.88	£10.66
37 - D. C. WHEELS 115MM A36Q (25 PCS.) HIT-316821.A3 316821	-
*38B - WHEEL NUT M14 HIT-339579.A22 339579	£6.23	£7.48
39A - GEAR AND PINION SET HIT-329054.A2 329054	£22.09	£26.51
40 - BRAND LABEL HIT-000000.A1760 000000	-
41 - HOUSING HIT-321731.A1 321731	£20.15	£24.18
42 - NAME PLATE HIT-000000.A1761 000000	-
43 - RUBBER RING HIT-321733.A2 321733	£1.67	£2.00
*44 - SWITCH BOX HIT-311738.A1 311738	£4.31	£5.17
*45 - NOISE SUPPRESSOR EXCEPT FOR USA HIT-930039.A45 930039	£3.85	£4.62
*46 - TERMINAL HIT-311741.A5 311741	-
*47 - TAIL COVER (B) HIT-321739.A1 321739	£11.53	£13.84
48 - TAPPING SCREW (W/FLANGE) D4X35 (BLACK) HIT-303694.A7 303694	£1.67	£2.00
49 - PILLAR TERMINAL HIT-938307.A4 938307	£3.28	£3.93
50 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A215 301653	£1.67	£2.00
51 - CARBON BRUSH (1 PAIR) HIT-999088.A1 999088	£5.23	£6.28
51 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999076.A5 999076	£19.14	£22.97
52 - BRUSH HOLDER HIT-317810.A10 317810	£6.09	£7.31
53 - SPRING HIT-308536.A15 308536	£1.67	£2.00
*54 - TAIL COVER (A) HIT-321738.A1 321738	£11.53	£13.84
*55 - SWITCH (1P SCREW TYPE) W/O LOCK HIT-311739.A0 311739	£13.73	£16.48
56 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A205 984750	£1.67	£2.00
57 - TERMINAL HIT-980063.A41 980063	£1.67	£2.00
*58 - TUBE (D) FOR GBR (110V) HIT-981373.A59 981373	£1.67	£2.00
59 - CORD CLIP HIT-960266.A18 960266	£1.67	£2.00
60 - CORD ARMOR D8.8 HIT-953327.A101 953327	£1.67	£2.00
*61 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500462Z.A0 500462Z	-
*61 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500440Z.A11 500440Z	£22.75	£27.30
62 - SPRING HIT-983595.A1 983595	£1.67	£2.00
63 - PADDLE LEVER HIT-308554.A2 308554	£4.82	£5.79
*64 - LEVER ACTION SEAL FOR NZL HIT-308558.A2 308558	£1.67	£2.00
65 - SPRING (F) HIT-301631.A0 301631	£1.67	£2.00
66 - FEATHER KEY 3X3X15 HIT-982696.A1 982696	£1.67	£2.00
*67 - LOCK LEVER (GRAY) FOR NZL HIT-308556.A0 308556	£1.67	£2.00
29 - LABEL TILL 11.2014 HIT-311492.A21 311492	£1.67	£2.00
501 - WRENCH HIT-711271.A29 711271	£4.16	£4.99
*502 - SIDE HANDLE HIT-711283.A19 711283	£7.02	£8.42
*601 - RUBBER PAD HIT-937825Z.A6 937825Z	-
*602 - WASHER NUT HIT-937826Z.A20 937826Z	£8.48	£10.18
603 - SANDING DISCS 115MM C-P16 (10 PCS.) HIT-314095.A6 314095	-
604 - SANDING DISCS 115MM C-P20 (10 PCS.) HIT-314096.A10 314096	-
605 - SANDING DISCS 115MM C-P24 (10 PCS.) HIT-314097.A7 314097	-
606 - SANDING DISCS 115MM C-P30 (10 PCS.) HIT-314098.A10 314098	-
607 - SANDING DISCS 115MM C-P36 (10 PCS.) HIT-314099.A7 314099	-
608 - SANDING DISCS 115MM C-P40 (10 PCS.) HIT-314100.A10 314100	-
609 - SANDING DISCS 115MM C-P50 (10 PCS.) HIT-314101.A7 314101	-
610 - SANDING DISCS 115MM C-P60 (10 PCS.) HIT-314102.A10 314102	-
611 - SANDING DISCS 115MM C-P80 (10 PCS.) HIT-314103.A7 314103	-
612 - SANDING DISCS 115MM C-P100 (10 PCS.) HIT-314104.A10 314104	-
613 - SANDING DISCS 115MM C-P120 (10 PCS.) HIT-314105.A6 314105	-
*615 - SUPER WASHER EXCEPT FOR USA HIT-310338.A0 310338	£23.30	£27.96
*616 - WHEEL GUARD (FOR CUTTING) EXCEPT FOR USA HIT-332785.A2 332785	£12.61	£15.13
