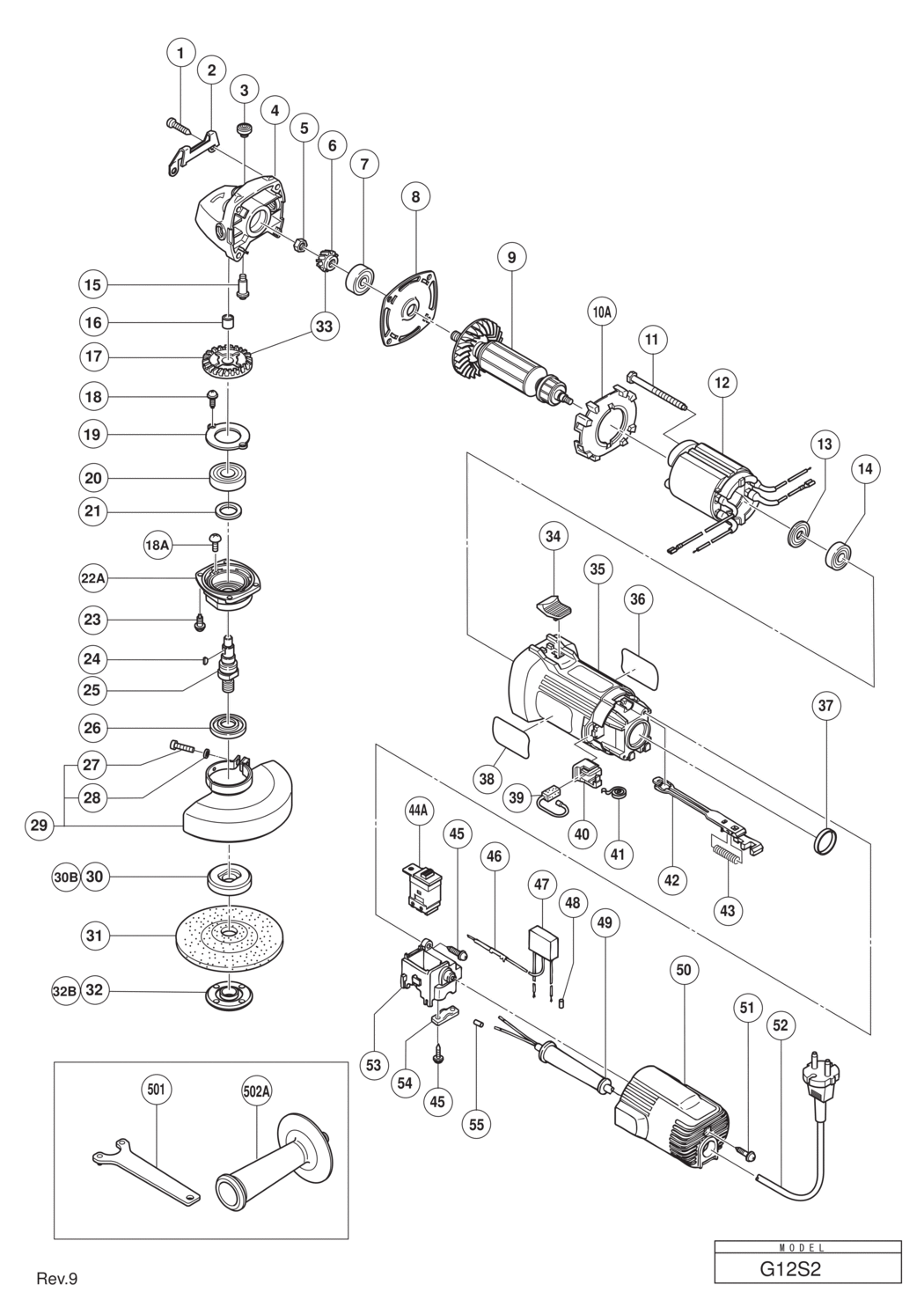

An exploded diagram and spare parts listing for the Hitachi / Hikoki G12S2 Disc Grinder
Ex VAT Inc VAT
1 - TAPPING SCREW D5X25 HIT-937807.A6 937807 -
2 - GUARD PLATE HIT-317807.A5 317807 £1.67 £2.00
3 - PUSHING BUTTON HIT-301944.A36 301944 £1.67 £2.00
4 - GEAR COVER ASS'Y INCLUD.3 HIT-316484.A0 316484 £19.35 £23.22
5 - SPECIAL NUT M7 HIT-301941.A2 301941 £1.67 £2.00
6 - PINION HIT-317820.A0 317820 £20.67 £24.80
7 - BALL BEARING 628VVC2PS2-L HIT-628VVC.A4 628VVC £6.56 £7.87
8 - BEARING HOLDER HIT-316480.A1 316480 -
*9 - ARMATURE 110V HIT-360497C.A0 360497C £62.25 £74.70
*9 - ARMATURE 230V-240V HIT-360497F.A1 360497F £62.25 £74.70
10A - FAN GUIDE HIT-319898.A1 319898 £1.67 £2.00
11 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A7 982021 £1.67 £2.00
*12 - STATOR (A) 110V-115V HIT-340441C.A0 340441C £16.63 £19.96
*12 - STATOR (A) 220V-230V HIT-340441E.A1 340441E £16.63 £19.96
13 - DUST SEAL HIT-315877.A8 315877 £1.67 £2.00
14 - BALL BEARING 608VVC2PS2L HIT-608VVM.A225 608VVM £5.70 £6.84
15 - LOCK PIN HIT-301943.A8 301943 £3.28 £3.93
16 - NEEDLE BEARING (HK0709) HIT-673422.A0 673422 -
17 - GEAR HIT-317821.A1 317821 £18.48 £22.18
18 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 TILL 09.2009 HIT-997263.A2 997263 -
18A - SLOTTED HD. SCREW (SEAL LOCK) M4X8 SINCE 10.2009 HIT-323556.A7 323556 -
19 - BEARING COVER TILL 09.2009 HIT-316490.A7 316490 £1.67 £2.00
20 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A8 6201DD £8.64 £10.37
21 - FELT PACKING HIT-301946.A10 301946 £1.67 £2.00
22A - PACKING GLAND HIT-333839.A0 333839 -
23 - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-307127.A0 307127 £1.67 £2.00
24 - WOODRUFF KEY HIT-302047.A3 302047 £1.67 £2.00
*25 - SPINDLE HIT-317804.A0 317804 -
26 - FRINGER HIT-301945.A0 301945 £1.67 £2.00
27 - MACHINE SCREW M5X20 (10 PCS.) HIT-949241.A9 949241 £1.67 £2.00
28 - SPRING WASHER M5 (10 PCS.) HIT-949454.A68 949454 £1.67 £2.00
29 - WHEEL GUARD ASS'Y INCLUD.27 HIT-319656.A0 319656 £9.56 £11.47
*30 - WHEEL WASHER HIT-937817Z.A5 937817Z £8.88 £10.66
31 - D. C. WHEELS 115MM A36Q (25 PCS.) HIT-316821.A0 316821 -
*32B - WHEEL NUT M14 HIT-339579.A18 339579 £6.23 £7.48
33 - GEAR ASS'Y INCLUD.6 HIT-317819.A1 317819 £33.82 £40.58
34 - SLIDE KNOB HIT-314428.A28 314428 £1.67 £2.00
35 - HOUSING HIT-317802.A1 317802 £18.48 £22.18
36 - NAME PLATE HIT-000000.A1754 000000 -
37 - RUBBER RING HIT-995662.A5 995662 £1.67 £2.00
38 - BRAND LABEL HIT-000000.A1755 000000 -
39 - CARBON BRUSH (1 PAIR) HIT-999088.A3 999088 £5.23 £6.28
40 - BRUSH HOLDER HIT-317810.A9 317810 £6.09 £7.31
41 - SPRING HIT-308536.A14 308536 £1.67 £2.00
42 - SLIDE BAR HIT-317806.A0 317806 £1.67 £2.00
43 - SPRING HIT-314429.A0 314429 £1.67 £2.00
44A - SLIDE SWITCH (2P PILLAR TYPE) HIT-321208.A0 321208 -
45 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A208 984750 £1.67 £2.00
*46 - EARTH TERMINAL FOR NOISE SUPPRESSOR HIT-314854.A6 314854 £1.67 £2.00
*47 - NOISE SUPPRESSOR EXCEPT FOR SYR HIT-994273.A9 994273 £7.30 £8.76
*48 - TUBE (D) FOR NOISE SUPPRESSOR HIT-981373.A56 981373 £1.67 £2.00
49 - CORD ARMOR D8.8 HIT-953327.A98 953327 £1.67 £2.00
50 - TAIL COVER HIT-317808.A0 317808 £10.77 £12.92
51 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A30 307811 £1.67 £2.00
*52 - CORD (CORD ARMOR D8.8) FOR GBR(110V) HIT-500237Z.A2 500237Z £14.33 £17.20
*52 - CORD (CORD ARMOR D8.8) FOR GBR(230V) HIT-500435Z.A38 500435Z £14.14 £16.97
53 - SWITCH HOLDER HIT-317811.A0 317811 £3.02 £3.63
54 - CORD CLIP HIT-937631.A33 937631 £1.67 £2.00
55 - TUBE (D) FOR CORD HIT-981373.A57 981373 £1.67 £2.00
501 - WRENCH HIT-711271.A31 711271 £4.16 £4.99
*502A - SIDE HANDLE HIT-711283.A15 711283 £7.02 £8.42
*601 - RUBBER PAD HIT-937825Z.A9 937825Z -
*602 - WASHER NUT HIT-937826Z.A17 937826Z £8.48 £10.18
604 - SANDING DISCS 115MM C-P16 (10 PCS.) HIT-314095.A3 314095 -
605 - SANDING DISCS 115MM C-P20 (10 PCS.) HIT-314096.A13 314096 -
606 - SANDING DISCS 115MM C-P24 (10 PCS.) HIT-314097.A4 314097 -
607 - SANDING DISCS 115MM C-P30 (10 PCS.) HIT-314098.A13 314098 -
608 - SANDING DISCS 115MM C-P36 (10 PCS.) HIT-314099.A4 314099 -
609 - SANDING DISCS 115MM C-P40 (10 PCS.) HIT-314100.A13 314100 -
610 - SANDING DISCS 115MM C-P50 (10 PCS.) HIT-314101.A4 314101 -
611 - SANDING DISCS 115MM C-P60 (10 PCS.) HIT-314102.A13 314102 -
612 - SANDING DISCS 115MM C-P80 (10 PCS.) HIT-314103.A4 314103 -
613 - SANDING DISCS 115MM C-P100 (10 PCS.) HIT-314104.A13 314104 -
614 - SANDING DISCS 115MM C-P120 (10 PCS.) HIT-314105.A3 314105 -
616 - WHEEL GUARD (FOR CUTTING) WITHOUT BASE FOOT HIT-332786.A0 332786 £16.20 £19.44
