Hitachi / Hikoki G10SR4 Disc Grinder Spare Parts

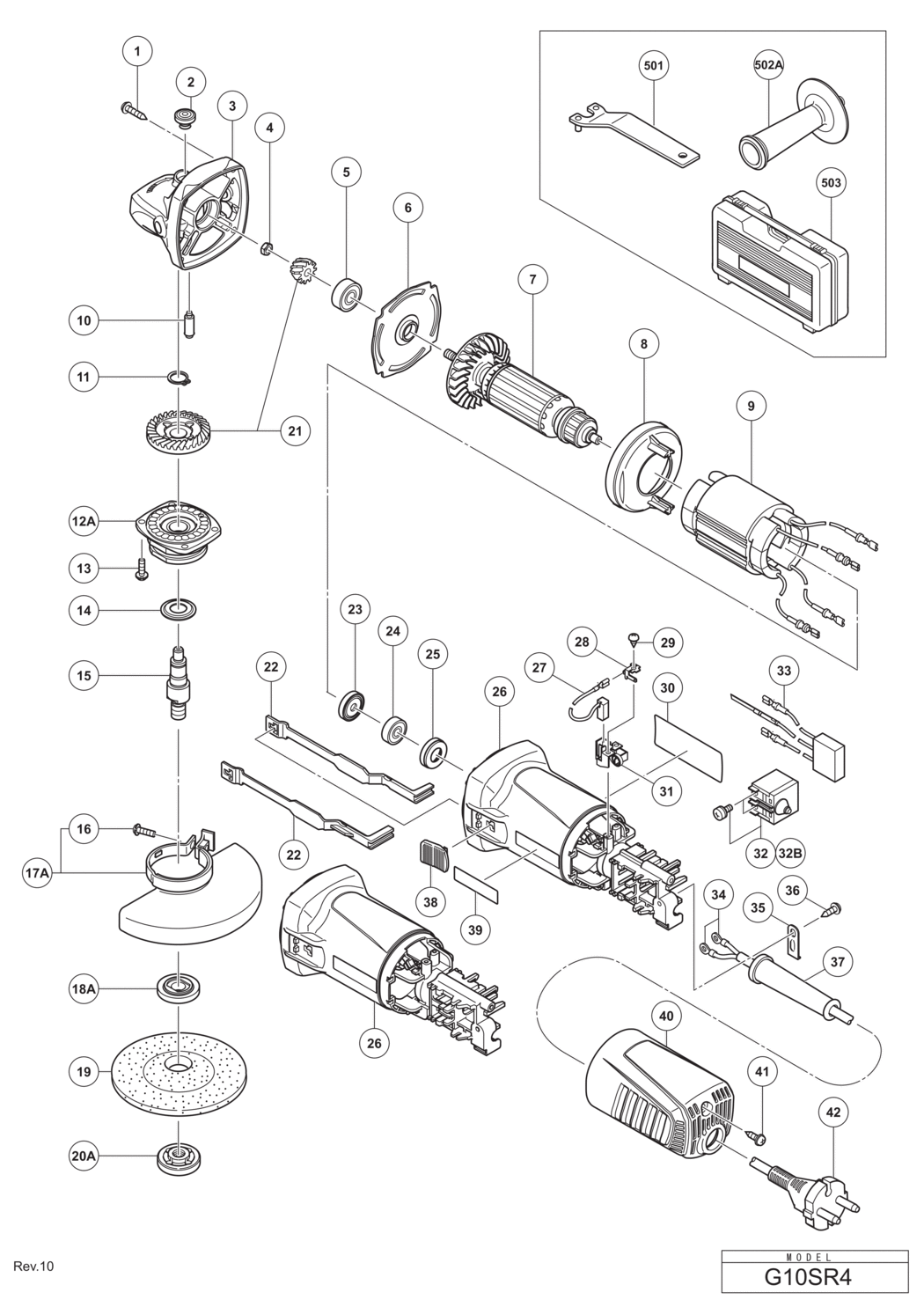

An exploded diagram and spare parts listing for the Hitachi / Hikoki G10SR4 Disc Grinder

	Ex VAT	Inc VAT
1 - TAPPING SCREW (W/FLANGE) D4X23 (BLACK) HIT-328643.A21 328643	£1.67	£2.00
2 - PUSHING BUTTON HIT-301944.A34 301944	£1.67	£2.00
3 - GEAR COVER ASS'Y INCLUD.2 HIT-339146.A3 339146	£10.86	£13.03
4 - SPECIAL NUT M6 HIT-309191.A11 309191	£1.67	£2.00
5 - BALL BEARING 608SS HIT-338337.A3 338337	£3.83	£4.60
6 - BEARING HOLDER HIT-338850.A8 338850	£1.67	£2.00
*7 - ARMATURE 110V HIT-361016C.A0 361016C	£33.32	£39.98
*7 - ARMATURE 220V-240V HIT-361016E.A1 361016E	£33.32	£39.98
8 - FAN GUIDE HIT-338853.A3 338853	£1.67	£2.00
*9 - STATOR 110V-127V HIT-340016C.A1 340016C	£27.84	£33.41
*9 - STATOR 220V-230V HIT-340016E.A0 340016E	£27.84	£33.41
10 - LOCK PIN HIT-301943.A10 301943	£3.28	£3.93
11 - RETAINING RING FOR D11 SHAFT HIT-316487.A24 316487	£1.67	£2.00
12A - PACKING GLAND HIT-338849.A1 338849	£5.38	£6.45
13 - SEAL LOCK SCREW (W/WASHER) M4X12 HIT-328628.A3 328628	£1.67	£2.00
14 - WASHER (A) HIT-328185.A3 328185	£1.67	£2.00
15 - SPINDLE HIT-328174.A0 328174	£7.30	£8.76
16 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A11 308386	£1.67	£2.00
17A - WHEEL GUARD ASS'Y INCLUD.16 HIT-370066.A2 370066	-
18A - WHEEL WASHER HIT-372737.A0 372737	-
20A - WHEEL NUT M10 HIT-339578.A0 339578	-
21 - GEAR AND PINION SET HIT-339265.A0 339265	£11.77	£14.12
*22 - SLIDE BAR HIT-338855.A2 338855	£1.67	£2.00
*22 - SLIDE BAR FOR MODEL(S) HIT-370023.A1 370023	£1.67	£2.00
23 - DUST SEAL HIT-321722.A10 321722	£1.67	£2.00
24 - BALL BEARING 626ZZ HIT-339145.A0 339145	£1.67	£2.00
25 - RUBBER BUSHING HIT-309929.A11 309929	£1.67	£2.00
*26 - HOUSING HIT-339140.A0 339140	£6.78	£8.13
*26 - HOUSING FOR MODEL(S) HIT-370018.A2 370018	£7.92	£9.51
27 - CARBON BRUSH 6.5X7.5X14 (1 PAIR) HIT-999067.A9 999067	£6.23	£7.48
28 - TAB TERMINAL HIT-339185.A3 339185	-
29 - TAPPING SCREW D3X8 HIT-328210.A15 328210	£1.67	£2.00
30 - NAME PLATE HIT-000000.A1749 000000	-
31 - BRUSH HOLDER HIT-333844.A0 333844	£3.12	£3.74
32 - PUSHING BUTTON SWITCH HIT-339149.A0 339149	£4.16	£4.99
*32B - PUSHING BUTTON SWITCH 100V-127V FOR MODEL(S) HIT-376371.A4 376371	£17.85	£21.42
*32B - PUSHING BUTTON SWITCH 220V-240V FOR MODEL(S) HIT-374280.A0 374280	£16.45	£19.74
*33 - NOISE SUPPRESSOR 100V-110V FOR TPE HIT-339148.A2 339148	£4.01	£4.81
*33 - NOISE SUPPRESSOR 220V-240V FOR AUS HIT-339147.A0 339147	£4.39	£5.27
*34 - TERMINAL HIT-980063.A40 980063	£1.67	£2.00
*34 - TERMINAL FOR MODEL(S) HIT-311741.A7 311741	-
*35 - CORD CLIP HIT-338334.A8 338334	£1.67	£2.00
36 - TAPPING SCREW (W/FLANGE) D4X12 HIT-305720.A5 305720	£1.67	£2.00
*37 - CORD ARMOR D8.8 HIT-953327.A99 953327	£1.67	£2.00
38 - SLIDE SWITCH KNOB HIT-338854.A3 338854	£1.67	£2.00
39 - BRAND LABEL HIT-000000.A1750 000000	-
*40 - TAIL COVER HIT-339141.A4 339141	-
*40 - TAIL COVER FOR MODEL(S) HIT-370019.A1 370019	£1.67	£2.00
41 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A23 305812	£1.67	£2.00
*42 - CORD (CORD ARMOR D8.8) FOR MAL HIT-500436Z.A16 500436Z	-
*42 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A20 500461Z	£15.56	£18.67
501 - WRENCH HIT-313933.A9 313933	£7.02	£8.42
502A - SIDE HANDLE HIT-711283.A16 711283	£7.02	£8.42
601 - SANDING DISCS 100MM C-P16 (10 PCS.) HIT-314051.A2 314051	-
602 - SANDING DISCS 100MM C-P20 (10 PCS.) HIT-314052.A4 314052	-
603 - SANDING DISCS 100MM C-P24 (10 PCS.) HIT-314053.A2 314053	-
604 - SANDING DISCS 100MM C-P30 (10 PCS.) HIT-314054.A4 314054	-
605 - SANDING DISCS 100MM C-P36 (10 PCS.) HIT-314055.A2 314055	-
606 - SANDING DISCS 100MM C-P40 (10 PCS.) HIT-314056.A4 314056	-
607 - SANDING DISCS 100MM C-P50 (10 PCS.) HIT-314057.A2 314057	-
608 - SANDING DISCS 100MM C-P60 (10 PCS.) HIT-314058.A4 314058	-
609 - SANDING DISCS 100MM C-P80 (10 PCS.) HIT-314059.A2 314059	-
610 - SANDING DISCS 100MM C-P100 (10 PCS.) HIT-314060.A4 314060	-
611 - SANDING DISCS 100MM C-P120 (10 PCS.) HIT-314061.A2 314061	-
612 - WASHER NUT M10XP1.5 HIT-935513.A2 935513	£6.06	£7.27
613 - WASHER HIT-936548.A6 936548	£5.20	£6.24
614 - RUBBER PAD HIT-936558Z.A0 936558Z	£8.50	£10.20
615 - GUIDE BASE HIT-302098.A4 302098	-
616 - DUST COLLECTION ADAPTER (DISC GRINDER) HIT-323918.A2 323918	£38.46	£46.15
617 - SILICON RUBBER (B) HIT-324688.A1 324688	£43.25	£51.90
