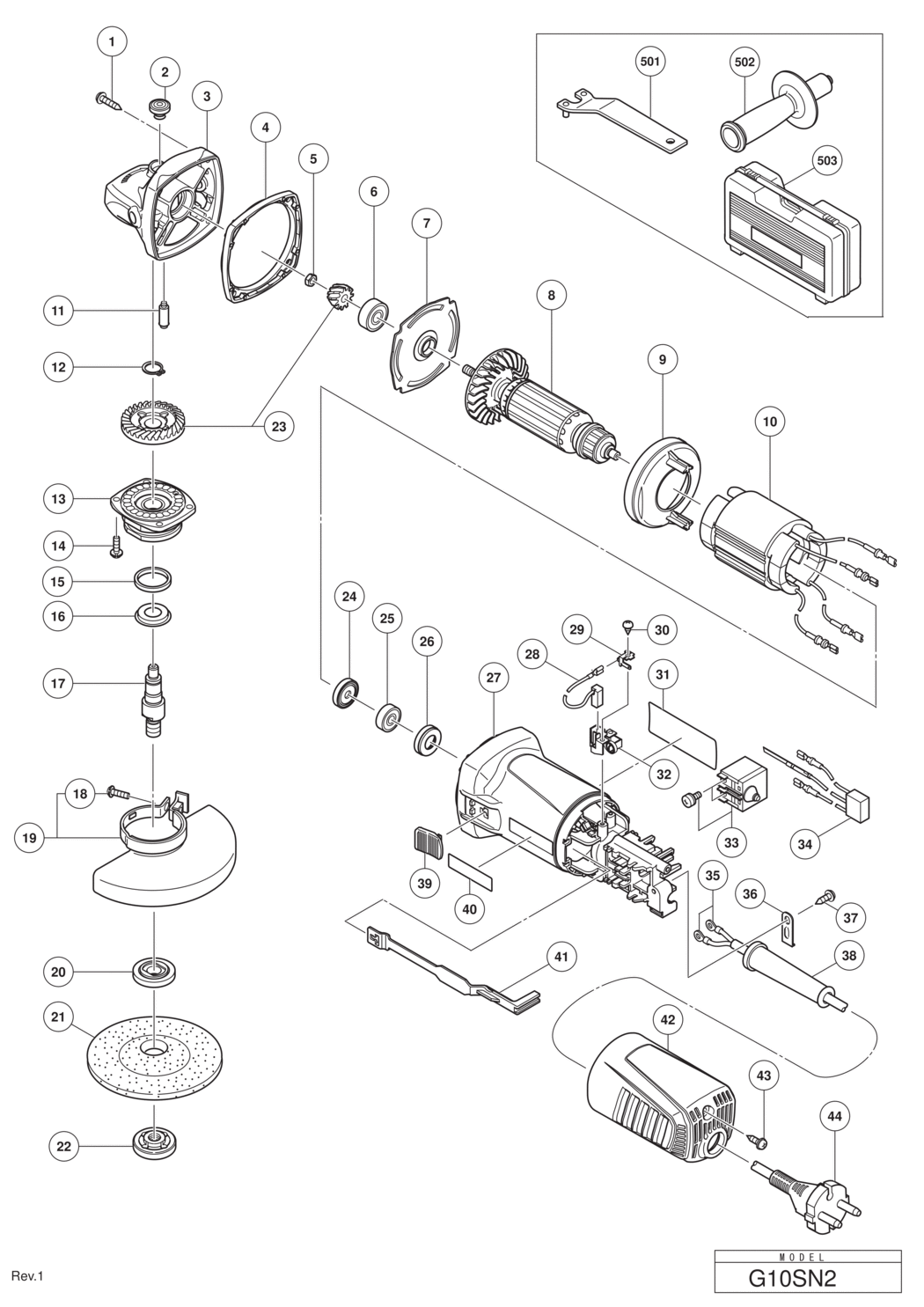

An exploded diagram and spare parts listing for the Hitachi / Hikoki G10SN2 Disc Grinder
Ex VAT Inc VAT
1 - MACHINE SCREW (W/FLANGE) D4X28 HIT-373174.A2 373174 -
2 - PUSHING BUTTON HIT-301944.A8 301944 £1.67 £2.00
3 - GEAR COVER ASS'Y INCLUD.2 HIT-338332.A4 338332 £12.02 £14.43
4 - SPACER HIT-373172.A2 373172 -
5 - SPECIAL NUT M6 HIT-309191.A0 309191 £1.67 £2.00
6 - BALL BEARING 608SS HIT-338337.A14 338337 £3.83 £4.60
7 - BEARING HOLDER HIT-338850.A3 338850 £1.67 £2.00
*8 - ARMATURE 110V HIT-361082B.A5 361082B £23.43 £28.12
*8 - ARMATURE 220V HIT-361082E.A2 361082E -
*8 - ARMATURE 230V HIT-361082F.A3 361082F -
*8 - ARMATURE 240V HIT-361082G.A0 361082G -
9 - FAN GUIDE HIT-338853.A6 338853 £1.67 £2.00
*10 - STATOR 110V-120V HIT-340997B.A4 340997B £19.32 £23.18
*10 - STATOR 220V HIT-340997D.A3 340997D -
*10 - STATOR 230V-240V HIT-340997E.A2 340997E -
11 - LOCK PIN HIT-301943.A37 301943 £3.28 £3.93
12 - RETAINING RING FOR D11 SHAFT HIT-316487.A14 316487 £1.67 £2.00
13 - PACKING GLAND HIT-338849.A6 338849 £5.38 £6.45
14 - SEAL LOCK SCREW (W/WASHER) M4X12 HIT-328628.A13 328628 £1.67 £2.00
15 - FELT PACKING HIT-373384.A4 373384 -
16 - FRINGER HIT-373383.A1 373383 -
17 - SPINDLE HIT-373295.A0 373295 -
18 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A24 308386 £1.67 £2.00
19 - WHEEL GUARD ASS'Y INCLUD.18 HIT-370066.A1 370066 -
20 - WHEEL WASHER HIT-372737.A5 372737 -
21 - D. C. WHEELS 100MMX4T A36Q (25 PCS.) HIT-316820.A2 316820 -
22 - WHEEL NUT M10 HIT-339578.A6 339578 -
23 - GEAR AND PINION SET HIT-339265.A3 339265 £11.77 £14.12
24 - DUST SEAL HIT-321722.A1 321722 £1.67 £2.00
25 - BALL BEARING 626ZZ HIT-339145.A7 339145 £1.67 £2.00
26 - RUBBER BUSHING HIT-309929.A6 309929 £1.67 £2.00
27 - HOUSING HIT-339140.A3 339140 £6.78 £8.13
28 - CARBON BRUSH 6.5X7.5X14 (1 PAIR) HIT-999067.A5 999067 £6.23 £7.48
29 - TAB TERMINAL HIT-339185.A7 339185 -
30 - TAPPING SCREW D3X8 HIT-328210.A0 328210 £1.67 £2.00
31 - NAME PLATE HIT-000000.A5083 000000 -
32 - BRUSH HOLDER HIT-333844.A10 333844 £3.12 £3.74
33 - PUSHING BUTTON SWITCH HIT-339149.A5 339149 £4.16 £4.99
34 - NOISE SUPPRESSOR FOR AUS HIT-373290.A0 373290 -
35 - TERMINAL HIT-980063.A107 980063 £1.67 £2.00
*36 - CORD CLIP HIT-338334.A0 338334 £1.67 £2.00
*36 - CORD CLIP FOR UAE (110V) HIT-338333.A4 338333 -
37 - TAPPING SCREW (W/FLANGE) D4X12 HIT-305720.A28 305720 £1.67 £2.00
38 - CORD ARMOR D8.8 HIT-953327.A38 953327 £1.67 £2.00
*38 - CORD ARMOR D10.1 HIT-938051.A6 938051 £1.67 £2.00
39 - SLIDE SWITCH KNOB HIT-338854.A1 338854 £1.67 £2.00
40 - BRAND LABEL HIT-000000.A5084 000000 -
41 - SLIDE BAR HIT-338855.A4 338855 £1.67 £2.00
42 - TAIL COVER HIT-339141.A1 339141 -
43 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A138 305812 £1.67 £2.00
*44 - CORD (CORD ARMOR D8.8) HIT-500436Z.A12 500436Z -
*44 - CORD (CORD ARMOR D10.1) HIT-500201Z.A15 500201Z -
*44 - CORD (CORD ARMOR D8.8) FOR AUS HIT-500439Z.A2 500439Z -
*44 - CORD (CORD ARMOR D8.8) FOR INA HIT-500409Z.A13 500409Z -
*44 - CORD (CORD ARMOR D8.8) FOR THA HIT-500468Z.A11 500468Z -
501 - WRENCH HIT-313933.A2 313933 £7.02 £8.42
502 - SIDE HANDLE HIT-318312.A6 318312 £7.62 £9.15
503 - CASE FOR AUS HIT-339264.A1 339264 £22.42 £26.91
601 - SANDING DISCS 100MM C-P16 (10 PCS.) HIT-314051.A1 314051 -
602 - SANDING DISCS 100MM C-P20 (10 PCS.) HIT-314052.A5 314052 -
603 - SANDING DISCS 100MM C-P24 (10 PCS.) HIT-314053.A1 314053 -
604 - SANDING DISCS 100MM C-P30 (10 PCS.) HIT-314054.A5 314054 -
605 - SANDING DISCS 100MM C-P36 (10 PCS.) HIT-314055.A1 314055 -
606 - SANDING DISCS 100MM C-P40 (10 PCS.) HIT-314056.A5 314056 -
607 - SANDING DISCS 100MM C-P50 (10 PCS.) HIT-314057.A1 314057 -
608 - SANDING DISCS 100MM C-P60 (10 PCS.) HIT-314058.A5 314058 -
609 - SANDING DISCS 100MM C-P80 (10 PCS.) HIT-314059.A1 314059 -
610 - SANDING DISCS 100MM C-P100 (10 PCS.) HIT-314060.A5 314060 -
611 - SANDING DISCS 100MM C-P120 (10 PCS.) HIT-314061.A1 314061 -
612 - WASHER NUT M10XP1.5 HIT-935513.A0 935513 £6.06 £7.27
613 - WASHER HIT-936548.A1 936548 £5.20 £6.24
614 - RUBBER PAD HIT-936558Z.A5 936558Z £8.50 £10.20
615 - GUIDE BASE HIT-302098.A6 302098 -
616 - DUST COLLECTION ADAPTER (DISC GRINDER) HIT-323918.A1 323918 £38.46 £46.15
