Festool AG 230-26 R / 768599 Spare Parts

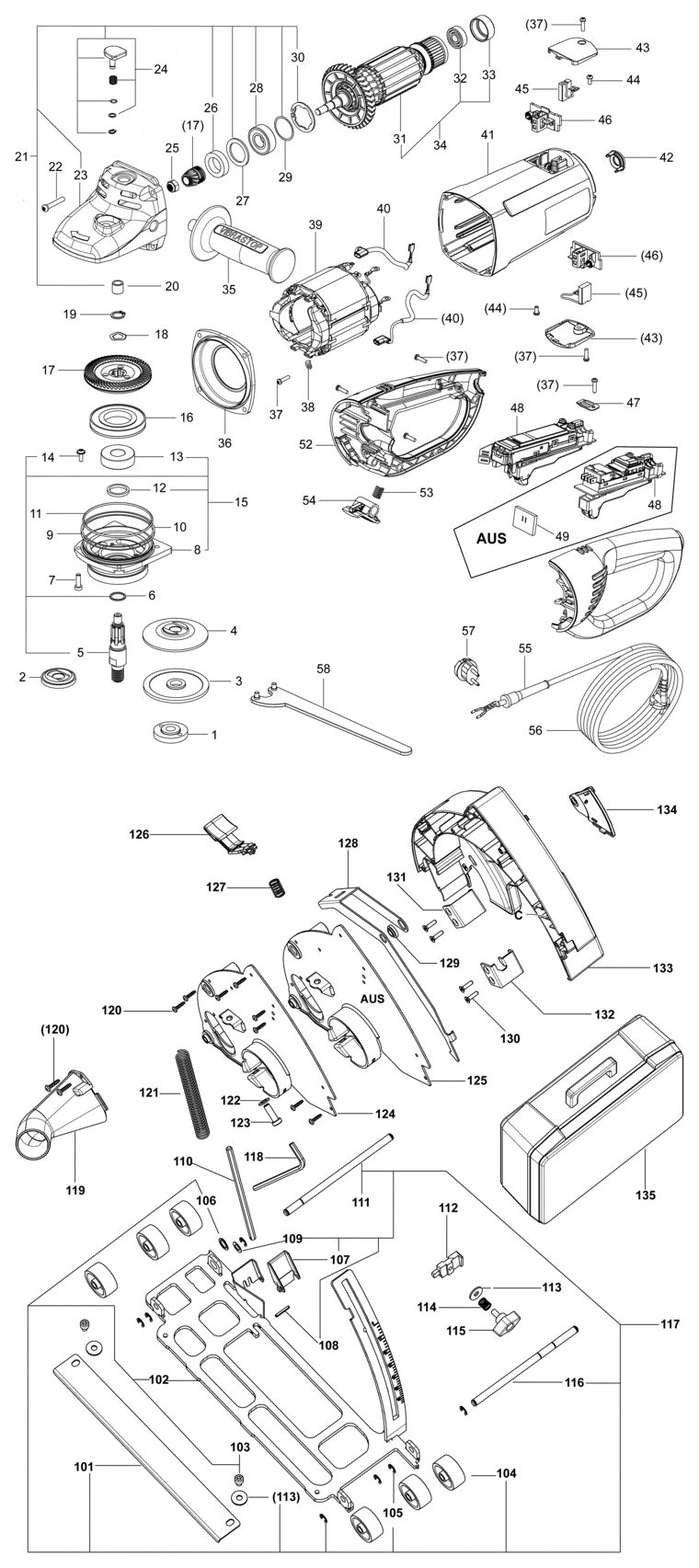

An exploded diagram and spare parts listing for the Festool AG 230-26 R / 768599

	Ex VAT	Inc VAT
1 - CLAMPING NUT FSP-769018.A1 769018	£7.66	£9.19
3 - FLANGE FSP-625550.A0 625550	£30.95	£37.14
4 - FLANGE FSP-592166.A0 592166	£43.19	£51.83
5 - SPINDLE FSP-10016370.A0 10016370	£38.71	£46.45
5 - SPINDLE FSP-632810.A0 632810	£27.38	£32.85
6 - SNAP RING FSP-632820.A0 632820	£2.00	£2.40
7 - SCREW M5 X 16 FSP-614859.A2 614859	£2.00	£2.40
8 - BEARING COVER FSP-768468.A0 768468	£29.32	£35.18
9 - COMPENSATING WASHER FSP-630672.A0 630672	£2.00	£2.40
10 - COMPENSATING WASHER FSP-591316.A0 591316	£2.00	£2.40
11 - O-RING FSP-615026.A0 615026	£2.00	£2.40
12 - RING FSP-594455.A0 594455	£2.00	£2.40
13 - BEARING FSP-779344.A0 779344	£6.72	£8.07
14 - SCREW M4 X 12 FSP-623325.A0 623325	£2.00	£2.40
15 - BEARING COVER FSP-769377.A0 769377	£56.35	£67.62
16 - PLUG FSP-621974.A0 621974	£2.00	£2.40
17 - GEAR FSP-637655.A0 637655	£53.06	£63.67
18 - SPRING DISC FSP-632812.A0 632812	£2.00	£2.40
19 - SNAP RING FSP-632813.A0 632813	£2.00	£2.40
20 - NEEDLE BUSHING FSP-614897.A0 614897	£4.81	£5.77
21 - GEAR HOUSING FSP-769376.A0 769376	£60.61	£72.73
22 - SCREW 5 X 37 MM FSP-630767.A0 630767	£2.00	£2.40
23 - GEAR HOUSING FSP-768471.A0 768471	£46.40	£55.68
24 - BLOCKING PIN FSP-769375.A0 769375	£8.99	£10.79
25 - NUT M8 X 1 FSP-614472.A0 614472	£2.00	£2.40
26 - GASKET FSP-632975.A0 632975	£2.00	£2.40
27 - COMPENSATING WASHER FSP-592896.A0 592896	£2.00	£2.40
28 - BEARING FSP-614869.A0 614869	£11.23	£13.48
29 - COMPENSATING WASHER FSP-632823.A0 632823	£2.00	£2.40
30 - SNAP RING FSP-632822.A0 632822	£3.75	£4.50
31 - ARMATURE FSP-708289.A0 708289	£97.28	£116.74
32 - BEARING FSP-619622.A0 619622	£7.99	£9.59
33 - BEARING SLEEVE FSP-775630.A0 775630	£2.00	£2.40
34 - ARMATURE SET FSP-769378.A0 769378	£97.61	£117.13
35 - AUXILIARY HANDLE FSP-768351.A0 768351	-
36 - AIR GUIDE WASHER FSP-768470.A0 768470	£7.37	£8.84
37 - SCREW 4 X 16 MM FSP-625697.A6 625697	£2.00	£2.40
38 - CLIP FSP-591401.A0 591401	£2.00	£2.40
39 - FIELD ASSEMBLY FSP-708291.A0 708291	£66.40	£79.68
40 - COUPLER FSP-632974.A0 632974	£2.95	£3.54
41 - MOTOR HOUSING FSP-768584.A0 768584	£22.09	£26.51
42 - PLUG FSP-632559.A0 632559	£2.00	£2.40
43 - BRUSH CAP FSP-768580.A0 768580	£2.00	£2.40
44 - RAISED-HEAD SCREW M4 X 8 FSP-228734.A0 228734	£2.00	£2.40
45 - CARBON BRUSH (PAIR) FSP-627041.A0 627041	£18.09	£21.71
46 - BRUSH HOLDER FSP-622192.A0 622192	£9.92	£11.91
47 - CLIP FSP-615164.A0 615164	£2.00	£2.40
48 - SWITCH FSP-768847.A0 768847	£49.30	£59.16
52 - HANDLE FSP-768865.A0 768865	£16.66	£19.99
53 - SPRING FSP-632829.A0 632829	£2.00	£2.40
54 - LEVER FSP-768858.A0 768858	£3.09	£3.71
55 - NOZZLE AGAINST BENDING FSP-630328.A1 630328	£5.38	£6.45
56 - CABLE FSP-628244.A0 628244	£25.58	£30.69
57 - ADAPTER PLUG FSP-767469.A9 767469	-
101 - GUIDE FSP-649382.A1 649382	£17.51	£21.01
102 - SLIDE FSP-779280.A1 779280	£93.72	£112.46
103 - CHEESE HEAD SCREW M6 X 8 FSP-200682.A1 200682	£2.00	£2.40
104 - WHEEL FSP-779188.A2 779188	£2.00	£2.40
105 - SNAP RING FSP-615477.A8 615477	£2.00	£2.40
106 - SNAP RING FSP-614793.A0 614793	£2.00	£2.40
107 - DUST PROTECTION FSP-765866.A1 765866	£3.14	£3.77
108 - DOWEL PIN FSP-761547.A0 761547	£2.00	£2.40
109 - WASHER FSP-779065.A0 779065	£2.00	£2.40
110 - GUIDE FSP-779269.A1 779269	£20.72	£24.86
111 - SHAFT FSP-779195.A1 779195	£9.68	£11.62
112 - NUT FSP-763911.A2 763911	£2.00	£2.40
113 - WASHER FSP-615331.A3 615331	£2.00	£2.40
114 - PRESSURE SPRING FSP-654035.A3 654035	£2.00	£2.40
115 - BUTTERFLY SCREW FSP-768226.A0 768226	£2.66	£3.19
116 - SHAFT FSP-779196.A0 779196	£9.99	£11.99
117 - SLIDE. COMPL. FSP-769379.A0 769379	£116.63	£139.96
119 - EXTRACTOR CONNECTOR FSP-649370.A0 649370	£12.78	£15.33
120 - SCREW 4 X 16 MM FSP-625697.A5 625697	£2.00	£2.40
121 - PRESSURE SPRING FSP-464216.A4 464216	£3.20	£3.84
122 - WASHER FSP-761517.A12 761517	£2.00	£2.40
123 - CHEESE HEAD SCREW FSP-832414.A0 832414	£2.00	£2.40
124 - HOOD FSP-779270.A0 779270	£127.88	£153.45
126 - PUSHER FSP-768843.A0 768843	£2.00	£2.40
127 - PRESSURE SPRING FSP-761330.A0 761330	£2.00	£2.40
128 - CATCH FSP-779193.A0 779193	£22.46	£26.95
129 - BUSH FSP-763671.A0 763671	£4.62	£5.54
130 - SCREW 4.0 X 16 MM FSP-614778.A0 614778	£2.00	£2.40
131 - GUIDE FSP-764513.A0 764513	£9.86	£11.83
132 - GUIDE FSP-765865.A0 765865	£16.19	£19.43
133 - COVER FSP-768484.A0 768484	£32.33	£38.80
134 - LENS FSP-768482.A2 768482	£4.92	£5.90
135 - CASE FSP-769802.A1 769802	£116.63	£139.96
