Dewalt DW721KN Type 2 Radial Arm Saw Spare Parts

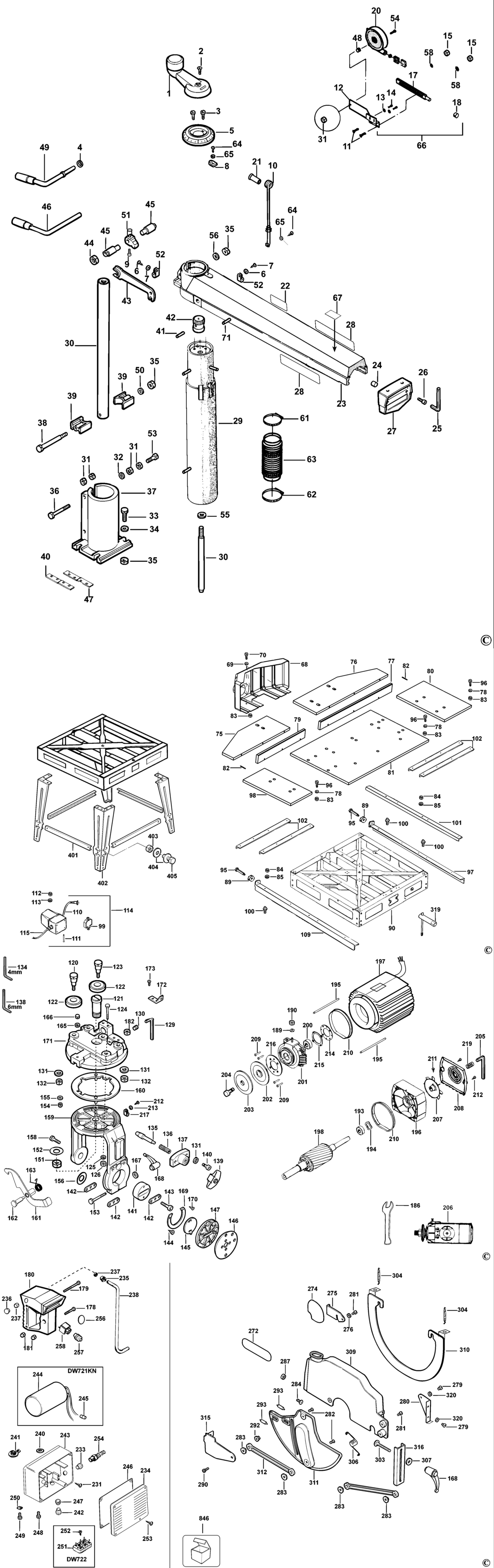

An exploded drawing and spare parts listing for the Dewalt DW721KN Type 2 Radial Arm Saw

	Ex VAT	Inc VAT
1 - KNOB SA BDE-860792-00.A10 860792-00	£3.80	£4.56
2 - SCREW BDE-934401-00.A27 934401-00	£1.50	£1.80
3 - SCREW BDE-860093-06.A0 860093-06	£1.50	£1.80
4 - WASHER SPACER BDE-860073-06.A43 860073-06	£1.50	£1.80
5 - CAP BDE-860784-00.A31 860784-00	£7.85	£9.42
6 - SCREW BDE-860531-00.A69 860531-00	£1.50	£1.80
7 - WASHER BDE-860073-00.A33 860073-00	£1.50	£1.80
8 - POINTER BDE-860237-00.A18 860237-00	£3.80	£4.56
9 - SCREW BDE-860085-11.A22 860085-11	£1.50	£1.80
10 - SUPPORT BDE-863912-00.A34 863912-00	£7.18	£8.62
11 - SCREW BDE-860301-16.A29 860301-16	£1.50	£1.80
12 - BRACKET BDE-863724-00.A3 863724-00	£16.03	£19.24
13 - WASHER BDE-860074-03.A93 860074-03	£1.50	£1.80
14 - SCREW BDE-860093-14.A50 860093-14	£1.50	£1.80
15 - NUT BDE-860083-03.A120 860083-03	£1.50	£1.80
17 - BAR BDE-864080-00.A1 864080-00	-
18 - TIP BDE-864081-00.A3 864081-00	£7.18	£8.62
20 - AUTO SAFETY RETURN BDE-863929-00.A12 863929-00	£135.36	£162.43
21 - PROTECTOR BDE-863259-00.A24 863259-00	£3.80	£4.56
22 - RATING PLATE GB BDE-N097868 N097868	£7.18	£8.62
23 - ARM BDE-N045681.A3 N045681	£804.38	£965.26
24 - BUMPER BDE-860429-00.A62 860429-00	£1.50	£1.80
25 - HEX KEY 5 MM BDE-930574-00.A154 930574-00	£1.50	£1.80
26 - SCREW.TEMP BDE-860093-05.A82 860093-05	£1.50	£1.80
27 - CAP BDE-861111-01.A7 861111-01	£17.48	£20.97
28 - BRAND LABEL BDE-861738-01.A0 861738-01	£7.85	£9.42
29 - COLUMN SA BDE-N045682.A1 N045682	£336.69	£404.03
30 - TUBE ELEVATING SA BDE-860791-00.A41 860791-00	£93.62	£112.35
31 - NUT BDE-860083-04.A350 860083-04	£1.50	£1.80
32 - WASHER M8 BDE-860073-03.A122 860073-03	£1.50	£1.80
33 - SCREW BDE-860085-05.A17 860085-05	£1.82	£2.19
34 - WASHER BDE-860073-04.A95 860073-04	£1.50	£1.80
35 - NUT RH BDE-860083-05.A44 860083-05	£1.50	£1.80
36 - SCREW BDE-860085-02.A59 860085-02	£1.82	£2.19
37 - BASE SA BDE-860909-03.A6 860909-03	£104.31	£125.17
38 - SCREW BDE-860086-00.A32 860086-00	£3.80	£4.56
39 - SPACER BDE-860065-00.A16 860065-00	£1.82	£2.19
40 - SPACER LH BDE-860273-00.A10 860273-00	£10.85	£13.02
41 - PIN BDE-860096-06.A53 860096-06	£1.50	£1.80
42 - PINION BDE-860831-90.A16 860831-90	£18.91	£22.69
43 - WRENCH BDE-860423-00.A43 860423-00	£4.69	£5.63
44 - NUT BDE-860232-00.A45 860232-00	£3.80	£4.56
45 - SCREW BDE-860231-00.A15 860231-00	£14.57	£17.48
46 - LEVER BDE-864723-01.A18 864723-01	£34.00	£40.80
47 - SPACER RH BDE-860273-02.A30 860273-02	£10.85	£13.02
48 - SPACER BDE-867190-01.A5 867190-01	£3.30	£3.96
49 - LEVER BDE-860795-00.A37 860795-00	£18.91	£22.69
50 - WASHER BDE-860074-04.A128 860074-04	£1.50	£1.80
51 - LATCH BDE-861240-00.A15 861240-00	£71.44	£85.73
52 - BRACKET BDE-860843-02.A0 860843-02	£1.50	£1.80
53 - SCREW BDE-949853-11.A43 949853-11	£37.35	£44.82
54 - SCREW BDE-860093-00.A159 860093-00	£1.50	£1.80
55 - WASHER BDE-860226-01.A12 860226-01	£1.50	£1.80
56 - WASHER BDE-860802-90.A12 860802-90	£1.50	£1.80
58 - WASHER BDE-720959-00.A227 720959-00	£1.50	£1.80
61 - CLIP BDE-949700-06.A29 949700-06	£7.18	£8.62
62 - STRAP BDE-949700-07.A6 949700-07	£9.41	£11.29
63 - PROTECTOR BDE-863324-00.A7 863324-00	£25.70	£30.84
64 - SCREW BDE-860238-03.A7 860238-03	£1.50	£1.80
65 - WASHER BDE-860074-01.A35 860074-01	£1.50	£1.80
66 - STOP BDE-869356-09.A6 869356-09	£192.14	£230.57
67 - WARNING LABEL BDE-N034454.A5 N034454	£5.88	£7.06
68 - DUST COLLECTOR BDE-N032402.A4 N032402	£131.46	£157.75
69 - WASHER BDE-941602-00.A79 941602-00	£1.50	£1.80
70 - SCREW BDE-860085-04.A93 860085-04	£1.50	£1.80
71 - PIN BDE-330036-08.A36 330036-08	£1.50	£1.80
75 - ELEMENT BDE-N027622.A0 N027622	£74.15	£88.98
76 - ELEMENT BDE-N030449.A4 N030449	£96.55	£115.86
77 - GUIDE BDE-N027624.A4 N027624	£38.80	£46.56
78 - WASHER M8 BDE-860073-03.A121 860073-03	£1.50	£1.80
79 - GUIDE BDE-N029923.A0 N029923	£38.80	£46.56
80 - TABLE BDE-N027626.A4 N027626	£55.30	£66.36
81 - TABLE BDE-N027625.A0 N027625	£157.18	£188.61
82 - PIN BDE-N032917.A8 N032917	£1.50	£1.80
83 - NUT BDE-860083-14.A91 860083-14	£1.50	£1.80
84 - NUT BDE-860083-04.A351 860083-04	£1.50	£1.80
85 - WASHER BDE-860074-03.A94 860074-03	£1.50	£1.80
89 - NUT BDE-864078-00.A8 864078-00	£3.80	£4.56
90 - BASE BDE-869320-00.A7 869320-00	£958.68	£1150.41
95 - SCREW BDE-N035392.A1 N035392	£7.85	£9.42
96 - SCREW BDE-949703-09.A7 949703-09	£1.50	£1.80
97 - SUPPORT BDE-N030068.A1 N030068	£45.14	£54.17
98 - EXTENSION BDE-N027627.A0 N027627	£45.14	£54.17
99 - OVERLOAD PROTECTOR GB BDE-N100723.A1 N100723	£47.08	£56.49
100 - SCREW.SPECIAL BDE-868459-00.A6 868459-00	£3.30	£3.96
101 - TABLE SUPPORT BDE-N034713.A2 N034713	£34.00	£40.80
102 - SUPPORT BRACKET BDE-863130-04.A26 863130-04	£10.85	£13.02
109 - SUPPORT LH BDE-N033664.A3 N033664	£45.14	£54.17
110 - CABLE SA GB BDE-861278-00.A0 861278-00	-
111 - SCREW BDE-860094-06.A0 860094-06	£1.50	£1.80
112 - NUT BDE-860083-02.A222 860083-02	£1.50	£1.80
113 - WASHER BDE-860073-01.A261 860073-01	£1.50	£1.80
114 - SWITCH SA GB BDE-N098527.A0 N098527	£393.38	£472.06
115 - MOTOR CABLE BDE-N100301.A1 N100301	£93.62	£112.35
120 - SHAFT BDE-760421-00.A49 760421-00	£7.85	£9.42
121 - PIN BDE-N045683.A2 N045683	£17.48	£20.97
122 - BEARING BDE-860154-00.A43 860154-00	£16.03	£19.24
123 - SHAFT BDE-760417-00.A14 760417-00	£10.85	£13.02
124 - SCREW BDE-860093-20.A0 860093-20	£1.50	£1.80
125 - WASHER BDE-931429-00.A23 931429-00	£3.30	£3.96
126 - NUT BDE-860083-03.A119 860083-03	£1.50	£1.80
129 - KEY BDE-938539-00.A44 938539-00	£1.50	£1.80
130 - SCREW BDE-941880-00.A46 941880-00	£1.50	£1.80
131 - WASHER BDE-860074-03.A95 860074-03	£1.50	£1.80
132 - NUT BDE-860083-08.A33 860083-08	£1.50	£1.80
134 - WRENCH 4 MM BDE-949882-01.A21 949882-01	£1.50	£1.80
135 - PIN BDE-863977-00.A52 863977-00	£14.57	£17.48
136 - SPRING BDE-860112-11.A62 860112-11	£1.50	£1.80
137 - SUPPORT BDE-860835-00.A55 860835-00	£16.03	£19.24
138 - WRENCH 6 MM BDE-860098-04.A106 860098-04	£1.50	£1.80
139 - KNOB BDE-942453-00.A7 942453-00	£3.80	£4.56
140 - SCREW BDE-860093-00.A158 860093-00	£1.50	£1.80
141 - FRONT TRUNNION BDE-860119-01.A17 860119-01	£38.80	£46.56
142 - PLATE BDE-860120-00.A43 860120-00	£1.82	£2.19
143 - SCREW BDE-860093-00.A157 860093-00	£1.50	£1.80
144 - SCREW BDE-860531-00.A70 860531-00	£1.50	£1.80
145 - POINTER BDE-862721-01.A11 862721-01	£5.88	£7.06
146 - PLATE BDE-N032399.A3 N032399	£7.85	£9.42
147 - SHIELD BDE-860827-00.A14 860827-00	£14.57	£17.48
151 - NUT BDE-N032397.A1 N032397	£3.30	£3.96
152 - WASHER BDE-N035393.A3 N035393	£1.82	£2.19
153 - SCREW BDE-860086-11.A14 860086-11	£1.50	£1.80
154 - NUT BDE-860092-00.A52 860092-00	£1.50	£1.80
155 - WASHER BDE-720959-00.A228 720959-00	£1.50	£1.80
156 - DISC BDE-864160-00.A7 864160-00	£1.50	£1.80
158 - SCREW BDE-864058-00.A7 864058-00	£5.88	£7.06
159 - YOKE BDE-N045684.A10 N045684	£96.55	£115.86
160 - RING BDE-863157-00.A2 863157-00	£14.57	£17.48
161 - LEVER BDE-N030650.A1 N030650	£25.70	£30.84
162 - BOLT BDE-N034670.A4 N034670	£7.18	£8.62
163 - SPRING BDE-N032405.A8 N032405	£2.78	£3.34
165 - WASHER BDE-860073-01.A262 860073-01	£1.50	£1.80
166 - NUT M5 BDE-860092-03.A60 860092-03	£1.50	£1.80
167 - WASHER BDE-860074-03.A96 860074-03	£1.50	£1.80
168 - LEVER BDE-861840-03.A2 861840-03	£7.29	£8.75
169 - POINTER BDE-860829-00.A15 860829-00	£5.88	£7.06
170 - SCREW BDE-860205-06.A56 860205-06	£1.50	£1.80
171 - ROLLER HEAD BDE-N045685.A1 N045685	£65.52	£78.62
172 - BRACKET BDE-863726-00.A17 863726-00	£2.26	£2.71
173 - SCREW BDE-860094-02.A150 860094-02	£1.50	£1.80
178 - SCREW BDE-949701-12.A31 949701-12	£1.50	£1.80
179 - SCREW BDE-860089-39.A30 860089-39	£1.50	£1.80
180 - HANDLE BDE-N031178.A0 N031178	£14.57	£17.48
181 - NUT BDE-860083-02.A221 860083-02	£1.50	£1.80
182 - NUT M6 BDE-860083-12.A213 860083-12	£1.50	£1.80
186 - SPANNER 10-13MM BDE-949751-07.A34 949751-07	£3.80	£4.56
189 - WASHER M8 BDE-860073-03.A123 860073-03	£1.50	£1.80
190 - NUT BDE-860083-04.A352 860083-04	£1.50	£1.80
193 - BEARING BDE-868768-07.A205 868768-07	£7.85	£9.42
194 - RING BDE-860080-02.A139 860080-02	£1.50	£1.80
195 - BOLT BDE-860446-01.A24 860446-01	£1.50	£1.80
196 - END CAP BDE-860701-04.A0 860701-04	£7.18	£8.62
197 - STATOR SA 230V GB BDE-868401-01.A4 868401-01	£301.55	£361.86
198 - ROTOR 1 PH BDE-N037012.A1 N037012	£113.07	£135.68
200 - BEARING BDE-868768-10.A13 868768-10	£14.57	£17.48
201 - HOUSING BDE-862162-00.A7 862162-00	£24.39	£29.27
202 - INNER FLANGE BDE-N071376.A1 N071376	£37.35	£44.82
203 - OUTER FLANGE BDE-N071377.A1 N071377	£41.24	£49.49
204 - BLADE BOLT BDE-869245-00.A82 869245-00	£3.54	£4.25
205 - WRENCH 6 MM BDE-860098-04.A107 860098-04	£1.50	£1.80
206 - MOTOR SA GB BDE-N106004.A0 N106004	£615.67	£738.80
207 - FAN BDE-945841-00.A26 945841-00	£2.78	£3.34
208 - END CAP BDE-N027614.A5 N027614	£7.85	£9.42
209 - SCREW BDE-860538-00.A13 860538-00	£1.50	£1.80
210 - SEAL BDE-860718-00.A35 860718-00	£7.18	£8.62
211 - SCREW BDE-860088-25.A43 860088-25	£1.50	£1.80
212 - SCREW BDE-860094-01.A0 860094-01	£1.50	£1.80
213 - WASHER BDE-933652-00.A14 933652-00	£1.50	£1.80
214 - CAP BDE-123302-01.A31 123302-01	£3.80	£4.56
215 - GASKET BDE-863878-00.A20 863878-00	£3.30	£3.96
216 - PLATE BDE-864085-01.A5 864085-01	£5.88	£7.06
217 - CLAMP BDE-860843-01.A62 860843-01	£1.50	£1.80
219 - SPRING BDE-869246-00.A17 869246-00	£1.50	£1.80
231 - SCREW BDE-860094-03.A3 860094-03	£1.50	£1.80
233 - NUT BDE-N033752.A2 N033752	£1.50	£1.80
234 - COVER BDE-868961-00.A2 868961-00	£5.88	£7.06
235 - GLAND BDE-949747-07.A13 949747-07	£1.50	£1.80
236 - CAP BDE-949747-18.A21 949747-18	£1.50	£1.80
237 - NUT BDE-944590-00.A82 944590-00	£1.50	£1.80
238 - LEAD BDE-N032403.A4 N032403	£7.85	£9.42
240 - GROMMET BDE-868963-00.A3 868963-00	£1.50	£1.80
241 - GROMMET BDE-944652-00.A55 944652-00	£4.69	£5.63
242 - RETAINER BDE-868965-01.A3 868965-01	£1.50	£1.80
243 - HOUSING BDE-N036361.A0 N036361	£7.85	£9.42
244 - CAPACITOR GB BDE-949772-50.A6 949772-50	£14.57	£17.48
245 - CONNECTOR BDE-861257-00.A12 861257-00	£1.50	£1.80
246 - GASKET BDE-868962-00.A3 868962-00	£1.50	£1.80
247 - NUT BDE-868965-00.A2 868965-00	£1.50	£1.80
248 - SCREW.TEMP BDE-860094-00.A39 860094-00	£1.50	£1.80
249 - SCREW BDE-860094-02.A43 860094-02	£1.50	£1.80
250 - WASHER BDE-933652-00.A79 933652-00	£1.50	£1.80
253 - SCREW BDE-860084-04.A28 860084-04	£1.50	£1.80
254 - INLET BDE-947322-01.A12 947322-01	£3.30	£3.96
256 - LABEL BDE-N032401.A8 N032401	£3.30	£3.96
257 - BUTTON START BDE-N031511.A3 N031511	£51.90	£62.28
258 - CONTACT BDE-N031510.A1 N031510	£45.14	£54.17
272 - LABEL BDE-869125-00.A5 869125-00	£3.80	£4.56
274 - TUBE EXTRACTION BDE-864095-00.A58 864095-00	£7.85	£9.42
275 - BRACKET BDE-N032220.A4 N032220	£9.41	£11.29
276 - WASHER BDE-860074-01.A171 860074-01	£1.50	£1.80
279 - SCREW BDE-943023-00.A23 943023-00	£1.50	£1.80
280 - BRACKET BDE-863707-01.A18 863707-01	£9.41	£11.29
281 - SCREW BDE-760998-00.A97 760998-00	£1.50	£1.80
282 - SCREW BDE-249412-20.A93 249412-20	£1.50	£1.80
283 - WASHER BDE-864053-00.A55 864053-00	£3.80	£4.56
284 - SCREW BDE-860301-16.A50 860301-16	£1.50	£1.80
287 - NUT BDE-860083-03.A339 860083-03	£1.50	£1.80
290 - SCREW.TEMP BDE-860085-09.A33 860085-09	£1.50	£1.80
292 - BUSH BDE-863705-00.A18 863705-00	£1.82	£2.19
293 - ROLLER BDE-864054-00.A19 864054-00	£1.82	£2.19
303 - SCREW.TEMP BDE-949891-01.A5 949891-01	£1.50	£1.80
304 - SPRING BDE-861221-00.A23 861221-00	£2.78	£3.34
306 - SPRING BDE-861239-00.A22 861239-00	£5.88	£7.06
307 - WASHER BDE-860076-04.A6 860076-04	£1.50	£1.80
309 - GUARD BDE-N032412.A0 N032412	£80.98	£97.18
310 - PROTECTOR BDE-863773-02.A20 863773-02	£14.57	£17.48
311 - GUARD BDE-862426-00.A26 862426-00	£16.03	£19.24
312 - LEVER BDE-862082-01.A5 862082-01	£10.85	£13.02
315 - BRACKET BDE-863205-02.A20 863205-02	£3.80	£4.56
316 - BRACKET BDE-863437-00.A5 863437-00	£19.90	£23.88
319 - SPANNER BOX BDE-869235-00.A83 869235-00	£17.48	£20.97
320 - WASHER BDE-860073-01.A2 860073-01	£1.50	£1.80
401 - CROSSBAR LONG BDE-860009-09.A0 860009-09	£25.70	£30.84
402 - LEG BDE-860008-00.A31 860008-00	£58.69	£70.43
403 - NUT BDE-860083-04.A129 860083-04	£1.50	£1.80
404 - WASHER M8 BDE-860073-03.A675 860073-03	£1.50	£1.80
405 - SCREW BDE-860085-04.A67 860085-04	£1.50	£1.80
846 - GUARD BDE-N045264.A1 N045264	£258.10	£309.72

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW721KN Type 2 Radial Arm Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
