Dewalt DW1501----F Type 1 Radial Arm Saw Spare Parts

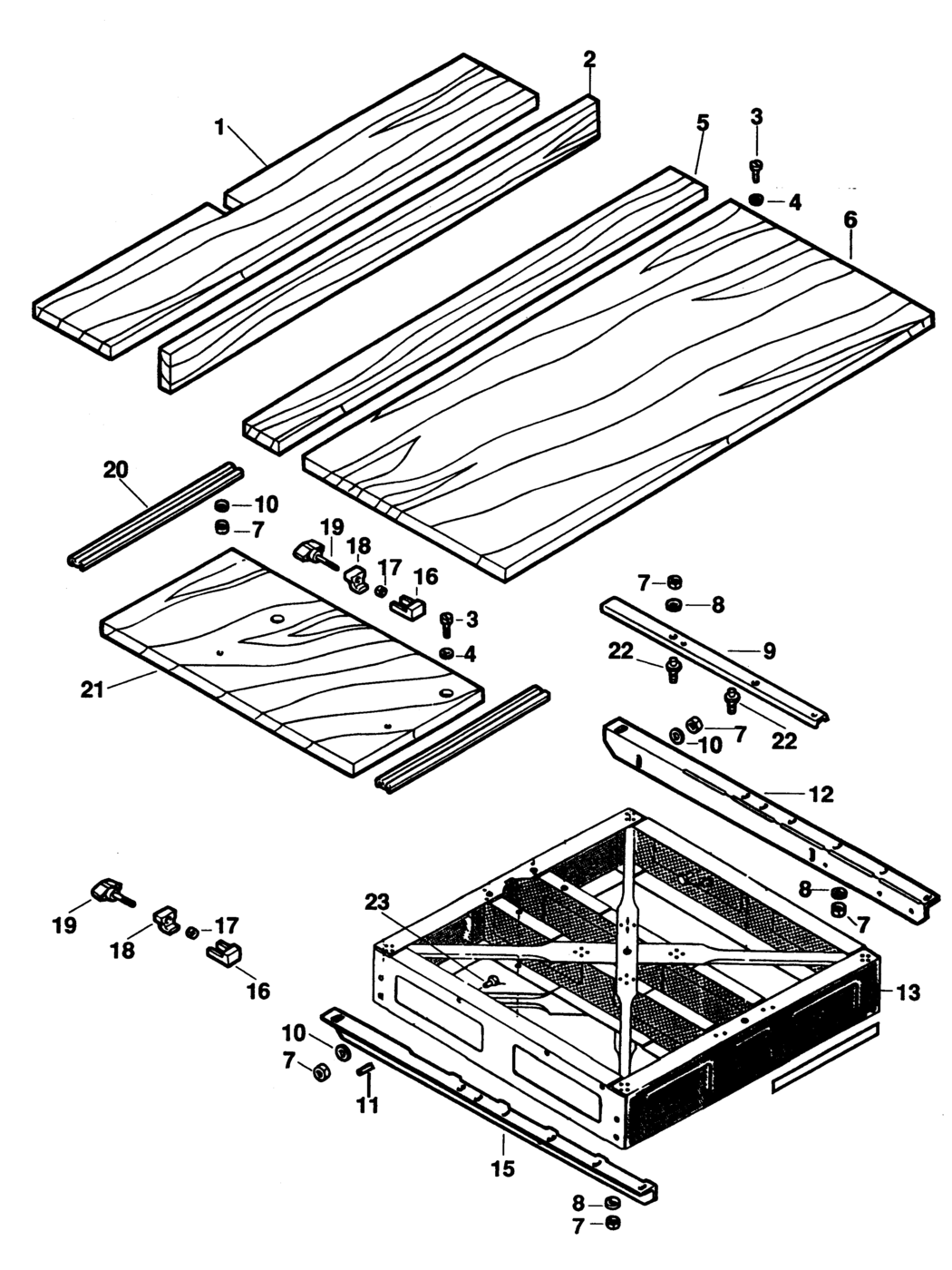

An exploded drawing and spare parts listing for the Dewalt DW1501----F Type 1 Radial Arm Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE TABLE AND FRAME BDE-000000-00.A113393 000000-00	-
2 - NO LONGER AVAILABLE TABLE AND FRAME BDE-000000-00.A113394 000000-00	-
3 - NO LONGER AVAILABLE TABLE AND FRAME BDE-000000-00.A113395 000000-00	-
4 - WASHER M8 TABLE AND FRAME BDE-860073-03.A213 860073-03	£1.50	£1.80
5 - NO LONGER AVAILABLE TABLE AND FRAME BDE-000000-00.A113396 000000-00	-
6 - NO LONGER AVAILABLE TABLE AND FRAME BDE-000000-00.A113397 000000-00	-
7 - NUT TABLE AND FRAME BDE-860083-04.A432 860083-04	£1.50	£1.80
8 - WASHER TABLE AND FRAME BDE-941602-00.A36 941602-00	£1.50	£1.80
9 - NO LONGER AVAILABLE TABLE AND FRAME BDE-000000-00.A113398 000000-00	-
10 - WASHER TABLE AND FRAME BDE-860074-03.A165 860074-03	£1.50	£1.80
11 - NO LONGER AVAILABLE TABLE AND FRAME BDE-000000-00.A113399 000000-00	-
12 - SUPPORT LH TABLE AND FRAME BDE-860222-00.A25 860222-00	£14.57	£17.48
13 - NO LONGER AVAILABLE TABLE AND FRAME BDE-000000-00.A113400 000000-00	-
14 - NO LONGER AVAILABLE TABLE AND FRAME BDE-000000-00.A113401 000000-00	-
15 - NO LONGER AVAILABLE TABLE AND FRAME BDE-000000-00.A113402 000000-00	-
16 - SLIDER TABLE AND FRAME BDE-860069-00.A30 860069-00	-
17 - NUT TABLE AND FRAME BDE-860083-03.A42 860083-03	£1.50	£1.80
18 - NO LONGER AVAILABLE TABLE AND FRAME BDE-000000-00.A113403 000000-00	-
19 - KNOB TABLE AND FRAME BDE-863310-00.A19 863310-00	-
20 - SUPPORT BRACKET TABLE AND FRAME BDE-863130-04.A31 863130-04	£10.85	£13.02
21 - NO LONGER AVAILABLE TABLE AND FRAME BDE-000000-00.A113404 000000-00	-
22 - SCREW TABLE AND FRAME BDE-860010-00.A14 860010-00	-
23 - SCREW TABLE AND FRAME BDE-860085-04.A113 860085-04	£1.50	£1.80

Attribute Name	Value
Brand	Dewalt
