Dewalt DW125-----A Type 1 Radial Arm Saw Spare Parts

Home Details Reviews Delivery

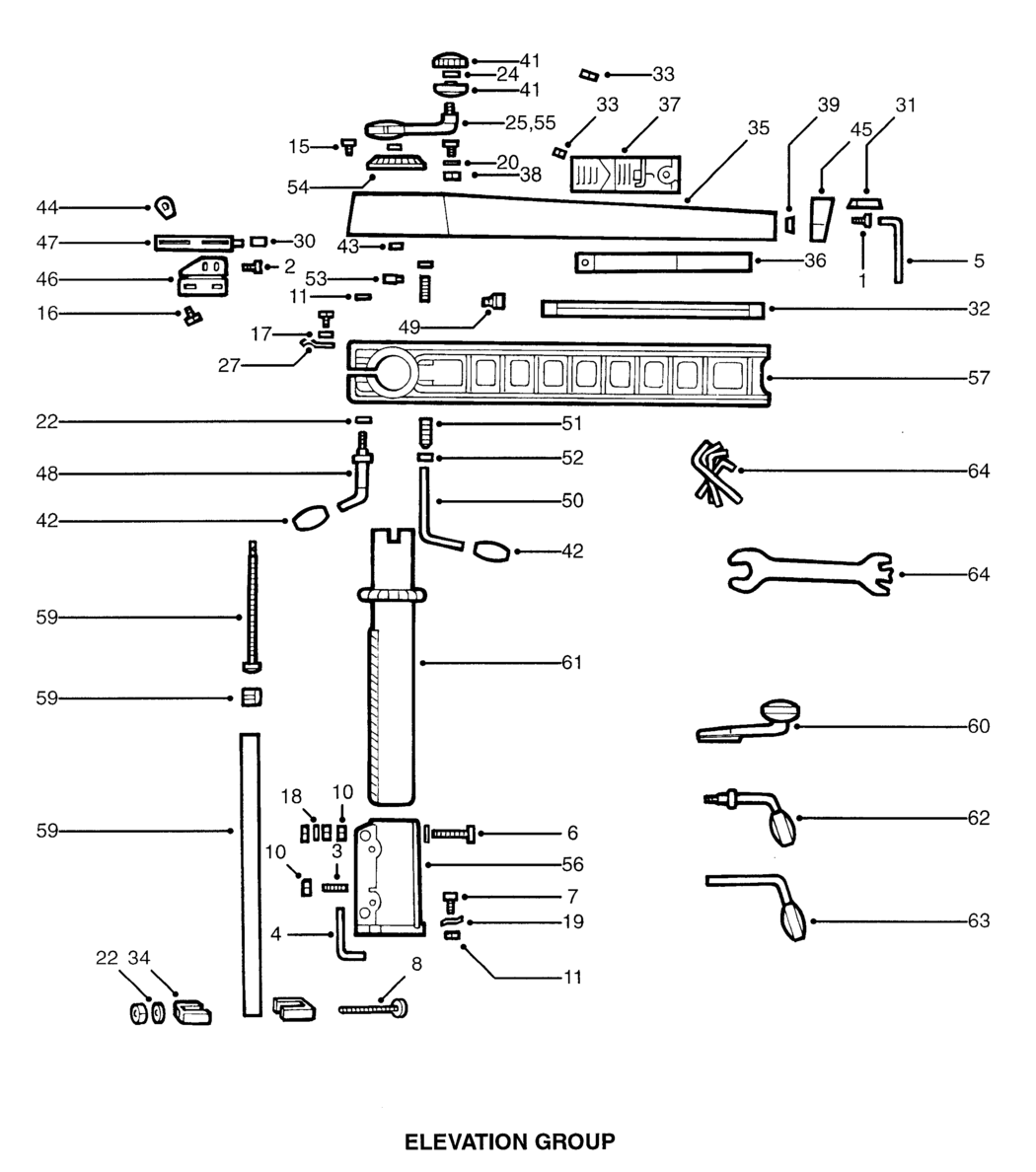

An exploded drawing and spare parts listing for the Dewalt DW125-----A Type 1 Radial Arm Saw

	Ex VAT	Inc VAT
1 - SCREW ELEVATING GROUP BDE-860093-03.A9 860093-03	£1.66	£1.99
2 - SCREW ELEVATING GROUP BDE-860093-14.A9 860093-14	£1.66	£1.99
3 - SCREW ELEVATING GROUP BDE-949853-11.A15 949853-11	£38.48	£46.17
4 - KEY ELEVATING GROUP BDE-938539-00.A88 938539-00	£1.66	£1.99
5 - HEX KEY 5 MM ELEVATING GROUP BDE-930574-00.A39 930574-00	£1.66	£1.99
6 - SCREW ELEVATING GROUP BDE-860085-02.A27 860085-02	£1.88	£2.26
7 - SCREW ELEVATING GROUP BDE-860085-05.A44 860085-05	£1.88	£2.26
8 - SCREW ELEVATING GROUP BDE-860086-00.A33 860086-00	£3.92	£4.70
9 - WASHER ELEVATING GROUP BDE-720959-00.A80 720959-00	£1.66	£1.99
10 - NUT ELEVATING GROUP BDE-860083-04.A68 860083-04	£1.66	£1.99
11 - NUT RH ELEVATING GROUP BDE-860083-05.A162 860083-05	£1.66	£1.99
12 - SCREW ELEVATING GROUP BDE-860094-03.A279 860094-03	£1.66	£1.99
13 - SCREW ELEVATING GROUP BDE-860238-04.A18 860238-04	£1.66	£1.99
14 - SCREW ELEVATING GROUP BDE-860531-00.A14 860531-00	£1.66	£1.99
15 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47364 000000-00	-
16 - SCREW ELEVATING GROUP BDE-860301-00.A13 860301-00	£1.66	£1.99
17 - WASHER ELEVATING GROUP BDE-860073-00.A157 860073-00	£1.66	£1.99
18 - WASHER M8 ELEVATING GROUP BDE-860073-03.A482 860073-03	£1.66	£1.99
19 - WASHER ELEVATING GROUP BDE-860073-04.A23 860073-04	£1.66	£1.99
20 - WASHER ELEVATING GROUP BDE-860074-01.A134 860074-01	£1.66	£1.99
21 - WASHER ELEVATING GROUP BDE-860074-03.A353 860074-03	£1.66	£1.99
22 - WASHER ELEVATING GROUP BDE-860074-04.A38 860074-04	£1.66	£1.99
23 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47365 000000-00	-
24 - RETAINER ELEVATING GROUP BDE-860077-00.A18 860077-00	£1.66	£1.99
25 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47366 000000-00	-
26 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47367 000000-00	-
27 - CLAMP ELEVATING GROUP BDE-860843-01.A16 860843-01	£1.66	£1.99
28 - BRACKET ELEVATING GROUP BDE-860843-02.A60 860843-02	£1.66	£1.99
29 - STRAP ELEVATING GROUP BDE-860843-03.A4 860843-03	£1.66	£1.99
30 - STOP RUBBER ELEVATING GROUP BDE-860786-00.A34 860786-00	£1.66	£1.99
31 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47368 000000-00	-
32 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47369 000000-00	-
33 - SPRING ELEVATING GROUP BDE-863723-00.A3 863723-00	-
34 - SPACER ELEVATING GROUP BDE-860065-00.A51 860065-00	£1.88	£2.26
35 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47370 000000-00	-
36 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47371 000000-00	-
37 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47372 000000-00	-
38 - POINTER ELEVATING GROUP BDE-860237-00.A61 860237-00	£3.92	£4.70
39 - BUMPER ELEVATING GROUP BDE-860429-00.A5 860429-00	£1.66	£1.99
41 - KNOB ELEVATING GROUP BDE-860018-00.A12 860018-00	£18.00	£21.60
42 - KNOB ELEVATING GROUP BDE-860796-01.A46 860796-01	-
43 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47373 000000-00	-
44 - KNOB ELEVATING GROUP BDE-946469-00.A26 946469-00	£1.66	£1.99
45 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47384 000000-00	-
46 - SUPPORT ELEVATING GROUP BDE-860787-90.A31 860787-90	£5.72	£6.87
47 - ARM ELEVATING GROUP BDE-860852-90.A23 860852-90	-
48 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47374 000000-00	-
49 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47375 000000-00	-
50 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47376 000000-00	-
51 - SCREW ELEVATING GROUP BDE-860231-00.A51 860231-00	£15.01	£18.01
52 - NUT ELEVATING GROUP BDE-860232-00.A9 860232-00	£3.92	£4.70
53 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47377 000000-00	-
54 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47378 000000-00	-
55 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47379 000000-00	-
56 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47380 000000-00	-
57 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47381 000000-00	-
59 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47382 000000-00	-
60 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47383 000000-00	-
62 - LEVER ELEVATING GROUP BDE-860795-00.A16 860795-00	£19.48	£23.37
63 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47385 000000-00	-
64 - NO LONGER AVAILABLE ELEVATING GROUP BDE-000000-00.A47386 000000-00	-
