Dewalt DW677L Type 1 Planer Spare Parts

Home Details Reviews Delivery

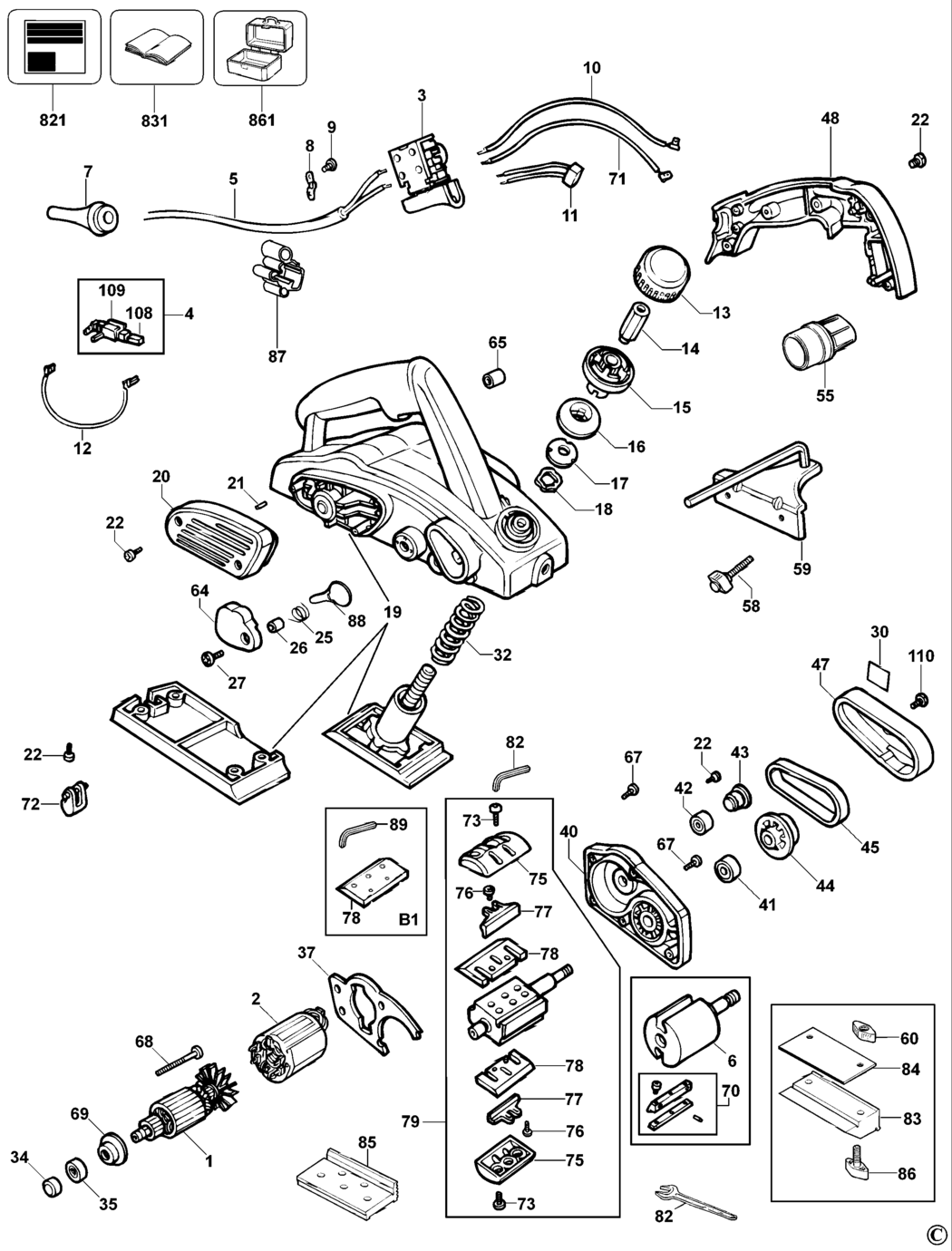

An exploded drawing and spare parts listing for the Dewalt DW677L Type 1 Planer

	Ex VAT	Inc VAT
1 - ARMATURE 115V XW BDE-327403-03.A3 327403-03	£42.48	£50.98
1 - ARMATURE 230V GB BDE-327403-02.A3 327403-02	£53.46	£64.15
2 - FIELD 230V GB BDE-373874-08.A1 373874-08	£25.12	£30.15
2 - FIELD 115V XW BDE-373874-09.A18 373874-09	£20.50	£24.60
3 - SWITCH SA GB BDE-327383-03.A1 327383-03	£8.08	£9.70
3 - SWITCH SA XW BDE-327383-03.A2 327383-03	£8.08	£9.70
4 - BRUSH PAIR 230V GB BDE-575963-01.A7 575963-01	£19.48	£23.37
4 - BRUSH PAIR 115V XW BDE-575963-02.A5 575963-02	£19.48	£23.37
5 - CORDSET (M/PLUG) GB GB BDE-330060-90.A5 330060-90	£30.98	£37.18
5 - CORDSET (M/PLUG) XW BDE-330061-04.A86 330061-04	£12.53	£15.04
6 - BLADEDRUM SA GB BDE-477758-00.A8 477758-00	£53.46	£64.15
6 - BLADEDRUM SA XW BDE-477758-00.A9 477758-00	£53.46	£64.15
7 - CORD PROTECTOR GB BDE-320785.A1211 320785	£1.66	£1.99
7 - CORD PROTECTOR XW BDE-320785.A1223 320785	£1.66	£1.99
8 - CORD CLAMP BDE-329301-00.A89 329301-00	£1.66	£1.99
9 - SCREW BDE-330065-06.A177 330065-06	£1.66	£1.99
10 - LEAD 280MM XW BDE-878277.A15 878277	£1.66	£1.99
10 - LEAD 280MM GB BDE-878277.A16 878277	£1.66	£1.99
11 - NO LONGER AVAILABLE XW BDE-000000-00.A79637 000000-00	-
11 - CAPACITOR GB BDE-321384.A12 321384	£1.66	£1.99
12 - LEAD SA GB BDE-323768-13.A3 323768-13	£1.66	£1.99
12 - LEAD SA XW BDE-323768-13.A4 323768-13	£1.66	£1.99
13 - CAP BDE-326592-00.A6 326592-00	£4.83	£5.80
14 - NUT BDE-328772-01.A2 328772-01	£1.66	£1.99
15 - BASE BDE-326590-01.A17 326590-01	£1.66	£1.99
16 - SCALE XW BDE-326589-03.A2 326589-03	£3.39	£4.07
16 - SCALE GB BDE-326589-03.A3 326589-03	£3.39	£4.07
17 - RATCHET BDE-326381-01.A6 326381-01	£1.66	£1.99
18 - WASHER SPRING BDE-327344-00.A6 327344-00	£1.66	£1.99
19 - MOTOR HOUSING SA BDE-328509-01.A1 328509-01	£102.45	£122.94
20 - COVER BRUSH BDE-326388-00.A7 326388-00	£3.39	£4.07
21 - POST BDE-326636-00.A7 326636-00	£1.66	£1.99
22 - SCREW BDE-330065-08.A212 330065-08	£1.66	£1.99
25 - SPRING GB BDE-323722-00.A9 323722-00	£1.66	£1.99
25 - SPRING XW BDE-323722-00.A10 323722-00	£1.66	£1.99
26 - SLEEVE SA GB BDE-573822-00.A9 573822-00	£1.88	£2.26
26 - SLEEVE SA XW BDE-573822-00.A10 573822-00	£1.88	£2.26
27 - SLEEVE SA GB BDE-573822-00.A11 573822-00	£1.88	£2.26
27 - SLEEVE SA XW BDE-573822-00.A12 573822-00	£1.88	£2.26
30 - BRAND LABEL BDE-578758-00.A9 578758-00	£1.66	£1.99
32 - SPRING BDE-572255-00.A22 572255-00	£1.66	£1.99
34 - SLEEVE BDE-870052.A96 870052	£1.66	£1.99
35 - BEARING BDE-330003-31.A139 330003-31	£2.87	£3.44
37 - BAFFLE BDE-326389-00.A2 326389-00	£1.88	£2.26
40 - HOUSING BEARING BDE-327420-00.A4 327420-00	£12.53	£15.04
41 - BEARING BDE-330003-21.A3 330003-21	£3.39	£4.07
42 - BEARING BDE-605040-05.A69 605040-05	£1.88	£2.26
43 - PULLEY BDE-329142-00.A7 329142-00	£2.32	£2.78
44 - PULLEY BDE-329141-00.A1 329141-00	£9.69	£11.63
45 - BELT BDE-329140-00.A7 329140-00	£7.40	£8.88
47 - COVER BELT BDE-329273-00.A3 329273-00	£2.87	£3.44
48 - COVER BDE-326385-01.A2 326385-01	£3.92	£4.70
55 - ADAPTOR BDE-248629-00.A20 248629-00	£6.06	£7.27
58 - SCREW WING BDE-326573-01.A114 326573-01	£1.88	£2.26
59 - FENCE GB BDE-326398-01.A7 326398-01	£7.40	£8.88
59 - FENCE XW BDE-326398-01.A8 326398-01	£7.40	£8.88
64 - GUARD GB BDE-327052-00.A0 327052-00	£1.88	£2.26
64 - GUARD XW BDE-327052-00.A1 327052-00	£1.88	£2.26
65 - BEARING NEEDLE BDE-330004-25.A0 330004-25	£2.87	£3.44
67 - SCREW BDE-330065-04.A29 330065-04	£1.66	£1.99
68 - SCREW BDE-330065-02.A5 330065-02	£1.66	£1.99
69 - INSULATOR BDE-327417-00.A4 327417-00	£1.66	£1.99
70 - CLAMP SA GB BDE-N542564.A22 N542564	£16.52	£19.82
70 - CLAMP SA XW BDE-N542564.A23 N542564	£16.52	£19.82
71 - LEAD 360MM GB BDE-878846.A105 878846	£1.66	£1.99
71 - LEAD 360MM XW BDE-878846.A106 878846	£1.66	£1.99
72 - STAND BDE-N381124.A12 N381124	£9.69	£11.63
82 - SPANNER GB BDE-868148-00.A6 868148-00	£3.92	£4.70
82 - SPANNER XW BDE-868148-00.A7 868148-00	£3.92	£4.70
108 - BRUSH PAIR 230V 230V BDE-575963-01.A5 575963-01	£19.48	£23.37
108 - BRUSH PAIR 115V 115 / 120V BDE-575963-02.A7 575963-02	£19.48	£23.37
109 - NO LONGER AVAILABLE BDE-000000-00.A79638 000000-00	-

Attribute Name	Value
Brand	Dewalt
