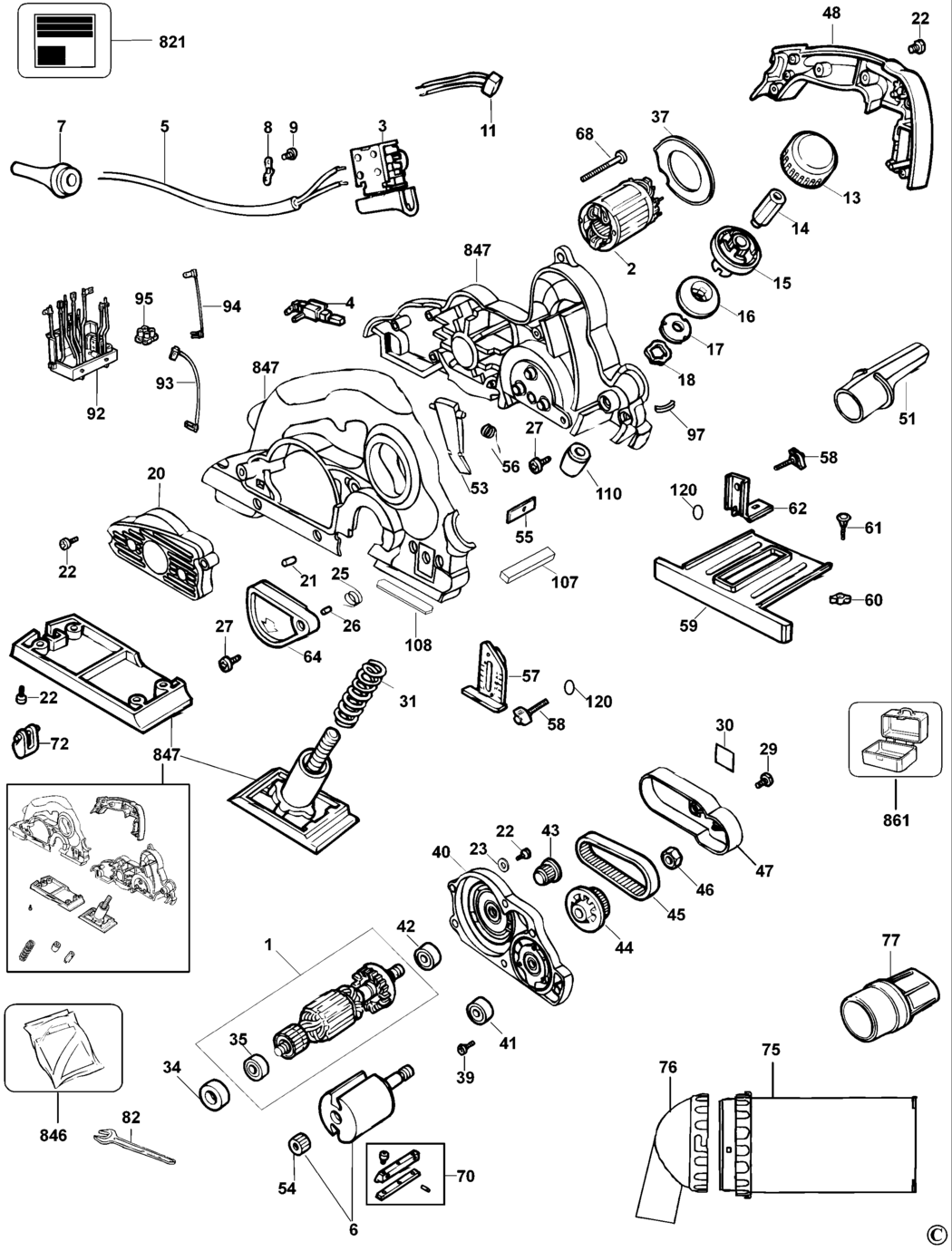

1 - ARMATURE 230V GB
BDE-589353-00.A0
589353-00
|
£80.98
|
£97.18
|
|
|
2 - FIELD 230V GB
BDE-589356-01.A1
589356-01
|
£42.48
|
£50.98
|
|
|
3 - SWITCH
BDE-328251-01.A1
328251-01
|
£7.85
|
£9.42
|
|
|
4 - BRUSH PAIR 230V GB
BDE-575963-03.A7
575963-03
|
£18.42
|
£22.10
|
|
|
5 - CORDSET (M/PLUG) GB GB
BDE-330060-90.A1
330060-90
|
£30.98
|
£37.18
|
|
|
6 - BLADEDRUM SA
BDE-574232-01.A11
574232-01
|
£62.77
|
£75.32
|
|
|
7 - CORD PROTECTOR
BDE-584090-00.A72
584090-00
|
£1.66
|
£1.99
|
|
|
8 - CORD CLAMP
BDE-329301-00.A7
329301-00
|
£1.66
|
£1.99
|
|
|
9 - SCREW
BDE-330065-06.A356
330065-06
|
£1.66
|
£1.99
|
|
|
11 - CAPACITOR
BDE-807285-15
807285-15
|
£1.66
|
£1.99
|
|
|
13 - CAP
BDE-326592-00.A9
326592-00
|
£4.83
|
£5.80
|
|
|
14 - NUT
BDE-328772-00.A13
328772-00
|
£1.66
|
£1.99
|
|
|
15 - BASE
BDE-326590-01.A14
326590-01
|
£1.66
|
£1.99
|
|
|
16 - SCALE
BDE-326589-02.A6
326589-02
|
£2.32
|
£2.78
|
|
|
17 - RATCHET
BDE-326381-00.A11
326381-00
|
£1.66
|
£1.99
|
|
|
18 - WASHER SPRING
BDE-327341-00.A3
327341-00
|
£1.66
|
£1.99
|
|
|
20 - COVER BRUSH
BDE-580980-00.A0
580980-00
|
£3.39
|
£4.07
|
|
|
21 - POST
BDE-326636-00.A14
326636-00
|
£1.66
|
£1.99
|
|
|
22 - SCREW
BDE-330065-08.A409
330065-08
|
£1.66
|
£1.99
|
|
|
23 - WASHER
BDE-330016-01.A33
330016-01
|
£1.66
|
£1.99
|
|
|
25 - SPRING
BDE-323722-00.A17
323722-00
|
£1.66
|
£1.99
|
|
|
26 - BUSH
BDE-326823-01.A1
326823-01
|
£1.66
|
£1.99
|
|
|
27 - SCREW
BDE-324006-11.A3
324006-11
|
£1.66
|
£1.99
|
|
|
29 - SCREW
BDE-324007-07.A7
324007-07
|
£1.66
|
£1.99
|
|
|
30 - LABEL
BDE-586529-00.A1
586529-00
|
£1.66
|
£1.99
|
|
|
31 - SPRING
BDE-572255-00.A10
572255-00
|
£1.66
|
£1.99
|
|
|
34 - CAP
BDE-323481-00.A2
323481-00
|
£1.66
|
£1.99
|
|
|
35 - BEARING
BDE-605040-63.A40
605040-63
|
£3.39
|
£4.07
|
|
|
37 - BAFFLE FAN
BDE-580993-00.A0
580993-00
|
£1.66
|
£1.99
|
|
|
39 - SCREW
BDE-330045-44.A0
330045-44
|
£1.66
|
£1.99
|
|
|
40 - BEARING HOUSING
BDE-580997-00.A1
580997-00
|
£26.47
|
£31.76
|
|
|
41 - BEARING
BDE-330003-11.A28
330003-11
|
£11.18
|
£13.41
|
|
|
42 - BEARING
BDE-N542566.A19
N542566
|
£12.53
|
£15.04
|
|
|
43 - PULLEY
BDE-324105-00.A0
324105-00
|
£2.87
|
£3.44
|
|
|
44 - PINION
BDE-327065-00.A2
327065-00
|
£3.39
|
£4.07
|
|
|
45 - BELT
BDE-579600-00.A1
579600-00
|
£12.53
|
£15.04
|
|
|
46 - NUT
BDE-761225-02.A28
761225-02
|
£1.66
|
£1.99
|
|
|
47 - BELT COVER
BDE-580979-00.A1
580979-00
|
£7.40
|
£8.88
|
|
|
48 - HANDLE COVER
BDE-580978-00.A0
580978-00
|
£2.87
|
£3.44
|
|
|
51 - CHUTE
BDE-580999-00.A0
580999-00
|
£7.40
|
£8.88
|
|
|
53 - FLAP
BDE-580981-00.A1
580981-00
|
£3.39
|
£4.07
|
|
|
54 - BEARING
BDE-330004-31.A2
330004-31
|
£3.92
|
£4.70
|
|
|
55 - PLATE
BDE-918405.A46
918405
|
£1.66
|
£1.99
|
|
|
56 - SPRING
BDE-580982-00.A0
580982-00
|
£1.66
|
£1.99
|
|
|
57 - GUIDE
BDE-327393-00.A13
327393-00
|
£3.39
|
£4.07
|
|
|
58 - SCREW WING
BDE-326573-01.A53
326573-01
|
£1.88
|
£2.26
|
|
|
59 - GUIDE FENCE
BDE-327391-00.A1
327391-00
|
£9.69
|
£11.63
|
|
|
60 - NUT WING
BDE-328834-00.A3
328834-00
|
£1.66
|
£1.99
|
|
|
61 - BOLT
BDE-911111.A3
911111
|
£1.66
|
£1.99
|
|
|
62 - BRACKET
BDE-328175-00.A4
328175-00
|
£3.39
|
£4.07
|
|
|
64 - GUARD
BDE-326637-00.A8
326637-00
|
£1.88
|
£2.26
|
|
|
68 - SCREW
BDE-330065-10.A69
330065-10
|
£1.66
|
£1.99
|
|
|
70 - CLAMP SA
BDE-N542564.A6
N542564
|
£16.52
|
£19.82
|
|
|
72 - STAND
BDE-N381124.A2
N381124
|
£9.69
|
£11.63
|
|
|
75 - BAG FILTER
BDE-584460-00.A1
584460-00
|
£28.32
|
£33.99
|
|
|
76 - SUPPORT
BDE-584459-00.A0
584459-00
|
£15.01
|
£18.01
|
|
|
77 - ADAPTOR
BDE-581002-00.A0
581002-00
|
£4.83
|
£5.80
|
|
|
82 - SPANNER
BDE-868148-00.A15
868148-00
|
£3.92
|
£4.70
|
|
|
92 - ELECTRONIC 230V GB
BDE-589364-00
589364-00
|
£105.49
|
£126.59
|
|
|
93 - LEADWIRE
BDE-586594-02
586594-02
|
£1.66
|
£1.99
|
|
|
94 - LEADWIRE
BDE-328579-01
328579-01
|
£1.66
|
£1.99
|
|
|
95 - TERMINAL BLOCK
BDE-326057-00.A8
326057-00
|
£1.66
|
£1.99
|
|
|
97 - CLIP
BDE-329145-00.A11
329145-00
|
£1.66
|
£1.99
|
|
|
107 - FOAM
BDE-580996-00.A0
580996-00
|
£1.66
|
£1.99
|
|
|
108 - FOAM
BDE-586876-00.A0
586876-00
|
£1.66
|
£1.99
|
|
|
110 - GUIDE BUSH
BDE-583037-00.A1
583037-00
|
£11.18
|
£13.41
|
|
|
120 - O RING
BDE-323711-35.A2
323711-35
|
£1.66
|
£1.99
|
|
|
846 - PARTS PACK
BDE-582781-00.A0
582781-00
|
£7.40
|
£8.88
|
|
|
847 - SERVICE KIT
BDE-589358-00.A0
589358-00
|
£76.38
|
£91.65
|
|
|
861 - KITBOX
BDE-578772-54.A1
578772-54
|
£35.02
|
£42.02
|
|
