Dewalt DW742 Type 4 Combination Saw Spare Parts

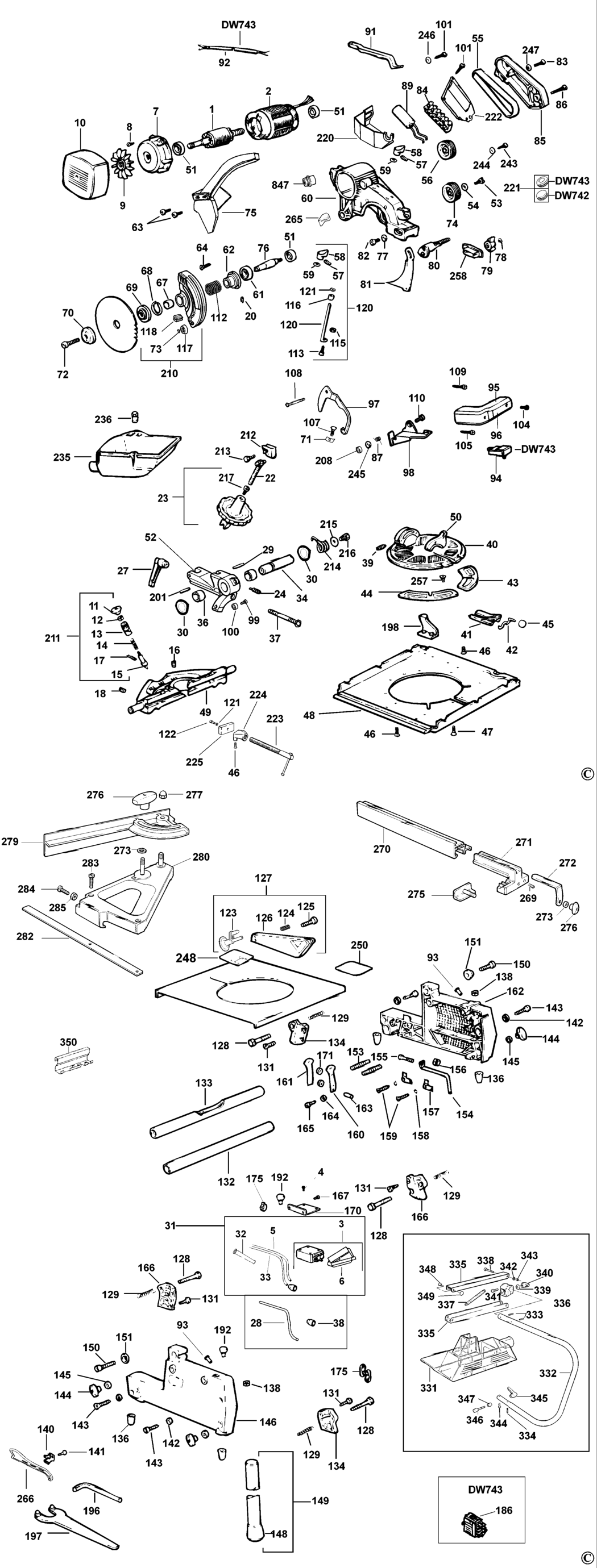

An exploded drawing and spare parts listing for the Dewalt DW742 Type 4 Combination Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE LX BDE-000000-00.A57676 000000-00	-
1 - ROTOR SA GB BDE-868397-01.A3 868397-01	-
2 - STATOR 115V LX BDE-868395-06.A6 868395-06	£200.77	£240.92
2 - STATOR 230V GB BDE-868395-04.A2 868395-04	£232.38	£278.85
3 - SWITCH GB BDE-868473-00.A2 868473-00	£78.12	£93.74
3 - SWITCH 115V LX BDE-868473-01.A5 868473-01	-
4 - SCREW BDE-930076-00.A65 930076-00	£1.50	£1.80
5 - NO LONGER AVAILABLE BDE-000000-00.A57677 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A57678 000000-00	-
7 - END CAP BDE-861085-04.A6 861085-04	£23.75	£28.50
8 - SCREW.TEMP BDE-860089-17.A15 860089-17	£1.50	£1.80
9 - FAN BDE-942413-02.A9 942413-02	£4.69	£5.63
10 - FAN COVER BDE-861036-00.A4 861036-00	£18.91	£22.69
11 - KNOB BDE-942453-00.A26 942453-00	£3.80	£4.56
12 - NUT BDE-949726-05.A51 949726-05	£1.50	£1.80
13 - BARREL BDE-861069-00.A16 861069-00	£17.48	£20.97
14 - SPRING BDE-761054-00.A52 761054-00	£1.50	£1.80
15 - LOCKING PIN BDE-941798-00.A13 941798-00	£3.30	£3.96
16 - SCREW BDE-942329-00.A24 942329-00	£1.50	£1.80
17 - PIN BDE-761065-00.A20 761065-00	£1.50	£1.80
18 - SCREW BDE-941880-00.A48 941880-00	£1.50	£1.80
20 - PIN BDE-941549-00.A14 941549-00	-
22 - SPINDLE BDE-942363-00.A16 942363-00	£34.00	£40.80
23 - WHEEL BDE-861060-01.A0 861060-01	-
24 - SCREW BDE-860088-23.A9 860088-23	-
27 - LEVER BDE-949884-01.A9 949884-01	£5.88	£7.06
28 - NO LONGER AVAILABLE LX BDE-000000-00.A57679 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A57680 000000-00	-
30 - WASHER LOCK BDE-941800-00.A17 941800-00	-
31 - NO LONGER AVAILABLE LX BDE-000000-00.A57681 000000-00	-
31 - NO LONGER AVAILABLE GB BDE-000000-00.A57682 000000-00	-
32 - PROTECTOR BDE-942277-00.A55 942277-00	£1.66	£1.99
33 - NO LONGER AVAILABLE LX BDE-000000-00.A57683 000000-00	-
33 - NO LONGER AVAILABLE GB BDE-000000-00.A57684 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A57685 000000-00	-
36 - BUSH BDE-941886-00.A13 941886-00	-
37 - SCREW BDE-860085-32.A9 860085-32	£4.69	£5.63
38 - PLUG LX BDE-865975-00.A6 865975-00	£10.85	£13.02
39 - SCREW BDE-949743-01.A19 949743-01	£1.50	£1.80
40 - ROTARY TABLE BDE-869230-01.A2 869230-01	-
41 - PLATE BDE-942364-00.A7 942364-00	-
42 - LOCKING PIN BDE-942234-00.A15 942234-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A57686 000000-00	-
44 - SCALE LH BDE-861065-00.A12 861065-00	-
45 - KNOB BDE-942450-00.A8 942450-00	£1.42	£1.70
46 - SCREW BDE-868256-00.A6 868256-00	£1.50	£1.80
47 - SCREW BDE-942272-00.A0 942272-00	-
48 - FIXED TABLE BDE-861062-00.A12 861062-00	-
49 - BACK FENCE BDE-868285-02.A8 868285-02	-
50 - CLAMP BDE-942400-01.A12 942400-01	-
51 - BEARING BDE-930563-00.A16 930563-00	£10.85	£13.02
52 - SEGMENT BDE-861993-00.A5 861993-00	-
53 - SCREW BDE-860085-28.A6 860085-28	£1.50	£1.80
54 - WASHER BDE-861983-01.A3 861983-01	£1.50	£1.80
55 - BELT LX BDE-861038-01.A0 861038-01	£23.75	£28.50
55 - BELT GB BDE-861038-00.A4 861038-00	£10.85	£13.02
56 - PULLEY LX BDE-861040-01.A3 861040-01	-
56 - PULLEY GB BDE-861040-01.A4 861040-01	-
57 - PIN BDE-760233-00.A24 760233-00	£1.50	£1.80
58 - KNOB BDE-941807-00.A8 941807-00	£1.78	£2.13
59 - SPRING BDE-860491-01.A11 860491-01	£1.50	£1.80
60 - HOUSING SA BDE-868440-00.A0 868440-00	£170.23	£204.28
61 - BEARING BDE-860155-08.A44 860155-08	£7.85	£9.42
62 - FLANGE BDE-861055-01.A13 861055-01	£4.58	£5.49
63 - SCREW BDE-860084-11.A48 860084-11	£1.50	£1.80
64 - SCREW.TEMP BDE-860094-00.A27 860094-00	£1.50	£1.80
67 - BUSH BDE-942490-00.A16 942490-00	-
68 - CIRCLIP BDE-860079-05.A5 860079-05	£1.50	£1.80
69 - FLANGE BDE-942886-01.A3 942886-01	£18.42	£22.10
70 - NO LONGER AVAILABLE BDE-000000-00.A57687 000000-00	-
71 - WASHER BDE-860077-01.A10 860077-01	£1.50	£1.80
72 - SCREW BDE-761295-00.A10 761295-00	-
73 - CIRCLIP SA BDE-861705-00.A11 861705-00	£16.03	£19.24
74 - PULLEY BDE-861039-01.A4 861039-01	-
75 - GUARD REAR BDE-942394-05.A4 942394-05	-
76 - SPINDLE BDE-942500-00.A12 942500-00	£24.39	£29.27
77 - WASHER BDE-941602-00.A111 941602-00	£1.50	£1.80
78 - CIRCLIP BDE-860322-00.A15 860322-00	£1.50	£1.80
79 - KNOB BDE-942263-01.A16 942263-01	£11.87	£14.24
80 - HOLDER BDE-945767-02.A4 945767-02	-
81 - RIVING KNIFE BDE-945739-02.A15 945739-02	-
82 - SCREW BDE-949886-16.A12 949886-16	£1.50	£1.80
83 - SCREW BDE-860089-18.A60 860089-18	£1.50	£1.80
84 - NO LONGER AVAILABLE BDE-000000-00.A57688 000000-00	-
85 - BELT COVER BDE-861037-00.A9 861037-00	-
86 - SCREW BDE-860089-13.A10 860089-13	£1.42	£1.70
87 - SPRING BDE-861987-00.A5 861987-00	-
89 - CAPACITOR LX BDE-949772-49.A0 949772-49	£24.39	£29.27
89 - CAPACITOR GB BDE-949772-43.A3 949772-43	£10.85	£13.02
91 - COVER BDE-942485-00.A11 942485-00	£3.80	£4.56
92 - LEAD SA LX BDE-942467-00.A10 942467-00	-
93 - SCREW BDE-949701-05.A18 949701-05	£1.50	£1.80
95 - HANDLE COVER BDE-861995-00.A2 861995-00	£7.85	£9.42
96 - SWITCH HANDLE BDE-861087-00.A1 861087-00	-
97 - LEVER SA BDE-868235-00.A4 868235-00	£24.39	£29.27
98 - NO LONGER AVAILABLE BDE-000000-00.A57689 000000-00	-
99 - SCREW BDE-861989-00.A11 861989-00	£1.50	£1.80
100 - BEARING BDE-949719-04.A22 949719-04	£3.30	£3.96
101 - SCREW.TEMP BDE-720685-00.A57 720685-00	£1.50	£1.80
104 - SCREW BDE-949896-10.A23 949896-10	£1.50	£1.80
105 - SCREW BDE-860090-06.A3 860090-06	-
107 - CAP BDE-861991-00.A2 861991-00	£1.50	£1.80
108 - SCREW BDE-861054-01.A0 861054-01	-
109 - SCREW BDE-935371-00.A3 935371-00	£1.50	£1.80
110 - SCREW BDE-861478-01.A4 861478-01	£1.42	£1.70
112 - SPRING BDE-861988-00.A2 861988-00	-
113 - SCREW BDE-860085-17.A28 860085-17	-
115 - NUT M6 BDE-860083-12.A144 860083-12	£1.50	£1.80
116 - NO LONGER AVAILABLE BDE-000000-00.A57691 000000-00	-
117 - ROLLER BDE-861096-01.A10 861096-01	£12.17	£14.60
118 - BUFFER BDE-861095-01.A23 861095-01	£1.50	£1.80
120 - NO LONGER AVAILABLE BDE-000000-00.A57690 000000-00	-
121 - WASHER BDE-860073-08.A0 860073-08	£1.50	£1.80
122 - SCREW BDE-860093-07.A27 860093-07	£1.50	£1.80
123 - PIVOT BDE-N162670.A23 N162670	£3.80	£4.56
124 - SPRING BDE-941622-00.A19 941622-00	£1.50	£1.80
125 - SCREW BDE-860084-20.A62 860084-20	£1.50	£1.80
126 - GUARD UPPER BDE-N162669.A9 N162669	£17.48	£20.97
127 - GUARD SA BDE-N164678.A34 N164678	£38.80	£46.56
128 - BOLT BDE-860301-09.A0 860301-09	£1.50	£1.80
129 - SPRING BDE-761054-00.A51 761054-00	£1.50	£1.80
131 - SCREW BDE-330045-55.A103 330045-55	£1.50	£1.80
132 - NO LONGER AVAILABLE BDE-000000-00.A57692 000000-00	-
133 - NO LONGER AVAILABLE BDE-000000-00.A57693 000000-00	-
134 - CLAMP LH BDE-861078-02.A0 861078-02	-
136 - FOOT BDE-942375-00.A22 942375-00	£1.50	£1.80
138 - NUT BDE-860083-15.A74 860083-15	£1.50	£1.80
140 - HOLDER BDE-391358-01.A53 391358-01	£1.50	£1.80
141 - SCREW BDE-330045-05.A43 330045-05	£1.50	£1.80
142 - WASHER BDE-98197-08.A22 98197-08	£1.50	£1.80
143 - SCREW BDE-942447-00.A31 942447-00	£1.50	£1.80
144 - KNOB BDE-941756-00.A111 941756-00	£1.50	£1.80
145 - WASHER M8 BDE-860073-03.A658 860073-03	£1.50	£1.80
146 - NO LONGER AVAILABLE BDE-000000-00.A57694 000000-00	-
148 - FOOT BDE-861073-00.A2 861073-00	£10.85	£13.02
149 - LEG SA BDE-861076-00.A2 861076-00	£17.48	£20.97
150 - SCREW BDE-942041-00.A2 942041-00	-
151 - WASHER BDE-861068-00.A0 861068-00	£3.30	£3.96
153 - SPRING BDE-942522-00.A15 942522-00	£1.50	£1.80
154 - LOCKING DEVICE BDE-942098-00.A20 942098-00	£9.41	£11.29
155 - SCREW BDE-942185-00.A15 942185-00	£1.50	£1.80
156 - NUT M6 BDE-860083-12.A145 860083-12	£1.50	£1.80
157 - BRIDGE BDE-942104-00.A8 942104-00	£1.50	£1.80
158 - WASHER BDE-761035-00.A22 761035-00	£1.42	£1.70
159 - SCREW.TEMP BDE-860094-00.A29 860094-00	£1.50	£1.80
160 - CATCH BDE-861071-00.A19 861071-00	£2.26	£2.71
161 - LOCKING DEVICE BDE-861070-00.A2 861070-00	£2.26	£2.71
162 - SIDE RH BDE-861089-02.A5 861089-02	£170.23	£204.28
163 - PIN BDE-942365-00.A20 942365-00	£1.50	£1.80
164 - WASHER BDE-949876-08.A6 949876-08	£1.50	£1.80
165 - SCREW.TEMP BDE-860094-00.A28 860094-00	£1.50	£1.80
166 - CLAMP RH BDE-861077-02.A7 861077-02	-
167 - SCREW BDE-860094-03.A243 860094-03	£1.50	£1.80
170 - BRACKET BDE-944341-00.A12 944341-00	£7.18	£8.62
171 - WASHER M6 BDE-860073-07.A48 860073-07	£1.50	£1.80
175 - CABLE CLAMP BDE-861091-00.A33 861091-00	£1.50	£1.80
192 - FOOT BDE-941614-00.A37 941614-00	£1.50	£1.80
196 - WRENCH 6 MM BDE-860098-04.A2 860098-04	£1.50	£1.80
197 - SPANNER BDE-939072-00.A4 939072-00	£9.41	£11.29
198 - TABLE LATCH BDE-861063-00.A0 861063-00	£4.69	£5.63
201 - PIN BDE-942045-00.A2 942045-00	£1.42	£1.70
208 - NUT M5 BDE-860092-03.A48 860092-03	£1.50	£1.80
210 - LOWER GUARD SA BDE-868216-01.A7 868216-01	-
211 - LOCKING PIN SA BDE-861084-00.A13 861084-00	£25.70	£30.84
212 - NO LONGER AVAILABLE BDE-000000-00.A57695 000000-00	-
213 - PIN BDE-860649-01.A23 860649-01	-
214 - SPRING BDE-945619-00.A10 945619-00	-
215 - WASHER BDE-941602-00.A110 941602-00	£1.50	£1.80
216 - SCREW BDE-860085-18.A11 860085-18	-
217 - SCREW BDE-941606-00.A11 941606-00	-
220 - COVER BDE-868428-01.A1 868428-01	£2.26	£2.71
221 - NO LONGER AVAILABLE BDE-000000-00.A57696 000000-00	-
222 - COVER BDE-868429-00.A8 868429-00	£2.26	£2.71
223 - SCREW.SPECIAL BDE-941812-00.A3 941812-00	£37.35	£44.82
224 - NO LONGER AVAILABLE BDE-000000-00.A57697 000000-00	-
225 - CLAMP BDE-941891-00.A3 941891-00	-
235 - GUARD SA BDE-945434-01.A0 945434-01	£10.85	£13.02
235 - GUARD SA BDE-N060146.A2 N060146	£17.48	£20.97
236 - FASTENER BDE-868303-00.A5 868303-00	£3.80	£4.56
243 - NO LONGER AVAILABLE BDE-000000-00.A57698 000000-00	-
244 - WASHER BDE-933652-00.A70 933652-00	£1.50	£1.80
245 - WASHER BDE-860073-01.A11 860073-01	£1.50	£1.80
246 - WASHER BDE-941633-00.A24 941633-00	£1.50	£1.80
247 - WASHER BDE-860073-01.A12 860073-01	£1.50	£1.80
250 - LABEL BDE-861099-00.A10 861099-00	£1.50	£1.80
257 - SCREW BDE-949795-01.A0 949795-01	£1.50	£1.80
258 - WEDGE BDE-946620-00.A16 946620-00	£37.35	£44.82
265 - SHOCK ABSORBER BDE-946315-00.A11 946315-00	£14.19	£17.03
266 - PUSHROD BDE-860610-01.A80 860610-01	£7.85	£9.42
269 - SCREW BDE-949743-03.A13 949743-03	£7.85	£9.42
270 - GUIDE BDE-942320-03.A7 942320-03	£38.80	£46.56
271 - FENCE BDE-861346-00.A19 861346-00	£25.70	£30.84
272 - CLAMPING BAR BDE-942316-01.A19 942316-01	£14.57	£17.48
273 - WASHER M8 BDE-860073-03.A660 860073-03	£1.50	£1.80
275 - BRACKET BDE-941819-01.A2 941819-01	£16.03	£19.24
276 - KNOB BDE-941756-00.A112 941756-00	£1.50	£1.80
277 - NUT BDE-860092-02.A32 860092-02	£1.50	£1.80
279 - FENCE BDE-941578-01.A7 941578-01	£55.30	£66.36
280 - BASE BDE-942172-00.A9 942172-00	£12.17	£14.60
282 - RAIL BDE-942151-00.A4 942151-00	£30.08	£36.10
283 - SCREW.TEMP BDE-860089-00.A8 860089-00	£1.50	£1.80
284 - SCREW BDE-941518-00.A102 941518-00	£1.50	£1.80
285 - NUT M6 BDE-860083-12.A146 860083-12	£1.50	£1.80
847 - REDUCER BDE-942308-00.A9 942308-00	£18.91	£22.69

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW742 Type 4 Combination Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
