Dewalt DWS520 Type 2 Corded Plunge Saw Spare Parts

Home Details Reviews Delivery

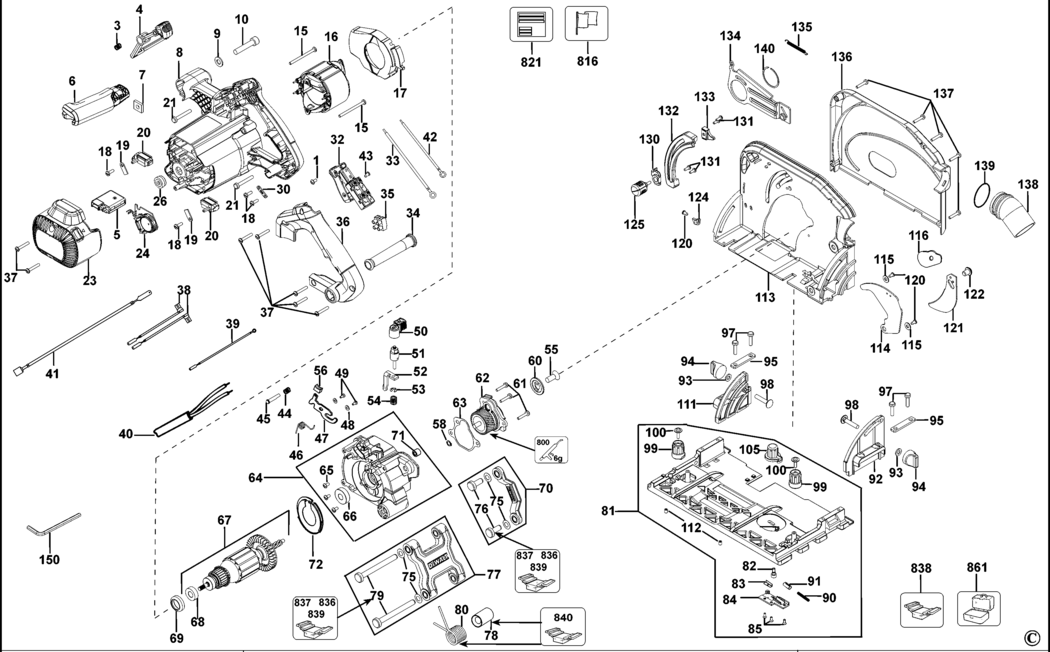

An exploded drawing and spare parts listing for the Dewalt DWS520 Type 2 Corded Plunge Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-330065-04.A4 330065-04	£1.66	£1.99
3 - SPRING COMPRESSION BDE-1007210-00.A4 1007210-00	£1.66	£1.99
4 - LEVER LOCK BDE-1009031-00.A7 1009031-00	£15.01	£18.01
5 - GACC MODULE 115V LX BDE-655757-01.A1 655757-01	£53.46	£64.15
5 - GACC MODULE 230V GB BDE-655757-00.A1 655757-00	£53.46	£64.15
6 - HANDLE BDE-492062-00.A1 492062-00	£9.69	£11.63
7 - PLATE BDE-491035-00.A4 491035-00	£1.66	£1.99
8 - HOUSING MOTOR BDE-490245-00.A2 490245-00	£26.47	£31.76
9 - WASHER BDE-1005703-00.A4 1005703-00	£1.66	£1.99
10 - SCREW BDE-949886-38.A4 949886-38	£1.66	£1.99
15 - SCREW BDE-330065-10.A3 330065-10	£1.66	£1.99
16 - FIELD 120V LX BDE-1007367-01.A2 1007367-01	£39.97	£47.96
16 - FIELD 230V GB BDE-1007367-00.A0 1007367-00	£42.48	£50.98
17 - BAFFLE BDE-491266-00.A0 491266-00	£2.87	£3.44
18 - SCREW BDE-330065-06.A57 330065-06	£1.66	£1.99
19 - RETAINER BDE-494400-00.A0 494400-00	£1.66	£1.99
20 - BRUSH PAIR 115V LX BDE-1006368-01.A1 1006368-01	-
20 - BRUSH PAIR 230V GB BDE-1007368-00.A1 1007368-00	£20.50	£24.60
21 - SCREW BDE-330045-18.A25 330045-18	£1.66	£1.99
23 - END CAP BDE-491506-00.A1 491506-00	£7.40	£8.88
24 - PCB CONTROLLER LX BDE-1007369-00.A2 1007369-00	£20.50	£24.60
24 - PCB CONTROLLER GB BDE-1007369-00.A3 1007369-00	£20.50	£24.60
26 - MAGNET BDE-326251-00.A1 326251-00	£8.08	£9.70
30 - CORD CLAMP BDE-329301-00.A289 329301-00	£1.66	£1.99
32 - SWITCH BDE-394375-02P.A28 394375-02P	£15.01	£18.01
33 - LEADWIRE BDE-495268-01.A2 495268-01	£1.66	£1.99
34 - CORD PROTECTOR BDE-403395-00.A91 403395-00	£1.66	£1.99
35 - TERMINAL BLOCK BDE-1006389-00.A0 1006389-00	£1.66	£1.99
36 - HANDLE COVER BDE-491445-00.A0 491445-00	£11.18	£13.41
37 - SCREW BDE-330065-09.A94 330065-09	£1.66	£1.99
38 - BRUSH LEAD SA BDE-495269-00.A2 495269-00	£1.66	£1.99
39 - CAPACITOR SA BDE-495271-00.A2 495271-00	£6.06	£7.27
40 - CORDSET GB BDE-330060-07.A32 330060-07	-
40 - CORDSET LX BDE-330060-99.A1 330060-99	£37.35	£44.82
41 - TERMINAL & LEAD BDE-495270-00.A2 495270-00	£1.66	£1.99
42 - LEAD BDE-495268-00.A2 495268-00	£1.66	£1.99
43 - SCREW BDE-1007314-00.A2 1007314-00	£1.66	£1.99
44 - SPRING COMPRESSION BDE-1005371-00.A3 1005371-00	£1.66	£1.99
45 - PIN BDE-N019976.A2 N019976	£6.06	£7.27
46 - SPRING TORSION BDE-1006028-00.A6 1006028-00	£1.66	£1.99
47 - PLATE LOCK BDE-1008323-00.A1 1008323-00	£1.66	£1.99
48 - WASHER BDE-330016-01.A18 330016-01	£1.66	£1.99
49 - SCREW TORX BDE-1006719-00.A4 1006719-00	£1.66	£1.99
50 - BUTTON BDE-493499-00.A3 493499-00	£1.66	£1.99
51 - PIN BDE-496980-00.A6 496980-00	£18.00	£21.60
52 - PLATE BDE-496979-00.A0 496979-00	£1.66	£1.99
53 - CIRCLIP BDE-370170.A12 370170	£1.66	£1.99
54 - SPRING COMPRESSION BDE-1005444-00.A7 1005444-00	£1.66	£1.99
55 - SCREW BDE-490549-00.A3 490549-00	£1.66	£1.99
56 - BUTTON BDE-1008577-00.A3 1008577-00	£1.66	£1.99
58 - CIRCLIP BDE-491838-00.A4 491838-00	£1.66	£1.99
60 - OUTER FLANGE BDE-490551-00.A4 490551-00	£7.49	£8.99
61 - SCREW BDE-330045-07.A13 330045-07	£1.66	£1.99
62 - GEAR & SPINDLE SA BDE-1007370-00.A1 1007370-00	£53.46	£64.15
63 - GASKET BDE-491225-00.A7 491225-00	£1.66	£1.99
64 - GEARCASE SA BDE-N014985.A0 N014985	£60.46	£72.55
65 - SCREW BDE-330045-44.A54 330045-44	£1.66	£1.99
66 - BEARING BALL BDE-330003-96.A5 330003-96	£4.83	£5.80
67 - NO LONGER AVAILABLE LX BDE-000000-00.A30215 000000-00	-
67 - ARMATURE 230V GB BDE-1007371-00.A1 1007371-00	£80.46	£96.55
68 - BEARING BDE-330003-60.A78 330003-60	£2.87	£3.44
69 - CAP BDE-323481-00.A49 323481-00	£1.66	£1.99
70 - LINK BDE-1007372-00.A0 1007372-00	£19.48	£23.37
71 - NEEDLE ROLLER BDE-496697-00.A7 496697-00	£2.87	£3.44
72 - BAFFLE FAN BDE-1006767-00.A0 1006767-00	£1.66	£1.99
75 - WASHER SPECIAL BDE-493529-00.A4 493529-00	£1.66	£1.99
76 - PIN BDE-1007373-00.A6 1007373-00	£8.08	£9.70
77 - LINKAGE SA BDE-1007374-00.A0 1007374-00	£38.80	£46.56
78 - SPACER BDE-1007325-00.A4 1007325-00	£3.92	£4.70
79 - PIN BDE-1007375-00.A6 1007375-00	£15.01	£18.01
80 - SPRING TORSION BDE-491573-00.A3 491573-00	£1.88	£2.26
81 - BASE PLATE BDE-NA408264.A2 NA408264	£76.38	£91.65
82 - PIN BDE-490687-00.A3 490687-00	£1.66	£1.99
83 - SPRING CLIP BDE-1005549-00.A6 1005549-00	£1.88	£2.26
84 - COVER BDE-490702-00.A4 490702-00	£1.66	£1.99
85 - SCREW BDE-492088-00.A3 492088-00	£1.66	£1.99
90 - SPRING COMPRESSION BDE-491446-00.A4 491446-00	£1.66	£1.99
91 - SPRING GUIDE BDE-1005053-00.A3 1005053-00	£1.66	£1.99
92 - HINGE BDE-1007977-00.A0 1007977-00	£7.40	£8.88
93 - WASHER M6 BDE-1005704-00.A3 1005704-00	£1.66	£1.99
94 - KNOB BDE-395889-00.A1 395889-00	£3.92	£4.70
95 - RETAINING PLATE BDE-490877-00.A6 490877-00	£1.66	£1.99
97 - SCREW BDE-330045-15.A98 330045-15	£1.66	£1.99
98 - CARRIAGE BOLT BDE-098128-40.A6 098128-40	£1.66	£1.99
99 - KNOB BDE-496804-00.A0 496804-00	£1.66	£1.99
100 - SCREW BDE-496806-00.A7 496806-00	£1.66	£1.99
105 - BUTTON SA BDE-1005943-00.A1 1005943-00	£2.87	£3.44
111 - HINGE BDE-1007976-00.A3 1007976-00	£3.92	£4.70
112 - SCREW.SPECIAL BDE-496698-00.A0 496698-00	£1.66	£1.99
113 - GUARD BDE-N194910.A0 N194910	£35.02	£42.02
114 - COVERPLATE BDE-491542-00.A4 491542-00	£1.66	£1.99
115 - WASHER M5 BDE-1005219-00.A4 1005219-00	£1.66	£1.99
116 - RETAINER BDE-1007560-00.A6 1007560-00	£1.66	£1.99
120 - SCREW BDE-389235-04.A4 389235-04	£1.66	£1.99
121 - RIVING KNIFE BDE-N018408.A4 N018408	£3.39	£4.07
122 - SCREW BDE-153637-06.A4 153637-06	£1.66	£1.99
124 - POINTER BDE-490829-00.A3 490829-00	£1.66	£1.99
125 - ADJUSTER DEPTH BDE-491151-00.A7 491151-00	£6.06	£7.27
130 - POINTER BDE-491170-00.A0 491170-00	£1.66	£1.99
131 - SCREW BDE-496621-00.A3 496621-00	£1.66	£1.99
132 - SCALE BDE-491149-00.A3 491149-00	£2.87	£3.44
133 - DEPTH STOP BDE-1008510-00.A2 1008510-00	£7.40	£8.88
134 - CARRIER BDE-N018403.A2 N018403	£3.92	£4.70
135 - SPRING BDE-490955-00.A3 490955-00	£1.66	£1.99
136 - GUARD COVER BDE-N195253.A0 N195253	£42.48	£50.98
137 - SCREW BDE-330045-07.A14 330045-07	£1.66	£1.99
138 - DUST PORT BDE-N025979.A4 N025979	£6.06	£7.27
139 - O RING BDE-491536-00.A11 491536-00	£1.66	£1.99
140 - CIRCLIP BDE-629745-00.A2 629745-00	£1.66	£1.99
150 - HEX KEY BDE-322929.A75 322929	-
800 - GREASE BDE-870889-03.A178 870889-03	£8.08	£9.70
816 - BRAND LABEL BDE-492112-00.A1 492112-00	£1.66	£1.99
821 - NO LONGER AVAILABLE GB BDE-000000-00.A30216 000000-00	-
821 - NO LONGER AVAILABLE LX BDE-000000-00.A30217 000000-00	-
836 - S.T.INSERTION TOOL BDE-559691-99.A3 559691-99	£67.48	£80.98
837 - S.T.SUPPORT JIG BDE-559695-99.A1 559695-99	£56.97	£68.36
838 - SERVICE TOOLING KIT BDE-559698-99.A7 559698-99	£804.38	£965.26
839 - S.T.ASSEMBLY JIG BDE-559696-99.A6 559696-99	£5.88	£7.06
840 - S.T.ASSEMBLY JIG BDE-596002-99.A6 596002-99	£7.18	£8.62
861 - KITBOX BDE-N089663.A2 N089663	£96.44	£115.73
