Dewalt DWE575 Type 1 Circular Saw Spare Parts

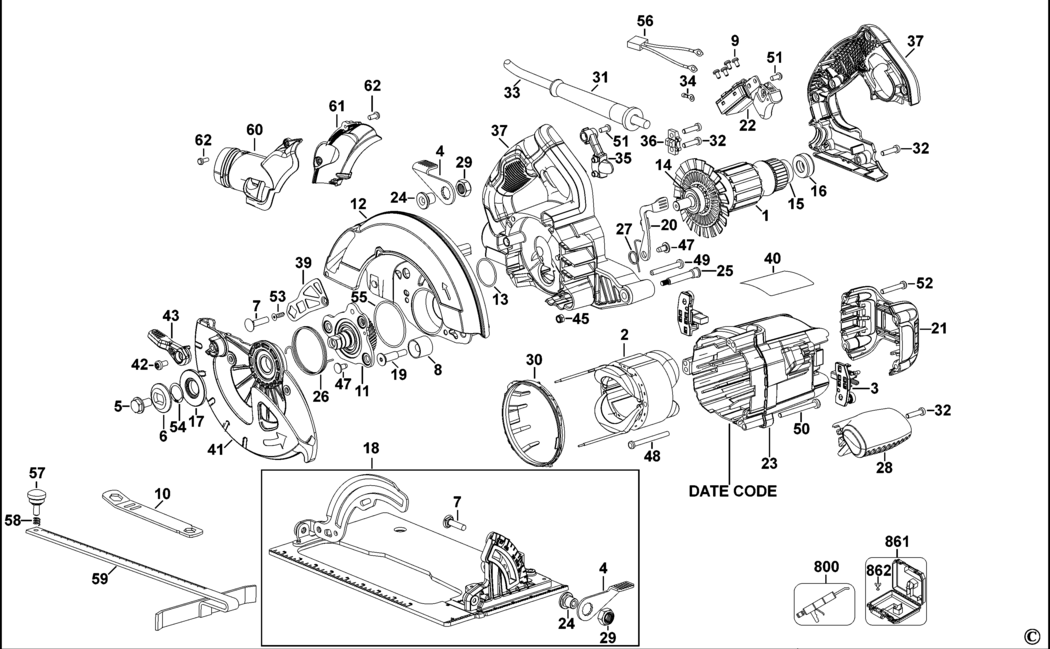

An exploded drawing and spare parts listing for the Dewalt DWE575 Type 1 Circular Saw

	Ex VAT	Inc VAT
1 - ARMATURE 115/120V LX BDE-N399349.A0 N399349	£71.44	£85.73
1 - ARMATURE 230V GB BDE-N420172.A0 N420172	£71.44	£85.73
2 - FIELD SA 230V GB BDE-N225796.A0 N225796	£47.08	£56.49
2 - FIELD 120V LX BDE-N225800.A1 N225800	£55.30	£66.36
3 - BRUSH HOLDER PAIR BDE-N226137.A0 N226137	£17.48	£20.97
3 - BRUSH HOLDER 230V BDE-N335459 N335459	-
4 - LEVER BDE-145347-00.A14 145347-00	£1.50	£1.80
5 - SCREW.SPECIAL BDE-145344-00.A18 145344-00	£1.88	£2.25
6 - OUTER FLANGE GB BDE-N120428.A5 N120428	£3.30	£3.96
6 - OUTER FLANGE LX BDE-N120428.A6 N120428	£3.30	£3.96
7 - CARRIAGE BOLT BDE-098128-90.A7 098128-90	£1.50	£1.80
8 - BUMPER BDE-381066-00.A8 381066-00	£1.50	£1.80
9 - SCREW BDE-384127-01.A26 384127-01	£1.50	£1.80
10 - WRENCH SPECIAL LX BDE-N165861.A0 N165861	£2.78	£3.34
10 - WRENCH SPECIAL GB BDE-N165861.A1 N165861	£2.78	£3.34
11 - SPINDLE SA BDE-N219393.A1 N219393	£30.08	£36.10
12 - GEARCASE SA BDE-N237899.A1 N237899	£37.35	£44.82
12 - GEARCASE SA INCL 13 BDE-N237899.A2 N237899	£37.35	£44.82
13 - O RING BDE-N100358.A1 N100358	£1.50	£1.80
14 - BEARING BDE-330003-25.A1 330003-25	£4.69	£5.63
14 - BEARING BDE-330003-64.A95 330003-64	£4.69	£5.63
15 - BEARING BDE-N110359.A32 N110359	£3.75	£4.50
16 - RUBBER BOOT BDE-N136311.A5 N136311	£1.50	£1.80
17 - WASHER INNER CLAMP BDE-N084137.A1 N084137	£3.30	£3.96
18 - SHOE SA BDE-N241119 N241119	£55.30	£66.36
19 - SCREW BDE-N086135.A2 N086135	£1.50	£1.80
20 - LEVER LOCK BDE-N090570.A0 N090570	£3.30	£3.96
21 - END CAP BDE-N090678.A1 N090678	£5.88	£7.06
22 - SWITCH SA BDE-N120421.A0 N120421	£19.90	£23.88
23 - FIELDCASE BDE-N168914.A1 N168914	£18.91	£22.69
24 - SCREW BDE-N094731.A0 N094731	£3.30	£3.96
25 - BOLT BDE-N099101.A0 N099101	£1.50	£1.80
26 - SPRING BDE-N100006.A3 N100006	£1.50	£1.80
27 - SPRING BDE-N100123.A0 N100123	£1.50	£1.80
28 - HANDLE BDE-N115554.A0 N115554	£3.30	£3.96
29 - STOP NUT BDE-N117921.A4 N117921	£1.50	£1.80
30 - BAFFLE FAN BDE-N123095.A1 N123095	£2.26	£2.71
30 - BAFFLE FAN BDE-N287072.A1 N287072	£1.50	£1.80
31 - CORD PROTECTOR BDE-330005-02.A4 330005-02	£1.82	£2.19
32 - SCREW BDE-330019-13.A450 330019-13	£1.50	£1.80
33 - CORDSET LX BDE-N033743.A0 N033743	£51.90	£62.28
33 - CORDSET (M/PLUG) GB GB BDE-N142646.A1 N142646	£30.08	£36.10
34 - TERMINAL BDE-395716-00.A5 395716-00	£1.50	£1.80
35 - CORD CLAMP BDE-N095539.A2 N095539	£1.50	£1.80
36 - CORD CLAMP BDE-N127730.A1 N127730	£1.50	£1.80
37 - HANDLE SA BDE-N137320.A0 N137320	£34.00	£40.80
39 - STRAP BDE-N135988.A1 N135988	£1.50	£1.80
40 - RATING PLATE GB BDE-N157828 N157828	£1.50	£1.80
40 - RATING PLATE LX BDE-N157829 N157829	£1.50	£1.80
41 - GUARD LOWER BDE-N378852.A1 N378852	£25.70	£30.84
42 - SCREW BDE-098094-13.A14 098094-13	£1.50	£1.80
43 - LEVER GB BDE-N086628.A9 N086628	£1.50	£1.80
43 - LEVER LX BDE-N086628.A10 N086628	£1.50	£1.80
45 - STOP NUT BDE-N123103.A0 N123103	£1.50	£1.80
47 - SCREW BDE-385915-04.A11 385915-04	£2.78	£3.34
48 - SCREW BDE-330019-50.A20 330019-50	£1.50	£1.80
48 - SCREW BDE-330019-18.A1 330019-18	£1.50	£1.80
49 - SCREW.TEMP BDE-330045-19.A17 330045-19	£1.50	£1.80
50 - SCREW BDE-330045-21.A5 330045-21	£1.50	£1.80
51 - SCREW BDE-330019-10.A9 330019-10	£1.50	£1.80
52 - SCREW BDE-330019-45.A17 330019-45	£1.50	£1.80
53 - SCREW BDE-593515-00.A1 593515-00	£1.50	£1.80
54 - RETAINER BDE-N120426.A1 N120426	£1.50	£1.80
55 - O RING BDE-N361499.A2 N361499	£1.50	£1.80
56 - CAPACITOR BDE-N448254.A0 N448254	£3.80	£4.56
56 - CAPACITOR BDE-632218-00.A24 632218-00	£4.69	£5.63
57 - SCREW BDE-N287119.A3 N287119	£1.75	£2.10
58 - SPRING BDE-058287-00.A28 058287-00	£1.50	£1.80
58 - SPRING BDE-058287-00.A15 058287-00	£1.50	£1.80
59 - FENCE BDE-N074939.A1 N074939	£12.17	£14.60
60 - BRUSH PAIR SA BDE-N335460 N335460	-
60 - DUST PORT LX BDE-N108974.A8 N108974	£2.08	£2.50
60 - DUST PORT GB BDE-N108974.A9 N108974	£2.08	£2.50
61 - DUST PORT LX BDE-N168420.A8 N168420	£2.08	£2.50
61 - DUST PORT GB BDE-N168420.A9 N168420	£2.08	£2.50
62 - SCREW LX BDE-370748.A126 370748	£1.50	£1.80
62 - SCREW GB BDE-370748.A127 370748	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A135 583534-00	£144.10	£172.92
861 - KITBOX GB BDE-N044228.A1 N044228	£55.30	£66.36
861 - KITBOX LX BDE-N044228.A2 N044228	£55.30	£66.36
862 - SPRING CLIP GB BDE-605265-00.A11 605265-00	£12.17	£14.60
862 - SPRING CLIP LX BDE-605265-00.A12 605265-00	£12.17	£14.60
