Dewalt DWE550 Type 1 Circular Saw Spare Parts

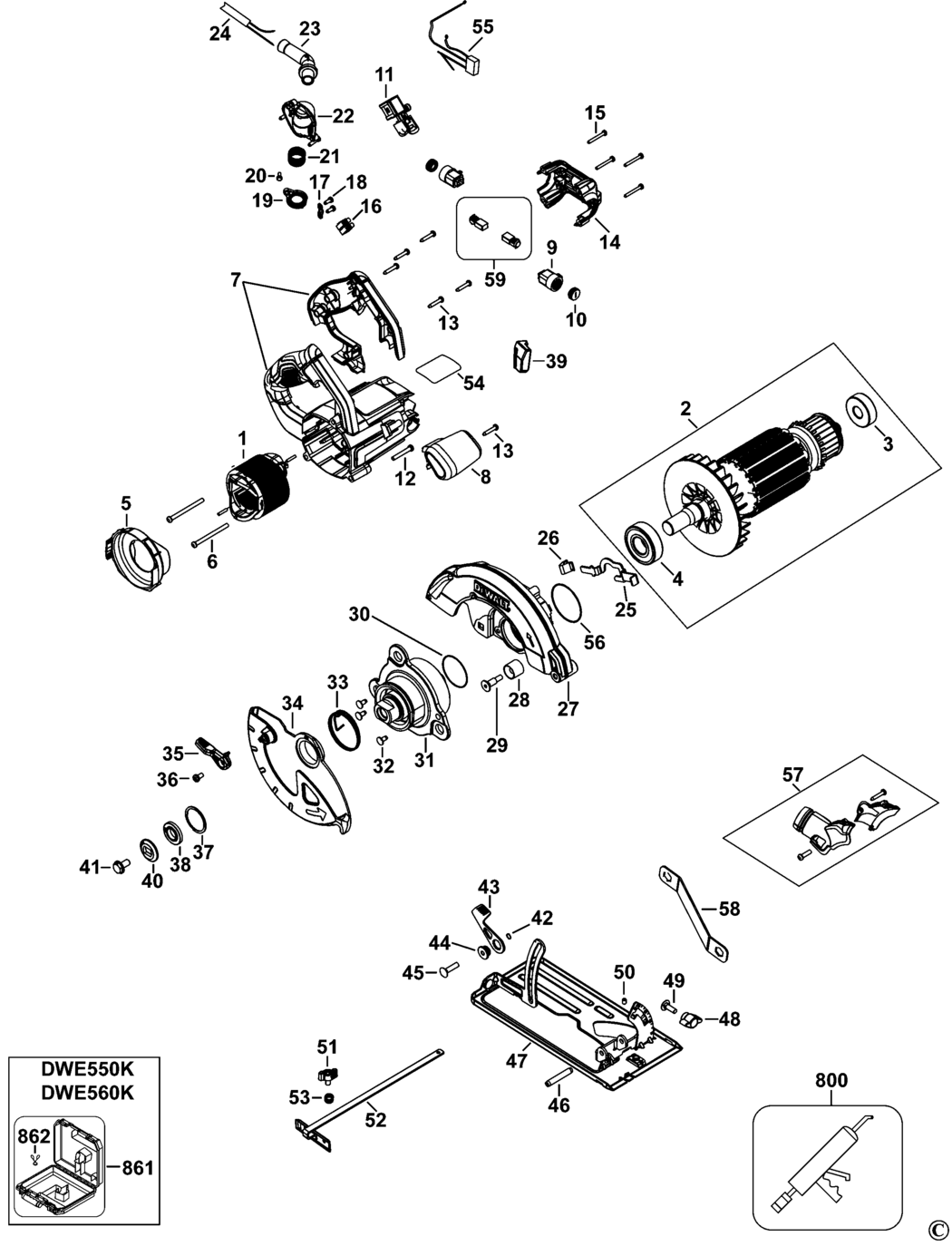

An exploded drawing and spare parts listing for the Dewalt DWE550 Type 1 Circular Saw

	Ex VAT	Inc VAT
1 - FIELD SA 230V GB BDE-N178802.A1 N178802	£25.70	£30.84
1 - FIELD SA 115V LX BDE-N178803.A0 N178803	£34.00	£40.80
2 - ARMATURE SA GB BDE-N178804.A1 N178804	£65.52	£78.62
2 - ARMATURE SA LX BDE-N178811.A0 N178811	£71.44	£85.73
3 - BEARING BDE-N110359.A181 N110359	£3.75	£4.50
4 - BEARING BDE-N472554.A5 N472554	£2.78	£3.34
5 - BAFFLE BDE-N083602.A3 N083602	£1.50	£1.80
6 - SCREW BDE-330019-19.A5 330019-19	£1.50	£1.80
7 - FIELDCASE SA BDE-N112960.A1 N112960	£25.70	£30.84
8 - HANDLE BDE-N086362.A0 N086362	£2.26	£2.71
9 - BRUSH HOLDER BDE-N024450.A4 N024450	£5.88	£7.06
10 - BRUSH CAP BDE-N024448.A0 N024448	£1.50	£1.80
11 - SWITCH BDE-N092201.A1 N092201	£12.17	£14.60
12 - SCREW BDE-330045-20.A5 330045-20	£1.50	£1.80
13 - PLASTIC SCREW BDE-330065-31.A47 330065-31	£1.50	£1.80
14 - END CAP BDE-N083601.A0 N083601	£2.78	£3.34
15 - SCREW BDE-330065-27.A14 330065-27	£1.50	£1.80
16 - TERMINAL BLOCK LX BDE-320078-00.A14 320078-00	£2.26	£2.71
16 - TERMINAL BLOCK GB BDE-320078-00.A15 320078-00	£2.26	£2.71
17 - CORD CLAMP BDE-821070.A625 821070	£1.50	£1.80
18 - PLASTIC SCREW BDE-N017542.A8 N017542	£3.30	£3.96
19 - PROTECTOR BDE-N105376.A3 N105376	£1.50	£1.80
20 - SCREW.TEMP BDE-330019-01.A5 330019-01	£1.50	£1.80
21 - SPRING BDE-N083610.A0 N083610	£1.50	£1.80
22 - HOLDER BDE-N102412.A3 N102412	£1.50	£1.80
23 - CORD PROTECTOR BDE-N083609.A3 N083609	£1.50	£1.80
24 - CORDSET (M/PLUG) GB GB BDE-N114590.A0 N114590	£24.39	£29.27
24 - CORDSET LX BDE-N114591.A1 N114591	£30.08	£36.10
25 - SPINDLE LOCK BDE-N083584.A3 N083584	£2.78	£3.34
26 - SPRING BDE-N130051.A0 N130051	£1.50	£1.80
27 - GEARCASE SA LX BDE-N195212.A0 N195212	£41.24	£49.49
27 - GEARCASE SA GB BDE-N195212.A1 N195212	£41.24	£49.49
28 - BUMPER BDE-381066-00.A12 381066-00	£1.50	£1.80
29 - SCREW BDE-N086355.A3 N086355	£1.50	£1.80
30 - O RING BDE-N134472.A3 N134472	£1.50	£1.80
31 - SPINDLE SA BDE-N183366.A0 N183366	£19.90	£23.88
32 - SCREW BDE-385915-04.A19 385915-04	£2.78	£3.34
33 - SPRING BDE-N083599.A3 N083599	£1.50	£1.80
34 - GUARD LOWER BDE-N149208 N149208	£17.48	£20.97
35 - LEVER BDE-N086628.A5 N086628	£1.50	£1.80
36 - SCREW BDE-098094-13.A3 098094-13	£1.50	£1.80
37 - RETAINER BDE-N152544.A3 N152544	£1.50	£1.80
38 - INNER FLANGE LX BDE-N083595.A0 N083595	£2.26	£2.71
38 - INNER FLANGE GB BDE-N083595.A1 N083595	£2.26	£2.71
39 - RUBBER SEAL BDE-N191811.A0 N191811	£1.50	£1.80
40 - WASHER OUTER CLAMP GB BDE-644711-00.A0 644711-00	£1.50	£1.80
40 - WASHER OUTER CLAMP LX BDE-644711-00.A1 644711-00	£1.50	£1.80
41 - SCREW.SPECIAL BDE-145344-00.A8 145344-00	£1.88	£2.25
42 - RING BDE-152211-00.A4 152211-00	£1.50	£1.80
43 - LEVER BDE-145347-00.A5 145347-00	£1.50	£1.80
44 - NUT BDE-N111116.A3 N111116	£2.78	£3.34
45 - CARRIAGE BOLT BDE-N143277.A0 N143277	£1.50	£1.80
46 - PIN BDE-389562-00.A1 389562-00	£1.50	£1.80
47 - SHOE SA BDE-N148240 N148240	£30.08	£36.10
48 - WING NUT BDE-N116044.A0 N116044	£1.50	£1.80
49 - BOLT BDE-N038133.A3 N038133	£1.50	£1.80
50 - SCREW BDE-N094309.A0 N094309	£1.50	£1.80
51 - KNOB BDE-N116069.A3 N116069	£1.50	£1.80
52 - FENCE BDE-N083612.A3 N083612	£5.88	£7.06
53 - SPRING BDE-N170858.A3 N170858	£1.50	£1.80
54 - RATING PLATE LX BDE-N179461 N179461	£1.50	£1.80
54 - RATING PLATE GB BDE-N141343 N141343	£1.50	£1.80
55 - CAPACITOR GB BDE-N106861.A0 N106861	£1.82	£2.19
55 - CAPACITOR LX BDE-N106861.A1 N106861	£1.82	£2.19
56 - O RING BDE-N100358.A9 N100358	£1.50	£1.80
57 - DUST PORT LX BDE-N195216.A0 N195216	£7.18	£8.62
57 - DUST PORT GB BDE-N195216.A1 N195216	£7.18	£8.62
58 - SPANNER BDE-N035355.A6 N035355	£1.50	£1.80
59 - BRUSH PAIR 230V GB BDE-N179042.A0 N179042	£16.03	£19.24
59 - BRUSH PAIR 115V LX BDE-N179043.A1 N179043	£16.03	£19.24
800 - GREASE 50 GMS BDE-583534-00.A228 583534-00	£144.10	£172.92
861 - KITBOX BDE-N044228.A4 N044228	£55.30	£66.36
862 - SPRING CLIP BDE-605265-00.A2 605265-00	£12.17	£14.60
