Dewalt DW650 Type 6 Belt Sander Spare Parts

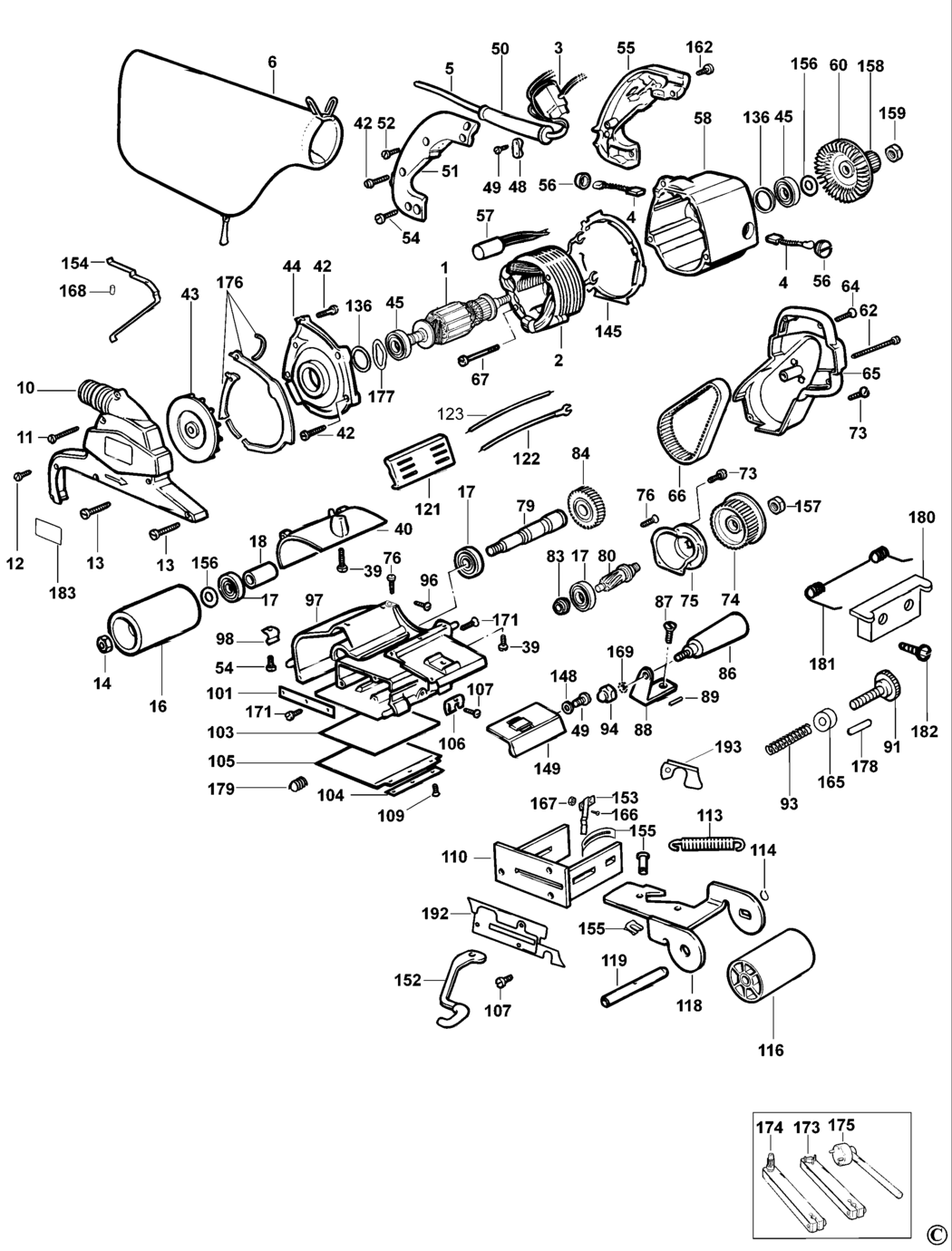

An exploded drawing and spare parts listing for the Dewalt DW650 Type 6 Belt Sander

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE 230V BDE-000000-00.A47691 000000-00	-
1 - ARMATURE 120V 115V BDE-248157-00.A7 248157-00	£96.96	£116.35
2 - FIELD 120V 115V BDE-090102104.A0 090102104	£94.12	£112.94
2 - FIELD 220V 230V BDE-090102102.A14 090102102	£72.28	£86.73
3 - SWITCH LOCK-ON BDE-155160303.A2 155160303	-
4 - BRUSH 220V 230V BDE-013121501.A13 013121501	£4.45	£5.34
4 - BRUSH 110V 115V BDE-013121502.A2 013121502	£9.17	£11.00
5 - CORDSET GB BDE-379092.A16 379092	£19.40	£23.28
5 - CORDSET LX BDE-378990.A36 378990	£9.41	£11.29
6 - BAG DUST SA BDE-329265-00.A1 329265-00	£30.08	£36.10
10 - FANCASE KIT BDE-247664-05.A5 247664-05	£76.16	£91.39
11 - SCREW BDE-247144-05.A0 247144-05	£1.42	£1.70
12 - SCREW BDE-249437-01.A7 249437-01	£1.42	£1.70
13 - SCREW BDE-249415-03.A5 249415-03	£1.42	£1.70
14 - NUT BDE-249232-40.A8 249232-40	-
16 - ROLLER SA BDE-324914-00.A6 324914-00	-
17 - BEARING 6002 2RS BDE-055830000.A9 055830000	£10.57	£12.68
18 - SPACER BDE-050152300.A4 050152300	£2.71	£3.25
39 - SCREW BDE-249220-00.A3 249220-00	£1.50	£1.80
40 - PLATE BDE-324922-06.A5 324922-06	£2.21	£2.65
42 - SCREW BDE-760978-01.A27 760978-01	£1.50	£1.80
43 - FAN BDE-324908-00.A11 324908-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A47692 000000-00	-
45 - BEARING 6001 RSZ BDE-050830000.A30 050830000	-
48 - CABLE CLAMP BDE-910556.A133 910556	£1.42	£1.70
49 - SCREW BDE-249416-06.A41 249416-06	£1.42	£1.70
50 - CORD PROTECTOR BDE-320785.A1168 320785	£1.50	£1.80
51 - COVER BDE-324687-06.A0 324687-06	£7.01	£8.41
52 - SCREW BDE-249416-03.A10 249416-03	£1.42	£1.70
54 - SCREW BDE-249424-20.A8 249424-20	£1.42	£1.70
55 - GRIP BDE-324686-06.A1 324686-06	£7.01	£8.41
56 - BRUSH CAP BDE-249007-01.A0 249007-01	£1.82	£2.19
57 - CAPACITOR BDE-320842-03.A105 320842-03	-
58 - HOUSING REPAIR KIT BDE-248438-02 248438-02	£72.28	£86.73
60 - FAN BDE-324907-02.A1 324907-02	-
62 - SCREW BDE-248090-05.A6 248090-05	£1.42	£1.70
64 - SCREW BDE-249437-02.A8 249437-02	£1.42	£1.70
65 - COVER BELT BDE-248187-06.A8 248187-06	£18.91	£22.69
66 - BELT TOOTHED BDE-324909-00.A0 324909-00	£18.91	£22.69
67 - RETAINER BDE-911442.A17 911442	£1.42	£1.70
73 - SCREW BDE-249415-01.A21 249415-01	£1.42	£1.70
74 - PULLEY BDE-324910-00.A11 324910-00	£18.91	£22.69
75 - PLATE BDE-050151901.A13 050151901	£14.19	£17.03
76 - SCREW BDE-249415-02.A2 249415-02	£1.42	£1.70
79 - GEAR & SPINDLE SA BDE-378189.A0 378189	£37.35	£44.82
80 - NO LONGER AVAILABLE BDE-000000-00.A47693 000000-00	-
83 - BEARING SINTER BDE-018980105.A3 018980105	£7.01	£8.41
84 - GEAR & SPINDLE SA BDE-378189.A1 378189	£37.35	£44.82
86 - KNOB BDE-140111000.A0 140111000	£14.19	£17.03
87 - SCREW BDE-248084-05.A8 248084-05	£3.70	£4.44
88 - LEVER BDE-249124-00.A11 249124-00	£11.87	£14.24
89 - PIN BDE-761065-00.A21 761065-00	£1.50	£1.80
91 - SCREW BDE-050117100.A1 050117100	-
93 - SPRING BDE-761054-00.A50 761054-00	£1.50	£1.80
94 - NUT BDE-248078-05.A6 248078-05	£1.78	£2.13
96 - SCREW BDE-249440-00.A6 249440-00	£1.42	£1.70
97 - HOUSING REPAIR KIT BDE-248125-02.A11 248125-02	£238.94	£286.73
98 - SPRING BDE-050930703.A13 050930703	£4.58	£5.49
101 - STRIP BDE-050116300.A13 050116300	-
103 - PLATE BDE-050111700.A2 050111700	£1.42	£1.70
104 - STRIP BDE-050110000.A2 050110000	£5.72	£6.87
105 - PLATE BDE-050110001.A13 050110001	£4.58	£5.49
106 - SPRING BDE-050930700.A2 050930700	£5.72	£6.87
107 - SCREW BDE-324006-00.A8 324006-00	£1.50	£1.80
109 - SCREW BDE-248084-10.A4 248084-10	-
110 - HOLDER BDE-248148-05.A5 248148-05	£7.64	£9.17
113 - SPRING BDE-050931316.A2 050931316	-
114 - CIRCLIP BDE-860079-03.A7 860079-03	£1.50	£1.80
116 - REPAIR KIT BDE-590984-00.A1 590984-00	-
118 - BRACKET BDE-324924-05.A4 324924-05	-
119 - REPAIR KIT BDE-590984-00.A0 590984-00	-
121 - COVER BRUSH BDE-249015-01.A1 249015-01	£2.71	£3.25
122 - LEAD 80MM YELLOW LX BDE-090164501.A21 090164501	£7.01	£8.41
122 - LEAD 80MM YELLOW GB BDE-090164501.A22 090164501	£7.01	£8.41
123 - LEAD 300MM RED BDE-090164502.A0 090164502	£1.42	£1.70
136 - GASKET BDE-248113-00.A3 248113-00	£1.78	£2.13
145 - BAFFLE BDE-324466-00.A13 324466-00	£4.58	£5.49
148 - WASHER BDE-249233-00.A65 249233-00	£1.50	£1.80
149 - COVER BDE-324126-06.A0 324126-06	£3.30	£3.96
152 - LEVER BDE-324920-06.A0 324920-06	£10.57	£12.68
153 - SPRING BDE-324923-00.A5 324923-00	£4.58	£5.49
154 - SPRING BDE-247998-00.A0 247998-00	£4.58	£5.49
155 - REPAIR KIT BDE-249523-01.A3 249523-01	£3.80	£4.56
156 - WASHER BDE-247869-00.A2 247869-00	£1.42	£1.70
157 - NUT BDE-003822700.A0 003822700	£3.60	£4.32
158 - PULLEY BDE-325248-01.A5 325248-01	£16.03	£19.24
159 - NUT BDE-248077-00.A3 248077-00	£1.78	£2.13
162 - SCREW BDE-249437-10.A1 249437-10	£1.42	£1.70
165 - NO LONGER AVAILABLE BDE-000000-00.A47694 000000-00	-
166 - SCREW.TEMP BDE-248312-00.A5 248312-00	£1.42	£1.70
167 - NUT BDE-248313-00.A6 248313-00	£1.42	£1.70
168 - RIVET BDE-248082-00.A3 248082-00	£1.78	£2.13
169 - WASHER BDE-249219-00.A7 249219-00	£1.42	£1.70
171 - SCREW BDE-249424-00.A4 249424-00	£1.42	£1.70
173 - CLAMP SERVICE TOOLING BDE-559574-99.A9 559574-99	£24.39	£29.27
174 - S.T.LOCKING TOOL SERVICE TOOLING BDE-559575-99.A2 559575-99	£71.44	£85.73
175 - S.T.WRENCH SERVICE TOOLING BDE-559573-99.A2 559573-99	£71.44	£85.73
176 - GASKET BDE-249503-00.A1 249503-00	£1.42	£1.70
177 - WASHER SPRING BDE-249582-00.A1 249582-00	£1.42	£1.70
178 - PIN BDE-325880-04.A4 325880-04	£1.42	£1.70
179 - SPRING BDE-323395-28.A2 323395-28	£3.70	£4.44
180 - PLATE BDE-329160-00.A3 329160-00	£3.22	£3.86
181 - SPRING BDE-329159-00.A0 329159-00	£3.80	£4.56
182 - SCREW BDE-911126.A0 911126	£1.42	£1.70
183 - NO LONGER AVAILABLE BDE-000000-00.A47695 000000-00	-
192 - COVER RH BDE-575472-00.A1 575472-00	£1.42	£1.70
193 - COVER LH BDE-575473-00.A2 575473-00	£1.42	£1.70
