Dewalt DW431 Type 5 Belt Sander Spare Parts

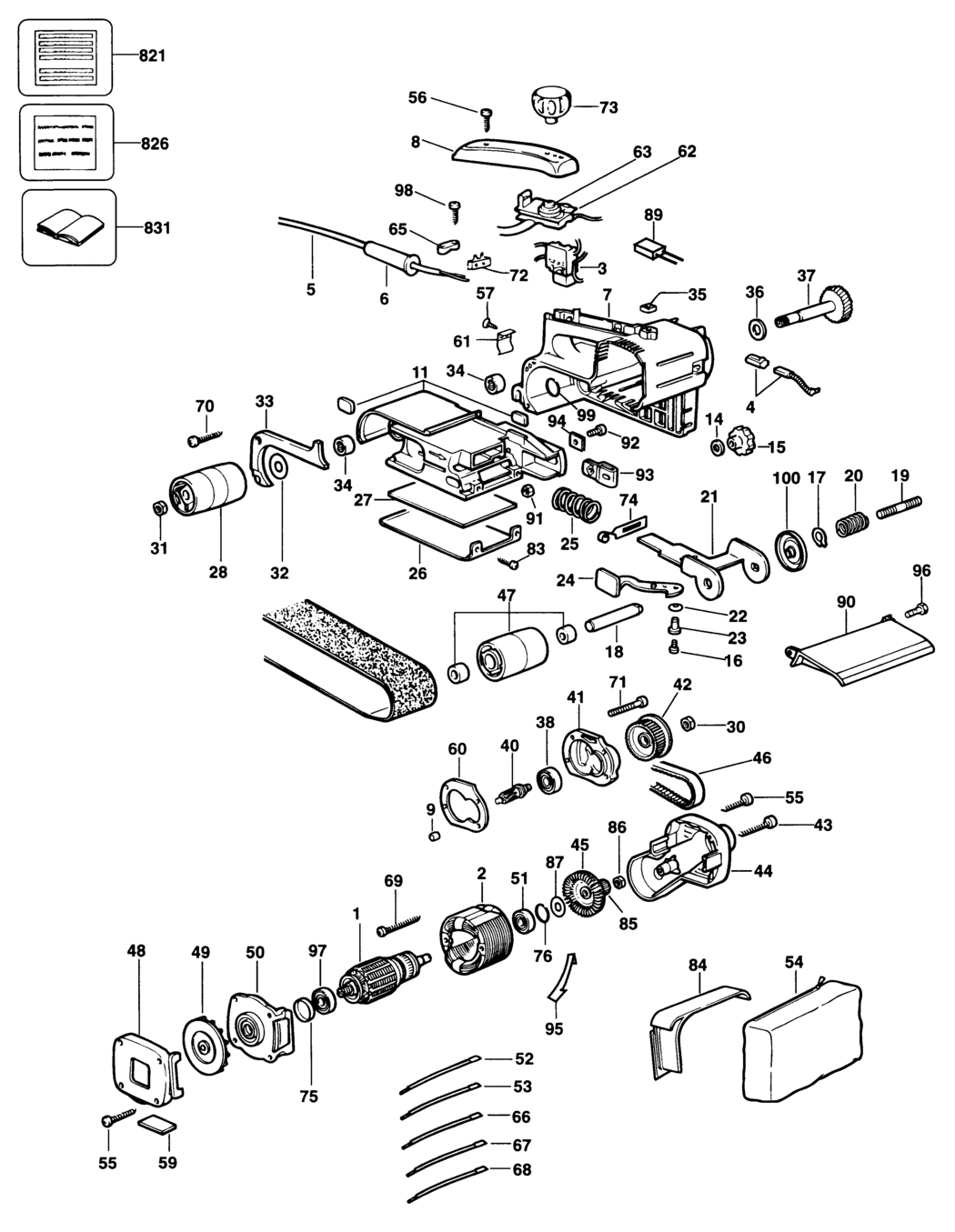

An exploded drawing and spare parts listing for the Dewalt DW431 Type 5 Belt Sander

	Ex VAT	Inc VAT
1 - ARMATURE 220V GB 240V BDE-248420-00.A0 248420-00	£112.86	£135.43
1 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47629 000000-00	-
2 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A47630 000000-00	-
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47631 000000-00	-
3 - SWITCH LOCK-ON BDE-155160303.A3 155160303	-
4 - BRUSH & HOLDER 115V GB 115V BDE-248447-01.A0 248447-01	-
4 - BRUSH & HOLDER 230V GB 240V BDE-247533-11.A23 247533-11	£10.85	£13.02
5 - CORDSET GB 240V BDE-379092.A17 379092	£19.40	£23.28
5 - CORDSET GB 115V BDE-378990.A35 378990	£9.41	£11.29
6 - CORD PROTECTOR BDE-320785.A1218 320785	£1.50	£1.80
7 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47633 000000-00	-
7 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A47634 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A47635 000000-00	-
9 - BEARING BDE-330004-19.A21 330004-19	£7.01	£8.41
11 - NO LONGER AVAILABLE BDE-000000-00.A47636 000000-00	-
14 - WASHER M8 BDE-249223-00.A57 249223-00	£1.42	£1.70
15 - NO LONGER AVAILABLE BDE-000000-00.A47637 000000-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A47638 000000-00	-
17 - CIRCLIP BDE-860079-03.A10 860079-03	£1.50	£1.80
18 - SPINDLE BDE-157152601.A5 157152601	£7.64	£9.17
19 - NO LONGER AVAILABLE BDE-000000-00.A47639 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A47640 000000-00	-
21 - FORK BDE-157113202.A4 157113202	-
22 - WASHER BDE-760261-00.A15 760261-00	£1.42	£1.70
23 - NO LONGER AVAILABLE BDE-000000-00.A47641 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A47642 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A47643 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A47644 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A47645 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A47646 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A47647 000000-00	-
31 - NUT BDE-249232-40.A7 249232-40	-
32 - NO LONGER AVAILABLE BDE-000000-00.A47648 000000-00	-
33 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47649 000000-00	-
33 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A47650 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A47651 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A47652 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A47653 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A47654 000000-00	-
38 - BEARING BDE-330003-17.A33 330003-17	£4.79	£5.75
40 - PINION BDE-325021-00.A0 325021-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A47655 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A47656 000000-00	-
43 - SCREW BDE-249416-04.A22 249416-04	£1.42	£1.70
44 - NO LONGER AVAILABLE BDE-000000-00.A47657 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A47658 000000-00	-
46 - BELT BDE-325018-00.A0 325018-00	£16.03	£19.24
47 - ROLLER SA BDE-157121405.A7 157121405	-
48 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47659 000000-00	-
48 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A47660 000000-00	-
49 - FAN BDE-325026-00.A12 325026-00	-
50 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A47673 000000-00	-
50 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47674 000000-00	-
51 - BEARING BDE-157830001.A10 157830001	£10.57	£12.68
52 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A47661 000000-00	-
52 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47662 000000-00	-
53 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A47663 000000-00	-
53 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47664 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A47665 000000-00	-
55 - SCREW BDE-949896-11.A14 949896-11	£1.50	£1.80
56 - SCREW BDE-249437-00.A28 249437-00	£1.42	£1.70
57 - NO LONGER AVAILABLE BDE-000000-00.A47666 000000-00	-
59 - NO LONGER AVAILABLE BDE-000000-00.A47667 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A47668 000000-00	-
61 - SPRING BDE-157930705.A3 157930705	-
62 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47669 000000-00	-
62 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A47670 000000-00	-
63 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47671 000000-00	-
63 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A47672 000000-00	-
65 - CABLE CLAMP BDE-379684.A7 379684	£1.50	£1.80
69 - RETAINER BDE-911442.A18 911442	£1.42	£1.70
70 - SCREW BDE-760978-01.A26 760978-01	£1.50	£1.80
71 - SCREW BDE-249416-03.A11 249416-03	£1.42	£1.70
73 - NO LONGER AVAILABLE BDE-000000-00.A47675 000000-00	-
74 - NO LONGER AVAILABLE BDE-000000-00.A47676 000000-00	-
75 - GASKET BDE-247600-00.A9 247600-00	£1.42	£1.70
76 - GASKET BDE-247601-00.A9 247601-00	£1.78	£2.13
83 - NO LONGER AVAILABLE BDE-000000-00.A47677 000000-00	-
84 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47678 000000-00	-
84 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A47679 000000-00	-
85 - PULLEY BDE-325019-00.A12 325019-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A47680 000000-00	-
87 - NO LONGER AVAILABLE BDE-000000-00.A47681 000000-00	-
89 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A47682 000000-00	-
89 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47683 000000-00	-
90 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A47684 000000-00	-
90 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47685 000000-00	-
91 - NO LONGER AVAILABLE BDE-000000-00.A47686 000000-00	-
92 - SCREW BDE-249408-10.A5 249408-10	-
93 - EXTENSION BDE-157116220.A2 157116220	-
94 - PLATE BDE-157930431.A2 157930431	-
95 - NO LONGER AVAILABLE BDE-000000-00.A47687 000000-00	-
96 - SCREW GB 115V BDE-249416-06.A39 249416-06	£1.42	£1.70
96 - SCREW GB 240V BDE-249416-06.A40 249416-06	£1.42	£1.70
97 - BEARING BDE-330003-17.A32 330003-17	£4.79	£5.75
98 - SCREW BDE-249437-01.A6 249437-01	£1.42	£1.70
99 - NO LONGER AVAILABLE BDE-000000-00.A47688 000000-00	-
100 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A47689 000000-00	-
100 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A47690 000000-00	-

Attribute Name	Value
Brand	Dewalt
