Dewalt DPN90C-1 Type 1 Nailer Spare Parts

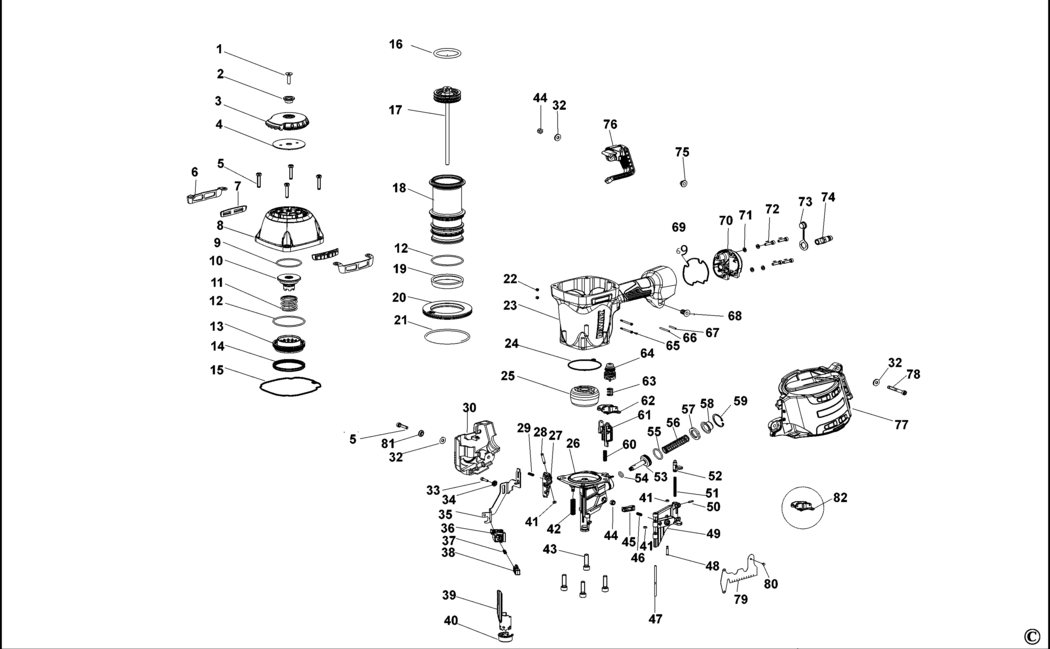

An exploded drawing and spare parts listing for the Dewalt DPN90C-1 Type 1 Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSF6100-25.A13 MSF6100-25	£1.50	£1.80
2 - BUSHING BDE-163859.A9 163859	£2.78	£3.34
3 - EXHAUST BDE-163818.A7 163818	£3.30	£3.96
4 - PLATE BDE-163830.A10 163830	£1.50	£1.80
5 - SCREW BDE-MSC6100-30.A37 MSC6100-30	£1.50	£1.80
6 - PLATE BDE-163827.A6 163827	£1.82	£2.19
7 - GUIDE BDE-149819.A12 149819	£1.50	£1.80
8 - CAP BDE-9R207477.A5 9R207477	£41.24	£49.49
9 - O RING BDE-105814.A14 105814	£10.85	£13.02
10 - BUMPER BDE-163820.A6 163820	£2.26	£2.71
11 - SPRING BDE-163844.A10 163844	£1.50	£1.80
12 - O RING BDE-163822.A6 163822	£3.80	£4.56
13 - VALVE BODY BDE-163821.A8 163821	£1.50	£1.80
14 - SEAL BDE-163823.A8 163823	£1.50	£1.80
15 - SEAL BDE-163845.A4 163845	£1.50	£1.80
16 - O RING BDE-851606-S.A7 851606-S	£1.50	£1.80
17 - PISTON SA BDE-163816.A2 163816	£113.07	£135.68
18 - SLEEVE BDE-163824.A6 163824	£30.08	£36.10
19 - SEAL BDE-175520.A3 175520	£1.50	£1.80
20 - RING BDE-163855.A5 163855	£2.78	£3.34
21 - O RING BDE-108718.A9 108718	£1.50	£1.80
22 - NUT BDE-MHE3050-100.A17 MHE3050-100	£1.50	£1.80
23 - FRAME BDE-9R207410.A0 9R207410	£104.31	£125.17
24 - SEAL BDE-163884.A1 163884	£1.50	£1.80
25 - BUMPER BDE-107231.A19 107231	£14.57	£17.48
26 - NOSE SA BDE-166763.A2 166763	£131.46	£157.75
27 - PAWL BDE-166773.A1 166773	£10.85	£13.02
28 - PIN BDE-166787.A1 166787	£1.50	£1.80
29 - SPRING BDE-166774.A2 166774	£1.50	£1.80
30 - COVER BDE-166766.A1 166766	£5.88	£7.06
32 - WASHER BDE-MPW6.2.A13 MPW6.2	£1.50	£1.80
33 - SCREW BDE-MSC4070-16.A10 MSC4070-16	£1.50	£1.80
34 - BUSHING BDE-163876.A2 163876	£1.50	£1.80
35 - ARM BDE-163908.A0 163908	£2.78	£3.34
36 - HOUSING BDE-163906.A0 163906	£7.18	£8.62
37 - SPRING BDE-115230.A7 115230	£1.50	£1.80
38 - CASTING BDE-188703.A5 188703	£5.88	£7.06
39 - ARM BDE-163907.A2 163907	£10.85	£13.02
40 - FOOT BDE-166765.A1 166765	£3.30	£3.96
41 - WASHER BDE-854004.A14 854004	£1.50	£1.80
42 - SPRING BDE-116970.A7 116970	£1.50	£1.80
43 - SCREW BDE-MSC8125-30.A9 MSC8125-30	£1.50	£1.80
44 - NUT BDE-MHE6100-100.A67 MHE6100-100	£1.50	£1.80
45 - PAWL BDE-N70149.A13 N70149	£3.80	£4.56
46 - SPRING COMPRESSION BDE-854011.A17 854011	£1.50	£1.80
47 - PIN BDE-N80125.A7 N80125	£1.50	£1.80
48 - PIN BDE-N70140.A7 N70140	£1.50	£1.80
49 - DOOR BDE-166760.A1 166760	£25.70	£30.84
50 - PIN BDE-MPG030012.A11 MPG030012	£1.50	£1.80
51 - SPRING COMPRESSION BDE-854013.A4 854013	£1.50	£1.80
52 - LATCH BDE-N70150.A5 N70150	£5.88	£7.06
53 - O RING BDE-88999.A3 88999	£3.30	£3.96
54 - PISTON BDE-163894.A2 163894	£16.03	£19.24
55 - O RING BDE-87112.A6 87112	£5.88	£7.06
56 - SPRING BDE-163930.A2 163930	£1.50	£1.80
57 - STOP BDE-163897.A1 163897	£1.50	£1.80
58 - COLLAR BDE-163895.A1 163895	£1.50	£1.80
59 - RETAINER BDE-163896.A2 163896	£1.50	£1.80
60 - SPRING BDE-166781.A6 166781	£1.50	£1.80
61 - GUIDE BDE-163883.A10 163883	£1.50	£1.80
62 - TRIGGER BDE-166759.A2 166759	£3.30	£3.96
63 - SPRING BDE-100387.A36 100387	£1.50	£1.80
64 - TRIGGER BDE-102039.A2 102039	£16.03	£19.24
65 - SCREW BDE-108562.A10 108562	£1.50	£1.80
66 - PIN BDE-100298.A24 100298	£1.50	£1.80
67 - PIN BDE-MPP030020.A72 MPP030020	£1.50	£1.80
68 - BUSHING BDE-123859.A12 123859	£1.50	£1.80
69 - SEAL BDE-163856.A9 163856	£1.50	£1.80
70 - END CAP BDE-163843.A5 163843	£10.85	£13.02
71 - WASHER BDE-T50118.A18 T50118	£1.50	£1.80
72 - SCREW BDE-MSC5080-20.A52 MSC5080-20	£1.50	£1.80
73 - COVER BDE-9R195380.A6 9R195380	£1.50	£1.80
74 - ADAPTOR BDE-159977.A8 159977	£1.50	£1.80
75 - WASHER BDE-171342.A7 171342	£1.50	£1.80
76 - HOOK BDE-171354.A6 171354	£12.17	£14.60
77 - CANISTER BDE-9R207465.A0 9R207465	£74.15	£88.98
78 - BOLT BDE-MSC6100-50.A2 MSC6100-50	£1.50	£1.80
79 - SHIELD BDE-9R217660 9R217660	£2.78	£3.34
80 - PLUG BDE-9R204227 9R204227	£1.50	£1.80
81 - COLLAR BDE-9R217711 9R217711	-

Attribute Name	Value
Brand	Dewalt
