Dewalt DPN9021PL Type 1 Nailer Spare Parts

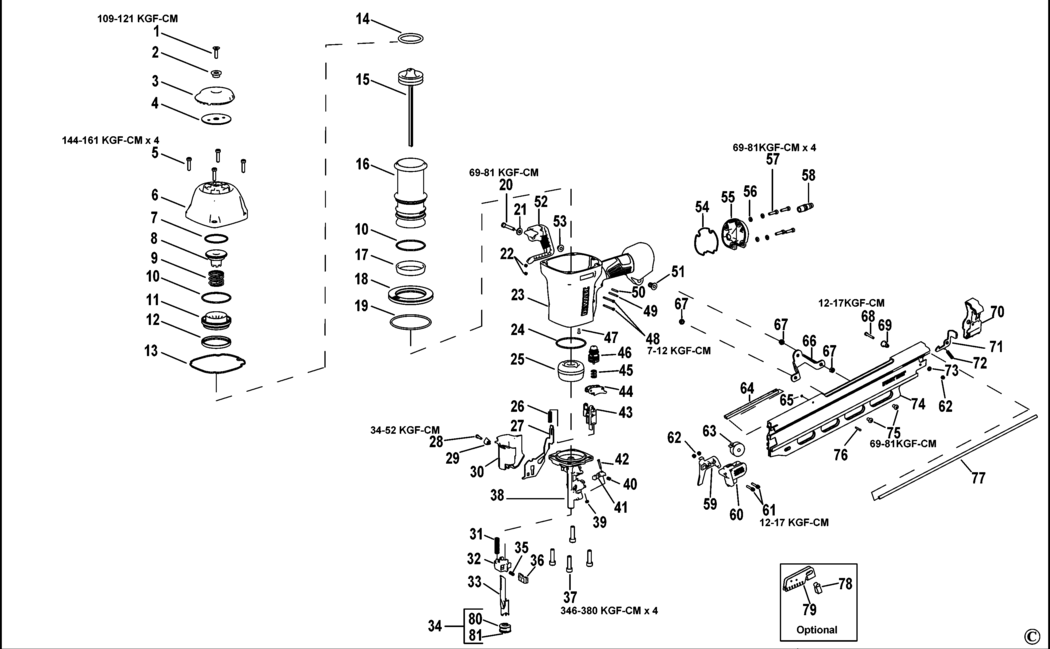

An exploded drawing and spare parts listing for the Dewalt DPN9021PL Type 1 Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSF6100-25.A4 MSF6100-25	£1.50	£1.80
2 - BUSHING BDE-163859.A0 163859	£2.78	£3.34
3 - EXHAUST BDE-163818.A3 163818	£3.30	£3.96
4 - PLATE BDE-163830.A2 163830	£1.50	£1.80
5 - BOLT BDE-MSC6100-25.A3 MSC6100-25	£1.50	£1.80
6 - CAP BDE-9R207477.A2 9R207477	£41.24	£49.49
7 - O RING BDE-105814.A9 105814	£10.85	£13.02
8 - BUMPER BDE-163820.A10 163820	£2.26	£2.71
9 - SPRING BDE-163844.A1 163844	£1.50	£1.80
10 - O RING BDE-163822.A10 163822	£3.80	£4.56
11 - VALVE BODY BDE-163821.A4 163821	£1.50	£1.80
12 - SEAL BDE-163823.A4 163823	£1.50	£1.80
13 - SEAL BDE-163845.A13 163845	£1.50	£1.80
14 - O RING BDE-851606-S.A10 851606-S	£1.50	£1.80
15 - PISTON SA BDE-163921.A0 163921	£58.69	£70.43
16 - SLEEVE BDE-163824.A10 163824	£30.08	£36.10
17 - SEAL BDE-175520.A7 175520	£1.50	£1.80
18 - RING BDE-163855.A13 163855	£2.78	£3.34
19 - O RING BDE-108718.A15 108718	£1.50	£1.80
20 - SCREW BDE-MSC6100-35.A8 MSC6100-35	£1.50	£1.80
22 - NUT BDE-MHE3050-100.A20 MHE3050-100	£1.50	£1.80
24 - O RING BDE-89673.A13 89673	£2.26	£2.71
25 - BUMPER BDE-107231.A10 107231	£14.57	£17.48
26 - SPRING BDE-166781.A13 166781	£1.50	£1.80
27 - ARM BDE-163900.A0 163900	£1.82	£2.19
28 - SCREW BDE-MSC4070-16.A24 MSC4070-16	£1.50	£1.80
29 - BUSHING BDE-163903.A8 163903	£2.26	£2.71
30 - COVER BDE-171338.A7 171338	£2.26	£2.71
31 - SPRING BDE-166772.A6 166772	£1.50	£1.80
32 - CASTING BDE-166791.A1 166791	£9.41	£11.29
33 - CONTACT BDE-108227.A0 108227	£14.57	£17.48
34 - FOOT SA BDE-121072.A9 121072	£1.50	£1.80
35 - SPRING BDE-115230.A16 115230	£1.50	£1.80
36 - CASTING BDE-166777.A10 166777	£4.69	£5.63
37 - SCREW BDE-MSC8125-30.A12 MSC8125-30	£1.50	£1.80
38 - NOSE BDE-166790.A1 166790	£93.62	£112.35
39 - WASHER BDE-854004.A19 854004	£1.50	£1.80
40 - SPRING BDE-163878.A1 163878	£1.50	£1.80
41 - PAWL BDE-163877.A5 163877	£3.80	£4.56
42 - PIN BDE-149882.A10 149882	£1.50	£1.80
43 - GUIDE BDE-163883.A2 163883	£1.50	£1.80
44 - SWITCH KIT BDE-SEQ7.A6 SEQ7	£5.88	£7.06
45 - SPRING BDE-100387.A5 100387	£1.50	£1.80
46 - VALVE BDE-TVA6.A33 TVA6	£16.03	£19.24
47 - PLUG BDE-163858.A10 163858	£1.50	£1.80
48 - SCREW BDE-108562.A17 108562	£1.50	£1.80
49 - PIN BDE-100298.A34 100298	£1.50	£1.80
50 - PIN BDE-MPP030020.A42 MPP030020	£1.50	£1.80
51 - BUSHING BDE-123859.A17 123859	£1.50	£1.80
52 - HOOK BDE-171354.A12 171354	£12.17	£14.60
53 - WASHER BDE-171342.A8 171342	£1.50	£1.80
54 - SEAL BDE-163856.A1 163856	£1.50	£1.80
55 - END CAP BDE-163843.A13 163843	£10.85	£13.02
56 - WASHER BDE-T50118.A9 T50118	£1.50	£1.80
57 - SCREW BDE-MSC5080-20.A33 MSC5080-20	£1.50	£1.80
58 - ADAPTOR BDE-159977.A0 159977	£1.50	£1.80
59 - PUSHER BDE-166770.A2 166770	£12.17	£14.60
60 - HANDLE BDE-163902.A1 163902	£1.82	£2.19
61 - SCREW BDE-121052.A11 121052	£1.50	£1.80
62 - NUT M4 BDE-MHE4070-100.A55 MHE4070-100	£1.50	£1.80
63 - SPRING BDE-115143.A8 115143	£7.18	£8.62
64 - LINER BDE-159976.A3 159976	£3.22	£3.86
65 - O RING BDE-166797.A9 166797	£1.50	£1.80
66 - BRACKET BDE-166786.A2 166786	£3.80	£4.56
67 - NUT BDE-MHE6100-100.A38 MHE6100-100	£1.50	£1.80
68 - SCREW BDE-100261.A10 100261	£1.50	£1.80
69 - SPACER BDE-121472.A7 121472	£1.50	£1.80
70 - END CAP BDE-163912.A9 163912	£4.69	£5.63
71 - LATCH BDE-166778.A0 166778	£1.50	£1.80
72 - SPRING BDE-120878.A9 120878	£1.50	£1.80
73 - WASHER BDE-MPW4.A13 MPW4	£1.50	£1.80
74 - MAGAZINE BDE-9R209641 9R209641	£58.69	£70.43
75 - BOLT BDE-MSB6100-12.A22 MSB6100-12	£1.50	£1.80
76 - PIN BDE-121407.A6 121407	£1.50	£1.80
77 - GUIDE ROD BDE-163866.A0 163866	£1.50	£1.80
78 - SPRING BDE-112631.A2 112631	£1.50	£1.80
79 - SHIELD BDE-112630.A13 112630	£2.26	£2.71
80 - CLIP BDE-121071.A5 121071	£1.50	£1.80
81 - FOOT BDE-121070.A7 121070	£1.50	£1.80

Attribute Name	Value
Brand	Dewalt
