Dewalt DPN1850 Type 1 Nailer Spare Parts

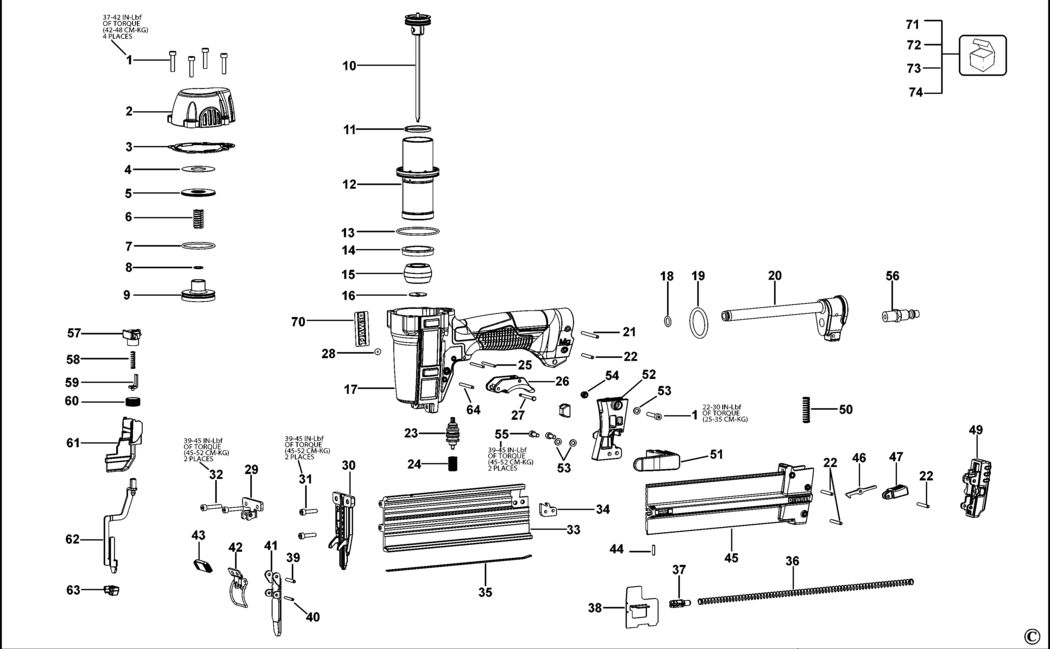

An exploded drawing and spare parts listing for the Dewalt DPN1850 Type 1 Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-182237.A1 182237	£1.50	£1.80
2 - END CAP BDE-9R195614.A1 9R195614	£19.90	£23.88
3 - GASKET BDE-9R195626.A1 9R195626	£1.50	£1.80
4 - PLATE BDE-N905958.A7 N905958	£1.51	£1.81
5 - SEAL BDE-180446.A3 180446	£1.50	£1.80
6 - SPRING BDE-180447.A12 180447	£1.50	£1.80
7 - O RING BDE-180448.A3 180448	£1.50	£1.80
8 - WASHER BDE-180449.A7 180449	£1.50	£1.80
9 - BODY BDE-180450-S.A4 180450-S	£1.50	£1.80
10 - DRIVER SA BDE-9R195283-K 9R195283-K	£16.03	£19.24
11 - PISTON RING BDE-N905972.A5 N905972	£2.26	£2.71
12 - CYLINDER BDE-9R195284.A0 9R195284	£5.88	£7.06
13 - O RING BDE-851483-S.A1 851483-S	£1.50	£1.80
14 - SEAL BDE-180460.A6 180460	£1.50	£1.80
15 - BUMPER BDE-180461.A4 180461	£1.50	£1.80
16 - GUIDE BDE-N906034.A3 N906034	£1.50	£1.80
18 - O RING BDE-9R195331.A1 9R195331	£1.50	£1.80
19 - O RING BDE-9R195332.A1 9R195332	£1.50	£1.80
20 - END CAP BDE-9R195281.A1 9R195281	£3.80	£4.56
21 - SPIROL PIN BDE-9R195285.A1 9R195285	£1.50	£1.80
22 - PIN BDE-180503.A0 180503	£1.50	£1.80
23 - VALVE BDE-9R195308.A0 9R195308	£5.88	£7.06
24 - SPRING BDE-9R195329.A0 9R195329	£1.50	£1.80
25 - SPIROL PIN BDE-9R195327.A0 9R195327	£1.50	£1.80
26 - TRIGGER BDE-9R195660.A0 9R195660	£1.82	£2.19
27 - PIN BDE-9R195317.A1 9R195317	£1.50	£1.80
28 - O RING BDE-174073.A10 174073	£1.50	£1.80
29 - COVER BDE-9R195345 9R195345	£1.50	£1.80
30 - NOSE BDE-9R195294 9R195294	£30.08	£36.10
31 - SCREW BDE-MSC4070-16.A7 MSC4070-16	£1.50	£1.80
32 - SCREW BDE-100260.A13 100260	£1.50	£1.80
33 - MAGAZINE BDE-9R195303 9R195303	£24.39	£29.27
34 - BACKPLATE BDE-180500.A4 180500	£1.50	£1.80
35 - GUIDE BDE-180497.A1 180497	£1.50	£1.80
36 - SPRING BDE-180495.A0 180495	£1.50	£1.80
37 - ROLLER BDE-9R195662 9R195662	£1.50	£1.80
38 - PUSHER BDE-9R195319 9R195319	£1.50	£1.80
39 - SPIROL PIN BDE-107583.A0 107583	£1.50	£1.80
40 - PIN BDE-MPG025018.A0 MPG025018	£1.50	£1.80
41 - DOOR BDE-9R195339 9R195339	£10.85	£13.02
42 - PLATE SA BDE-9R195336 9R195336	£2.26	£2.71
43 - GRIP BDE-9R195736 9R195736	£1.50	£1.80
44 - PIN BDE-9R184419 9R184419	£1.50	£1.80
45 - MAGAZINE BDE-9R195696 9R195696	£16.03	£19.24
47 - COVER BDE-9R195664 9R195664	£1.50	£1.80
49 - END CAP BDE-9R195697 9R195697	£2.78	£3.34
50 - SPRING BDE-180502.A7 180502	£1.50	£1.80
51 - HOOK BDE-9R195620.A1 9R195620	£1.50	£1.80
52 - BRACKET BDE-9R195618 9R195618	£2.26	£2.71
53 - WASHER BDE-N905878.A10 N905878	-
54 - NUT M4 BDE-MHE4070-100.A2 MHE4070-100	£1.50	£1.80
55 - SCREW BDE-MSC4070-10.A17 MSC4070-10	£1.50	£1.80
56 - ADAPTOR BDE-159977.A23 159977	£1.50	£1.80
57 - GUIDE BDE-180514.A5 180514	£1.50	£1.80
58 - SPRING BDE-180513.A4 180513	£1.50	£1.80
59 - ARM BDE-180510.A5 180510	£1.50	£1.80
60 - KNOB BDE-9R195663.A0 9R195663	£1.50	£1.80
61 - GUIDE BDE-9R195328 9R195328	£1.50	£1.80
62 - TRIP SA BDE-9R195330 9R195330	£7.85	£9.42
63 - FOOT BDE-9R195661 9R195661	£1.50	£1.80
64 - PIN BDE-174345.A13 174345	£1.50	£1.80
70 - BRAND LABEL BDE-9R195863 9R195863	£1.50	£1.80
71 - KIT KIT CONTACT TRIGGER BDE-DWFP12231-CTK.A1 DWFP12231-CTK	£10.85	£13.02
72 - KIT KIT DRIVER/BUMPER BDE-DWFP12231-DK DWFP12231-DK	£30.08	£36.10
73 - VALVE KIT KIT TRIGGER VALVE BDE-DWFP12231-TVK.A1 DWFP12231-TVK	£14.57	£17.48
74 - KIT KIT OVERHAUL BDE-DWFP12231-OK.A0 DWFP12231-OK	£19.90	£23.88
