Dewalt DPN1564A Type 1 Angled Finish Nailer 15 Gauge Spare Parts

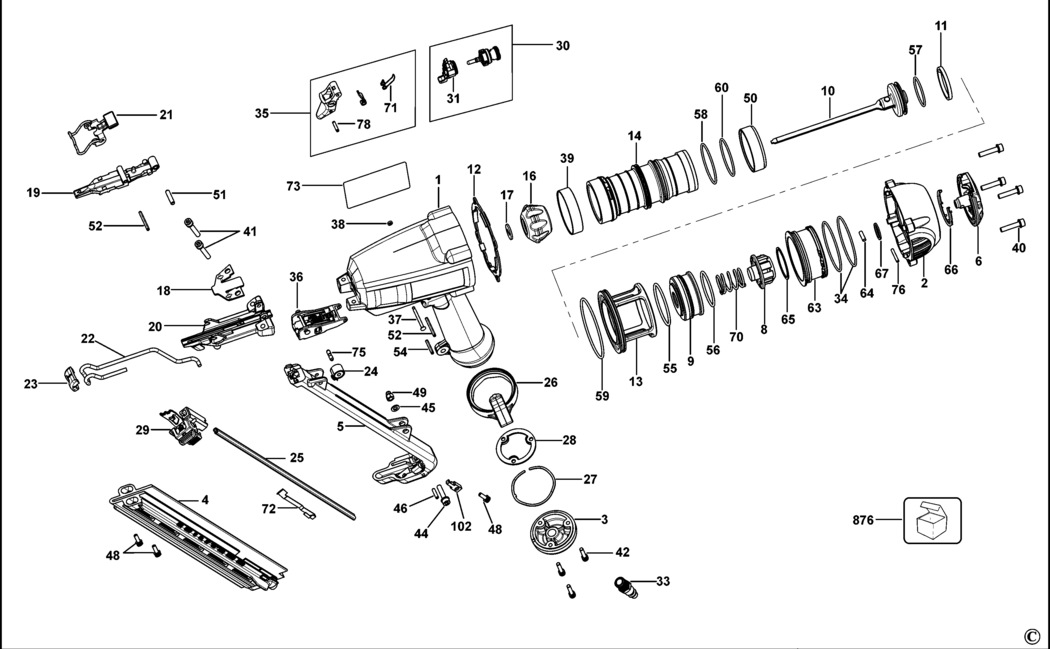

An exploded drawing and spare parts listing for the Dewalt DPN1564A Type 1 Angled Finish Nailer 15 Gauge

	Ex VAT	Inc VAT
1 - FRAME BDE-645892-00.A1 645892-00	£104.31	£125.17
2 - CAP BDE-645882-00.A1 645882-00	£34.00	£40.80
3 - END CAP BDE-647601-00.A1 647601-00	£5.88	£7.06
6 - DEFLECTOR BDE-646415-00.A0 646415-00	£3.30	£3.96
8 - BUMPER BDE-651719-00.A1 651719-00	£1.66	£1.99
10 - DRIVER BDE-647603-00.A0 647603-00	£34.00	£40.80
11 - SEAL BDE-647952-00.A0 647952-00	£3.39	£4.07
12 - GASKET BDE-647650-00.A1 647650-00	£1.66	£1.99
13 - INSERT BDE-652373-00.A0 652373-00	£1.82	£2.19
14 - CYLINDER BDE-646280-00.A0 646280-00	£4.69	£5.63
16 - BUMPER BDE-652500-00.A1 652500-00	£5.88	£7.06
17 - PLATE BDE-646981-00.A1 646981-00	£1.66	£1.99
18 - DOOR BDE-647060-00.A0 647060-00	£1.66	£1.99
19 - DOOR BDE-647064-00.A1 647064-00	£18.91	£22.69
20 - NOSE BDE-N064259 N064259	£42.48	£50.98
21 - LATCH BDE-653129-00.A3 653129-00	£3.92	£4.70
22 - CONTACT BDE-N015849.A0 N015849	£2.78	£3.34
23 - PAD BDE-619943-00.A2 619943-00	£3.80	£4.56
24 - SPRING BDE-647605-00.A2 647605-00	£3.92	£4.70
25 - LINER BDE-395115-00.A3 395115-00	£16.03	£19.24
26 - HOOK BDE-647607-00.A0 647607-00	£2.32	£2.78
27 - SPRING BDE-647608-00.A2 647608-00	£1.66	£1.99
28 - GASKET BDE-N043700.A1 N043700	£1.66	£1.99
29 - SLIDER BDE-646725-00.A0 646725-00	£7.85	£9.42
30 - TRIGGER BDE-N566148.A0 N566148	£12.53	£15.04
31 - CAP BDE-641011-00.A4 641011-00	£3.39	£4.07
33 - ADAPTOR BDE-159977.A15 159977	£1.66	£1.99
34 - O RING BDE-647621-00.A0 647621-00	£1.66	£1.99
35 - TRIGGER BDE-641188-00.A1 641188-00	£11.18	£13.41
36 - ADJUSTER BDE-N108466.A0 N108466	£19.48	£23.37
37 - PIN BDE-395091-00.A5 395091-00	£1.88	£2.26
38 - GROMMET BDE-391814-00.A13 391814-00	£1.66	£1.99
39 - RING BDE-N000557.A0 N000557	£4.69	£5.63
40 - SCREW BDE-608174-00.A4 608174-00	£1.66	£1.99
41 - SCREW BDE-608175-00.A10 608175-00	£1.66	£1.99
42 - SCREW BDE-608178-00.A11 608178-00	£1.66	£1.99
44 - SCREW BDE-608176-00.A2 608176-00	£1.66	£1.99
45 - WASHER BDE-488807-00 488807-00	£1.66	£1.99
46 - ROLL PIN BDE-330036-11.A5 330036-11	£1.66	£1.99
48 - SCREW BDE-608179-00.A5 608179-00	£1.66	£1.99
49 - NUT BDE-607155-00.A3 607155-00	£1.66	£1.99
50 - SEAL BDE-649687-00.A1 649687-00	£1.66	£1.99
51 - ROLL PIN BDE-330036-04.A1 330036-04	£1.66	£1.99
52 - SPIROL PIN BDE-650156-00.A1 650156-00	£1.66	£1.99
54 - SPIROL PIN BDE-650155-00.A2 650155-00	£1.66	£1.99
55 - O RING BDE-646361-00.A2 646361-00	£1.66	£1.99
56 - O RING BDE-646359-00.A0 646359-00	£1.66	£1.99
57 - O RING BDE-647949-00.A1 647949-00	£1.66	£1.99
58 - O RING BDE-652371-00.A0 652371-00	£1.66	£1.99
59 - O RING BDE-398159-00.A2 398159-00	£2.87	£3.44
60 - O RING BDE-652372-00.A1 652372-00	£1.66	£1.99
64 - SLEEVE BDE-651982-00.A2 651982-00	£1.66	£1.99
65 - RING BDE-651702-00.A1 651702-00	£1.66	£1.99
66 - O RING BDE-632495-00.A0 632495-00	£8.08	£9.70
67 - PIN BDE-632492-00.A3 632492-00	£1.66	£1.99
70 - SPRING BDE-395064-00.A6 395064-00	£2.26	£2.71
71 - SPRING BDE-391813-00.A15 391813-00	£1.66	£1.99
72 - RETAINER BDE-649652-00.A1 649652-00	£1.66	£1.99
73 - BRAND LABEL BDE-647940-00.A0 647940-00	£1.66	£1.99
75 - PIN BDE-N004643.A0 N004643	£1.66	£1.99
76 - WASHER BDE-632239-00.A0 632239-00	£1.66	£1.99
78 - PIN BDE-603394-00.A2 603394-00	£1.66	£1.99
102 - LATCH BDE-649138-00.A1 649138-00	£1.82	£2.19
876 - O RING KIT BDE-N001053.A1 N001053	£17.03	£20.44
876 - SERVICE KIT BDE-N001056.A0 N001056	£12.17	£14.60
876 - SERVICE KIT BDE-N001060.A1 N001060	£41.24	£49.49
876 - VALVE BDE-N003392.A0 N003392	£18.00	£21.60
876 - TRIGGER BDE-653322-00.A0 653322-00	£6.06	£7.27
876 - TRIGGER BDE-N003391.A1 N003391	£16.03	£19.24
876 - TRIGGER BDE-N003390.A0 N003390	£16.52	£19.82
