Dewalt DWE7491 Type 2 Table Saw Spare Parts

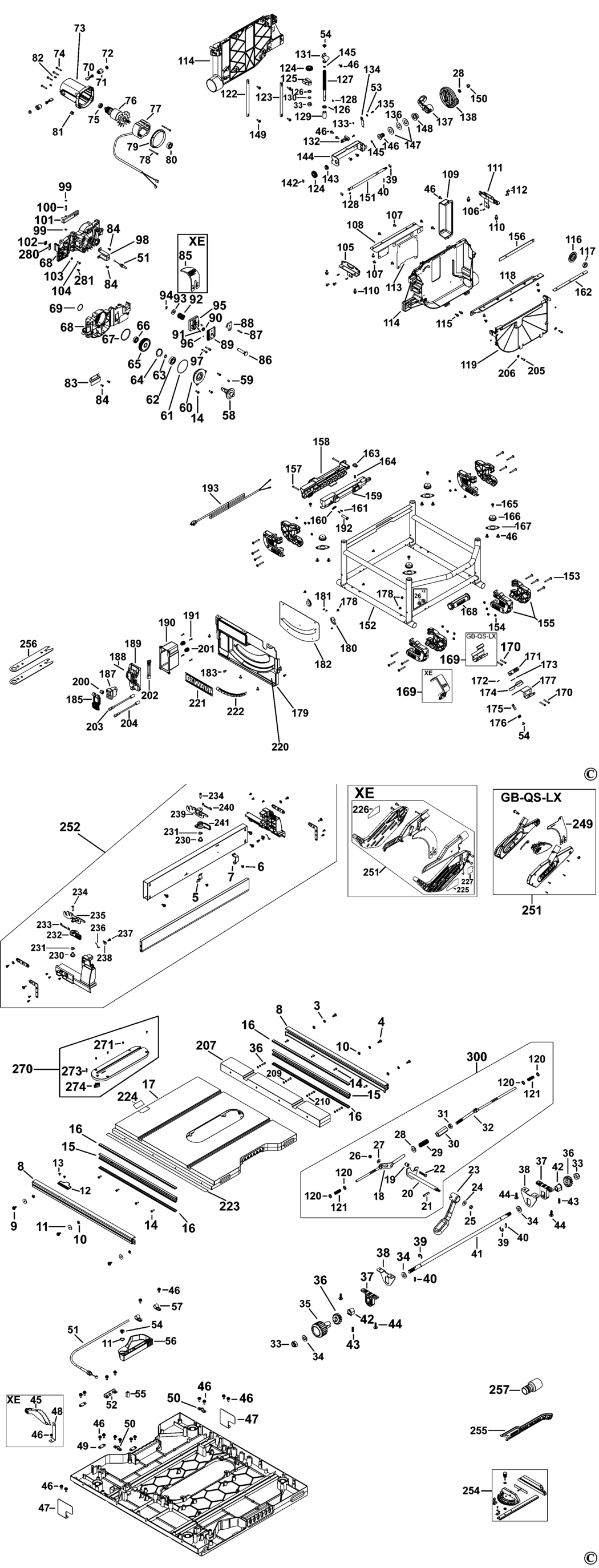

An exploded drawing and spare parts listing for the Dewalt DWE7491 Type 2 Table Saw

	Ex VAT	Inc VAT
3 - WASHER BDE-1004695-74.A1 1004695-74	£1.50	£1.80
4 - SCREW BDE-1004695-73.A0 1004695-73	£1.50	£1.80
5 - CLIP BDE-5140134-60.A3 5140134-60	£1.50	£1.80
6 - SCREW BDE-5140134-61.A1 5140134-61	£1.50	£1.80
7 - STRAP BDE-5140134-62.A3 5140134-62	£1.50	£1.80
8 - RAIL BDE-5140134-63.A1 5140134-63	£34.00	£40.80
9 - SCREW BDE-1004695-71.A0 1004695-71	£1.50	£1.80
10 - NUT M6 BDE-5140032-03.A6 5140032-03	£1.50	£1.80
11 - WASHER BDE-1004695-72.A1 1004695-72	£1.50	£1.80
12 - POINTER BDE-5140134-65.A0 5140134-65	£2.78	£3.34
13 - SCREW.SPECIAL BDE-5140134-66.A1 5140134-66	£1.50	£1.80
14 - SCREW.SPECIAL BDE-5140134-67.A4 5140134-67	£1.50	£1.80
15 - RAIL BDE-5140134-68.A1 5140134-68	£17.48	£20.97
16 - CAP BDE-5140134-69.A0 5140134-69	£1.82	£2.19
17 - TABLE BDE-5140134-70.A1 5140134-70	£226.53	£271.84
18 - LOCKING DEVICE BDE-1004705-43.A9 1004705-43	£30.08	£36.10
19 - LOCKING DEVICE BDE-1004705-43.A10 1004705-43	£30.08	£36.10
20 - LOCKING DEVICE BDE-1004705-43.A11 1004705-43	£30.08	£36.10
21 - PIN BDE-5140032-21.A5 5140032-21	£1.50	£1.80
22 - LOCKING DEVICE BDE-1004705-43.A6 1004705-43	£30.08	£36.10
23 - LEVER LOCK BDE-5140032-23.A5 5140032-23	£7.85	£9.42
24 - WASHER BDE-5140134-74.A0 5140134-74	£1.50	£1.80
25 - NUT M6 BDE-5140032-25.A5 5140032-25	£1.50	£1.80
26 - LOCKING DEVICE BDE-1004705-43.A7 1004705-43	£30.08	£36.10
27 - LOCKING DEVICE BDE-1004705-43.A8 1004705-43	£30.08	£36.10
28 - WASHER M8 BDE-5140032-15.A2 5140032-15	£1.50	£1.80
29 - SPRING BDE-5140134-75.A2 5140134-75	£1.50	£1.80
30 - ADJUSTER BDE-5140032-17.A3 5140032-17	£3.30	£3.96
31 - NUT M8 BDE-5140134-76.A0 5140134-76	£1.50	£1.80
32 - REAR BRACKET BDE-1004705-44.A0 1004705-44	£14.57	£17.48
33 - NUT BDE-5140134-78.A2 5140134-78	£1.50	£1.80
34 - WASHER M10 BDE-5140032-27.A4 5140032-27	£1.50	£1.80
35 - KNOB BDE-5140134-79.A0 5140134-79	£3.30	£3.96
36 - PINION GEAR BDE-5140032-29.A4 5140032-29	£3.30	£3.96
37 - BRACKET BDE-5140134-80.A1 5140134-80	£1.50	£1.80
38 - COVER BDE-5140134-81.A0 5140134-81	£3.80	£4.56
39 - LOCKING RING BDE-5140032-33.A5 5140032-33	£1.50	£1.80
40 - PIN BDE-5140032-34.A1 5140032-34	£1.50	£1.80
41 - ROD BDE-1004695-76.A0 1004695-76	£18.91	£22.69
42 - BEARING BLOCK BDE-5140032-36.A5 5140032-36	£1.50	£1.80
43 - SPRING BDE-5140032-37.A1 5140032-37	£1.50	£1.80
44 - SCREW.SPECIAL BDE-5140134-83.A1 5140134-83	£1.50	£1.80
46 - SCREW.SPECIAL BDE-5140061-77.A2 5140061-77	£1.50	£1.80
47 - GUARD BDE-5140134-85.A0 5140134-85	£2.26	£2.71
49 - PLATE BDE-5140032-77.A5 5140032-77	£1.50	£1.80
50 - PLATE BDE-5140134-87.A1 5140134-87	£1.50	£1.80
51 - CABLE BDE-5140134-88.A0 5140134-88	£14.57	£17.48
52 - BRACKET BDE-5140134-89.A1 5140134-89	£1.50	£1.80
53 - NO LONGER AVAILABLE BDE-000000-00.A63980 000000-00	-
54 - SCREW.SPECIAL BDE-5140134-90.A0 5140134-90	£1.50	£1.80
55 - BUSHING BDE-5140134-91.A1 5140134-91	£1.50	£1.80
56 - HANDLE BDE-5140134-92.A0 5140134-92	£7.85	£9.42
57 - CORD CLAMP BDE-5140134-93.A1 5140134-93	£1.50	£1.80
58 - ARBOR BDE-5140134-94.A0 5140134-94	£38.80	£46.56
59 - KEY BDE-5140134-95.A1 5140134-95	£1.50	£1.80
60 - GEARCASE COVER BDE-5140033-10.A1 5140033-10	£10.85	£13.02
61 - O RING BDE-5140033-11.A4 5140033-11	£1.50	£1.80
62 - BEARING BDE-1004695-91.A0 1004695-91	£12.17	£14.60
63 - RING BDE-5140033-13.A5 5140033-13	£1.50	£1.80
64 - RETAINER BDE-5140010-11.A4 5140010-11	£1.50	£1.80
65 - GEAR GB BDE-1004695-96.A2 1004695-96	£30.08	£36.10
65 - GEAR LX BDE-5140134-97.A1 5140134-97	£37.35	£44.82
66 - BEARING BDE-1004695-92.A2 1004695-92	£9.41	£11.29
67 - O RING BDE-5140033-16.A2 5140033-16	£1.50	£1.80
68 - GEARCASE SA BDE-1004697-15 1004697-15	£58.69	£70.43
69 - O RING BDE-5140033-18.A3 5140033-18	£1.50	£1.80
70 - BRUSH 115-120V LX BDE-1002806-00.A1 1002806-00	£4.69	£5.63
70 - BRUSH 230V GB BDE-1002805-00.A3 1002805-00	£4.69	£5.63
71 - BRUSH HOLDER BDE-5140033-20.A2 5140033-20	£7.85	£9.42
72 - BRUSH CAP BDE-5140033-21.A3 5140033-21	£1.50	£1.80
73 - FIELD CASE BDE-5140033-22.A2 5140033-22	£30.08	£36.10
74 - SCREW.SPECIAL BDE-5140134-99.A1 5140134-99	£1.50	£1.80
75 - BEARING BDE-5140117-81.A4 5140117-81	£7.85	£9.42
76 - ARMATURE 115/120V LX BDE-1004695-93.A0 1004695-93	£174.63	£209.56
76 - ARMATURE 220/240V GB BDE-1002807-00.A3 1002807-00	£174.63	£209.56
77 - FIELD 115V LX BDE-1004695-94.A1 1004695-94	£87.82	£105.39
77 - FIELD 220 / 240V GB BDE-1004695-97.A0 1004695-97	£113.07	£135.68
78 - SCREW BDE-5140135-02.A2 5140135-02	£1.50	£1.80
79 - BUFFER LX BDE-1004695-95.A0 1004695-95	£1.82	£2.19
79 - BUFFER GB BDE-5140033-29.A1 5140033-29	£1.82	£2.19
80 - BEARING BDE-5140118-21.A4 5140118-21	£9.41	£11.29
81 - GROMMET BDE-429991-43.A3 429991-43	£7.18	£8.62
82 - SCREW BDE-5140011-87.A5 5140011-87	£1.50	£1.80
83 - BRACKET BDE-1004696-74.A1 1004696-74	£1.50	£1.80
84 - SCREW BDE-5140033-39.A2 5140033-39	£1.50	£1.80
85 - RIVING KNIFE GB BDE-1004695-77.A2 1004695-77	£25.70	£30.84
85 - RIVING KNIFE LX BDE-1004695-77.A3 1004695-77	£25.70	£30.84
86 - SHAFT BDE-5140135-06.A1 5140135-06	£5.88	£7.06
87 - PIN BDE-5140135-07.A0 5140135-07	£1.50	£1.80
88 - SPRING BDE-5140135-08.A1 5140135-08	£1.50	£1.80
89 - HOLDER BDE-5140135-09.A0 5140135-09	£1.82	£2.19
90 - BUSHING BDE-5140135-10.A1 5140135-10	£2.26	£2.71
91 - SCREW.SPECIAL BDE-5140135-11.A0 5140135-11	£1.50	£1.80
92 - SPRING BDE-5140135-12.A1 5140135-12	£3.80	£4.56
93 - WASHER BDE-5140135-13.A0 5140135-13	£1.50	£1.80
94 - CLIP BDE-5140135-14.A1 5140135-14	£1.50	£1.80
95 - MOUNT BDE-5140135-15.A0 5140135-15	£17.48	£20.97
96 - SCREW.SPECIAL BDE-5140135-16.A1 5140135-16	£1.50	£1.80
97 - SCREW BDE-5140135-17.A0 5140135-17	£1.50	£1.80
98 - BRACKET BDE-5140135-18.A1 5140135-18	£1.82	£2.19
99 - CLIP BDE-5140135-19.A0 5140135-19	£1.50	£1.80
100 - SHAFT BDE-5140135-20.A1 5140135-20	£1.50	£1.80
101 - LEVER BDE-5140135-21.A0 5140135-21	£3.30	£3.96
102 - BLOCK BDE-1004697-12 1004697-12	£2.78	£3.34
103 - NUT M5 BDE-5140135-23.A1 5140135-23	£1.50	£1.80
104 - SCREW BDE-1004697-13 1004697-13	£1.50	£1.80
105 - BRACKET SA BDE-5140135-25.A1 5140135-25	£16.03	£19.24
106 - DOWEL BDE-5140033-40.A3 5140033-40	£1.50	£1.80
107 - SCREW.SPECIAL BDE-5140135-26.A0 5140135-26	£1.50	£1.80
108 - BRACKET BDE-5140135-27.A1 5140135-27	£5.88	£7.06
109 - COVER BDE-5140135-28.A0 5140135-28	£2.26	£2.71
110 - SCREW.SPECIAL BDE-5140135-29.A1 5140135-29	£1.50	£1.80
111 - BRACKET SA BDE-5140135-30.A0 5140135-30	£16.03	£19.24
112 - SCREW.SPECIAL BDE-5140135-31.A1 5140135-31	£1.50	£1.80
113 - COVER BDE-5140034-65.A4 5140034-65	£5.88	£7.06
114 - CASTING BDE-5140135-32.A0 5140135-32	£80.98	£97.18
115 - SCREW.SPECIAL BDE-5140135-33.A1 5140135-33	£1.50	£1.80
116 - WASHER OUTER CLAMP GB BDE-1004695-83.A0 1004695-83	£3.80	£4.56
116 - WASHER OUTER CLAMP LX BDE-1004695-83.A1 1004695-83	£3.80	£4.56
117 - LOCK-NUT BDE-1004695-84.A1 1004695-84	£5.88	£7.06
118 - BRACKET BDE-5140135-34.A0 5140135-34	£17.48	£20.97
119 - COVER BDE-5140135-35.A1 5140135-35	£17.48	£20.97
120 - WASHER BDE-5140135-36.A0 5140135-36	£1.50	£1.80
121 - SPRING BDE-5140135-37.A2 5140135-37	£1.50	£1.80
122 - SHAFT BDE-5140135-38.A0 5140135-38	£16.03	£19.24
123 - SHAFT BDE-5140135-39.A1 5140135-39	£16.03	£19.24
124 - BEVEL GEAR BDE-5140118-05.A2 5140118-05	£3.30	£3.96
125 - BRACKET BDE-5140135-40.A0 5140135-40	£7.18	£8.62
126 - WASHER THRUST BDE-5140135-41.A1 5140135-41	£1.50	£1.80
127 - CONTROL SCREW BDE-5140135-42.A0 5140135-42	£16.03	£19.24
128 - KEY BDE-5140032-50.A3 5140032-50	£1.50	£1.80
129 - BUSHING BDE-5140135-43.A1 5140135-43	£1.50	£1.80
130 - WASHER SPECIAL BDE-5140135-44.A0 5140135-44	£1.50	£1.80
131 - BRACKET BDE-5140135-45.A1 5140135-45	£1.50	£1.80
132 - BRACKET BDE-5140135-46.A0 5140135-46	£5.88	£7.06
133 - WASHER BDE-5140135-47.A1 5140135-47	£1.50	£1.80
134 - POINTER BDE-5140135-48.A0 5140135-48	£1.50	£1.80
135 - SCREW BDE-5140135-49.A1 5140135-49	£1.50	£1.80
136 - WASHER BDE-5140135-50.A0 5140135-50	£1.50	£1.80
137 - HANDLE SA BDE-5140135-51.A1 5140135-51	£7.85	£9.42
138 - WHEEL SA BDE-5140135-52.A0 5140135-52	£9.41	£11.29
142 - RING BDE-5140032-52.A3 5140032-52	£1.50	£1.80
143 - BUSHING BDE-5140135-54.A1 5140135-54	£1.50	£1.80
144 - BRACKET BDE-5140135-55.A0 5140135-55	£10.85	£13.02
145 - O RING BDE-5140135-56.A1 5140135-56	£1.50	£1.80
146 - SCREW BDE-5140135-57.A0 5140135-57	£5.88	£7.06
147 - WASHER BDE-5140135-58.A0 5140135-58	£1.50	£1.80
148 - LOCK NUT BDE-5140135-59.A1 5140135-59	£5.88	£7.06
149 - SCREW.SPECIAL BDE-5140135-60.A0 5140135-60	£1.50	£1.80
150 - NUT BDE-5140135-61.A2 5140135-61	£1.50	£1.80
151 - SHAFT BDE-5140135-62.A0 5140135-62	£10.85	£13.02
152 - FRAME BDE-5140135-63.A1 5140135-63	£135.36	£162.43
153 - SCREW.SPECIAL BDE-5140135-64.A0 5140135-64	£1.50	£1.80
154 - NUT M5 BDE-5140095-74.A2 5140095-74	£1.50	£1.80
155 - FOOT SA BDE-1004696-21.A0 1004696-21	£14.57	£17.48
156 - PLATE BDE-5140135-66.A1 5140135-66	£1.82	£2.19
157 - SCREW BDE-5140135-67.A0 5140135-67	£1.50	£1.80
158 - UPPER MOULDING BDE-5140135-68.A1 5140135-68	£12.17	£14.60
159 - UPPER MOULDING BDE-5140135-69.A0 5140135-69	£12.17	£14.60
160 - CORD CLAMP BDE-5140061-66.A3 5140061-66	£1.50	£1.80
161 - SCREW.SPECIAL BDE-5140135-70.A1 5140135-70	£1.50	£1.80
162 - PLATE BDE-5140135-71.A0 5140135-71	£1.82	£2.19
163 - INSERT BDE-5140135-72.A1 5140135-72	£1.50	£1.80
164 - SPRING BDE-5140135-73.A0 5140135-73	£1.50	£1.80
165 - SCREW.SPECIAL BDE-5140135-74.A2 5140135-74	£1.50	£1.80
166 - BUMPER BDE-5140135-75.A0 5140135-75	£1.50	£1.80
167 - PLATE BDE-5140135-76.A1 5140135-76	£1.50	£1.80
168 - HANDLE BDE-5140135-77.A0 5140135-77	£7.85	£9.42
169 - PLATE GB BDE-1004695-86.A2 1004695-86	£5.88	£7.06
169 - PLATE LX BDE-1004695-86.A3 1004695-86	£5.88	£7.06
170 - SCREW BDE-5140135-79.A1 5140135-79	£1.50	£1.80
171 - KNOB BDE-5140135-80.A0 5140135-80	£1.50	£1.80
172 - PIN BDE-5140135-81.A1 5140135-81	£1.50	£1.80
173 - WASHER BDE-5140135-82.A0 5140135-82	£1.50	£1.80
174 - PLATE BDE-5140135-83.A1 5140135-83	£3.30	£3.96
175 - SHAFT BDE-5140135-84.A0 5140135-84	£1.82	£2.19
176 - SPRING BDE-5140135-85.A1 5140135-85	£1.50	£1.80
177 - BRACKET LX BDE-5140135-86.A0 5140135-86	£3.80	£4.56
177 - BRACKET GB BDE-5140135-86.A1 5140135-86	£3.80	£4.56
178 - SCREW BDE-5140135-87.A1 5140135-87	£1.50	£1.80
179 - PANEL FRONT BDE-5140135-88.A0 5140135-88	£17.48	£20.97
180 - WASHER BDE-5140033-04.A3 5140033-04	£1.50	£1.80
181 - SCREW BDE-5140135-89.A1 5140135-89	£1.50	£1.80
182 - PLATE BDE-5140135-90.A0 5140135-90	£7.85	£9.42
183 - SCREW BDE-5140135-91.A1 5140135-91	£1.50	£1.80
185 - PADDLE BDE-1004695-98.A0 1004695-98	£3.80	£4.56
187 - SWITCH 240V GB BDE-1004696-01.A0 1004696-01	£41.24	£49.49
187 - SWITCH LX BDE-5140135-94.A0 5140135-94	£34.00	£40.80
188 - PIN BDE-5140135-95.A1 5140135-95	£1.50	£1.80
189 - SWITCH COVER BDE-1004696-02.A1 1004696-02	£4.69	£5.63
190 - SWITCHBOX BDE-5140135-97.A0 5140135-97	£12.17	£14.60
191 - SCREW BDE-1004696-04.A1 1004696-04	£1.50	£1.80
192 - SLEEVE BDE-5140061-67.A0 5140061-67	£3.30	£3.96
193 - CORDSET (M/PLUG) GB GB BDE-1004695-88.A1 1004695-88	£44.14	£52.97
193 - CORDSET LX BDE-1004695-89.A1 1004695-89	£80.98	£97.18
200 - SHAFT BDE-1004696-00.A1 1004696-00	£1.50	£1.80
201 - PROTECTOR BDE-1004696-03.A0 1004696-03	£5.88	£7.06
202 - PCB BDE-1004696-05.A0 1004696-05	£7.18	£8.62
203 - LEADWIRE BDE-1004696-06.A3 1004696-06	£2.26	£2.71
204 - LEADWIRE BDE-1004696-07.A0 1004696-07	£1.82	£2.19
205 - SCREW BDE-1004695-79.A1 1004695-79	£1.50	£1.80
206 - WASHER BDE-1004695-80.A0 1004695-80	£1.50	£1.80
207 - EXTENSION BDE-1004695-78.A0 1004695-78	£110.62	£132.74
209 - WASHER LOCK BDE-1004695-81.A1 1004695-81	£1.50	£1.80
210 - WASHER BDE-1004695-82.A0 1004695-82	£1.50	£1.80
220 - RATING PLATE GB BDE-N406801 N406801	£2.78	£3.34
220 - RATING PLATE LX BDE-N406803 N406803	£2.78	£3.34
221 - BRAND LABEL BDE-N196813.A0 N196813	£3.80	£4.56
222 - LABEL BDE-N196812.A1 N196812	£3.80	£4.56
223 - SCALE GB BDE-N196912.A2 N196912	£7.18	£8.62
223 - SCALE LX BDE-N196912.A3 N196912	£7.18	£8.62
224 - LABEL BDE-1004696-08.A1 1004696-08	£1.50	£1.80
230 - BUSHING BDE-1004696-09.A0 1004696-09	£1.50	£1.80
231 - WASHER SPECIAL BDE-1004696-10.A1 1004696-10	£1.50	£1.80
232 - LATCH BDE-1004696-11.A0 1004696-11	£1.82	£2.19
233 - CLIP BDE-1004696-12.A1 1004696-12	£1.50	£1.80
234 - SCREW BDE-1004696-14.A1 1004696-14	£1.50	£1.80
235 - LATCH BDE-1004696-13.A0 1004696-13	£9.41	£11.29
236 - SPRING BDE-1004696-15.A0 1004696-15	£1.50	£1.80
237 - SCREW BDE-1004696-16.A1 1004696-16	£1.50	£1.80
238 - WASHER BDE-1004696-17.A0 1004696-17	£1.50	£1.80
239 - LATCH BDE-1004696-18.A1 1004696-18	£7.85	£9.42
240 - CLIP BDE-1004696-19.A0 1004696-19	£1.50	£1.80
241 - LATCH BDE-1004696-20.A1 1004696-20	£1.82	£2.19
249 - RIVING KNIFE GB BDE-1004695-69.A2 1004695-69	£41.24	£49.49
249 - RIVING KNIFE LX BDE-1004695-69.A3 1004695-69	£41.24	£49.49
251 - GUARD SA GB BDE-1004695-68.A0 1004695-68	£58.69	£70.43
251 - GUARD SA LX BDE-1004695-68.A1 1004695-68	£58.69	£70.43
252 - FENCE SA BDE-1004695-70.A0 1004695-70	£96.55	£115.86
254 - MITRE FENCE BDE-1004696-25.A1 1004696-25	£38.80	£46.56
255 - PUSHROD BDE-5140033-44.A5 5140033-44	£7.85	£9.42
256 - WRENCH SPECIAL BDE-1004695-85.A0 1004695-85	£10.85	£13.02
257 - DUST PORT BDE-1004695-90.A1 1004695-90	£5.88	£7.06
270 - TABLE INSERT BDE-5140034-46.A4 5140034-46	£7.18	£8.62
271 - SCREW BDE-5140033-53.A6 5140033-53	£1.50	£1.80
273 - SCREW BDE-5140033-54.A1 5140033-54	£1.50	£1.80
274 - CAM BDE-5140033-55.A4 5140033-55	£1.50	£1.80
280 - PLATE BDE-1004697-14 1004697-14	£1.50	£1.80
281 - SCREW BDE-5140033-39.A3 5140033-39	£1.50	£1.80
300 - LOCKING DEVICE BDE-1004705-45.A0 1004705-45	£51.90	£62.28

Attribute Name	Value
Brand	Dewalt

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
