Dewalt D28710 Type 1 Chop Saw Spare Parts

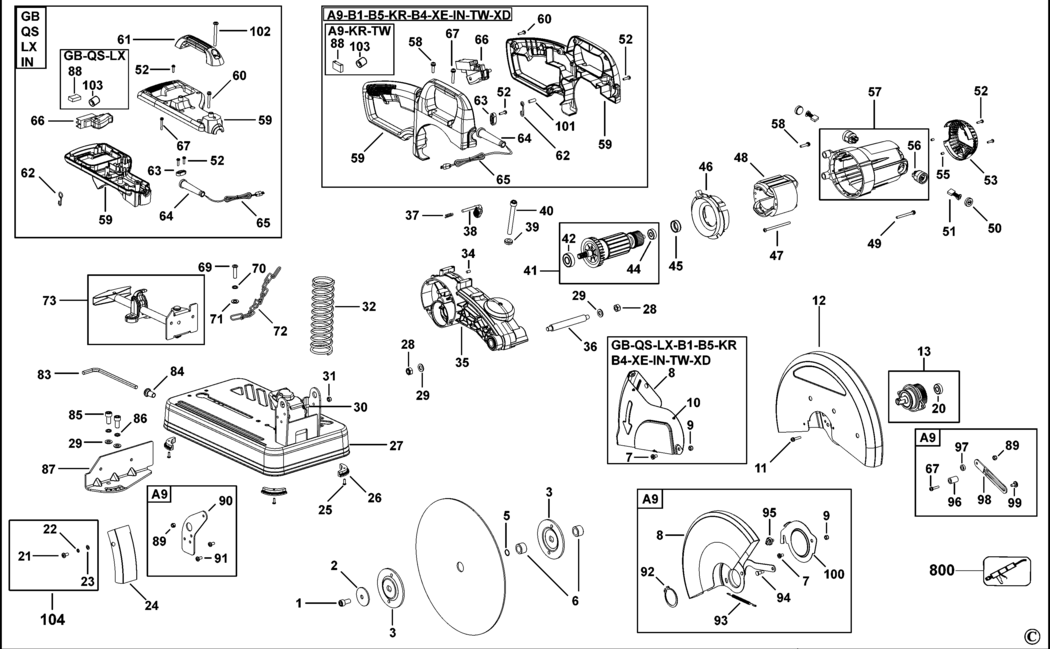

An exploded drawing and spare parts listing for the Dewalt D28710 Type 1 Chop Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-N085909 N085909	£1.50	£1.80
2 - WASHER BDE-N085898 N085898	£1.50	£1.80
3 - FLANGE BDE-N085893 N085893	£14.57	£17.48
5 - O RING BDE-N085972 N085972	£1.50	£1.80
6 - ADAPTOR BDE-N085971 N085971	£3.30	£3.96
7 - SCREW BDE-N085903 N085903	£1.50	£1.80
8 - GUARD LOWER BDE-N085884 N085884	-
9 - NUT BDE-N085883 N085883	£1.50	£1.80
10 - RUBBER BDE-N085888 N085888	£1.50	£1.80
11 - SCREW BDE-N085889 N085889	£1.50	£1.80
12 - GUARD UPPER BDE-N085878 N085878	-
13 - GEAR & SPINDLE SA BDE-N085924 N085924	£41.24	£49.49
20 - BEARING BDE-N085923 N085923	£7.18	£8.62
21 - SCREW BDE-N085910 N085910	£1.50	£1.80
21 - SCREW.SPECIAL No. 104 BDE-5140120-54.A0 5140120-54	£1.50	£1.80
22 - WASHER LOCK BDE-N085885 N085885	£1.50	£1.80
22 - SCREW.SPECIAL No. 104 BDE-5140120-54.A1 5140120-54	£1.50	£1.80
23 - WASHER BDE-N085908 N085908	£1.50	£1.80
24 - GUARD REAR BDE-N085906 N085906	£3.30	£3.96
25 - SCREW BDE-N085948 N085948	£1.50	£1.80
26 - FOOT BDE-N085949 N085949	£3.80	£4.56
27 - BASE SA GB BDE-N110960.A0 N110960	£80.98	£97.18
27 - BASE SA LX BDE-N110960.A1 N110960	£80.98	£97.18
28 - NUT BDE-N085952 N085952	£1.50	£1.80
29 - WASHER BDE-N085955 N085955	£1.50	£1.80
30 - SCREW BDE-N085947 N085947	£1.50	£1.80
31 - NUT BDE-N085954 N085954	£1.50	£1.80
32 - SPRING COMPRESSION BDE-N085890 N085890	£7.85	£9.42
34 - PLUG BDE-N085880 N085880	£1.50	£1.80
35 - ARM BDE-N085891 N085891	£78.12	£93.74
36 - PIN BDE-N085950 N085950	£5.88	£7.06
37 - SPRING BDE-N085881 N085881	£1.50	£1.80
38 - LOCKING PIN BDE-N085879 N085879	£4.69	£5.63
39 - NUT BDE-N085897 N085897	£1.50	£1.80
40 - SCREW BDE-N085896 N085896	£2.26	£2.71
41 - ARMATURE SA GB BDE-N085931 N085931	£157.18	£188.61
41 - ARMATURE SA LX BDE-N095936 N095936	£144.10	£172.92
42 - BEARING BDE-N085930 N085930	£12.17	£14.60
44 - BEARING BDE-N085929 N085929	£5.88	£7.06
45 - RUBBER BOOT BDE-N085933 N085933	£3.80	£4.56
46 - BAFFLE FAN BDE-N085941 N085941	£3.80	£4.56
47 - SCREW BDE-N085939 N085939	£1.50	£1.80
48 - FIELD SA 230V GB BDE-N085944 N085944	£115.77	£138.92
48 - FIELD SA 115V LX BDE-N095262 N095262	£108.20	£129.84
49 - SCREW BDE-N085936 N085936	£1.50	£1.80
50 - BRUSH CAP BDE-N085940 N085940	£1.50	£1.80
51 - BRUSH PAIR 115V LX BDE-N097997 N097997	£14.57	£17.48
51 - BRUSH PAIR 230V GB BDE-N097996 N097996	£19.90	£23.88
52 - SCREW LX BDE-N085934.A0 N085934	£1.50	£1.80
52 - SCREW GB BDE-N085934.A1 N085934	£1.50	£1.80
53 - END CAP BDE-N085937 N085937	£4.69	£5.63
55 - SCREW BDE-N085946 N085946	£1.50	£1.80
56 - BRUSH HOLDER BDE-N085935 N085935	£7.18	£8.62
57 - FIELDCASE SA GB BDE-N112081.A0 N112081	£47.08	£56.49
57 - FIELDCASE SA LX BDE-N112081.A1 N112081	£47.08	£56.49
58 - SCREW LX BDE-N085945.A0 N085945	£1.50	£1.80
58 - SCREW GB BDE-N085945.A1 N085945	£1.50	£1.80
59 - HANDLE COVER LX BDE-N112091.A0 N112091	£38.80	£46.56
59 - HANDLE COVER GB BDE-N112091.A1 N112091	£38.80	£46.56
60 - SCREW GB BDE-N085956.A0 N085956	£1.50	£1.80
60 - SCREW LX BDE-N085956.A1 N085956	£1.50	£1.80
61 - HANDLE UPPER LX BDE-N085960.A0 N085960	£7.18	£8.62
61 - HANDLE UPPER GB BDE-N085960.A1 N085960	£7.18	£8.62
62 - LOCK HOOK GB BDE-N085967.A0 N085967	£1.50	£1.80
62 - LOCK HOOK LX BDE-N085967.A1 N085967	£1.50	£1.80
63 - CORD CLAMP BDE-N085964 N085964	£1.50	£1.80
64 - CORD PROTECTOR BDE-N085957 N085957	£1.50	£1.80
65 - CORDSET LX BDE-N095257 N095257	£78.12	£93.74
65 - CORDSET GB BDE-N098003 N098003	£38.80	£46.56
66 - SWITCH SA LX BDE-N110957.A0 N110957	£25.70	£30.84
66 - SWITCH SA GB BDE-N110957.A1 N110957	£25.70	£30.84
67 - SCREW BDE-N085966 N085966	£1.50	£1.80
69 - SCREW.SPECIAL BDE-5140120-52.A0 5140120-52	£1.50	£1.80
69 - SCREW BDE-5140120-52.A99 5140120-52	£1.50	£1.80
70 - SCREW.SPECIAL BDE-5140120-52.A1 5140120-52	£1.50	£1.80
71 - WASHER BDE-5140120-52.A2 5140120-52	£1.50	£1.80
72 - CHAIN BDE-N085907 N085907	£1.50	£1.80
73 - VICE JAW MOVEABLE BDE-N085916 N085916	£37.35	£44.82
83 - HEX KEY BDE-N085914 N085914	£3.80	£4.56
84 - HOLDER TOOL BDE-N085919 N085919	£1.50	£1.80
85 - SCREW BDE-N085918 N085918	£1.50	£1.80
86 - WASHER LOCK BDE-N085917 N085917	£1.50	£1.80
87 - FENCE BDE-N085886 N085886	£14.57	£17.48
88 - CAPACITOR GB BDE-N095814.A0 N095814	£1.50	£1.80
88 - CAPACITOR LX BDE-N095814.A1 N095814	£1.50	£1.80
102 - SCREW GB BDE-N085963.A0 N085963	£1.50	£1.80
102 - SCREW LX BDE-N085963.A1 N085963	£1.50	£1.80
103 - RING LX BDE-N110959.A0 N110959	£1.50	£1.80
103 - RING GB BDE-N110959.A1 N110959	£1.50	£1.80
104 - SCREW.SPECIAL BDE-5140120-54.A2 5140120-54	£1.50	£1.80
800 - GREASE BDE-5140061-28.A2 5140061-28	£51.90	£62.28
