Dewalt D27400-B5 Type 2 Site Saw Spare Parts

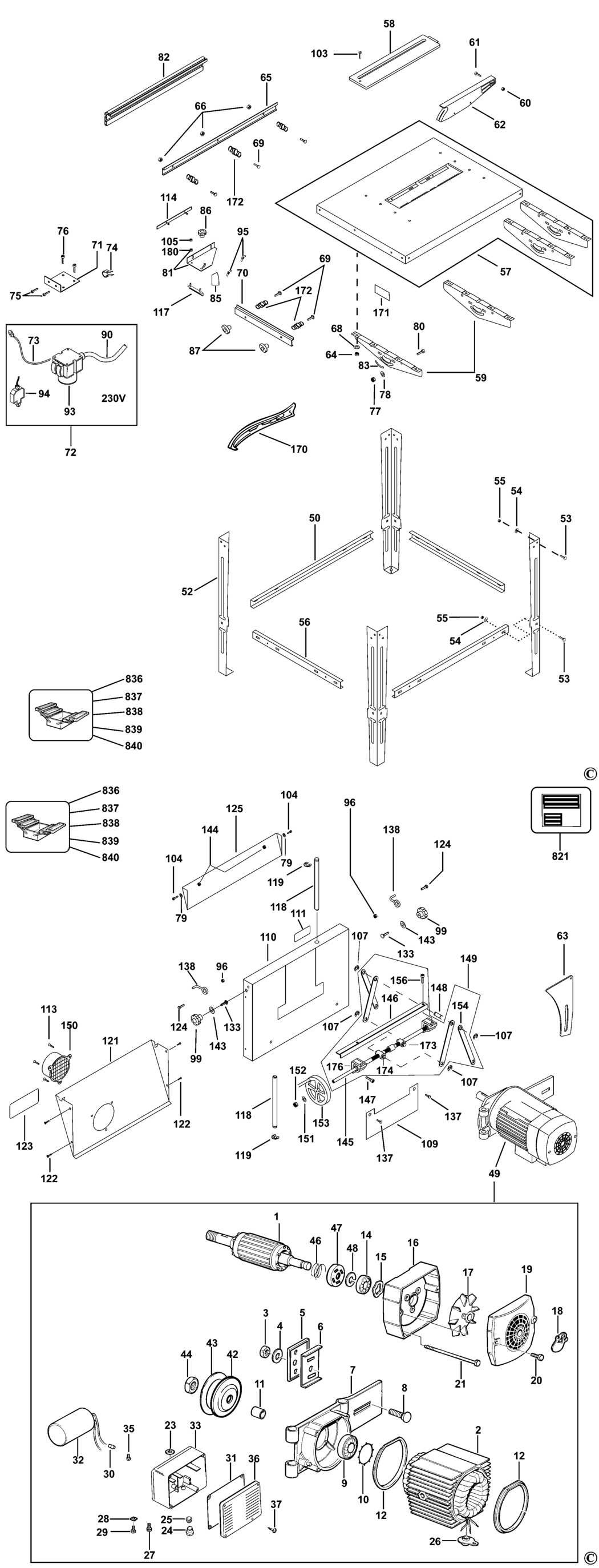

An exploded drawing and spare parts listing for the Dewalt D27400-B5 Type 2 Site Saw

	Ex VAT	Inc VAT
3 - NUT RH BDE-860083-05.A141 860083-05	£1.50	£1.80
4 - WASHER BDE-860074-04.A1 860074-04	£1.50	£1.80
5 - PLATE BDE-944360-00.A4 944360-00	£1.50	£1.80
6 - PLATE BDE-944359-00.A11 944359-00	£1.50	£1.80
7 - HOUSING BDE-868661-00.A0 868661-00	£96.55	£115.86
8 - SCREW BDE-860301-15.A1 860301-15	£1.50	£1.80
9 - BEARING BDE-868768-10.A81 868768-10	£14.57	£17.48
10 - RING BDE-860806-01.A14 860806-01	£1.42	£1.70
11 - BUSH BDE-868973-00.A1 868973-00	£4.69	£5.63
12 - SEAL BDE-860718-00.A51 860718-00	£7.18	£8.62
14 - BEARING BDE-868768-07.A44 868768-07	£7.85	£9.42
15 - RING BDE-860080-02.A40 860080-02	£1.50	£1.80
16 - END CAP SA BDE-861863-00.A12 861863-00	£55.30	£66.36
17 - FAN BDE-945841-00.A46 945841-00	£2.78	£3.34
18 - CAP BDE-863112-00.A70 863112-00	£1.50	£1.80
19 - END CAP BDE-N027614.A1 N027614	£7.85	£9.42
20 - SCREW BDE-330045-05.A242 330045-05	£1.50	£1.80
21 - ROD BDE-860446-00.A49 860446-00	£1.50	£1.80
23 - GROMMET BDE-868963-00.A4 868963-00	£1.50	£1.80
24 - RETAINER BDE-868964-00.A1 868964-00	£1.50	£1.80
25 - NUT BDE-868965-00.A1 868965-00	£1.50	£1.80
26 - GROMMET BDE-944652-00.A54 944652-00	£4.69	£5.63
27 - SCREW.TEMP BDE-860094-00.A40 860094-00	£1.50	£1.80
28 - WASHER BDE-933652-00.A78 933652-00	£1.50	£1.80
29 - SCREW BDE-860094-02.A40 860094-02	£1.50	£1.80
31 - GASKET BDE-868962-00.A2 868962-00	£1.50	£1.80
33 - HOUSING BDE-868960-00.A0 868960-00	£3.80	£4.56
35 - CONNECTOR BDE-861257-00.A13 861257-00	£1.50	£1.80
36 - COVER BDE-868961-00.A4 868961-00	£5.88	£7.06
37 - SCREW BDE-860084-04.A29 860084-04	£1.50	£1.80
42 - FLANGE BDE-868974-00.A0 868974-00	£12.17	£14.60
43 - FLANGE BDE-945843-00.A35 945843-00	£7.18	£8.62
44 - NUT BDE-944460-00.A15 944460-00	£24.39	£29.27
46 - SPRING BDE-861338-05.A11 861338-05	£1.50	£1.80
47 - BRAKE ADAPTER BDE-861336-05.A11 861336-05	£10.85	£13.02
48 - CIRCLIP BDE-949727-06.A9 949727-06	£1.50	£1.80
50 - SUPPORT BDE-869015-00.A1 869015-00	£10.85	£13.02
52 - LEG BDE-869013-00.A1 869013-00	£15.63	£18.76
53 - SCREW BDE-869010-00.A0 869010-00	£1.50	£1.80
54 - WASHER BDE-860074-07.A0 860074-07	£1.50	£1.80
55 - NUT M6 BDE-860083-12.A74 860083-12	£1.50	£1.80
56 - SUPPORT BDE-869014-00.A0 869014-00	£7.85	£9.42
57 - TABLE SA BDE-868954-00.A0 868954-00	£96.55	£115.86
58 - INSERT BDE-868657-00.A0 868657-00	£12.17	£14.60
59 - BRACKET BDE-868923-00.A0 868923-00	£16.03	£19.24
60 - NUT BDE-860092-00.A86 860092-00	£1.50	£1.80
61 - SCREW BDE-860093-06.A79 860093-06	£1.50	£1.80
62 - GUARD BDE-868681-00.A2 868681-00	£17.48	£20.97
63 - RIVING KNIFE BDE-868664-00.A0 868664-00	£30.08	£36.10
64 - NUT BDE-860092-01.A45 860092-01	£1.50	£1.80
65 - SUPPORT BDE-868700-00.A0 868700-00	£12.17	£14.60
66 - NUT BDE-860092-00.A87 860092-00	£1.50	£1.80
68 - WASHER M8 BDE-860073-03.A676 860073-03	£1.50	£1.80
69 - SCREW BDE-860301-00.A51 860301-00	£1.50	£1.80
70 - RAIL SHORT BDE-868927-00.A1 868927-00	£7.64	£9.17
71 - BRACKET BDE-944341-00.A10 944341-00	£7.18	£8.62
74 - CLAMP BDE-860843-01.A18 860843-01	£1.50	£1.80
75 - SCREW BDE-860084-21.A15 860084-21	£1.50	£1.80
77 - SCREW BDE-949886-11.A35 949886-11	£1.50	£1.80
78 - WASHER BDE-933055-00.A13 933055-00	£1.50	£1.80
79 - WASHER BDE-860075-00.A224 860075-00	£1.50	£1.80
80 - SCREW BDE-949886-11.A36 949886-11	£1.50	£1.80
81 - PLATE SA BDE-868969-00.A0 868969-00	£34.00	£40.80
82 - PLATE SA BDE-868969-00.A1 868969-00	£34.00	£40.80
83 - LABEL BDE-868763-00.A2 868763-00	£3.22	£3.86
85 - LABEL BDE-868762-00.A0 868762-00	£3.80	£4.56
86 - KNOB BDE-868704-00.A1 868704-00	£1.50	£1.80
87 - KNOB BDE-860862-02.A0 860862-02	£9.41	£11.29
93 - SWITCH GB BDE-868730-03.A1 868730-03	£131.46	£157.75
95 - WING NUT BDE-720929-00.A6 720929-00	£1.50	£1.80
96 - NUT BDE-860092-05.A50 860092-05	£1.50	£1.80
99 - KNOB BDE-860862-01.A2 860862-01	£3.30	£3.96
103 - SCREW BDE-860428-06.A1 860428-06	£1.50	£1.80
104 - SCREW BDE-949886-11.A37 949886-11	£1.50	£1.80
105 - NUT BDE-860092-00.A85 860092-00	£1.50	£1.80
107 - CIRCLIP BDE-860322-01.A20 860322-01	£1.50	£1.80
109 - PLATE BDE-944322-02.A8 944322-02	£11.87	£14.24
110 - HOUSING BDE-868656-00.A1 868656-00	£115.77	£138.92
111 - LABEL BDE-868761-00.A2 868761-00	£5.72	£6.87
113 - SCREW BDE-860084-23.A2 860084-23	£1.50	£1.80
114 - BRACKET BDE-868706-00.A1 868706-00	£3.80	£4.56
117 - BRACKET BDE-868709-00.A1 868709-00	£14.57	£17.48
118 - ADJUSTER HEIGHT BDE-944353-00.A11 944353-00	£3.80	£4.56
119 - CIRCLIP BDE-860322-05.A11 860322-05	£1.50	£1.80
121 - PLATE BDE-868663-00.A1 868663-00	£16.03	£19.24
122 - SCREW BDE-860084-23.A3 860084-23	£1.50	£1.80
123 - BRAND LABEL BDE-868863-00.A3 868863-00	£4.69	£5.63
124 - SCREW BDE-860085-04.A68 860085-04	£1.50	£1.80
125 - COVER BDE-868655-00.A1 868655-00	£9.41	£11.29
133 - SCREW BDE-860301-00.A50 860301-00	£1.50	£1.80
137 - SCREW BDE-860094-02.A41 860094-02	£1.50	£1.80
138 - RETAINER BDE-868658-00.A1 868658-00	£3.30	£3.96
143 - WASHER BDE-941602-00.A83 941602-00	£1.50	£1.80
144 - NUT BDE-860083-03.A341 860083-03	£1.50	£1.80
145 - SCREW.SPECIAL BDE-944367-02.A1 944367-02	£24.39	£29.27
146 - PLATE BDE-944437-00.A6 944437-00	£1.42	£1.70
147 - SCREW BDE-860085-20.A15 860085-20	£1.50	£1.80
148 - PIN BDE-945844-00.A0 945844-00	£1.50	£1.80
149 - ELEVATING SA BDE-868725-00.A1 868725-00	£55.30	£66.36
150 - DUST EXTRACTOR BDE-861428-01.A1 861428-01	£7.18	£8.62
151 - WASHER BDE-860075-00.A223 860075-00	£1.50	£1.80
152 - NUT BDE-860092-00.A84 860092-00	£1.50	£1.80
153 - HANDLE SA BDE-946474-00.A26 946474-00	£18.91	£22.69
154 - ARM LINK BDE-944368-00.A9 944368-00	£1.50	£1.80
156 - SCREW BDE-860094-02.A42 860094-02	£1.50	£1.80
170 - PUSHROD BDE-860610-01.A94 860610-01	£7.85	£9.42
171 - NAMEPLATE BDE-868733-00.A2 868733-00	£1.50	£1.80
172 - SPRING BDE-123255-01.A2 123255-01	£1.50	£1.80
173 - BUSH BDE-944366-00.A6 944366-00	£1.42	£1.70
174 - BUSH BDE-944366-01.A9 944366-01	£1.42	£1.70
176 - BRACKET BDE-945847-01.A2 945847-01	£3.22	£3.86
180 - NUT BDE-868978-00.A1 868978-00	£3.80	£4.56
836 - HEX KEY 8 MM BDE-860098-05.A102 860098-05	£3.30	£3.96
837 - HEX KEY 5 MM BDE-930574-00.A74 930574-00	£1.50	£1.80
838 - SPANNER BOX BDE-869235-00.A84 869235-00	£17.48	£20.97
839 - SPANNER MULTI BDE-944463-00.A14 944463-00	£9.41	£11.29
840 - SPANNER BOX BDE-760601-00.A3 760601-00	£2.26	£2.71

Attribute Name	Value
Brand	Dewalt
