Dewalt D24000 Type 1 Tile Cutter Spare Parts

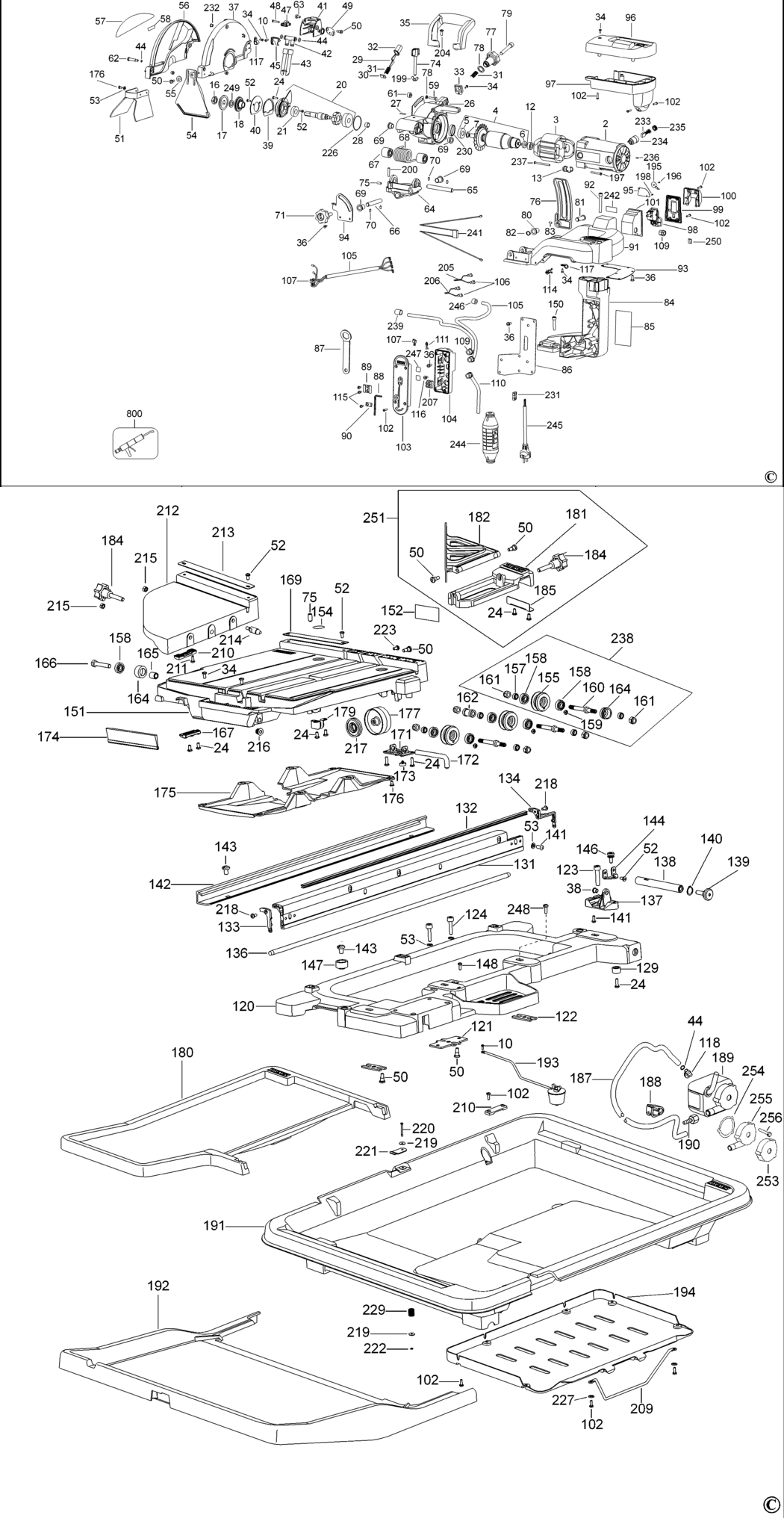

An exploded drawing and spare parts listing for the Dewalt D24000 Type 1 Tile Cutter

	Ex VAT	Inc VAT
2 - FIELDCASE BDE-5140024-35.A0 5140024-35	£25.70	£30.84
3 - FIELD SA 230V GB BDE-5140028-03.A1 5140028-03	£131.46	£157.75
3 - FIELD 120V LX BDE-5140024-36.A1 5140024-36	£71.44	£85.73
4 - ARMATURE 230V GB BDE-5140028-02.A0 5140028-02	£174.63	£209.56
4 - ARMATURE 120V LX BDE-5140024-37.A0 5140024-37	£93.62	£112.35
5 - BEARING BDE-605040-27.A9 605040-27	£4.69	£5.63
6 - BEARING BDE-N043347.A1 N043347	£3.80	£4.56
7 - RETAINER BDE-398605-00.A45 398605-00	£1.50	£1.80
10 - SCREW BDE-618303-00.A1 618303-00	£1.50	£1.80
12 - SLEEVE INSULATING BDE-609970-00.A51 609970-00	£1.50	£1.80
13 - BUSH BDE-682149-00.A7 682149-00	£5.88	£7.06
16 - NUT BDE-616755-00.A0 616755-00	£1.50	£1.80
17 - NO LONGER AVAILABLE BDE-000000-00.A61358 000000-00	-
18 - WASHER INNER CLAMP BDE-612690-00 612690-00	£30.08	£36.10
20 - GEARCASE COVER SA BDE-612692-00.A0 612692-00	£96.55	£115.86
21 - BEARING BALL BDE-330003-29.A10 330003-29	£16.03	£19.24
24 - SCREW BDE-618302-03.A0 618302-03	£1.50	£1.80
26 - ARM BDE-627524-00.A0 627524-00	£44.14	£52.97
27 - LABEL BDE-618132-00.A1 618132-00	£1.50	£1.80
28 - BEARING NEEDLE BDE-330004-06.A8 330004-06	£1.50	£1.80
29 - SPINDLE LOCK BDE-612698-00.A1 612698-00	£1.50	£1.80
30 - FELT SEAL BDE-618568-00.A0 618568-00	£1.50	£1.80
31 - SPRING BDE-398736-00.A14 398736-00	£1.50	£1.80
32 - LOCK BUTTON BDE-616758-00.A1 616758-00	£1.50	£1.80
33 - LINER BDE-612701-00.A0 612701-00	£1.50	£1.80
34 - SCREW BDE-618302-00.A1 618302-00	£1.50	£1.80
35 - HANDLE BDE-612702-00.A1 612702-00	£16.03	£19.24
36 - SCREW BDE-618302-06.A0 618302-06	£1.50	£1.80
37 - COVER INCL 232 BDE-624451-00.A1 624451-00	£119.32	£143.19
38 - INSERT BDE-148608-01.A0 148608-01	£1.50	£1.80
39 - SLEEVE BDE-612704-00.A0 612704-00	£1.50	£1.80
40 - RETAINER BDE-612705-00.A1 612705-00	£3.80	£4.56
41 - NOSE BDE-612768-00.A1 612768-00	£4.69	£5.63
42 - VALVE BDE-612771-00.A0 612771-00	£1.50	£1.80
43 - NOZZLE BDE-613462-00.A1 613462-00	£1.50	£1.80
44 - O RING BDE-618353-00.A0 618353-00	£1.50	£1.80
45 - PLATE BDE-612773-00.A1 612773-00	£1.50	£1.80
47 - LEVER BDE-N613269.A0 N613269	£1.50	£1.80
48 - SCREW BDE-618303-02.A1 618303-02	£1.50	£1.80
49 - RETAINER BDE-612728-00.A0 612728-00	£3.80	£4.56
50 - SCREW BDE-618369-00.A1 618369-00	£1.50	£1.80
51 - FLAP BDE-612776-00.A0 612776-00	£10.85	£13.02
52 - SCREW BDE-618302-02.A1 618302-02	£1.50	£1.80
53 - WASHER BDE-618540-00.A0 618540-00	£1.50	£1.80
54 - REAR FLAP BDE-612778-00.A0 612778-00	£9.41	£11.29
55 - WASHER BDE-618540-01.A1 618540-01	£1.50	£1.80
56 - COVER INCL. LABELS/INSERTS BDE-618314-00.A1 618314-00	£115.77	£138.92
57 - LABEL BDE-395021-00.A14 395021-00	£3.30	£3.96
58 - WARNING LABEL BDE-618136-00.A1 618136-00	£1.50	£1.80
59 - SCREW BDE-618304-00.A0 618304-00	£1.50	£1.80
61 - SPACER BDE-612707-00.A0 612707-00	£1.50	£1.80
62 - SCREW BDE-618369-02.A1 618369-02	£2.26	£2.71
63 - SCREW BDE-618304-02.A0 618304-02	£1.50	£1.80
64 - TRUNNION ALSO ORDER ITEM 69 BDE-612669-00.A1 612669-00	£47.08	£56.49
65 - PIVOT SHAFT BDE-612708-00.A1 612708-00	£24.39	£29.27
66 - PIVOT SHAFT BDE-614031-00.A0 614031-00	£25.70	£30.84
67 - SPACER BDE-612710-00.A0 612710-00	£3.80	£4.56
68 - SPRING BDE-612711-00.A1 612711-00	£9.41	£11.29
69 - BUSHING BDE-612709-00.A0 612709-00	£14.57	£17.48
70 - GRUB SCREW BDE-618305-00.A0 618305-00	£1.50	£1.80
71 - KNOB BDE-612712-00.A0 612712-00	£4.69	£5.63
74 - KNOB BDE-616763-00.A0 616763-00	£7.85	£9.42
75 - SCREW BDE-618305-02.A0 618305-02	£1.50	£1.80
76 - BRACKET BDE-612671-00.A0 612671-00	£16.03	£19.24
77 - KNOB BDE-618069-00.A1 618069-00	£9.41	£11.29
78 - WASHER BDE-618540-02.A0 618540-02	£1.50	£1.80
79 - BOLT BDE-623621-00.A0 623621-00	£5.88	£7.06
80 - BUSHING BDE-612709-01.A1 612709-01	£18.91	£22.69
81 - PIN BDE-612717-00.A0 612717-00	£19.90	£23.88
82 - RETAINER BDE-618542-00.A0 618542-00	£1.50	£1.80
83 - SCREW BDE-618305-01.A1 618305-01	£1.50	£1.80
84 - NO LONGER AVAILABLE incl item 85 BDE-000000-00.A61359 000000-00	-
85 - WARNING LABEL BDE-632110-00.A1 632110-00	£1.50	£1.80
86 - PLATE BDE-612718-01.A1 612718-01	£7.85	£9.42
87 - SPANNER BDE-616769-00.A0 616769-00	£3.80	£4.56
88 - HEX KEY 4 MM BDE-98000-13.A0 98000-13	£1.50	£1.80
89 - CLIP BDE-147190-01.A4 147190-01	£1.78	£2.13
90 - CLIP BDE-618123-00.A0 618123-00	£1.50	£1.80
91 - NO LONGER AVAILABLE BDE-000000-00.A61360 000000-00	-
91 - SUPPORT BDE-627525-00.A1 627525-00	£174.63	£209.56
92 - SCREW BDE-616770-01.A0 616770-01	£4.69	£5.63
93 - PLATE BDE-616771-00.A1 616771-00	£7.18	£8.62
94 - PLATE BDE-613811-00.A0 613811-00	£7.18	£8.62
95 - LABEL BDE-618133-00.A0 618133-00	£2.78	£3.34
96 - COVER BDE-612722-00.A0 612722-00	£17.48	£20.97
97 - END CAP BDE-612724-00.A1 612724-00	£7.85	£9.42
98 - SWITCH BDE-N020198.A0 N020198	£41.38	£49.66
99 - PLATE BDE-612784-01.A0 612784-01	£2.78	£3.34
100 - BEZEL BDE-612726-01.A0 612726-01	£2.26	£2.71
101 - ENCLOSURE BDE-612727-00.A1 612727-00	£3.80	£4.56
102 - SCREW BDE-618303-01.A0 618303-01	£1.50	£1.80
103 - COVER BDE-616772-00.A0 616772-00	£5.88	£7.06
104 - ENCLOSURE BDE-616773-00.A1 616773-00	£7.18	£8.62
105 - CABLE SA BDE-616774-00.A0 616774-00	£24.39	£29.27
106 - TERMINAL BDE-450212-00.A10 450212-00	£2.78	£3.34
107 - TERMINAL BDE-450213-00.A5 450213-00	£1.50	£1.80
109 - BUSHING BDE-605155-00.A20 605155-00	£1.66	£1.99
110 - CORD LX BDE-633730-00.A2 633730-00	£37.35	£44.82
110 - CORD GB BDE-633302-00.A1 633302-00	£38.80	£46.56
111 - TERMINAL BDE-53650-03.A2 53650-03	£1.50	£1.80
114 - CLIP BDE-388301-00.A1 388301-00	£1.50	£1.80
115 - SCREW.TEMP BDE-98102-10.A1 98102-10	£1.50	£1.80
116 - SCREW BDE-385865-00.A2 385865-00	£1.50	£1.80
117 - CLAMP BDE-619683-00.A0 619683-00	£1.50	£1.80
118 - CONNECTOR BDE-612775-00.A1 612775-00	£1.50	£1.80
120 - NO LONGER AVAILABLE BDE-000000-00.A61361 000000-00	-
121 - PLATE BDE-617634-00.A0 617634-00	£7.18	£8.62
122 - PLATE BDE-617635-00.A1 617635-00	£1.82	£2.19
123 - SCREW BDE-618369-03.A0 618369-03	£2.78	£3.34
124 - SCREW BDE-618304-03.A1 618304-03	£1.50	£1.80
129 - FOOT BDE-616767-00.A1 616767-00	£1.50	£1.80
131 - TRACK BDE-612732-00.A1 612732-00	£60.94	£73.13
132 - LINER BDE-617352-00.A1 617352-00	£3.80	£4.56
133 - CAP BDE-612777-00.A1 612777-00	£1.50	£1.80
134 - CAP BDE-612854-00.A1 612854-00	£1.50	£1.80
136 - GUIDE ROD BDE-612733-00.A0 612733-00	£44.14	£52.97
137 - BLOCK BDE-627522-00.A2 627522-00	£16.03	£19.24
137 - BLOCK INCL 38 BDE-627522-00.A3 627522-00	£16.03	£19.24
138 - CYLINDER BDE-613465-00.A0 613465-00	£7.18	£8.62
139 - SCREW BDE-612735-00.A1 612735-00	£17.48	£20.97
140 - RETAINER BDE-618541-00.A1 618541-00	£1.50	£1.80
141 - SCREW BDE-618304-01.A1 618304-01	£1.50	£1.80
142 - TRACK BDE-612737-00.A0 612737-00	£34.00	£40.80
143 - SCREW BDE-618302-07.A1 618302-07	£1.50	£1.80
144 - BRACKET BDE-612738-00.A1 612738-00	£3.80	£4.56
146 - SCREW BDE-612758-00.A1 612758-00	£3.80	£4.56
147 - BUSHING BDE-146753-00.A21 146753-00	£1.50	£1.80
148 - SCREW BDE-620468-00.A1 620468-00	£2.26	£2.71
150 - SCREW BDE-616770-00.A1 616770-00	£3.80	£4.56
151 - TABLE BDE-N875309.A0 N875309	£523.98	£628.77
152 - NO LONGER AVAILABLE BDE-000000-00.A61362 000000-00	-
154 - WARNING LABEL BDE-610707-00.A8 610707-00	£1.50	£1.80
155 - GUIDE BDE-612741-00.A1 612741-00	£24.39	£29.27
157 - SPACER BDE-612743-00.A1 612743-00	£5.88	£7.06
158 - BEARING BDE-330003-82.A0 330003-82	£5.88	£7.06
159 - SCREW BDE-618304-07.A1 618304-07	£1.50	£1.80
160 - SHAFT BDE-612745-00.A0 612745-00	£19.90	£23.88
161 - STOP NUT BDE-618539-00.A0 618539-00	£1.50	£1.80
162 - CYLINDER BDE-612746-00.A1 612746-00	£16.03	£19.24
164 - ROLLER BDE-612742-00.A0 612742-00	£12.17	£14.60
165 - SPACER BDE-612748-00.A0 612748-00	£5.88	£7.06
166 - SCREW BDE-618304-05.A0 618304-05	£2.78	£3.34
167 - PLATE BDE-612749-00.A1 612749-00	£1.50	£1.80
169 - SCALE BDE-612752-00.A0 612752-00	£9.41	£11.29
171 - BRACKET BDE-616784-00.A0 616784-00	£7.18	£8.62
172 - ROD BDE-617230-00.A0 617230-00	£12.17	£14.60
173 - SCREW BDE-616785-00.A1 616785-00	£7.18	£8.62
174 - BRUSH BDE-612755-00.A0 612755-00	£10.85	£13.02
175 - RESERVOIR BDE-612756-00.A1 612756-00	£5.88	£7.06
176 - SCREW BDE-618369-01.A0 618369-01	£1.50	£1.80
177 - DISC BDE-612757-00.A0 612757-00	£10.85	£13.02
179 - STOP BDE-612739-00.A0 612739-00	£3.80	£4.56
180 - COLLECTOR BDE-612759-00.A0 612759-00	£37.35	£44.82
181 - GUIDE BDE-612687-00.A1 612687-00	£18.91	£22.69
182 - GUIDE BDE-612761-00.A1 612761-00	£24.39	£29.27
184 - KNOB BDE-612716-00.A1 612716-00	£4.69	£5.63
185 - CLAMPING BAR BDE-612763-00.A0 612763-00	£5.88	£7.06
187 - TUBE PLASTIC BDE-618697-00.A1 618697-00	£4.69	£5.63
188 - VALVE BDE-631599-00.A1 631599-00	£5.88	£7.06
189 - PUMP SA ORD (2)107 & (1) 111 GB BDE-N775113.A1 N775113	£371.62	£445.95
189 - PUMP SA LX BDE-N775112.A1 N775112	£319.22	£383.07
190 - ADAPTOR BDE-616779-00.A1 616779-00	£5.88	£7.06
191 - TRAY W10219319420921 BDE-N597124.A0 N597124	£135.36	£162.43
192 - EXTENSION BDE-612783-00.A1 612783-00	£58.69	£70.43
193 - PLUG BDE-N596581.A1 N596581	£16.03	£19.24
194 - TRAY BDE-618076-00.A0 618076-00	£19.90	£23.88
195 - POINTER BDE-623509-00.A1 623509-00	£3.80	£4.56
196 - SCREW BDE-153460-06.A1 153460-06	£1.50	£1.80
197 - SCREW BDE-618302-05.A1 618302-05	£1.50	£1.80
198 - SCREW BDE-13486-00.A0 13486-00	£1.50	£1.80
199 - WING NUT BDE-613365-00.A12 613365-00	£1.50	£1.80
200 - SCREW BDE-618305-06.A1 618305-06	£1.50	£1.80
204 - SCREW BDE-618302-08.A0 618302-08	£1.50	£1.80
205 - LEAD BLACK BDE-624147-00.A1 624147-00	£5.88	£7.06
206 - LEAD SA WHITE BDE-624147-01.A0 624147-01	£5.88	£7.06
207 - TERMINAL BLOCK BDE-393520-00.A21 393520-00	£5.88	£7.06
209 - CORD BDE-623773-00.A1 623773-00	£5.88	£7.06
210 - COVER BDE-622977-00.A1 622977-00	£1.50	£1.80
211 - SCREW BDE-618302-01.A0 618302-01	£1.50	£1.80
212 - NO LONGER AVAILABLE BDE-000000-00.A61363 000000-00	-
213 - SCALE BDE-612753-00.A1 612753-00	£16.03	£19.24
214 - NO LONGER AVAILABLE BDE-000000-00.A61364 000000-00	-
215 - NUT BDE-618539-01.A1 618539-01	£1.50	£1.80
216 - INSERT BDE-623086-00.A0 623086-00	£3.80	£4.56
217 - DISC BDE-623383-00.A0 623383-00	£1.50	£1.80
218 - SCREW BDE-618302-09.A1 618302-09	£1.50	£1.80
219 - WASHER BDE-618540-03.A1 618540-03	£1.50	£1.80
220 - PIN BDE-624727-00.A1 624727-00	£1.50	£1.80
221 - LATCH BDE-622976-00.A0 622976-00	£1.82	£2.19
222 - RETAINER BDE-605365-00.A0 605365-00	£1.50	£1.80
223 - SCREW BDE-618302-10.A0 618302-10	£1.50	£1.80
226 - O RING BDE-56122-00.A8 56122-00	£1.50	£1.80
227 - WASHER BDE-618540-04.A0 618540-04	£1.50	£1.80
229 - SPRING BDE-625913-00.A1 625913-00	£1.50	£1.80
230 - SLEEVE BDE-609971-00.A28 609971-00	£1.50	£1.80
231 - CLIP BDE-625745-00.A1 625745-00	£1.50	£1.80
232 - INSERT BDE-148608-02.A1 148608-02	£1.50	£1.80
233 - BRUSH GB BDE-5140028-04.A0 5140028-04	£7.18	£8.62
233 - BRUSH 115V LX BDE-5140024-30.A1 5140024-30	£7.18	£8.62
234 - BRUSH HOLDER BDE-5140024-31.A0 5140024-31	£9.41	£11.29
235 - BRUSH CAP BDE-5140024-32.A1 5140024-32	£1.50	£1.80
236 - SCREW BDE-5140024-33.A0 5140024-33	£1.50	£1.80
237 - SCREW BDE-5140024-34.A1 5140024-34	£1.50	£1.80
238 - ROLLER SA BDE-627857-00.A0 627857-00	£45.14	£54.17
239 - SLEEVE BDE-628348-00.A0 628348-00	£1.50	£1.80
241 - CAPACITOR BDE-632106-00.A0 632106-00	£7.18	£8.62
242 - LABEL BDE-632109-00.A0 632109-00	£1.50	£1.80
244 - SWITCH SAFETY GB BDE-632097-00.A1 632097-00	£110.62	£132.74
244 - SWITCH SAFETY LX BDE-633729-00.A0 633729-00	£119.32	£143.19
245 - CORDSET (M/PLUG) GB GB BDE-637959-00.A0 637959-00	£25.70	£30.84
245 - CORDSET LX BDE-637960-00.A2 637960-00	£87.82	£105.39
246 - SLEEVE INSULATING BDE-388414-00.A1 388414-00	£3.80	£4.56
247 - LABEL BDE-632108-00.A1 632108-00	£1.50	£1.80
248 - PLUG BDE-627036-00.A1 627036-00	£1.50	£1.80
249 - BLADE HOLDER BDE-152636-00.A4 152636-00	£5.88	£7.06
250 - PLUG BDE-634968-00.A0 634968-00	£1.50	£1.80
251 - GUIDE SA BDE-N596595.A0 N596595	£38.80	£46.56
253 - FILTER BDE-496555-00.A1 496555-00	£14.57	£17.48
254 - GASKET BDE-5140058-96.A1 5140058-96	£7.18	£8.62
255 - COVER BDE-5140058-97.A0 5140058-97	£24.39	£29.27
256 - SCREW BDE-330019-14.A169 330019-14	£1.50	£1.80
800 - GREASE BDE-5140061-28.A44 5140061-28	£51.90	£62.28

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D24000 Type 1 Tile Cutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
