Dewalt DW739 Type 1 Bandsaw Spare Parts

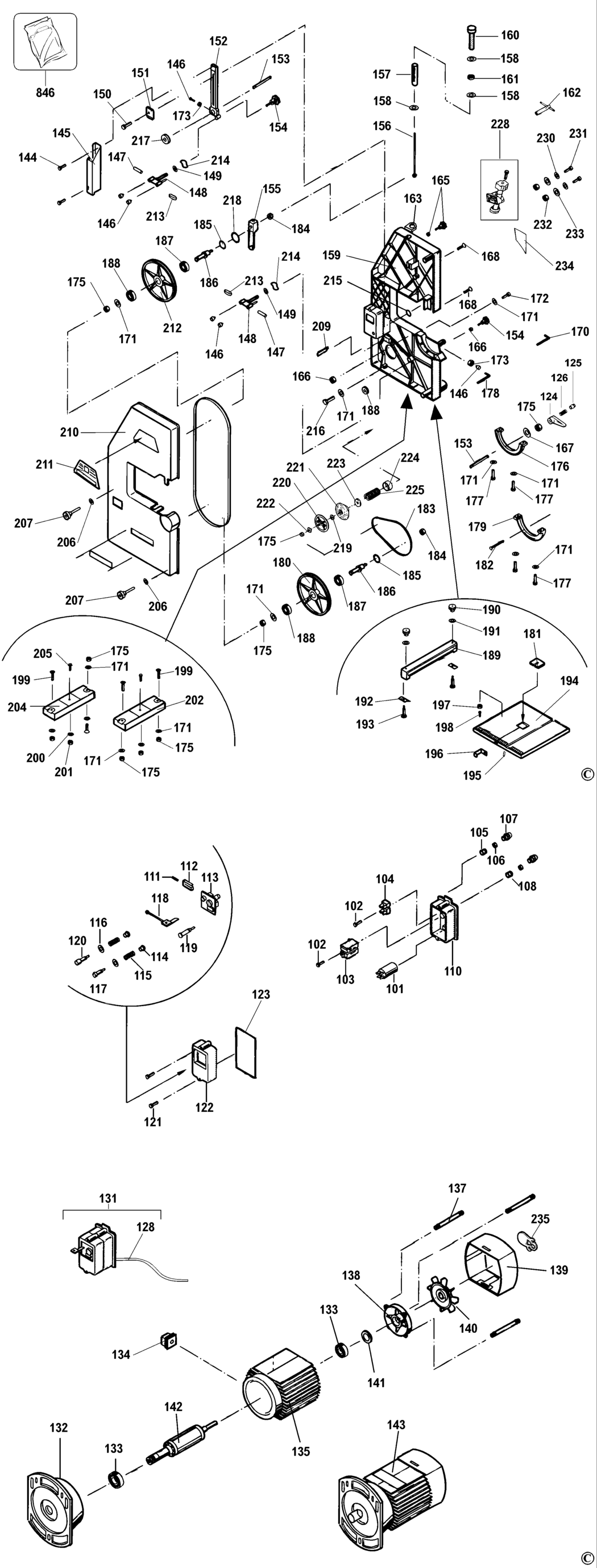

An exploded drawing and spare parts listing for the Dewalt DW739 Type 1 Bandsaw

	Ex VAT	Inc VAT
101 - CAPACITOR 220/240 GB BDE-861429-08.A2 861429-08	£8.08	£9.70
102 - SCREW BDE-860084-08.A3 860084-08	£1.66	£1.99
103 - CONTACT 220V GB BDE-868242-01.A1 868242-01	£46.49	£55.79
104 - CONNECTOR BDE-860468-00.A6 860468-00	£1.66	£1.99
105 - BUSHING BDE-860452-00.A12 860452-00	£1.66	£1.99
106 - CLAMP BDE-860463-00.A14 860463-00	£1.66	£1.99
107 - NUT BDE-860462-00.A9 860462-00	£1.66	£1.99
108 - GASKET BDE-860452-01.A9 860452-01	£1.66	£1.99
110 - SWITCHBOX BDE-860459-01.A1 860459-01	£26.47	£31.76
111 - SPRING BDE-860112-06.A13 860112-06	£1.66	£1.99
112 - BLOCKING DEVICE BDE-860469-00.A12 860469-00	£16.52	£19.82
113 - SWITCHBOX BDE-860461-01.A14 860461-01	£11.18	£13.41
114 - GASKET BDE-860466-00.A9 860466-00	£1.66	£1.99
115 - SPRING BDE-860112-05.A9 860112-05	£1.66	£1.99
116 - WASHER BDE-860077-01.A28 860077-01	£1.66	£1.99
117 - BUTTON BDE-860464-00.A8 860464-00	£1.66	£1.99
118 - SAFETY KEY BDE-863301-00.A5 863301-00	£15.01	£18.01
119 - NEON GB BDE-949785-02.A1 949785-02	£3.92	£4.70
120 - BUTTON BDE-860465-00.A14 860465-00	£1.66	£1.99
121 - SCREW BDE-860084-17.A1 860084-17	£1.66	£1.99
122 - COVER BDE-860460-00.A7 860460-00	£3.92	£4.70
123 - GASKET BDE-863122-01.A12 863122-01	£3.92	£4.70
124 - LEVER BDE-863320-00.A10 863320-00	£6.06	£7.27
125 - CAP BDE-863073-00.A26 863073-00	£4.83	£5.80
126 - SPRING BDE-760483-00.A26 760483-00	£1.66	£1.99
128 - CORDSET (M/PLUG) GB GB BDE-868551-01.A12 868551-01	£24.39	£29.27
131 - SWITCHBOX SA GB BDE-864519-29.A6 864519-29	-
132 - CALOTTE FRONT BDE-860442-01.A8 860442-01	£25.12	£30.15
133 - BEARING BDE-868768-07.A70 868768-07	£8.08	£9.70
134 - BUSHING BDE-860447-00.A24 860447-00	£8.08	£9.70
135 - STATOR SA GB BDE-868412-01.A16 868412-01	£161.89	£194.27
137 - TIE ROD BDE-863119-00.A13 863119-00	£1.66	£1.99
138 - END CAP BDE-860443-00.A27 860443-00	£4.83	£5.80
139 - COVER BDE-860445-00.A38 860445-00	£7.40	£8.88
140 - FAN BDE-860444-00.A41 860444-00	£4.83	£5.80
141 - RING BDE-860080-02.A62 860080-02	£1.66	£1.99
142 - ROTOR BDE-868439-00.A8 868439-00	£85.60	£102.72
143 - MOTOR SA GB BDE-868392-02.A1 868392-02	£362.26	£434.71
144 - SCREW BDE-860428-00.A29 860428-00	£1.66	£1.99
145 - GUARD BDE-863263-01.A20 863263-01	£11.18	£13.41
146 - SCREW BDE-949853-02.A7 949853-02	£1.66	£1.99
147 - GUIDE BLOCK BDE-863797-00.A5 863797-00	£2.08	£2.50
148 - GUIDE BLOCK BDE-862183-01.A18 862183-01	£9.69	£11.63
149 - RETAINER BDE-860077-00.A12 860077-00	£1.66	£1.99
150 - SCREW BDE-949891-04.A17 949891-04	£1.88	£2.26
151 - PLATE BDE-863126-00.A10 863126-00	£3.92	£4.70
152 - ROD BDE-862012-01.A11 862012-01	£16.52	£19.82
153 - PIN BDE-863795-00.A6 863795-00	£3.92	£4.70
154 - ADJUSTER BDE-863128-00.A9 863128-00	£16.52	£19.82
155 - BRACKET BDE-862188-00.A14 862188-00	£15.01	£18.01
156 - SCREW BDE-949891-02.A18 949891-02	£8.08	£9.70
157 - SPRING BDE-949722-04.A12 949722-04	£3.39	£4.07
158 - WASHER BDE-860073-14.A50 860073-14	£1.66	£1.99
159 - FRAME SA BDE-866379-02.A1 866379-02	£204.32	£245.18
160 - KNOB BDE-863471-00.A5 863471-00	£18.00	£21.60
161 - BEARING BDE-949755-02.A15 949755-02	£4.83	£5.80
162 - SPANNER BOX BDE-869235-00.A53 869235-00	£18.00	£21.60
163 - GUIDE BDE-863287-00.A6 863287-00	£1.66	£1.99
165 - KNOB SA BDE-863468-03.A9 863468-03	£1.66	£1.99
166 - NUT BDE-860092-01.A10 860092-01	£1.66	£1.99
167 - WASHER BDE-941602-00.A181 941602-00	£1.66	£1.99
168 - SCREW.TEMP BDE-860094-00.A68 860094-00	£1.66	£1.99
170 - WRENCH 6 MM BDE-860098-04.A92 860098-04	£1.66	£1.99
171 - WASHER BDE-860074-03.A250 860074-03	£1.66	£1.99
172 - SCREW BDE-860093-00.A40 860093-00	£1.66	£1.99
173 - NUT M5 BDE-860083-18.A32 860083-18	£1.66	£1.99
175 - NUT BDE-860083-04.A157 860083-04	£1.66	£1.99
176 - SERVICE KIT BDE-869431-00.A28 869431-00	£30.98	£37.18
177 - BOLT BDE-860085-03.A77 860085-03	£1.66	£1.99
178 - HEX KEY BDE-949882-03.A8 949882-03	£1.66	£1.99
179 - SERVICE KIT BDE-869431-00.A29 869431-00	£30.98	£37.18
180 - WHEEL DRIVING SA BDE-864550-02.A13 864550-02	£96.44	£115.73
181 - INSERT BDE-863467-00.A12 863467-00	£3.92	£4.70
182 - SCREW BDE-949891-07.A4 949891-07	£1.88	£2.26
183 - BELT DRIVE BDE-949754-03.A2 949754-03	£25.12	£30.15
184 - NUT RH BDE-860083-05.A126 860083-05	£1.66	£1.99
185 - RING BDE-949745-01.A8 949745-01	£1.88	£2.26
186 - AXLE BANDWHEEL BDE-863299-00.A10 863299-00	£11.18	£13.41
187 - BEARING BDE-861721-06.A9 861721-06	£8.08	£9.70
188 - BEARING 608 BDE-N110358.A82 N110358	£3.32	£3.99
189 - SERVICE KIT BDE-869175-00.A13 869175-00	£35.02	£42.02
190 - KNOB BDE-946469-00.A16 946469-00	£1.66	£1.99
191 - WASHER BDE-860075-00.A184 860075-00	£1.66	£1.99
192 - CLAMP BDE-862205-90.A19 862205-90	£1.88	£2.26
193 - SCREW BDE-949702-17.A3 949702-17	-
194 - TABLE BDE-862203-02.A0 862203-02	£86.95	£104.34
195 - PIN BDE-949867-10.A12 949867-10	£1.66	£1.99
196 - PLATE BDE-863257-00.A13 863257-00	£1.66	£1.99
197 - SCREW BDE-949853-09.A10 949853-09	£1.66	£1.99
198 - INSERT BDE-949760-02.A6 949760-02	£1.66	£1.99
199 - BOLT BDE-860301-09.A7 860301-09	£1.66	£1.99
200 - WASHER BDE-860073-04.A21 860073-04	£1.66	£1.99
201 - NUT RH BDE-860083-05.A167 860083-05	£1.66	£1.99
202 - BASE RH BDE-863150-04.A6 863150-04	£8.08	£9.70
204 - BASE LH BDE-863149-04.A0 863149-04	£8.08	£9.70
205 - SCREW BDE-860085-01.A3 860085-01	£1.66	£1.99
206 - RETAINER BDE-949745-02.A10 949745-02	-
207 - KNOB BDE-863468-02.A2 863468-02	£1.66	£1.99
209 - BRUSH BDE-863801-00.A22 863801-00	£3.39	£4.07
210 - COVER BDE-864431-15.A6 864431-15	£76.38	£91.65
211 - LABEL BDE-862618-08.A2 862618-08	£3.39	£4.07
212 - WHEEL DRIVING SA BDE-864550-01.A15 864550-01	£90.46	£108.55
213 - GUIDE BLOCK BDE-863796-00.A17 863796-00	£2.08	£2.50
214 - SPRING BDE-949873-01.A19 949873-01	£1.66	£1.99
215 - RING BDE-949727-03.A12 949727-03	£1.66	£1.99
216 - SCREW BDE-860093-04.A11 860093-04	£1.88	£2.26
217 - BEARING 608 BDE-N110358.A81 N110358	£3.32	£3.99
218 - WASHER BDE-860076-03.A21 860076-03	£1.66	£1.99
219 - WASHER BDE-860076-03.A22 860076-03	£1.66	£1.99
220 - PULLEY BDE-862186-90.A6 862186-90	£26.47	£31.76
221 - PULLEY SA BDE-867072-00.A9 867072-00	£30.98	£37.18
222 - WASHER BDE-860074-03.A373 860074-03	£1.66	£1.99
223 - WASHER BDE-945633-00.A7 945633-00	-
224 - CAP BDE-863127-01.A1 863127-01	£9.69	£11.63
225 - SPRING BDE-863274-00.A2 863274-00	£1.66	£1.99
228 - SUPPORT SA BDE-862449-00.A1 862449-00	£99.44	£119.33
230 - NUT BDE-860083-02.A29 860083-02	£1.66	£1.99
231 - SCREW BDE-860085-11.A12 860085-11	£1.66	£1.99
232 - NUT BDE-860083-02.A30 860083-02	£1.66	£1.99
233 - WASHER BDE-860073-01.A74 860073-01	£1.66	£1.99
234 - LABEL BDE-863220-02.A0 863220-02	£2.71	£3.25
235 - CAP BDE-863112-00.A60 863112-00	£1.66	£1.99
846 - PARTS PACK SA BDE-864782-01.A3 864782-01	£35.02	£42.02
