Dewalt DCS371 Type 1 Bandsaw Spare Parts

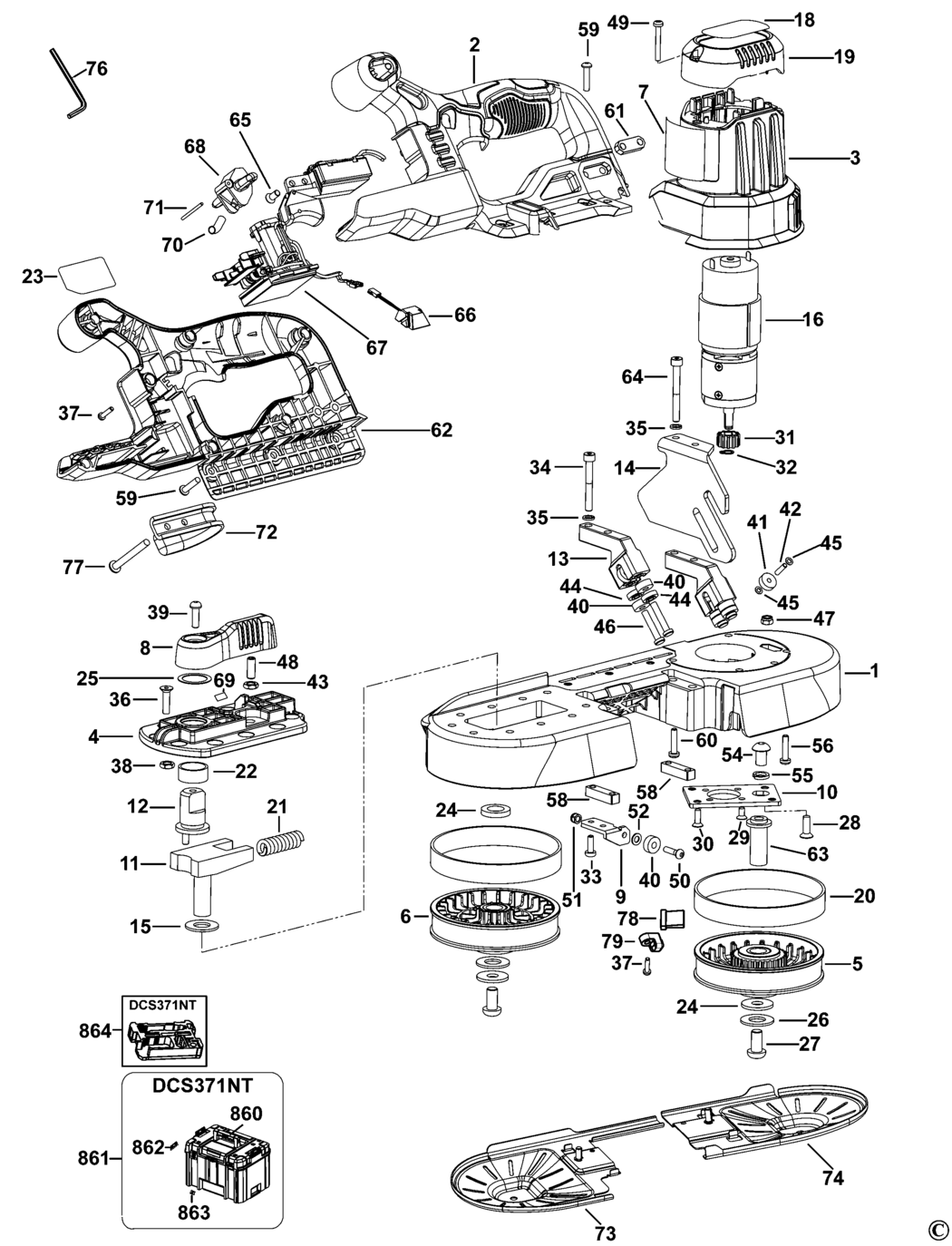

An exploded drawing and spare parts listing for the Dewalt DCS371 Type 1 Bandsaw

	Ex VAT	Inc VAT
1 - BASE GB BDE-N388446 N388446	£80.98	£97.18
2 - HANDLE COVER BDE-N260742 N260742	£41.24	£49.49
3 - HOUSING MOTOR BDE-N071023 N071023	£24.39	£29.27
4 - COVERPLATE BDE-N271599 N271599	£30.08	£36.10
5 - DRIVER SA BDE-N270220 N270220	£74.15	£88.98
6 - WHEEL BDE-N270221 N270221	£58.69	£70.43
7 - WARNING LABEL GB BDE-N333439 N333439	£1.50	£1.80
8 - LEVER BDE-N271605 N271605	£7.18	£8.62
9 - BRACKET BDE-N270289 N270289	£1.50	£1.80
10 - PLATE SA INC 635455 BDE-N272128.A1 N272128	£14.57	£17.48
11 - BLOCK SA BDE-N271621 N271621	£19.90	£23.88
12 - CAM BDE-N271606 N271606	£7.85	£9.42
13 - GUIDE BLOCK BDE-N270285 N270285	£12.17	£14.60
14 - FENCE BDE-N272132 N272132	£30.08	£36.10
15 - SPACER BDE-N271625 N271625	£1.50	£1.80
16 - MOTOR & GEARCASE GB BDE-N343759 N343759	£131.46	£157.75
18 - BRAND LABEL BDE-N333499 N333499	£1.50	£1.80
19 - END CAP BDE-N071024 N071024	£7.85	£9.42
20 - WHEEL UPPER BAND BDE-N270205 N270205	£5.88	£7.06
21 - SPRING BDE-N271622 N271622	£7.18	£8.62
22 - BUSHING BDE-N271601 N271601	£4.69	£5.63
23 - RATING PLATE GB BDE-N399826 N399826	£1.50	£1.80
24 - WASHER NYLON BDE-N271623 N271623	£1.50	£1.80
25 - WASHER BOW BDE-N271602 N271602	£1.50	£1.80
26 - WASHER BDE-N271624 N271624	£1.50	£1.80
27 - SCREW BDE-N271626 N271626	£1.50	£1.80
28 - SCREW BDE-N272122 N272122	£1.50	£1.80
29 - SCREW BDE-N271627 N271627	£1.50	£1.80
30 - SCREW BDE-N271639 N271639	£1.50	£1.80
31 - PINION BDE-N266472 N266472	£14.57	£17.48
32 - RETAINER BDE-N266473 N266473	£1.50	£1.80
33 - SCREW BDE-N271620 N271620	£1.50	£1.80
34 - SCREW BDE-N271659 N271659	£1.50	£1.80
35 - WASHER LOCK BDE-N271660 N271660	£1.50	£1.80
36 - SCREW BDE-N272119 N272119	£1.50	£1.80
37 - SCREW BDE-N270199 N270199	£1.50	£1.80
38 - NUT M5 BDE-N272120 N272120	£1.50	£1.80
39 - SCREW BDE-N271607 N271607	£1.50	£1.80
40 - BEARING BDE-N270279 N270279	£3.30	£3.96
41 - BEARING BDE-N270280 N270280	£4.69	£5.63
42 - DOWEL BDE-N270281 N270281	£1.50	£1.80
43 - NUT M6 BDE-N271603 N271603	£1.50	£1.80
44 - ROLLER BDE-N270282 N270282	£3.30	£3.96
45 - WASHER THRUST BDE-N270283 N270283	£1.50	£1.80
46 - SCREW BDE-N270284 N270284	£1.50	£1.80
47 - STOP NUT BDE-N123103.A2 N123103	£1.50	£1.80
48 - SCREW BDE-N271604 N271604	£1.50	£1.80
49 - SCREW BDE-N272126 N272126	£1.50	£1.80
50 - SCREW BDE-N270286 N270286	£1.50	£1.80
51 - NUT BDE-N270287 N270287	£1.50	£1.80
52 - WASHER BDE-N270288 N270288	£1.50	£1.80
54 - SCREW BDE-N271610 N271610	£1.50	£1.80
55 - WASHER BDE-N271611 N271611	£1.50	£1.80
56 - SCREW BDE-N272123 N272123	£1.50	£1.80
58 - GUIDE BLOCK BDE-N272134 N272134	£1.50	£1.80
59 - SCREW BDE-N272125 N272125	£1.50	£1.80
60 - SCREW BDE-N272124 N272124	£1.50	£1.80
61 - PLATE BDE-N053823 N053823	£1.50	£1.80
62 - LOWER HANDLE BDE-N260741 N260741	£41.24	£49.49
63 - PLATE SA BDE-N272128.A0 N272128	£14.57	£17.48
64 - SCREW BDE-N271661 N271661	£1.50	£1.80
65 - SCREW BDE-330019-40.A7 330019-40	£1.50	£1.80
66 - LED LIGHT BDE-N272137 N272137	£10.85	£13.02
67 - ELECTRONIC & SWITCH GB BDE-N314180 N314180	£65.52	£78.62
68 - BUTTON LOCK-OFF BDE-605107-00.A7 605107-00	£3.80	£4.56
69 - LABEL BDE-N333519 N333519	£1.50	£1.80
70 - SPRING BDE-389120-00.A6 389120-00	£2.26	£2.71
71 - PIN BDE-388531-00.A3 388531-00	£1.50	£1.80
72 - HOOK BDE-651744-00.A1 651744-00	£3.80	£4.56
73 - GUARD SA GB BDE-N381410 N381410	£37.35	£44.82
74 - GUARD SA GB BDE-N381405 N381405	£34.00	£40.80
76 - HEX KEY 3 MM BDE-N272127 N272127	£2.78	£3.34
77 - SCREW BDE-N270202 N270202	£1.50	£1.80
78 - WIPER BDE-N401363 N401363	£2.26	£2.71
79 - COVER BDE-N401362 N401362	£1.50	£1.80
860 - HANDLE DCS371NT BDE-H1400198008.A33 H1400198008	£3.75	£4.50
861 - KITBOX DCS371NT BDE-N445186.A4 N445186	£71.44	£85.73
862 - LATCH DCS371NT BDE-N409477.A84 N409477	£1.66	£1.99
863 - LATCH DCS371NT BDE-P910190.A79 P910190	£9.41	£11.29
864 - INSERT DCS371NT BDE-MP16987 MP16987	£24.39	£29.27
