Dewalt DW266 Type 3 Screwdriver Spare Parts

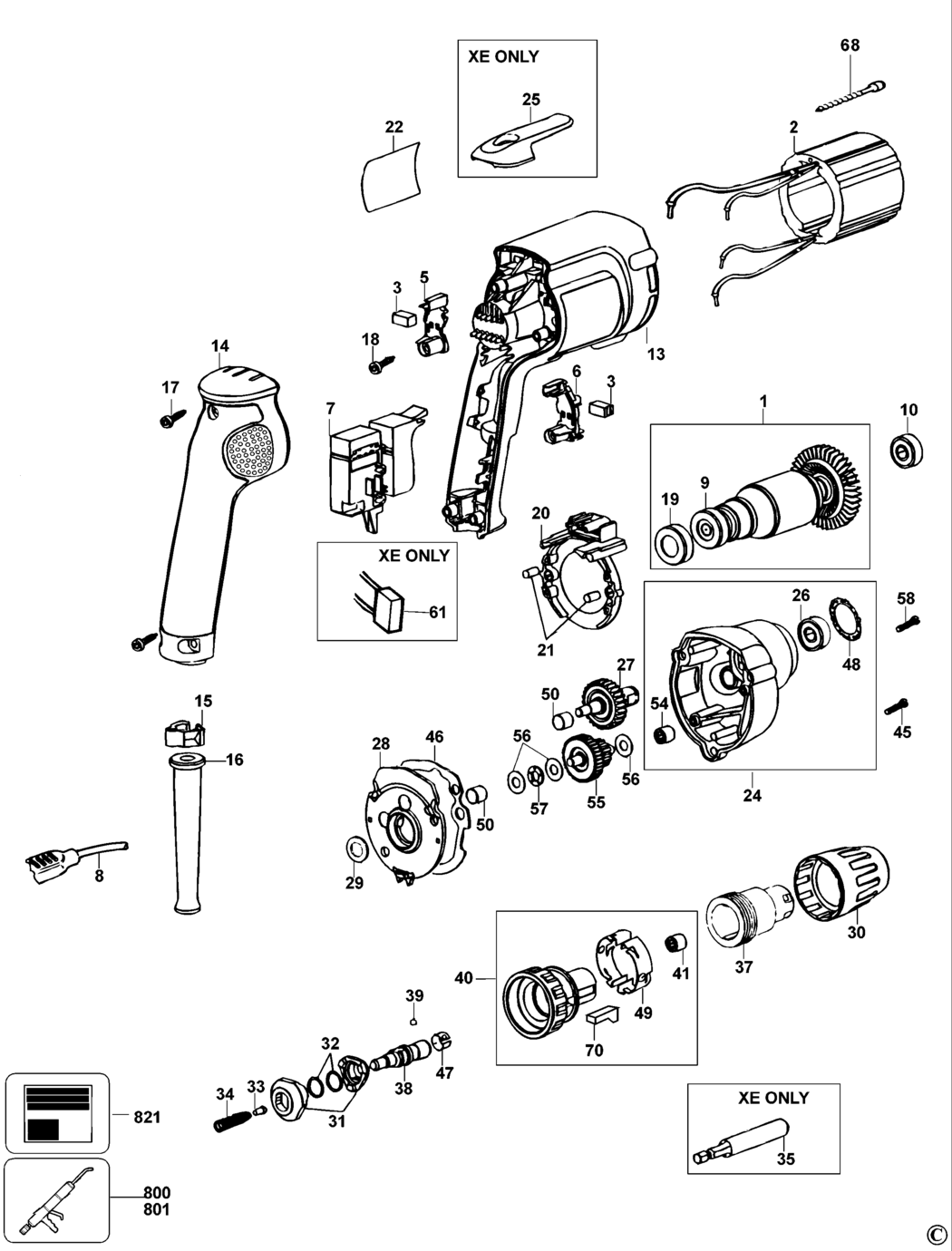

An exploded drawing and spare parts listing for the Dewalt DW266 Type 3 Screwdriver

	Ex VAT	Inc VAT
3 - BRUSH KIT 230V BDE-578393-02.A39 578393-02	£14.57	£17.48
7 - SWITCH BDE-176830-15.A1 176830-15	-
9 - BEARING BDE-605040-06.A319 605040-06	£3.80	£4.56
10 - BEARING BDE-605040-06.A320 605040-06	£3.80	£4.56
13 - FIELD CASE BDE-N014399.A6 N014399	£12.17	£14.60
14 - HANDLE COVER BDE-176816-03.A6 176816-03	£14.57	£17.48
16 - CORD PROTECTOR BDE-N542553.A19 N542553	£3.80	£4.56
17 - SCREW BDE-330019-13.A209 330019-13	£1.50	£1.80
18 - SCREW BDE-330065-06.A114 330065-06	£1.50	£1.80
19 - BOOT BDE-389824-00.A2 389824-00	£1.50	£1.80
20 - BAFFLE BDE-176811-00.A133 176811-00	£1.50	£1.80
21 - DAMPER BDE-949638-02.A175 949638-02	£1.50	£1.80
22 - BRAND LABEL BDE-395047-00.A132 395047-00	£1.50	£1.80
24 - GEARCASE SA BDE-176709-00SV.A1 176709-00SV	£38.80	£46.56
26 - BEARING BDE-605040-20.A91 605040-20	£4.69	£5.63
27 - SPINDLE & GEAR BDE-176708-00SV.A22 176708-00SV	£30.08	£36.10
28 - GEARCASE COVER BDE-388761-00.A39 388761-00	£4.69	£5.63
29 - WASHER BDE-23813-00.A28 23813-00	£1.50	£1.80
30 - COLLAR BDE-152492-01.A1 152492-01	£5.88	£7.06
31 - CLUTCH BDE-603478-00.A8 603478-00	£5.88	£7.06
32 - RETAINER BDE-089210-00.A11 089210-00	£1.50	£1.80
33 - GUIDE BDE-021287-00.A50 021287-00	£1.50	£1.80
34 - SPRING BDE-86211-00.A8 86211-00	£1.50	£1.80
37 - LOCATOR BDE-448862-01.A12 448862-01	£30.08	£36.10
38 - SPINDLE BDE-176697-00.A27 176697-00	£7.85	£9.42
39 - BALL BDE-696631-00.A51 696631-00	£1.50	£1.80
40 - HOUSING BDE-N543023.A0 N543023	£16.03	£19.24
41 - SLEEVE BEARING BDE-448848-00.A1 448848-00	£3.30	£3.96
45 - SCREW BDE-330019-14.A165 330019-14	£1.50	£1.80
46 - GASKET BDE-176655-00.A23 176655-00	£4.69	£5.63
47 - RETAINER BDE-94518-00.A33 94518-00	£1.50	£1.80
48 - RETAINER BDE-87692-00.A39 87692-00	£1.42	£1.70
49 - SPRING BDE-391436-00.A39 391436-00	£1.50	£1.80
50 - BEARING BDE-910560.A0 910560	£1.50	£1.80
54 - BEARING NEEDLE BDE-93129-00.A6 93129-00	£1.50	£1.80
55 - SPINDLE & GEAR BDE-176731-00SV.A3 176731-00SV	£34.00	£40.80
56 - WASHER BDE-176732-00.A31 176732-00	£1.50	£1.80
57 - BEARING THRUST BDE-143079-00.A32 143079-00	£1.50	£1.80
58 - SCREW.TEMP BDE-330019-16.A76 330019-16	£1.50	£1.80
68 - SCREW BDE-90611830.A50 90611830	£1.50	£1.80
70 - PLUG BDE-390437-01.A6 390437-01	£9.41	£11.29
800 - GREASE 100 GMS BDE-575762-02.A36 575762-02	£7.85	£9.42
801 - GREASE 90 GMS BDE-870889-02.A289 870889-02	£7.85	£9.42
