Dewalt DCF680 Type 1 Screwdriver Spare Parts

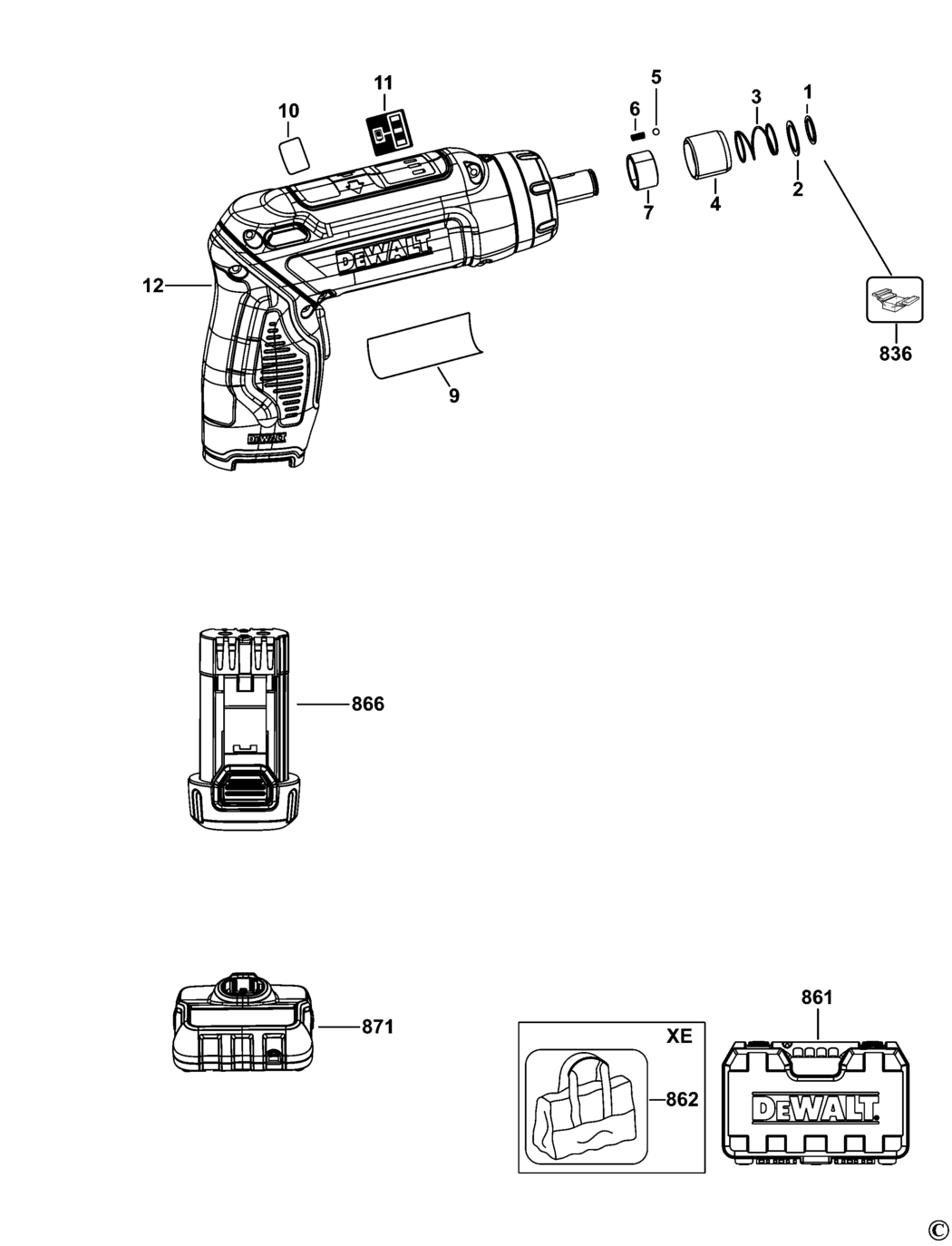

An exploded drawing and spare parts listing for the Dewalt DCF680 Type 1 Screwdriver

	Ex VAT	Inc VAT
1 - RETAINER BDE-N035362.A4 N035362	£1.50	£1.80
1 - HOUSING SA BDE-N238739 N238739	-
2 - WASHER BDE-N032311.A8 N032311	£1.50	£1.80
2 - MOTOR & PINION BDE-N339520 N339520	-
3 - GEARCASE SA BDE-N301399 N301399	-
3 - SPRING BDE-N020154.A1 N020154	£1.50	£1.80
4 - SLEEVE BDE-N020153.A9 N020153	£3.30	£3.96
5 - BALL STEEL BDE-N022764.A2 N022764	£1.50	£1.80
6 - SPRING BDE-N020157.A9 N020157	£1.50	£1.80
7 - SPACER BDE-N025972.A1 N025972	£1.50	£1.80
9 - RATING PLATE GB BDE-N233538 N233538	£1.50	£1.80
9 - SPRING BDE-N020157.A10 N020157	£1.50	£1.80
10 - LABEL BDE-N273383.A1 N273383	£1.50	£1.80
10 - BALL STEEL BDE-N022764.A1 N022764	£1.50	£1.80
11 - LABEL BDE-N205539.A1 N205539	£1.50	£1.80
11 - SPACER BDE-N025972.A0 N025972	£1.50	£1.80
12 - EXCHANGE UNIT GB BDE-N382806 N382806	£144.10	£172.92
12 - SLEEVE BDE-N020153.A10 N020153	£3.30	£3.96
13 - SPRING BDE-N020154.A0 N020154	£1.50	£1.80
14 - WASHER BDE-N032311.A7 N032311	£1.50	£1.80
15 - RETAINER BDE-N055051.A0 N055051	£1.50	£1.80
24 - SCREW FOR MOTOR ADAPTOR BDE-N287239 N287239	-
25 - PIN BDE-N167618 N167618	-
26 - ADAPTOR BDE-N164783 N164783	-
27 - TRIGGER BDE-N169284 N169284	-
28 - SPRING BDE-N168245 N168245	-
37 - PCB SA BDE-N301400 N301400	-
43 - COLLAR BDE-N169268 N169268	-
44 - COVER BDE-N169270 N169270	-
45 - RING BDE-N167402 N167402	-
46 - COMMUTATOR RING BDE-N167405 N167405	-
47 - SPRING BDE-N169269 N169269	-
48 - GROMMET BDE-N216092 N216092	-
49 - PAD BDE-N218900 N218900	-
50 - SCREW BDE-330019-28.A3 330019-28	£1.50	£1.80
51 - CLIP BDE-N215832 N215832	-
74 - DETENT BDE-N169280 N169280	-
75 - SLIDER BDE-N169279 N169279	-
836 - S.T.CIRCLIP INSERTER BDE-1003940-99.A14 1003940-99	£96.55	£115.86
861 - KITBOX GB BDE-N254739 N254739	£30.08	£36.10
862 - BAG BDE-N294699.A1 N294699	£14.57	£17.48
866 - BATTERY 7.2V - 1AH GB BDE-N331719.A2 N331719	£44.14	£52.97
871 - CHARGER 7.2V GB GB BDE-N331739.A0 N331739	£71.44	£85.73
